Sun And Shell Assembly - Disassembly: Assembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The one-way clutch assembly must be assembled in a specific order.
  1. Assemble the one-way clutch.
    1. The lower cap lip must face up.
    2. The low one-way clutch outer race groove must face up.
    3. The low one-way clutch shoulder must face up.
    4. The upper cap lip must face down.

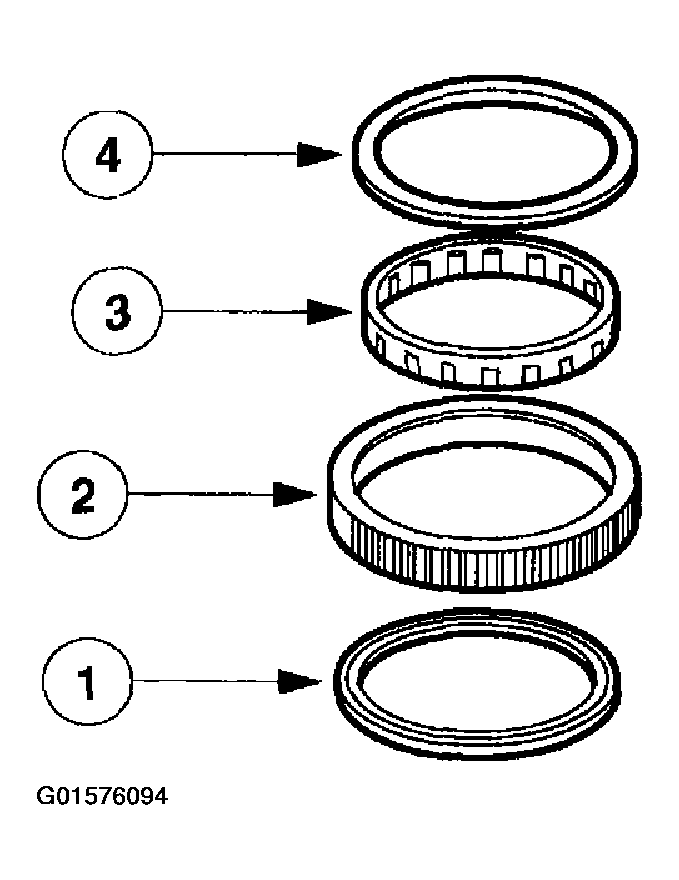

      Fig 1: Assembling One-Way Clutch
      G01576094Courtesy of FORD MOTOR CO.
    2. CAUTION: The outer race must rotate counterclockwise. Make sure end caps are fully seated.
  2. Install the low one-way clutches as an assembly with the groove facing up.
    1. The groove in the one-way clutch outer race must face up.
    2. The one-way clutch outer race must rotate counterclockwise.

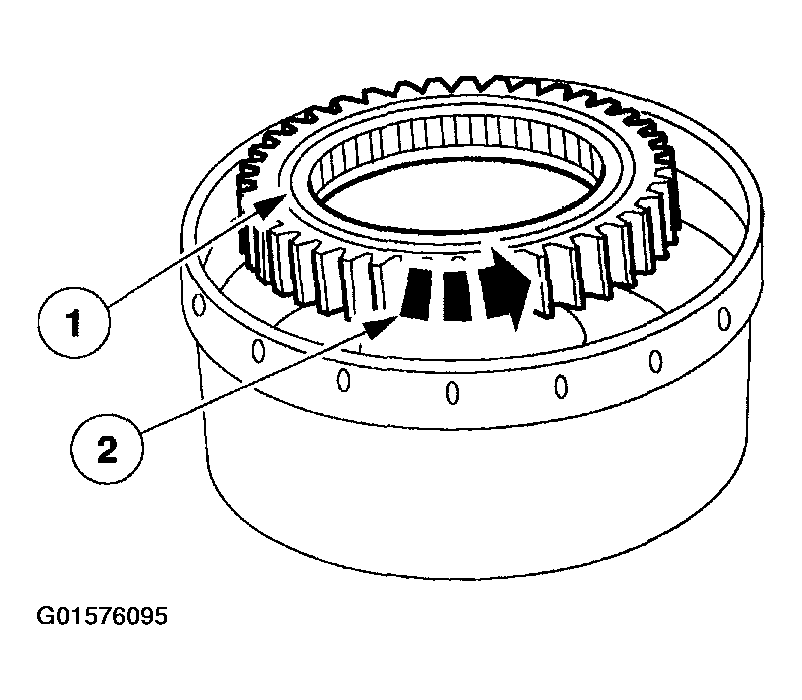

      Fig 2: Installing low one-way clutches
      G01576095Courtesy of FORD MOTOR CO.
