Neutral Drive Accumulator

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

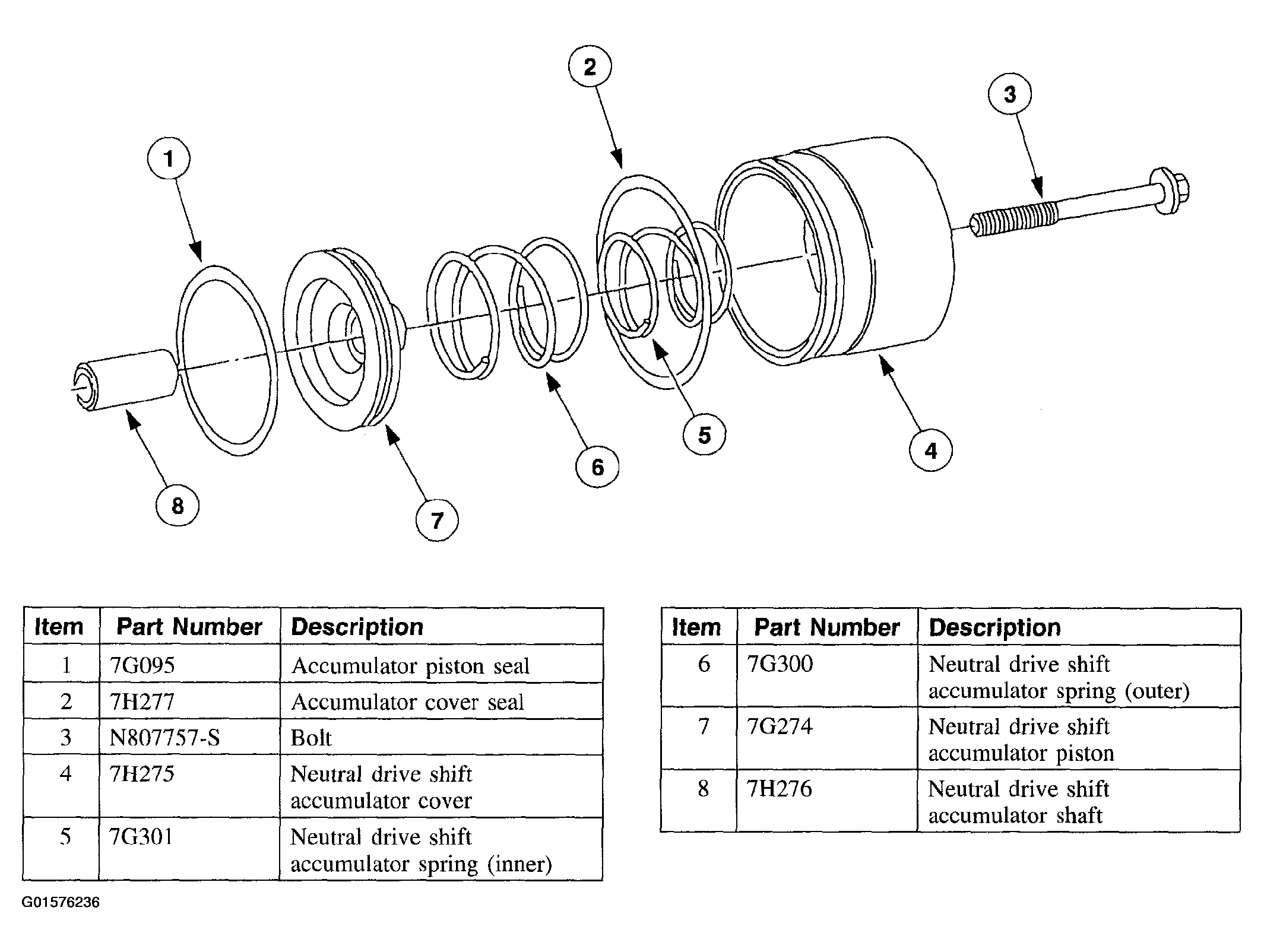

Fig 1: Exploded View Of Neutral Drive Accumulator
G01576236Courtesy of FORD MOTOR CO.
  1. Lightly coat the seals with petroleum jelly prior to installation.
    • Remove and install a new neutral drive accumulator piston seal.
    • Remove and install a new neutral drive accumulator cover seal.
      Fig 2: Removing And Installing Neutral Drive Accumulator Cover Seal And Piston Seal
      G01576237Courtesy of FORD MOTOR CO.
