Low-Intermediate One-Way Clutch: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the low-intermediate one-way clutch assembly.
    Fig 1: Removing Low-Intermediate One-Way Clutch Assembly
    G01576203Courtesy of FORD MOTOR CO.

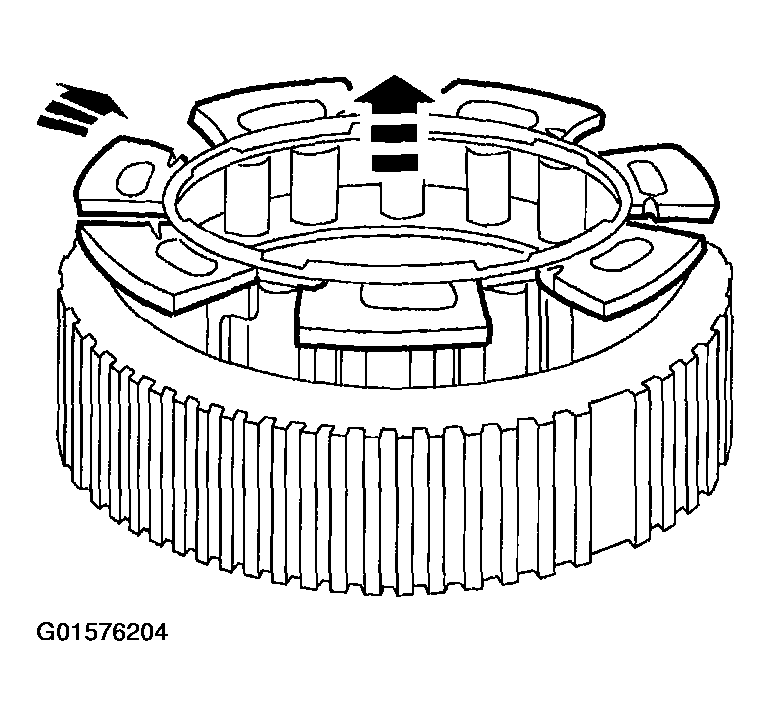

  2. Remove the low-intermediate one-way clutch roller and cage. Rotate clockwise to unlock.
    Fig 2: Removing Low-Intermediate One-Way Clutch Roller And Cage
    G01576204Courtesy of FORD MOTOR CO.
