Driven Sprocket Support: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Teflon® seal rings and the No. 5 thrust washer.

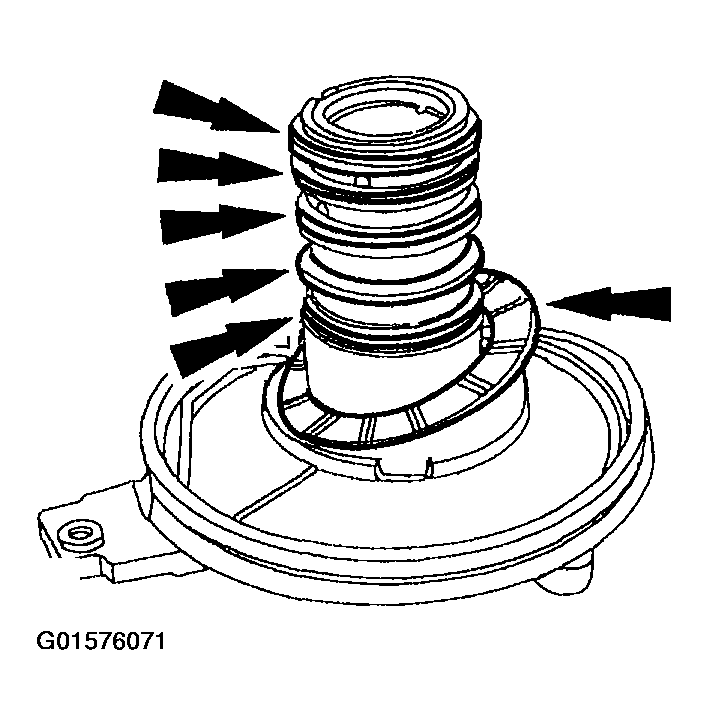

    Fig 1: Removing Teflon® Seal Rings And Thrust Washer
    G01576071Courtesy of FORD MOTOR CO.
    2. NOTE: If the driven sprocket bearing is damaged a new driven sprocket bearing should be installed.

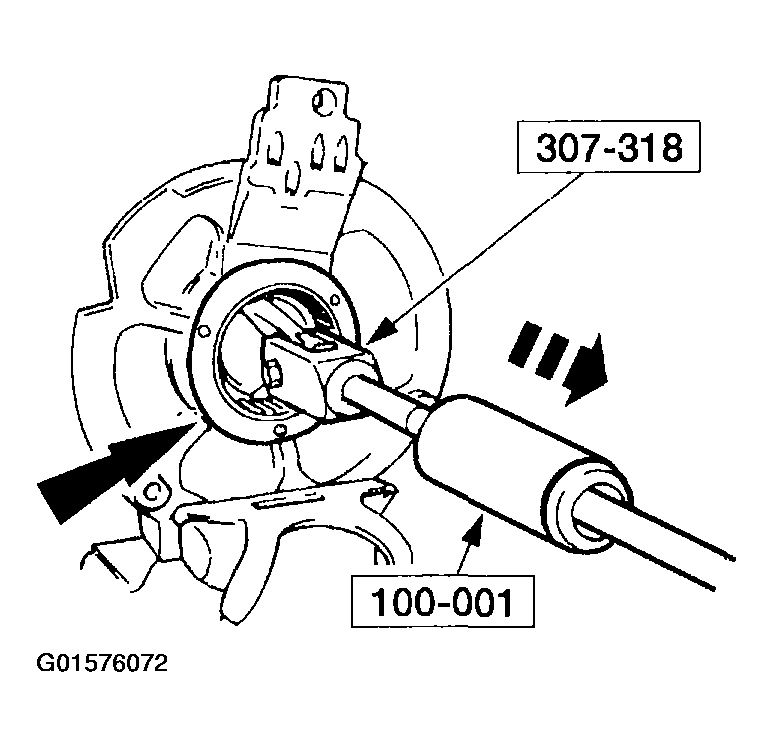

    Fig 2: Removing Driven Sprocket Bearing
    G01576072Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the driven sprocket bearing.
