Driven Sprocket Support: Assembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

If removed, install a new driven sprocket bearing. Using the special tools and an arbor press install a new driven sprocket bearing.

Fig 1: Installing Driven Sprocket Bearing
Courtesy of FORD MOTOR CO.

Fig 2: Positioning Seal Rings
Courtesy of FORD MOTOR CO.

CAUTION: The seal rings must be installed correctly. Transmission failure could result.

NOTE: Make sure that the seals are mated correctly.

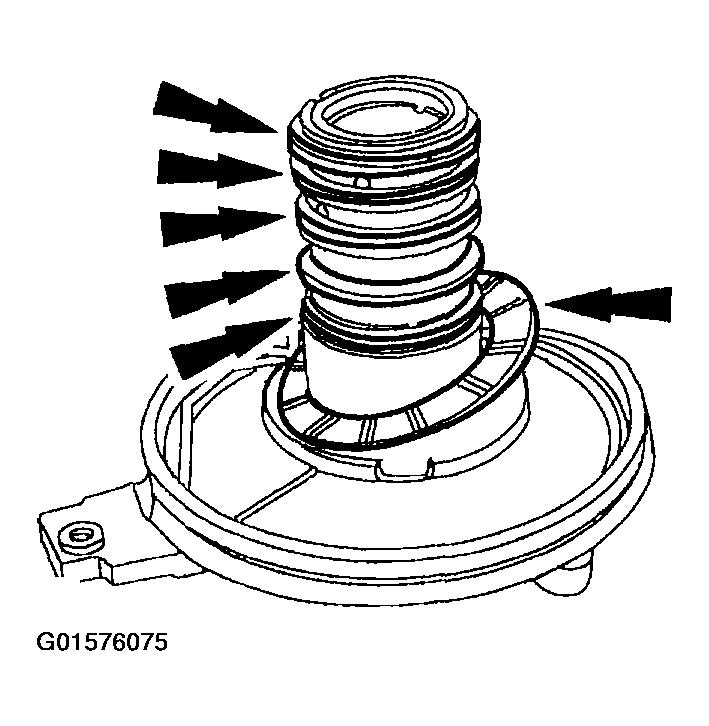

Fig 3: Installing Teflon® Seals And Thrust Washer

Courtesy of FORD MOTOR CO.

Install new Teflon® seals and the No. 5 thrust washer.
