Drive Sprocket/Turbine Shaft: Assembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure that the seals are mated correctly.
    Fig 1: Inspecting Seals Are Mated Correctly
    G01576083Courtesy of FORD MOTOR CO.
  2. Install the drive sprocket / turbine shaft seal and O-ring.
    • Install the drive sprocket / turbine shaft O-ring.
    • Install the drive sprocket / turbine shaft seal.

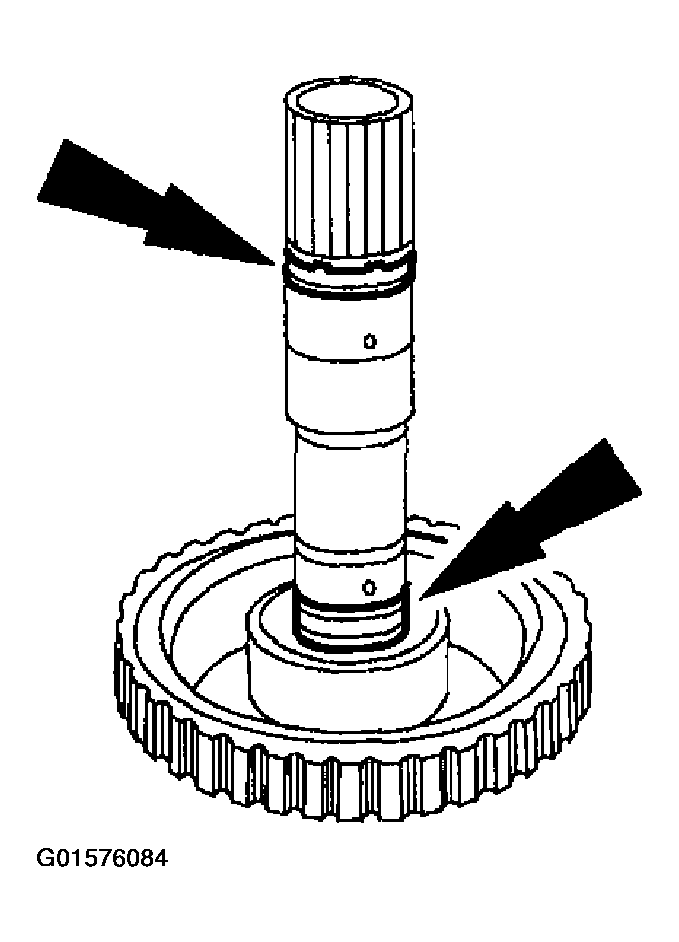

      Fig 2: Installing Drive Sprocket/Turbine Shaft Seal And O-Ring
      G01576084Courtesy of FORD MOTOR CO.
  3. Install the turbine shaft front seal.

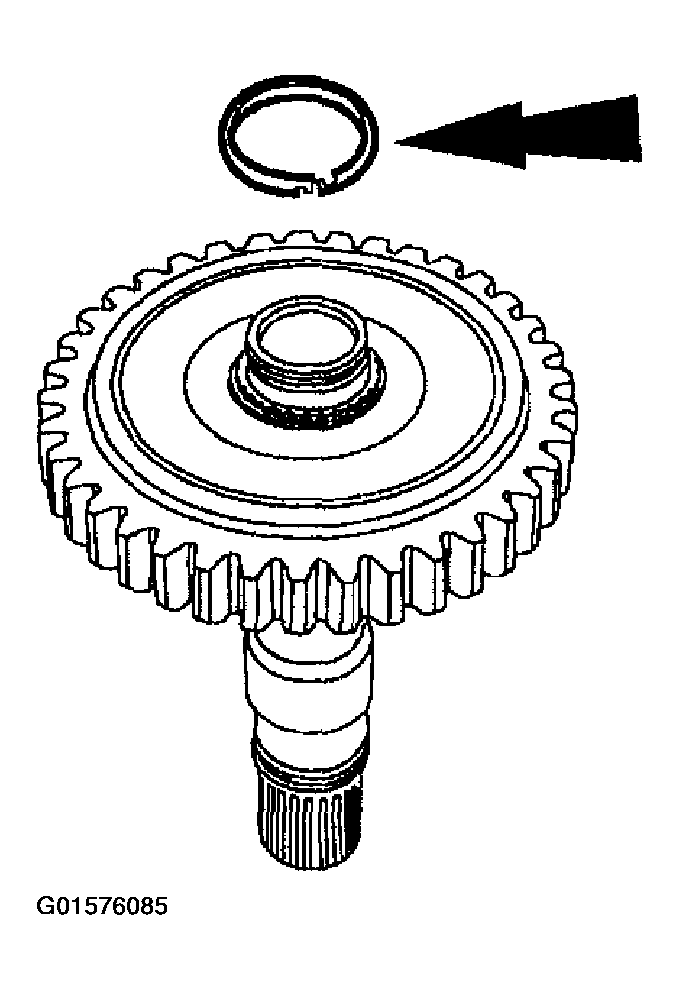

    Fig 3: Installing Turbine Shaft Front Seal
    G01576085Courtesy of FORD MOTOR CO.
  4. Make sure that the seal is locked correctly.
    Fig 4: Inspecting Seal Is Locked Correctly
    G01576086Courtesy of FORD MOTOR CO.
