Coast Band Servo

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Inspect the seals on the coast servo piston and rod, and the coast servo cover, for damage. If the seals are damaged a new piston, rod, and the coast servo cover are installed as an assembly.

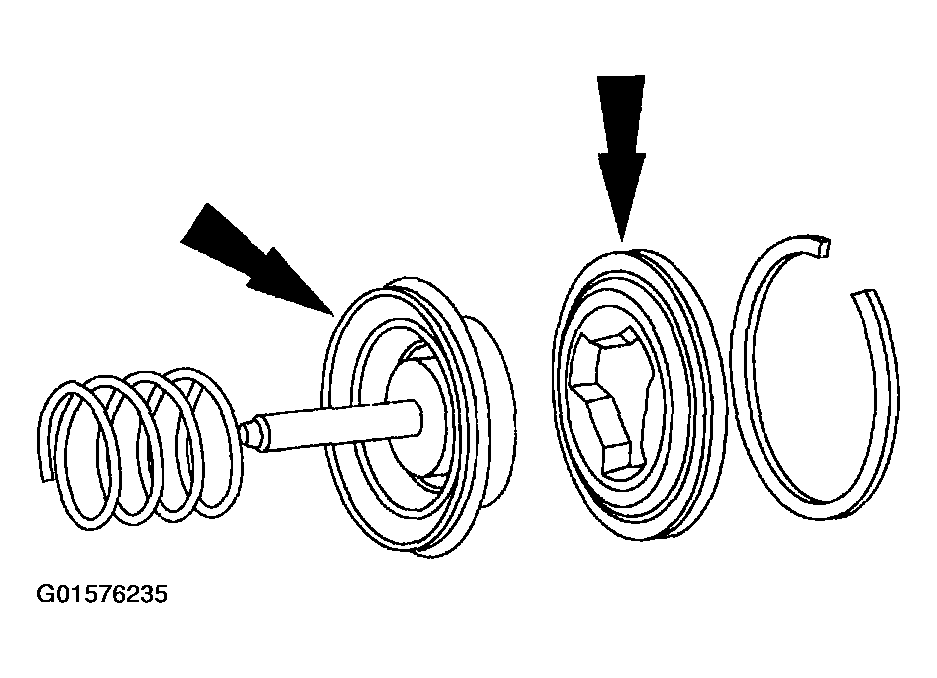

    Fig 1: Inspecting Seals
    G01576235Courtesy of FORD MOTOR CO.
  1. Inspect the seals.
