Digital Transmission Range (TR) Sensor Connector

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

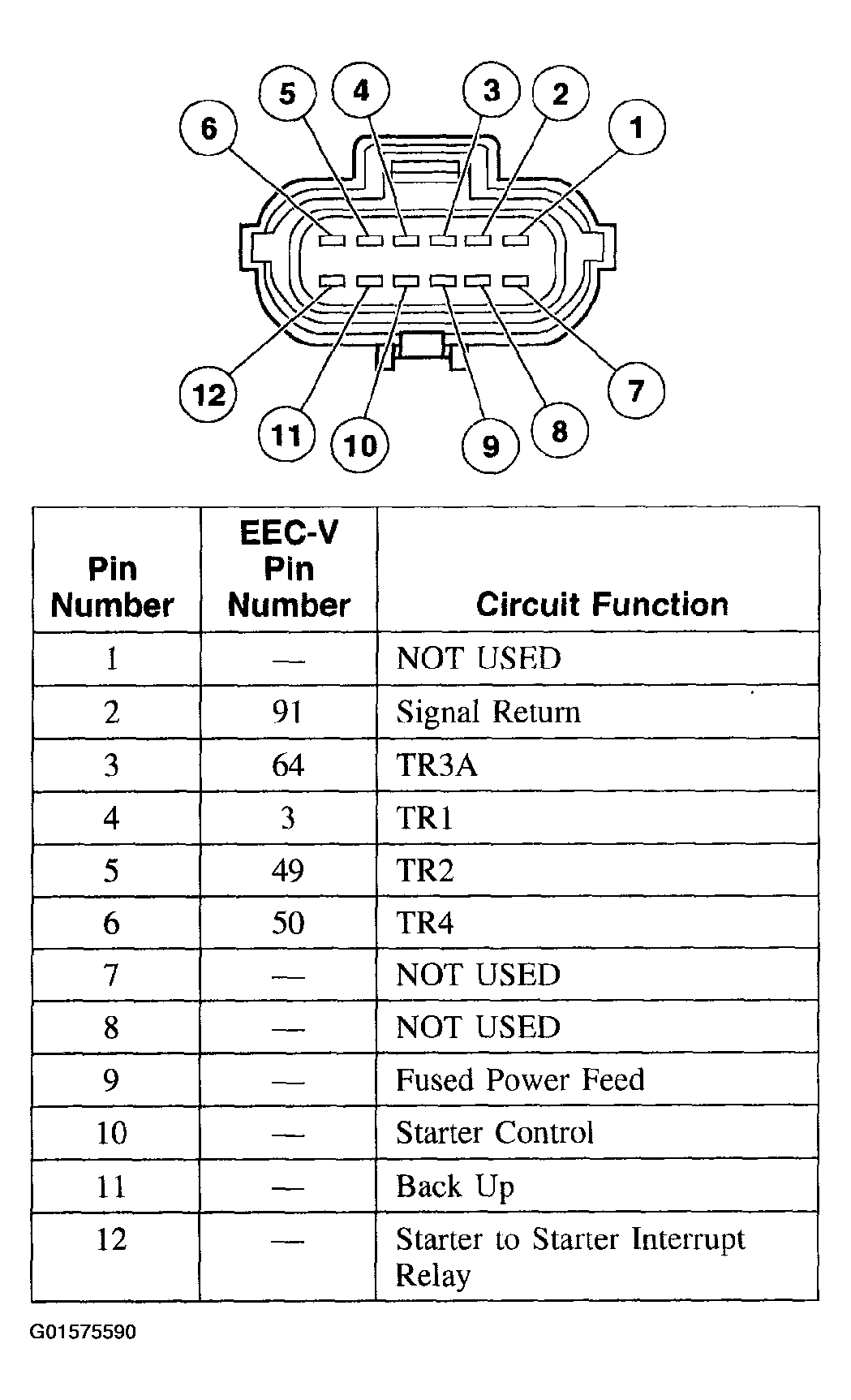

Fig 1: Identifying Digital Transmission Range (TR) Sensor Connector Pin
G01575590Courtesy of FORD MOTOR CO.
