Shift Solenoid Failure Mode Chart "Always On"

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Failed ON due to powertrain control module and/or vehicle wiring concerns; solenoid electrically or mechanically stuck on.

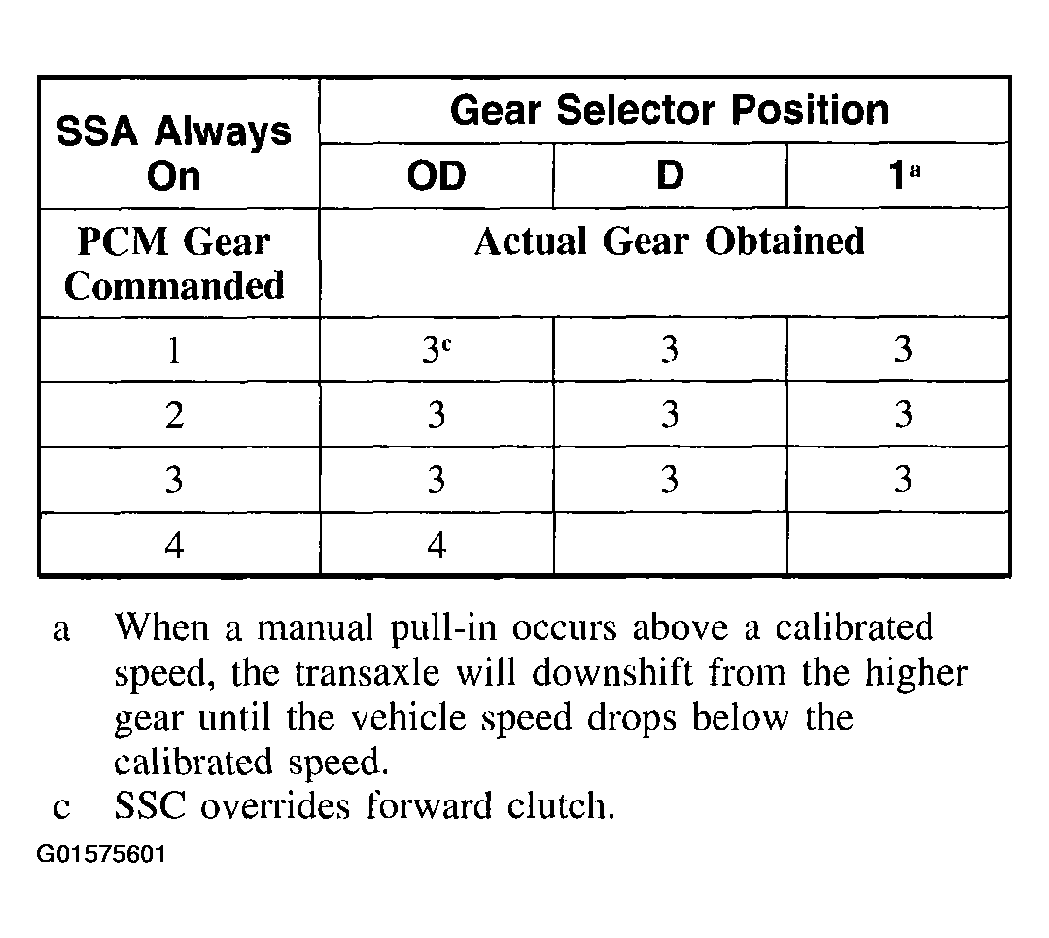

Fig 1: Identifying Shift Solenoid Failure Mode Chart - Always On (SSA)

Courtesy of FORD MOTOR CO.

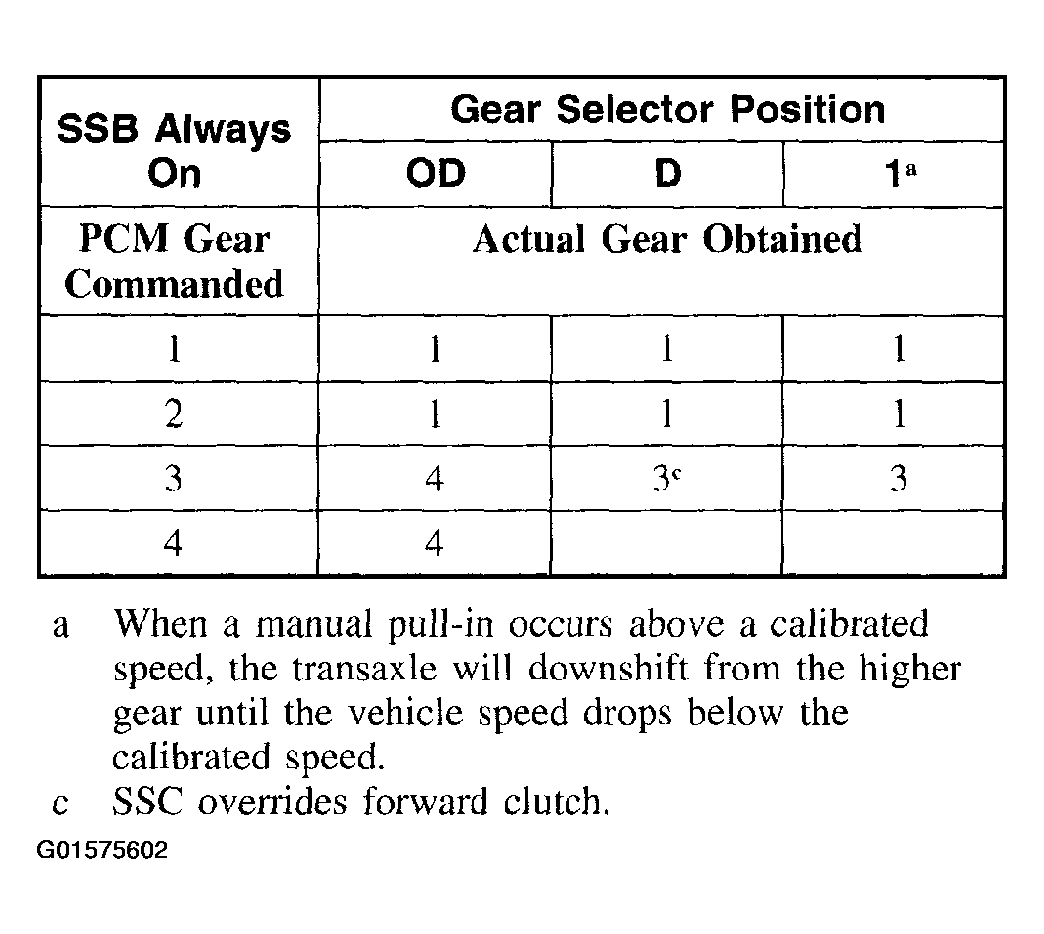

Fig 2: Identifying Shift Solenoid Failure Mode Chart - Always On (SSB)

Courtesy of FORD MOTOR CO.

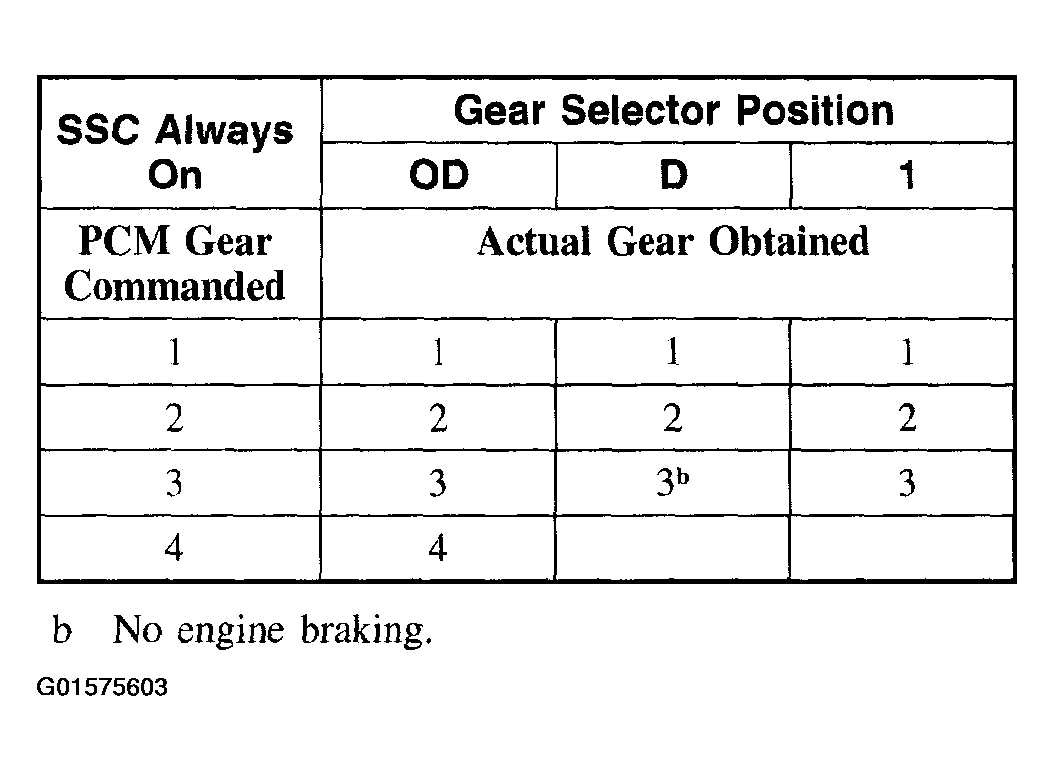

Fig 3: Identifying Shift Solenoid Failure Mode Chart - Always On (SSC)

Courtesy of FORD MOTOR CO.
