Shift Solenoid Failure Mode Chart "Always Off"

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Failed OFF due to powertrain control module and/or vehicle wiring concerns, and/or solenoid electrically stuck off and/or hydraulically stuck off.

Fig 1: Identifying Shift Solenoid Failure Mode Chart - Always Off (SSA)
G01575598Courtesy of FORD MOTOR CO.

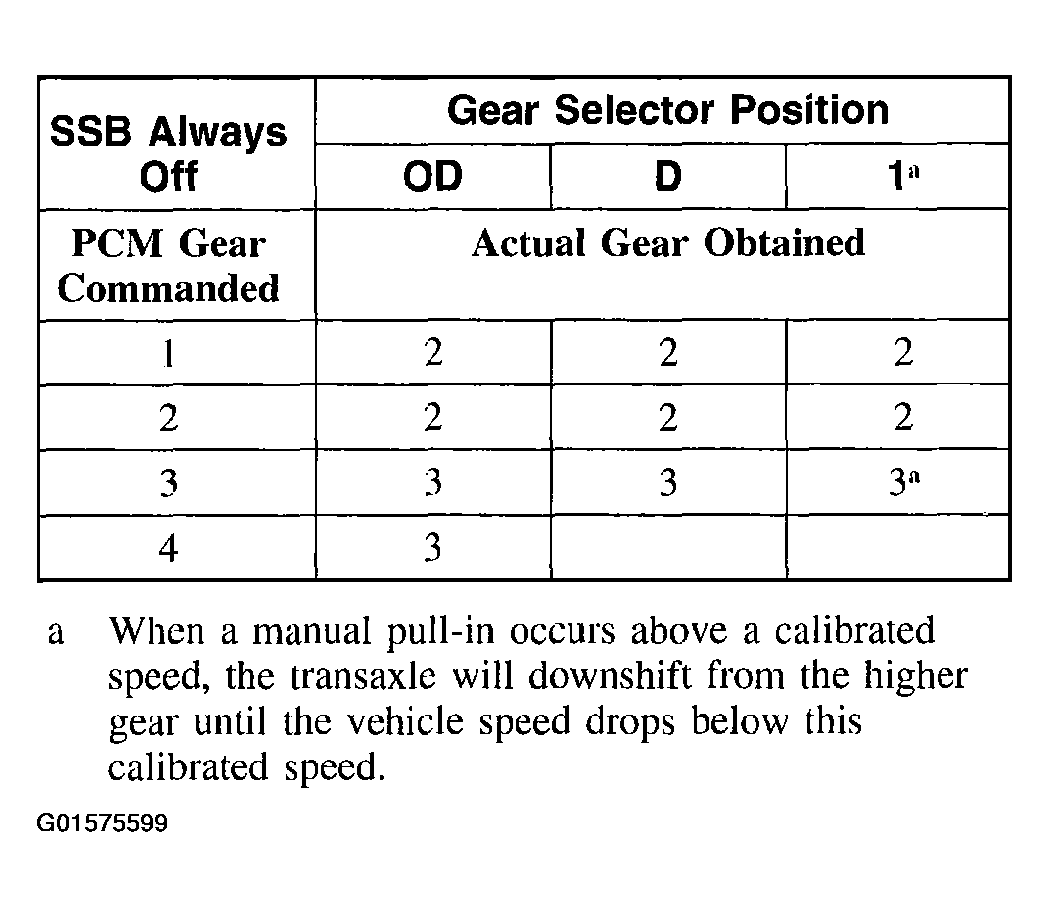

Fig 2: Identifying Shift Solenoid Failure Mode Chart - Always Off (SSB)
G01575599Courtesy of FORD MOTOR CO.

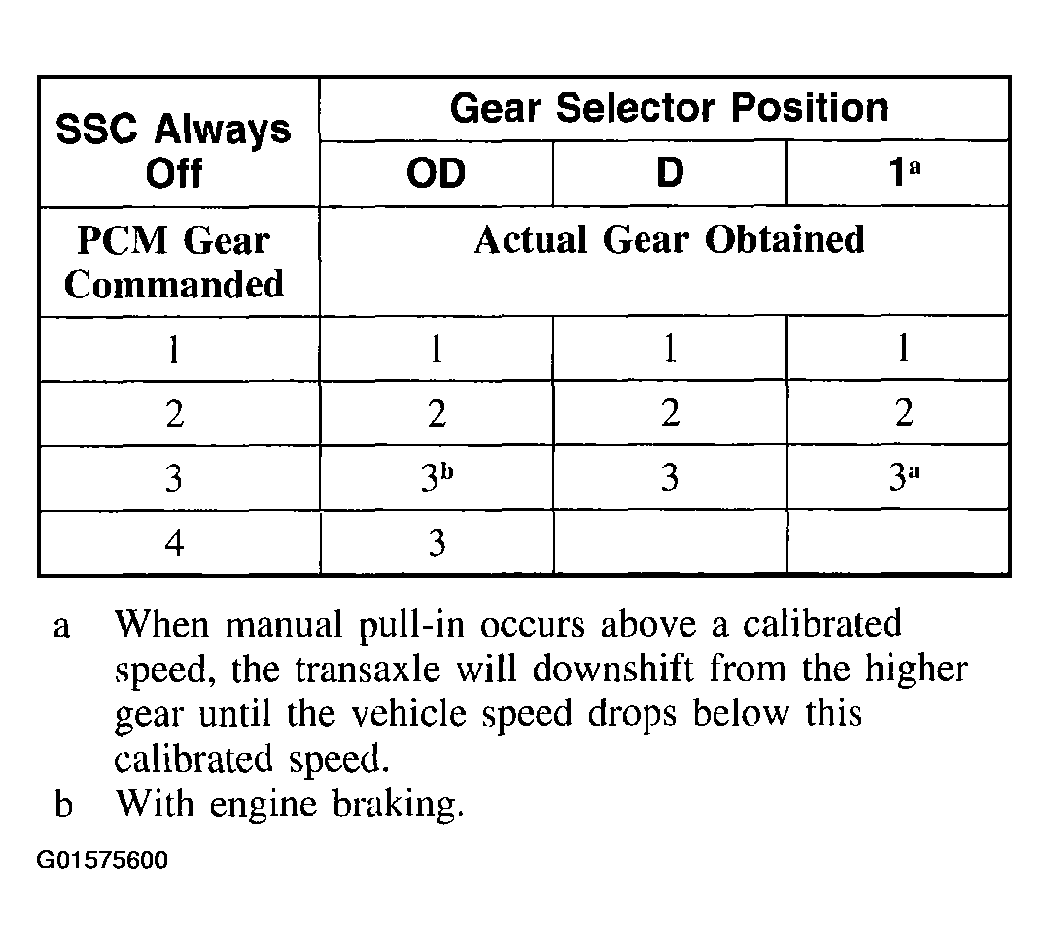

Fig 3: Identifying Shift Solenoid Failure Mode Chart - Always Off (SSC)
G01575600Courtesy of FORD MOTOR CO.
