Pinpoint Test G: Output Shaft Speed (OSS) Sensor

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Output Shaft Speed Sensor Harness Connector Illustration preceding these pinpoint tests.

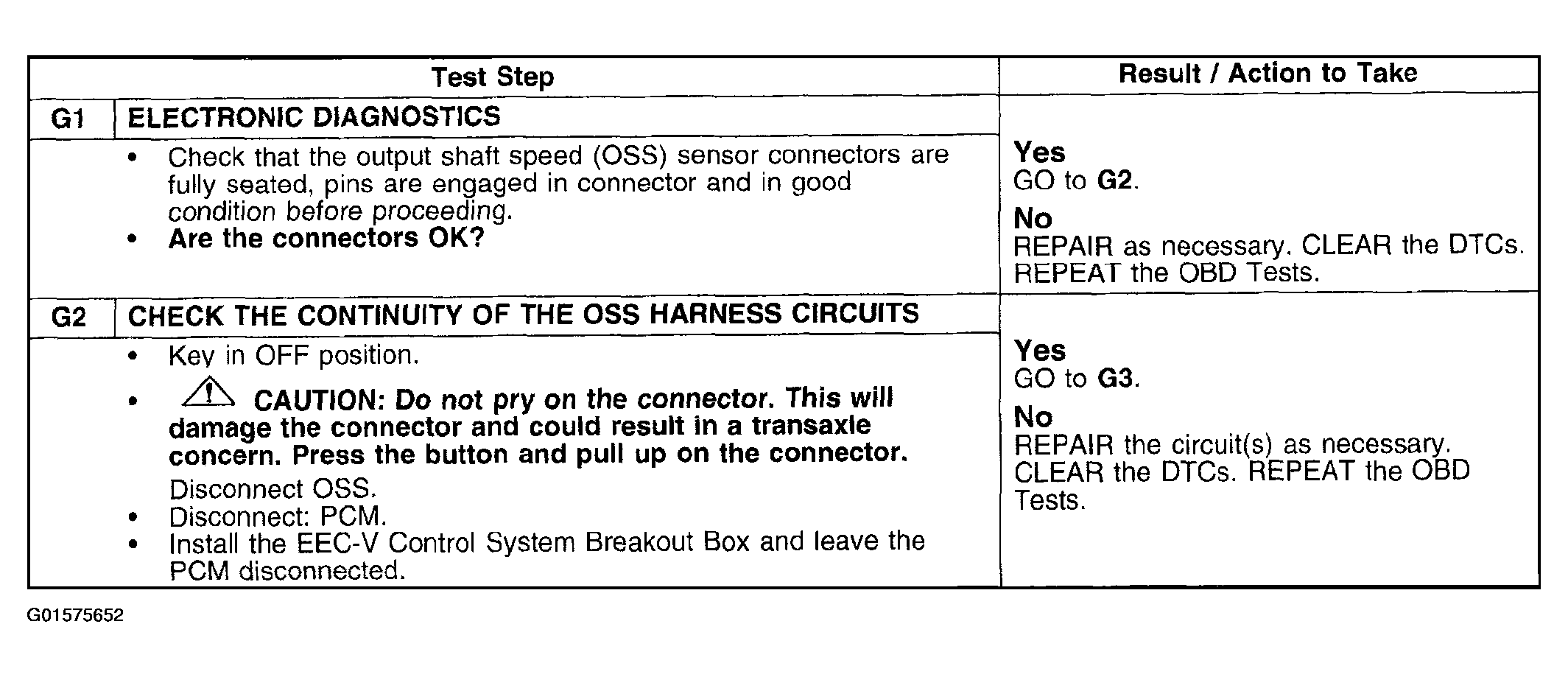

Fig 1: Pinpoint Test G: Output Shaft Speed Sensor (Steps G1-G2)

Courtesy of FORD MOTOR CO.

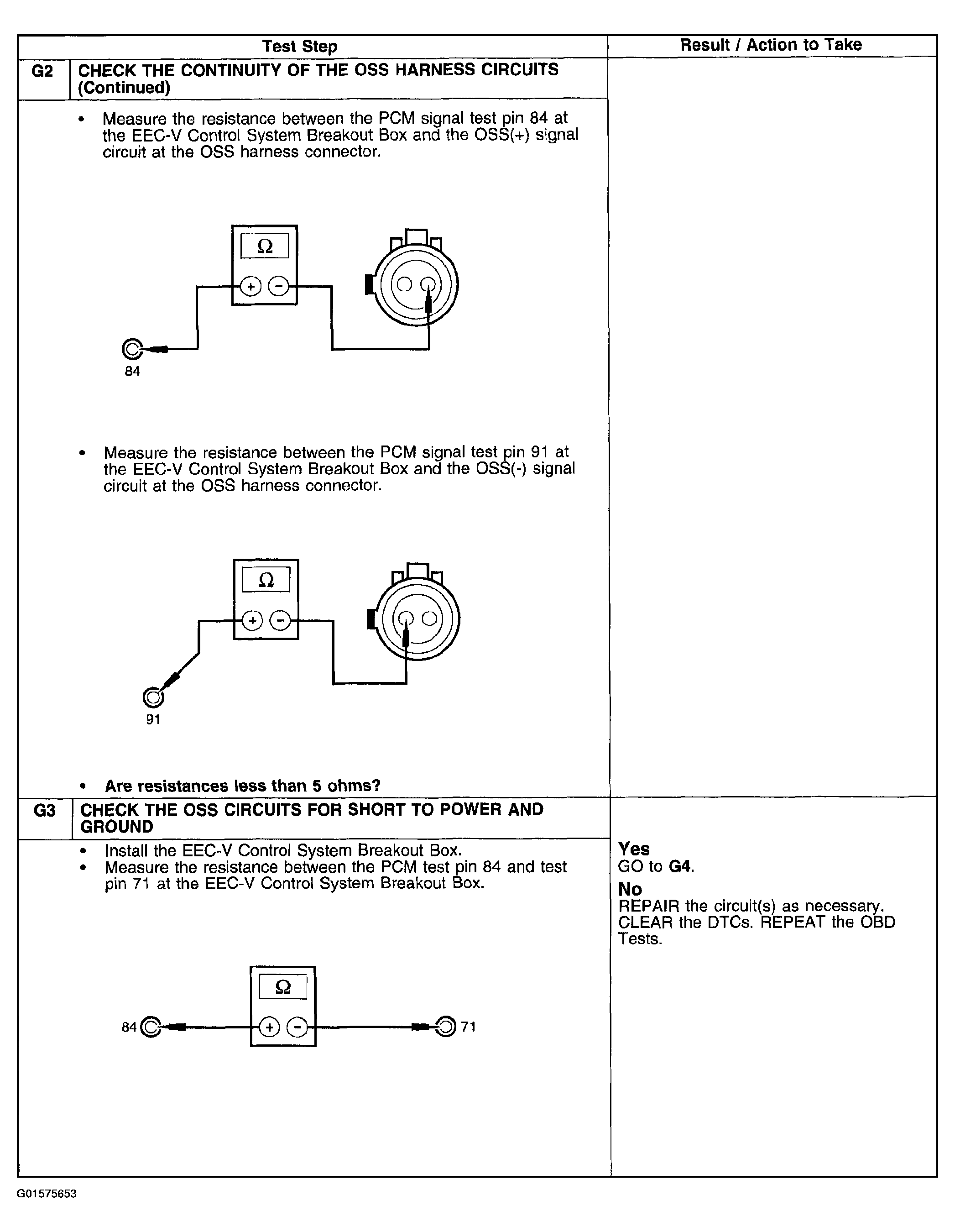

Fig 2: Pinpoint Test G: Output Shaft Speed Sensor (Steps G2 Cont.-G3)

Courtesy of FORD MOTOR CO.

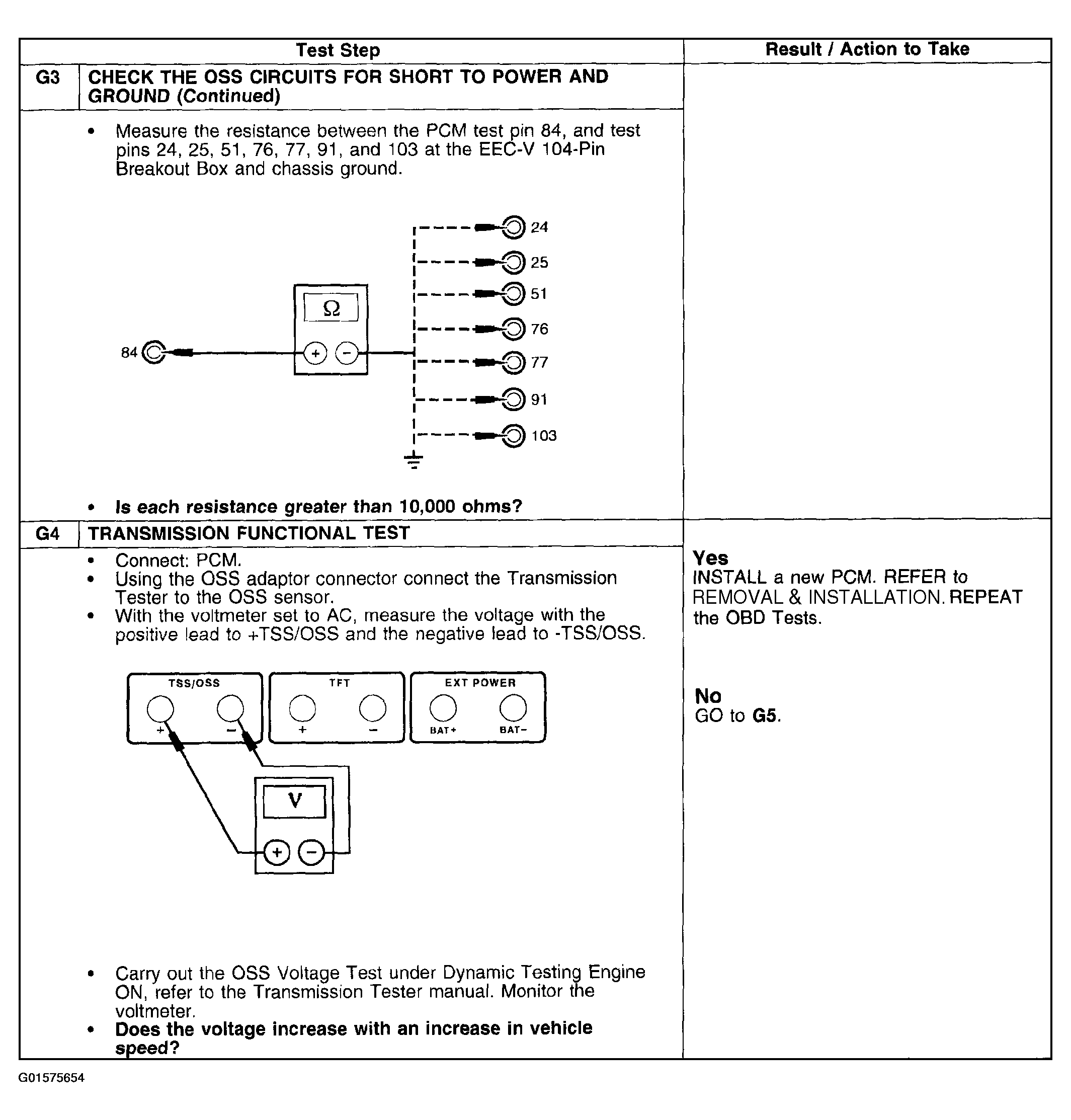

Fig 3: Pinpoint Test G: Output Shaft Speed Sensor (Steps G3 Cont.-G4)

Courtesy of FORD MOTOR CO.

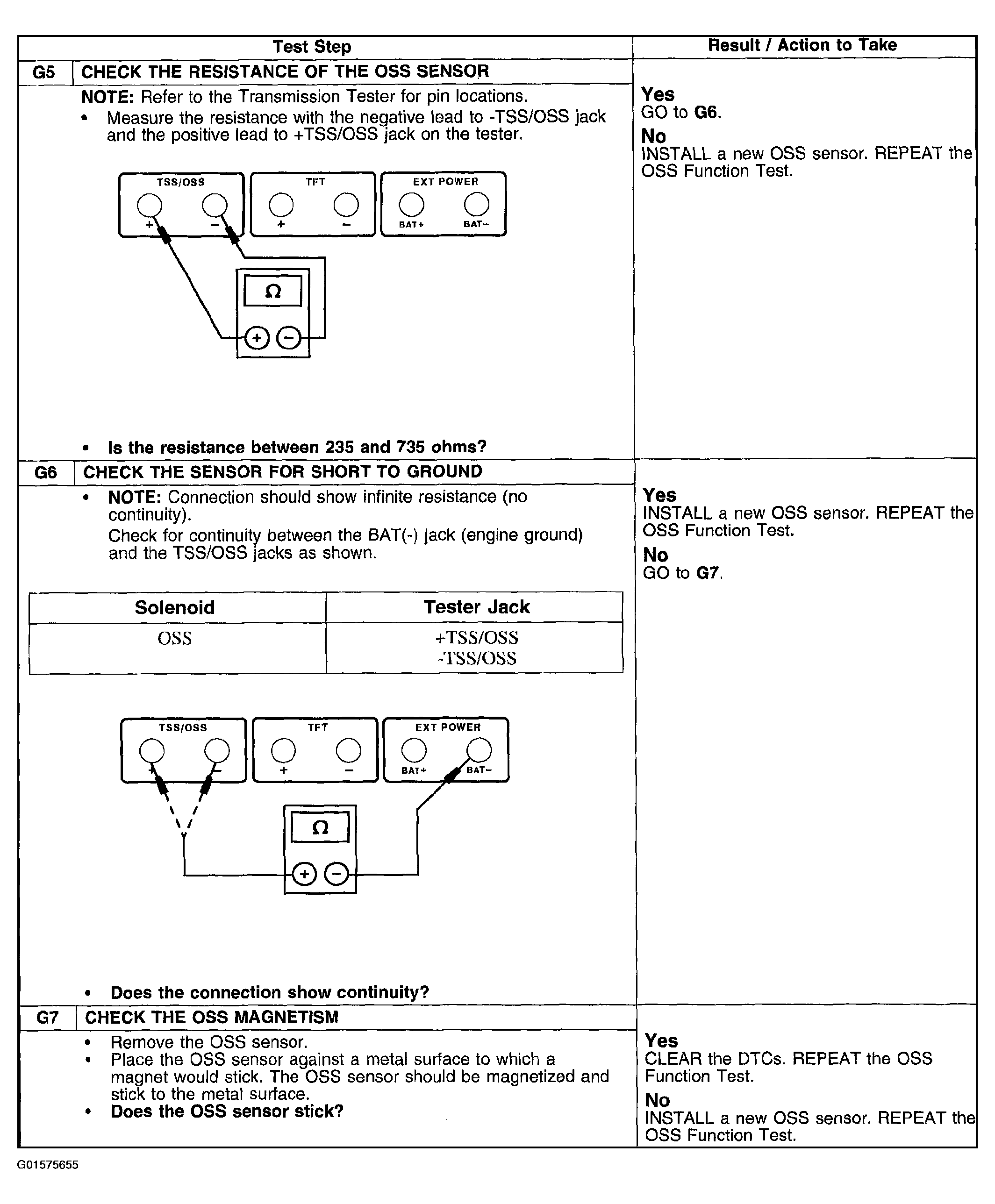

Fig 4: Pinpoint Test G: Output Shaft Speed Sensor (Steps G5-G7)

Courtesy of FORD MOTOR CO.
