Pinpoint Test F: Turbine Shaft Speed (TSS) Sensor

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Turbine Shaft Speed Sensor Harness Connector illustration preceding these pinpoint tests.

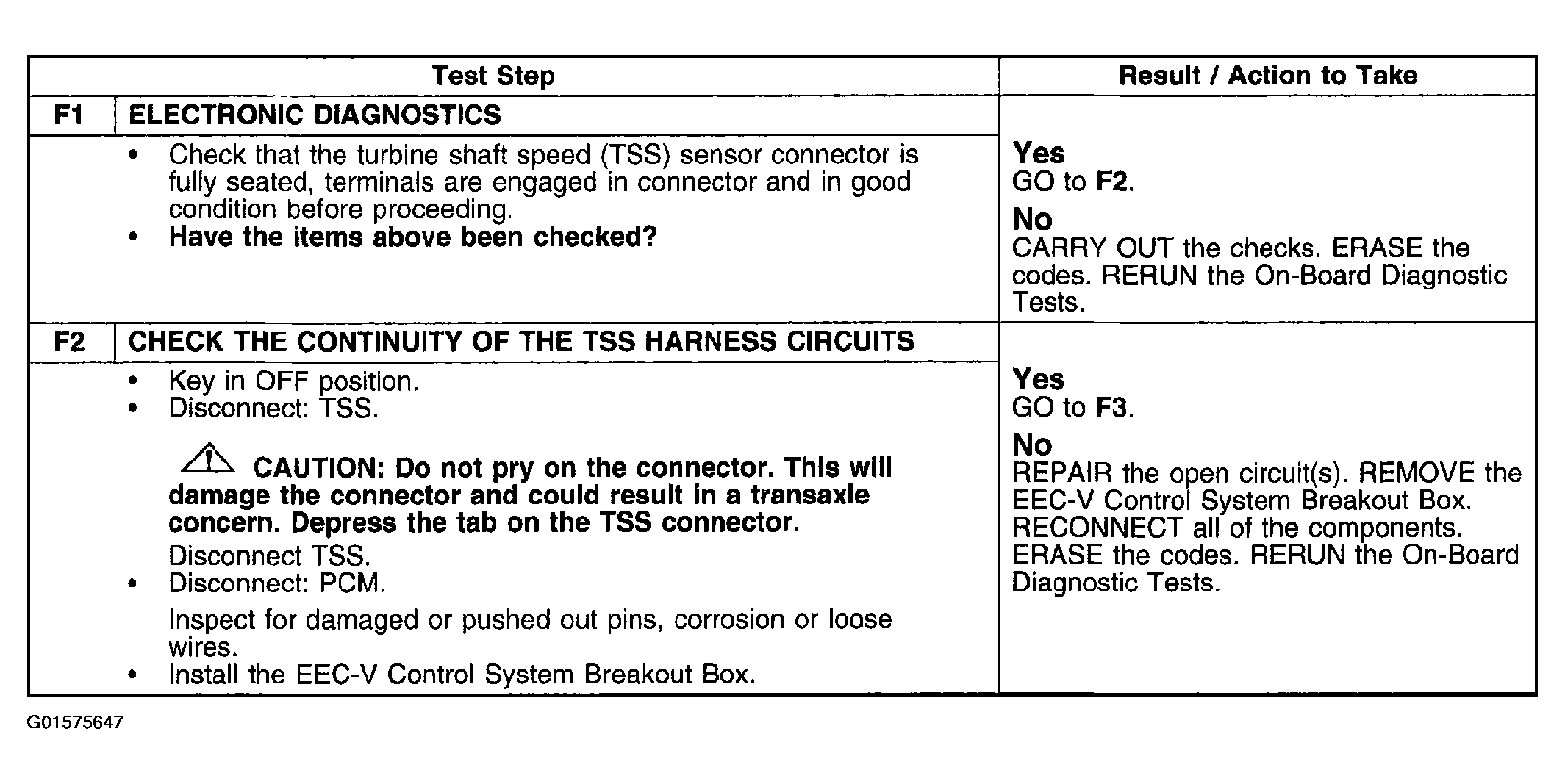

Fig 1: Pinpoint Test F: Turbine Shaft Speed Sensor (Steps F1-F2)

Courtesy of FORD MOTOR CO.

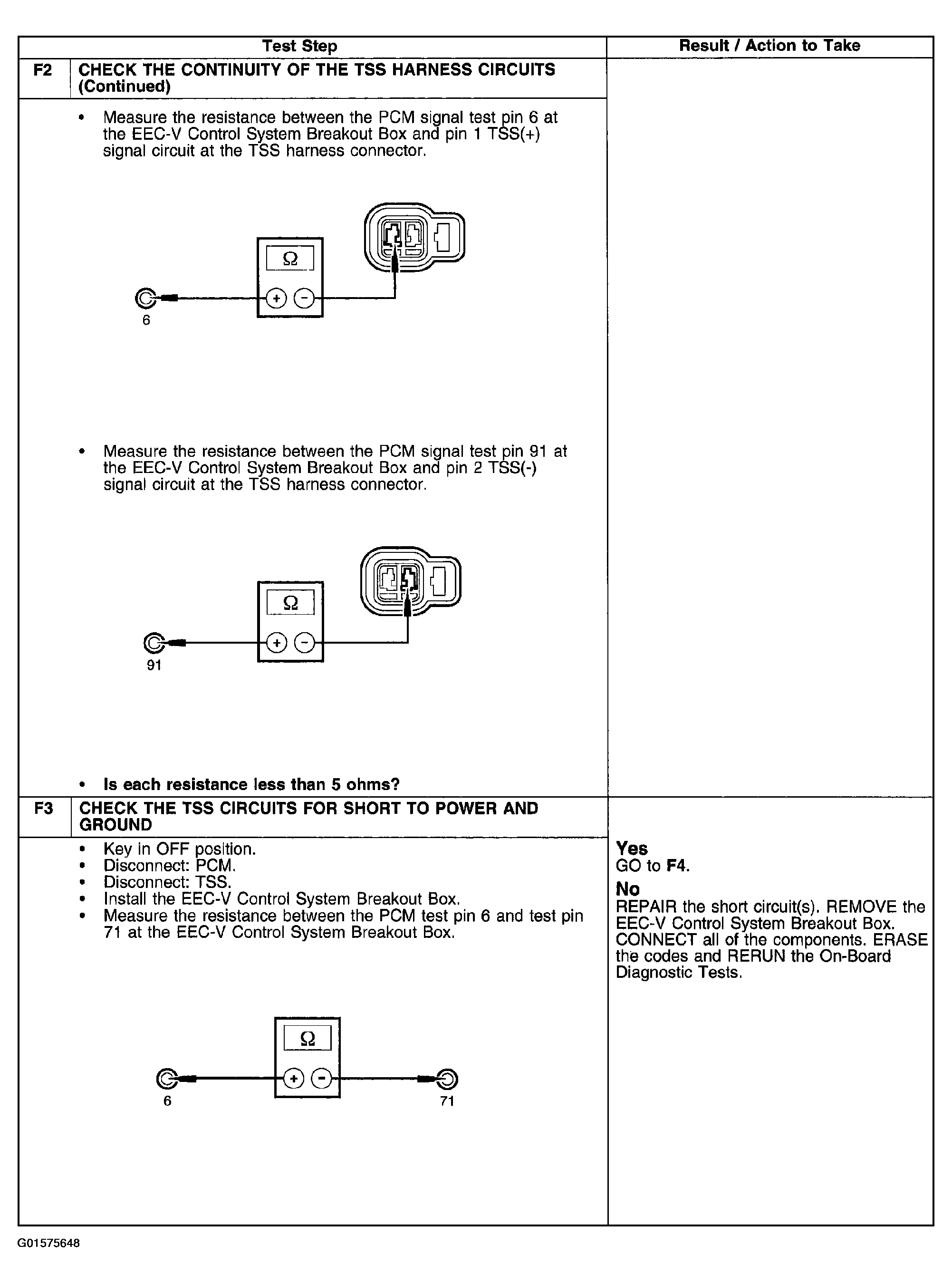

Fig 2: Pinpoint Test F: Turbine Shaft Speed Sensor (Steps F2 Cont.-F3)

Courtesy of FORD MOTOR CO.

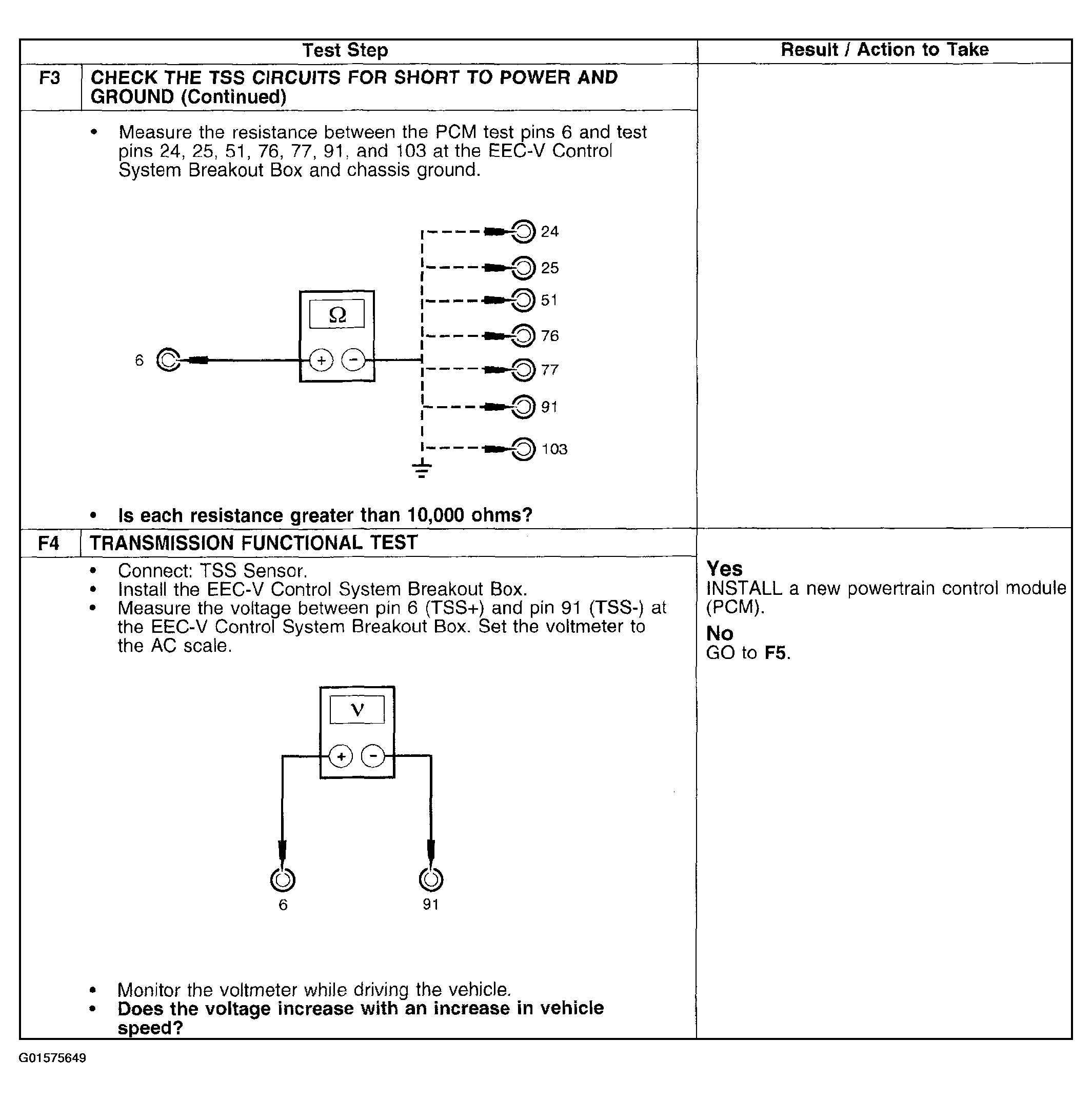

Fig 3: Pinpoint Test F: Turbine Shaft Speed Sensor (Steps F3 Cont.-F4)

Courtesy of FORD MOTOR CO.

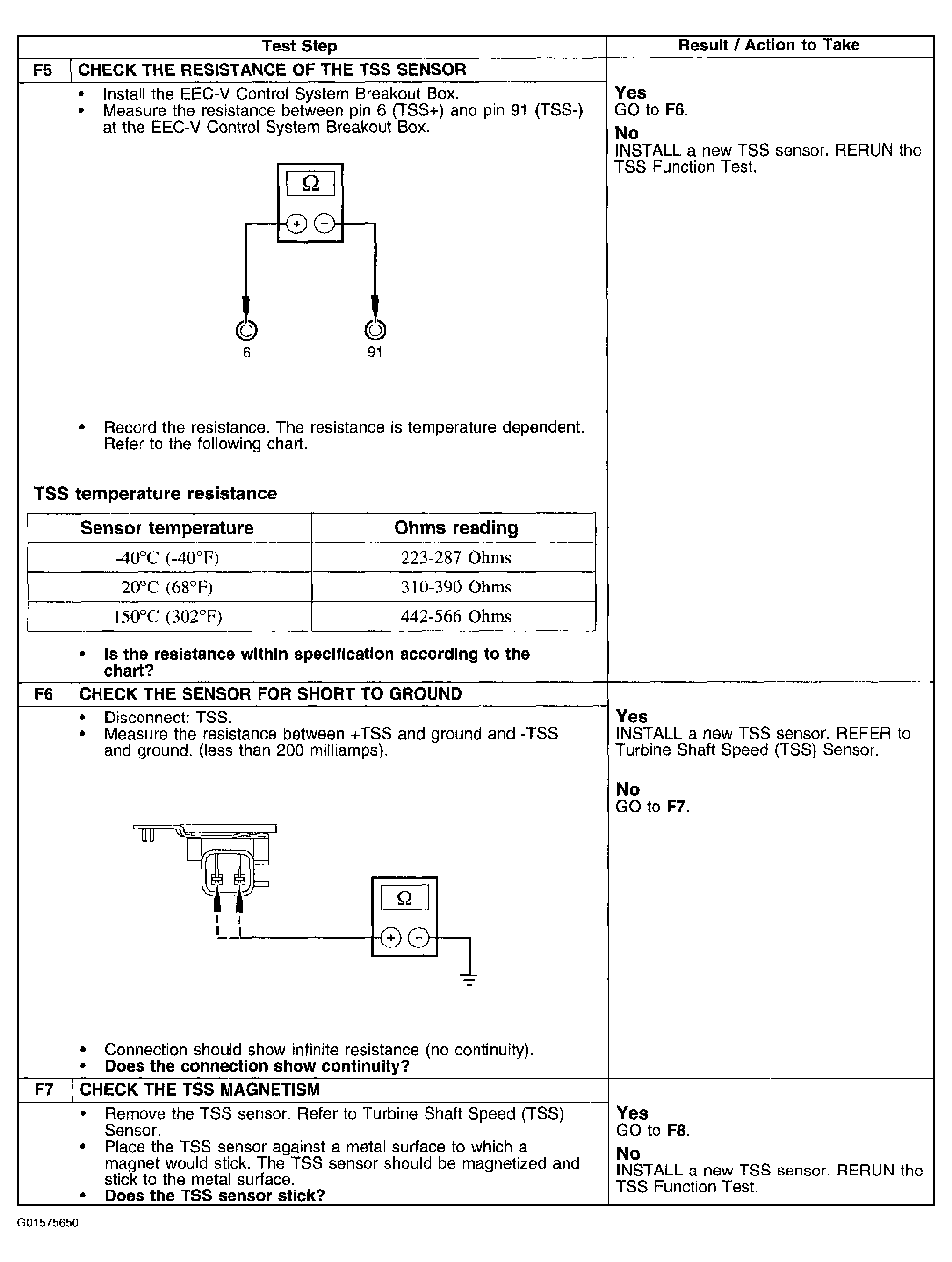

Fig 4: Pinpoint Test F: Turbine Shaft Speed Sensor (Steps F5-F7)

Courtesy of FORD MOTOR CO.

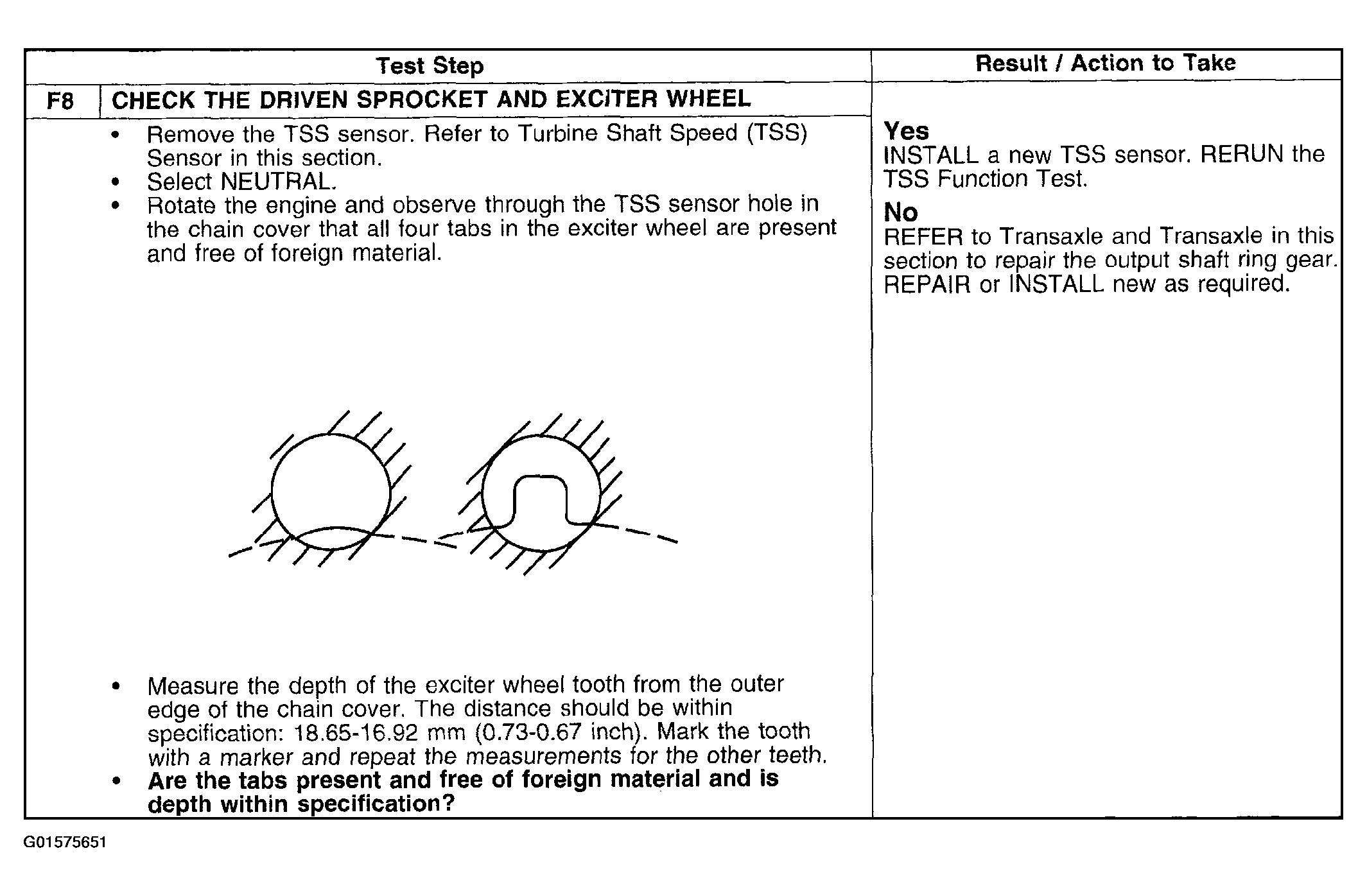

Fig 5: Pinpoint Test F: Turbine Shaft Speed Sensor (Steps F8)

Courtesy of FORD MOTOR CO.
