Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the TRANSAXLE VEHICLE HARNESS CONNECTOR illustration preceding these pinpoint tests.

NOTE: Refer to the TRANSAXLE INTERNAL HARNESS DIAGRAM illustration preceding these pinpoint tests.

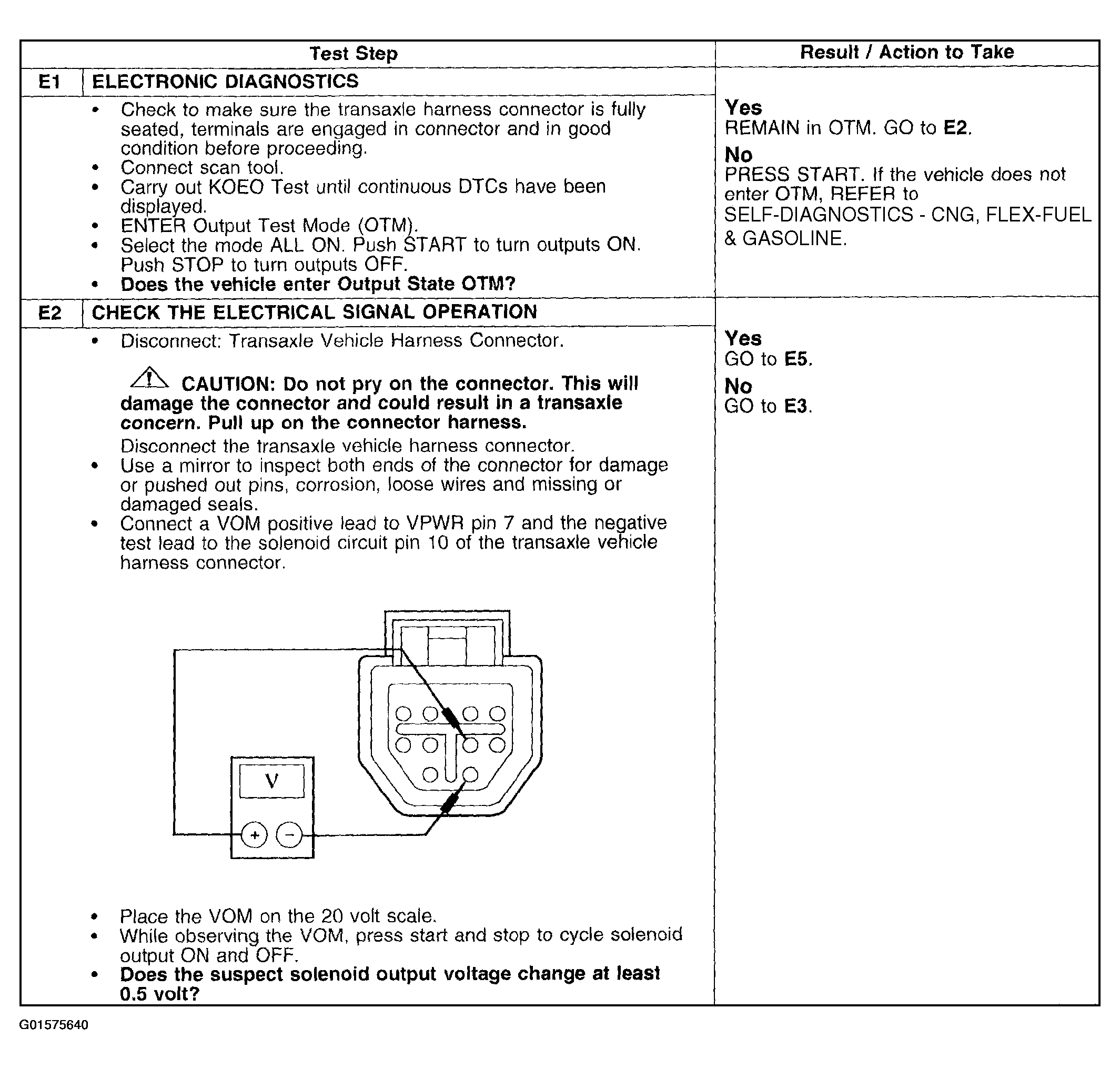

Fig 1: Pinpoint Test E: Electronic Pressure Control Solenoid (Steps E1-E2)

Courtesy of FORD MOTOR CO.

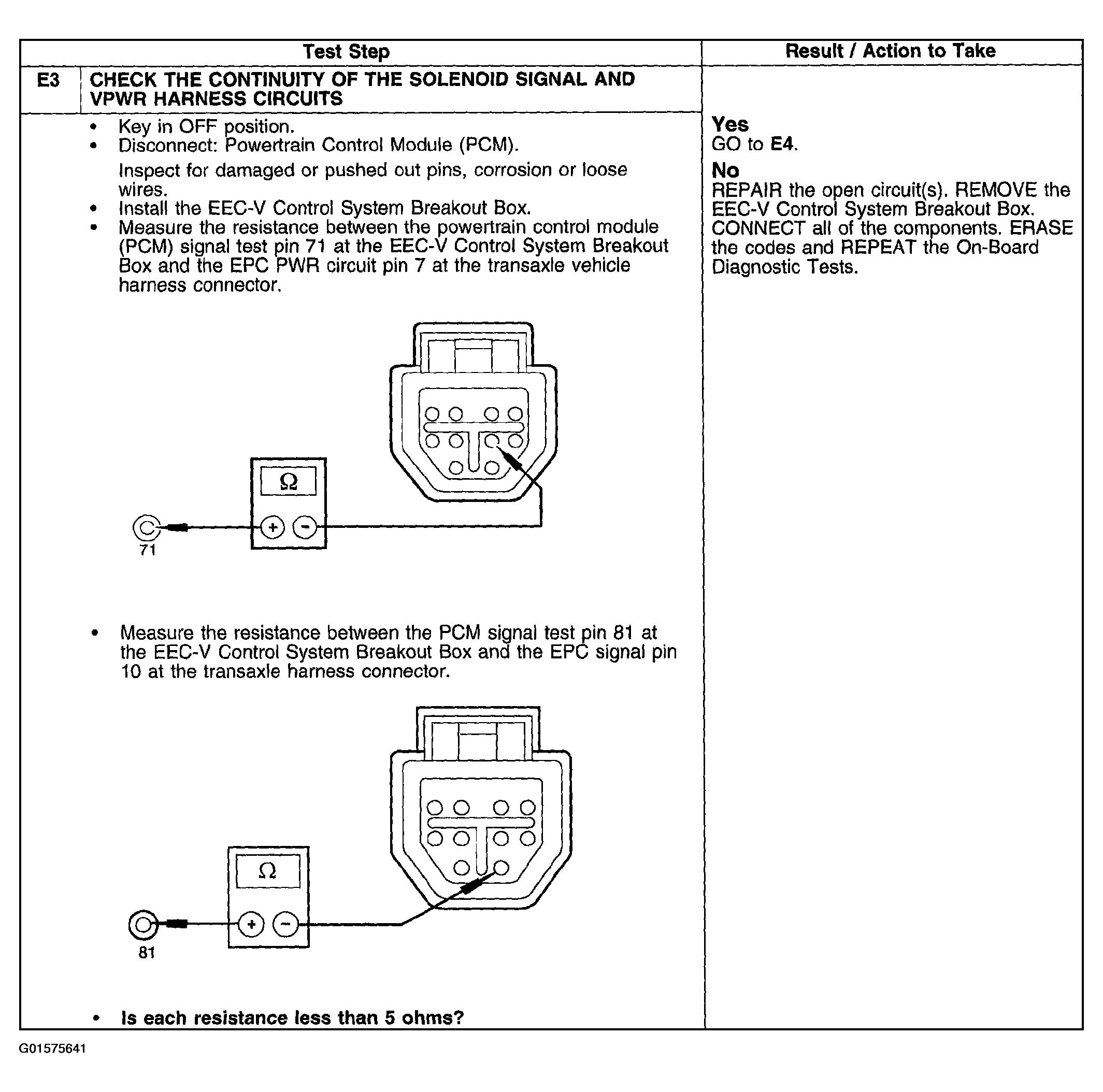

Fig 2: Pinpoint Test E: Electronic Pressure Control Solenoid (Steps E3)

Courtesy of FORD MOTOR CO.

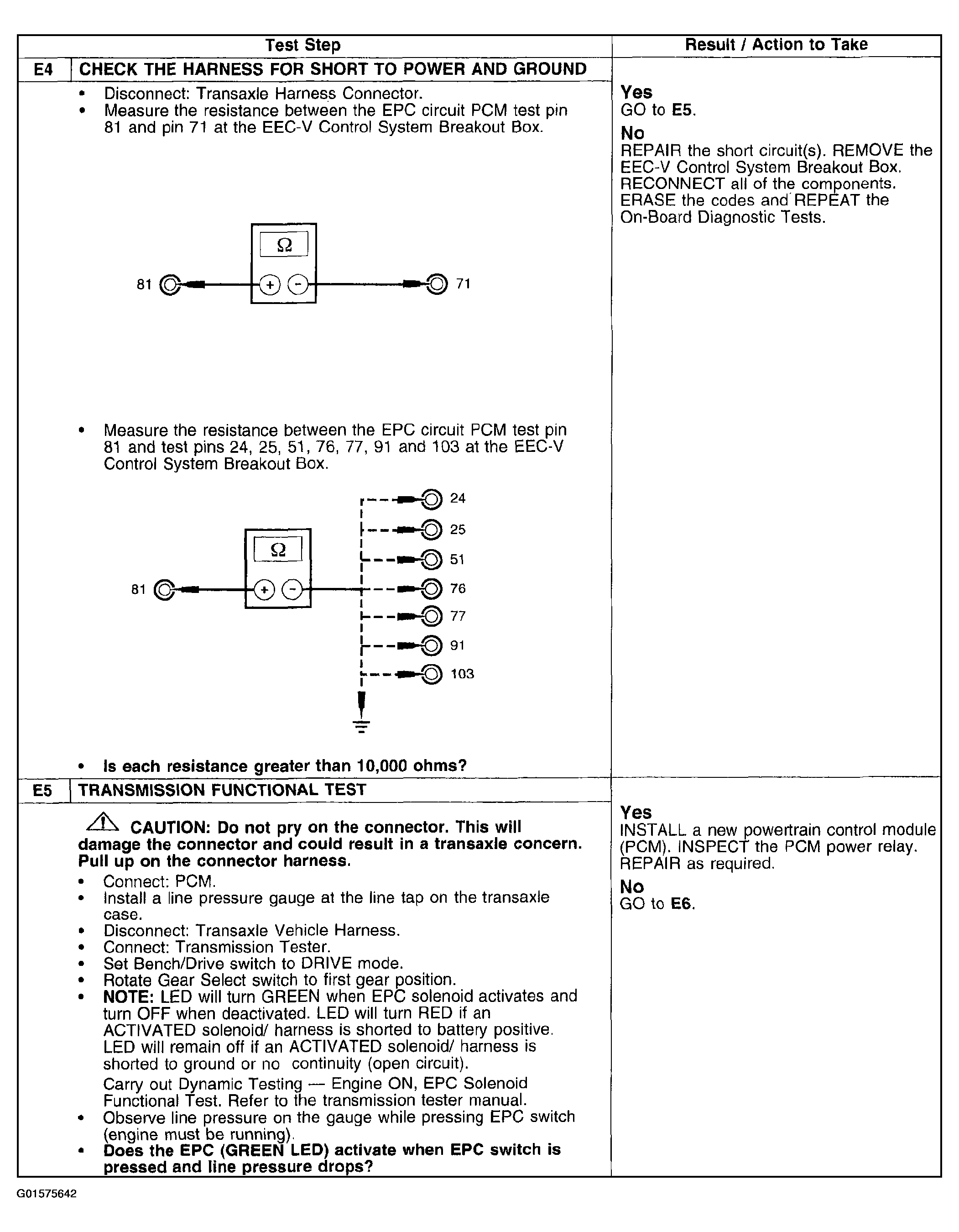

Fig 3: Pinpoint Test E: Electronic Pressure Control Solenoid (Steps E4-E5)

Courtesy of FORD MOTOR CO.

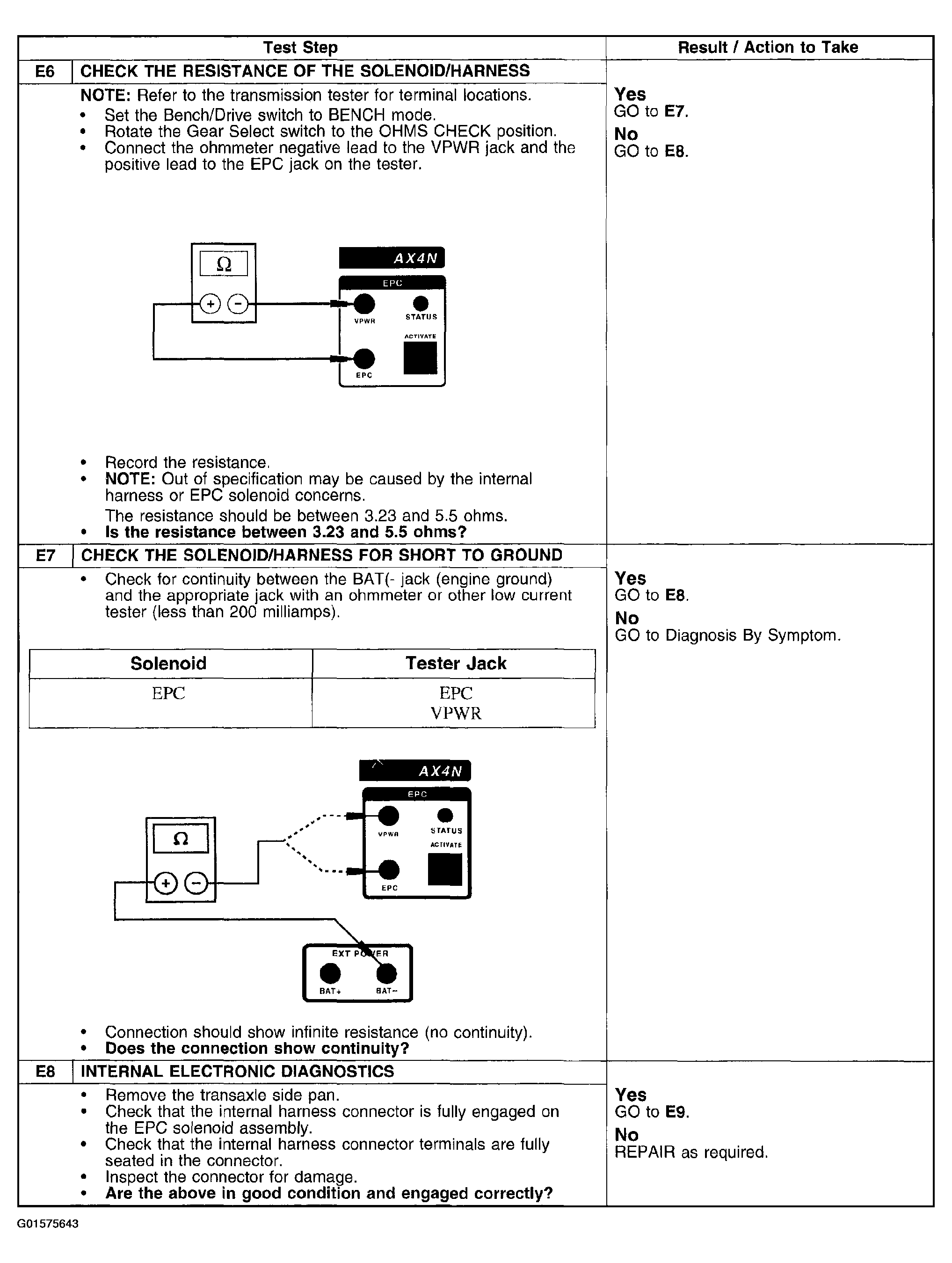

Fig 4: Pinpoint Test E: Electronic Pressure Control Solenoid (Steps E6-E8)

Courtesy of FORD MOTOR CO.

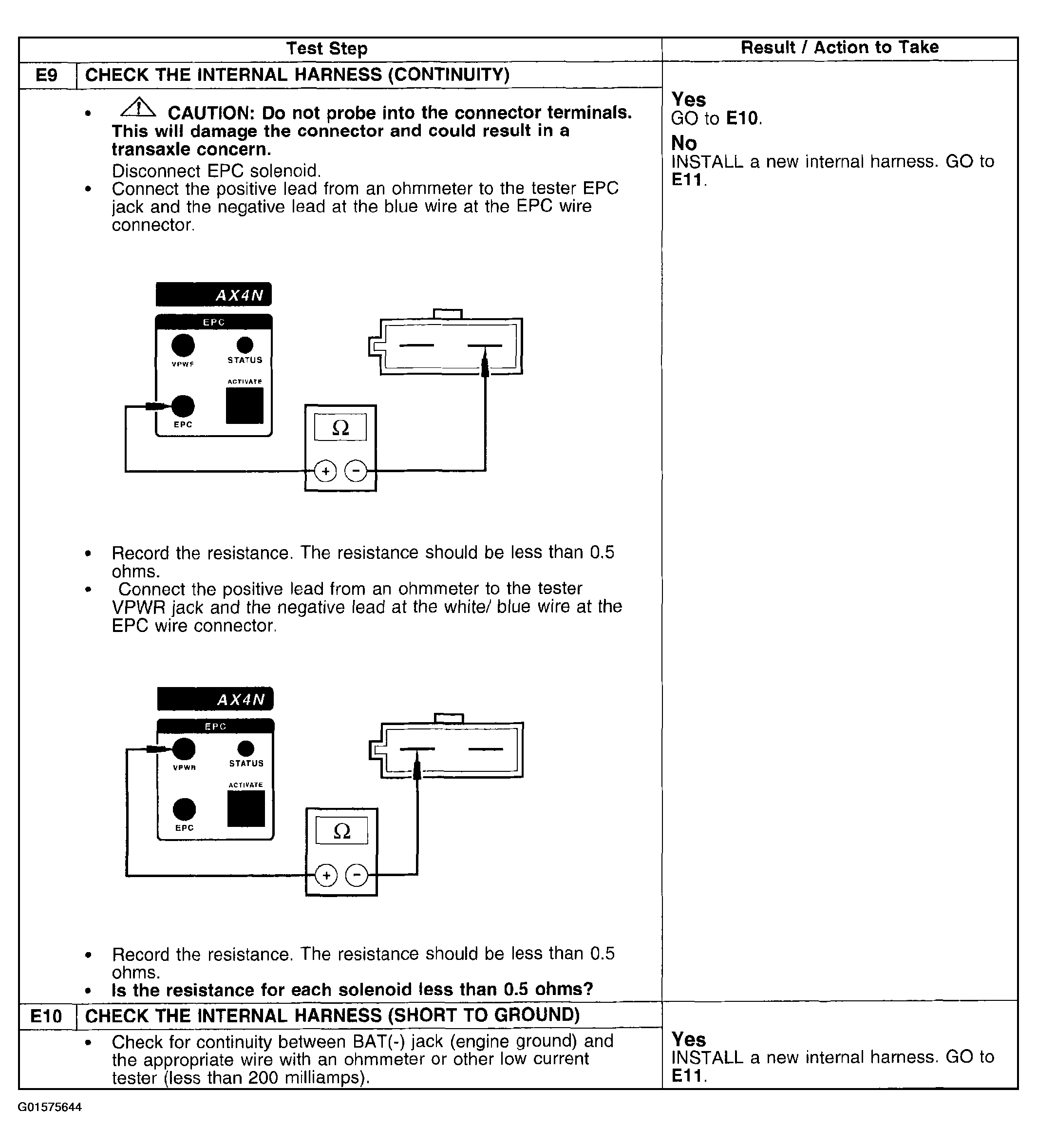

Fig 5: Pinpoint Test E: Electronic Pressure Control Solenoid (Steps E9-E10)

Courtesy of FORD MOTOR CO.

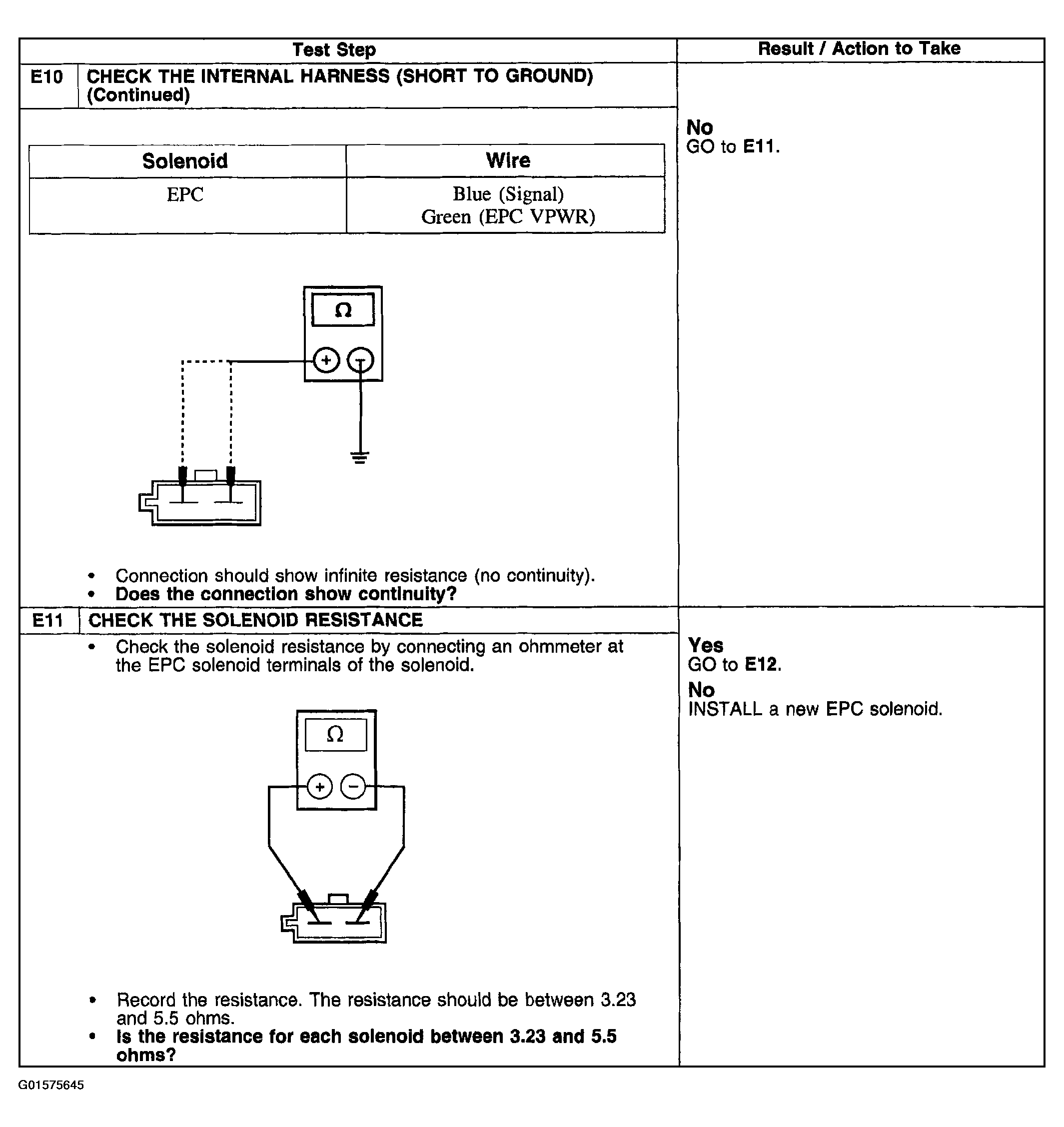

Fig 6: Pinpoint Test E: Electronic Pressure Control Solenoid (Steps E10 Cont.-E11)

Courtesy of FORD MOTOR CO.

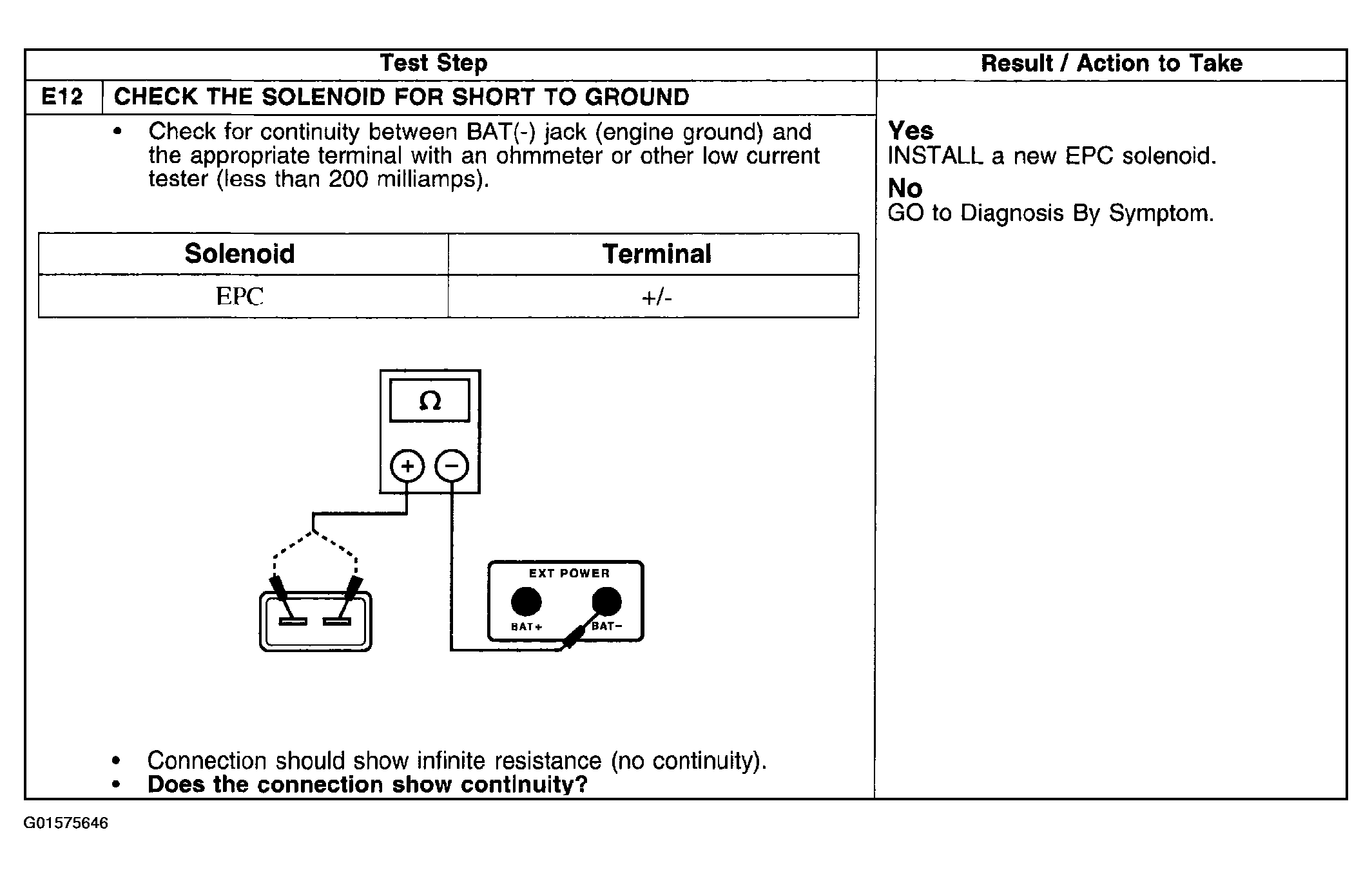

Fig 7: Pinpoint Test E: Electronic Pressure Control Solenoid (Steps E12)

Courtesy of FORD MOTOR CO.
