Pinpoint Test D: Digital Transmission Range (Tr) Sensor

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the DIGITAL TRANSMISSION RANGE (TR) SENSOR Connector illustration preceding these pinpoint tests.

NOTE: Refer to the DIGITAL TRANSMISSION RANGE (TR) SENSOR Diagnosis Chart preceding theses pinpoint tests.

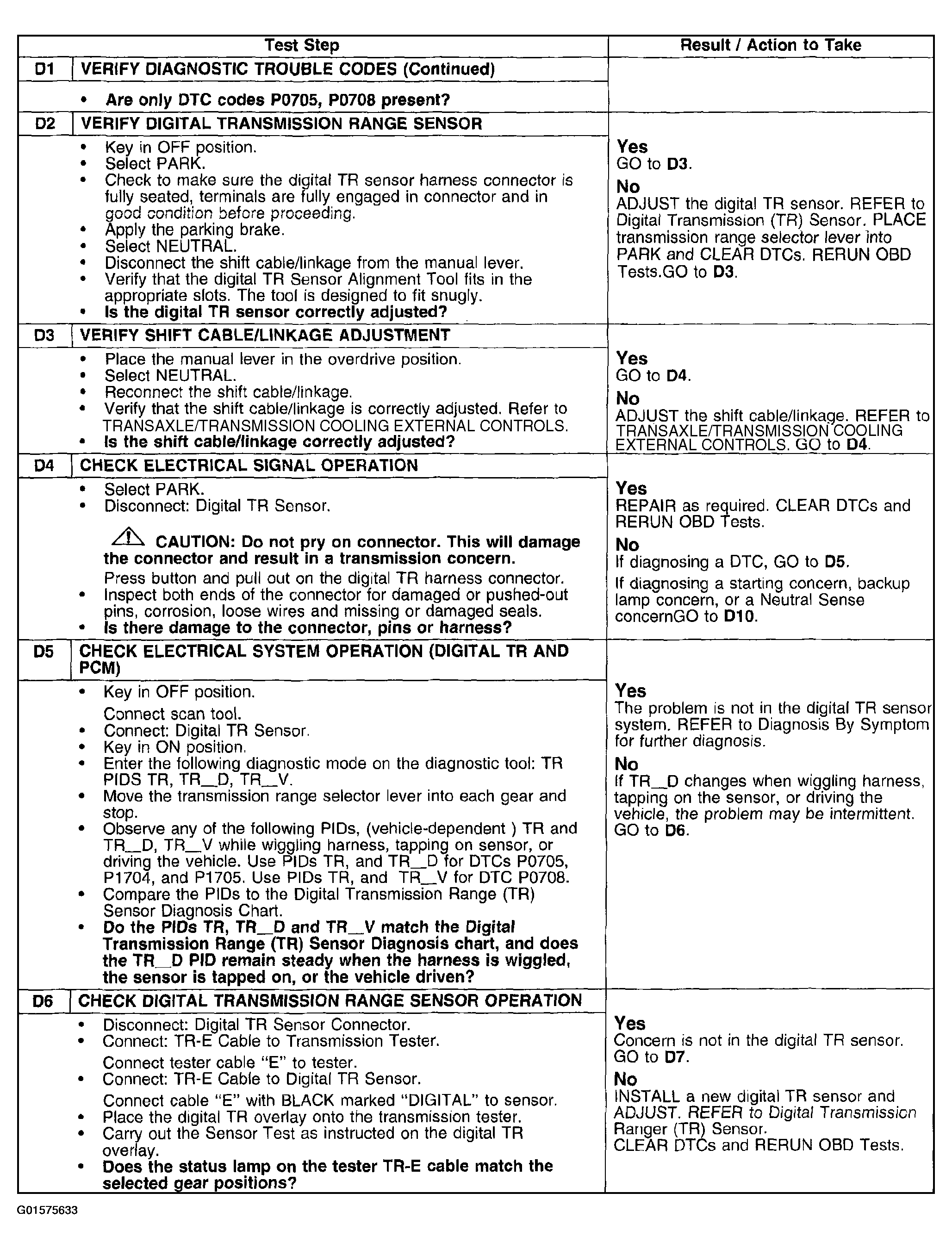

Fig 1: Pinpoint Test D: Digital Transmission Range Sensor (Steps D1)

Courtesy of FORD MOTOR CO.

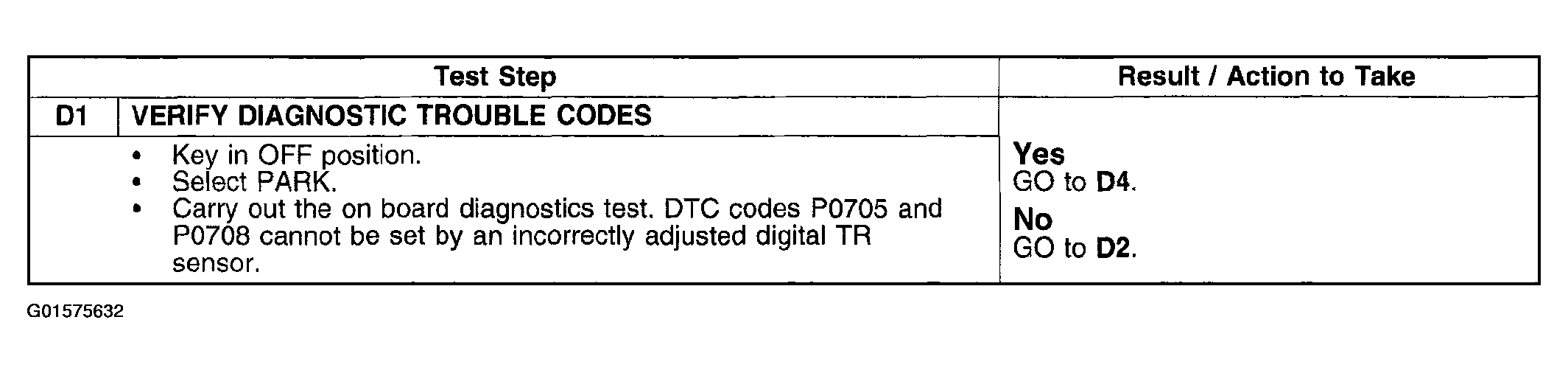

Fig 2: Pinpoint Test D: Digital Transmission Range Sensor (Steps D1 Cont.-D6)

Courtesy of FORD MOTOR CO.

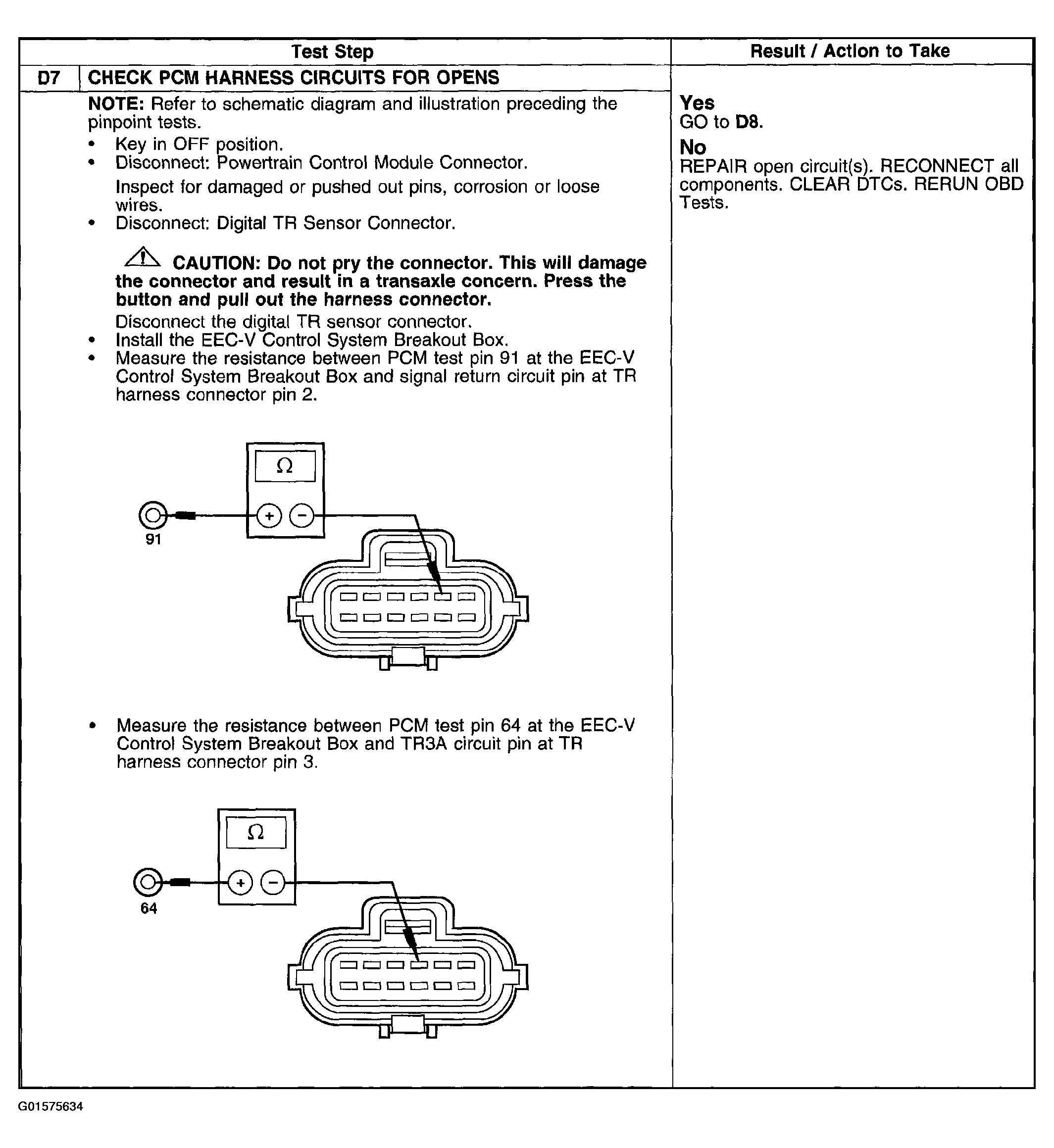

Fig 3: Pinpoint Test D: Digital Transmission Range Sensor (Steps D7)

Courtesy of FORD MOTOR CO.

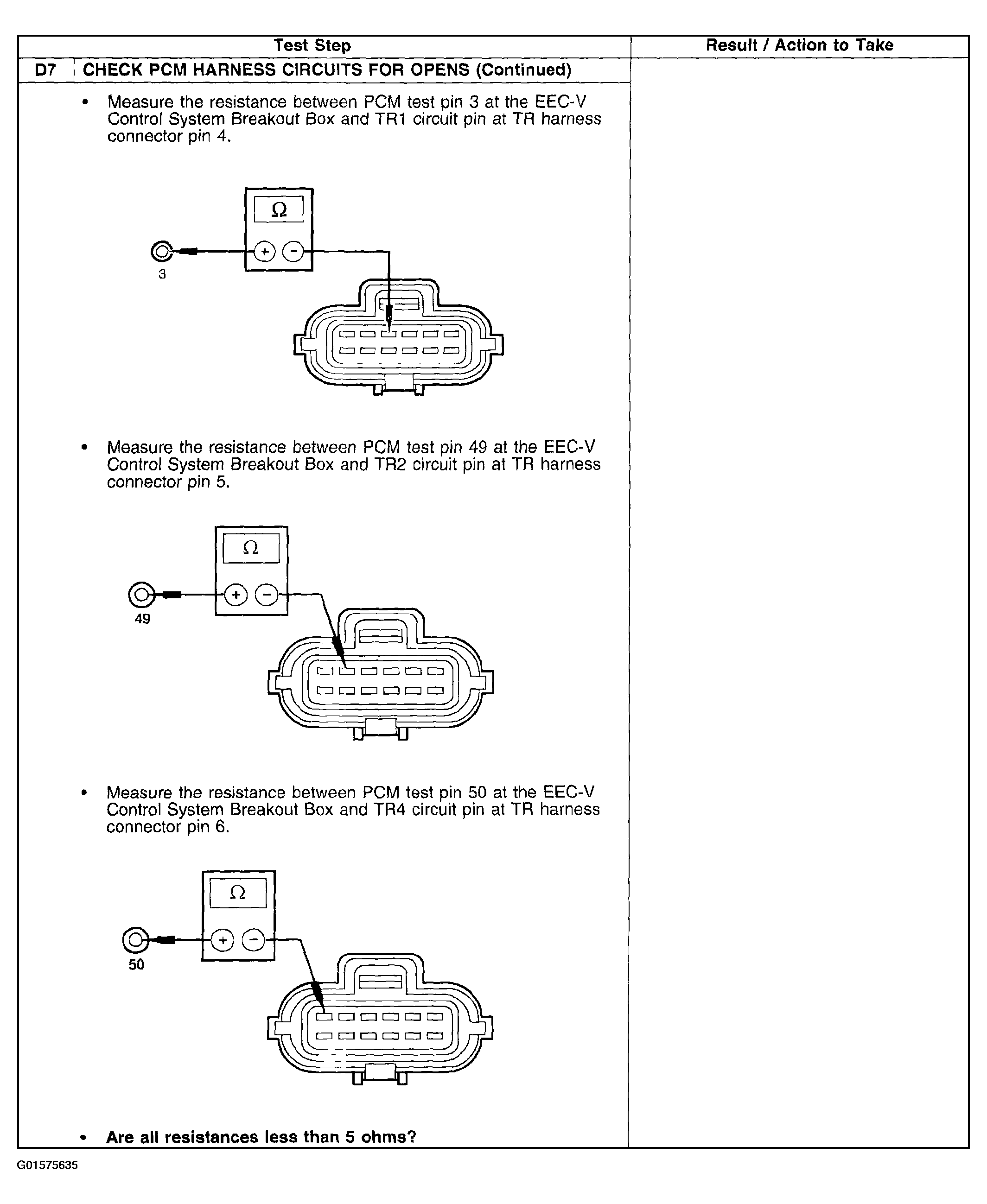

Fig 4: Pinpoint Test D: Digital Transmission Range Sensor (Steps D7 Cont.)

Courtesy of FORD MOTOR CO.

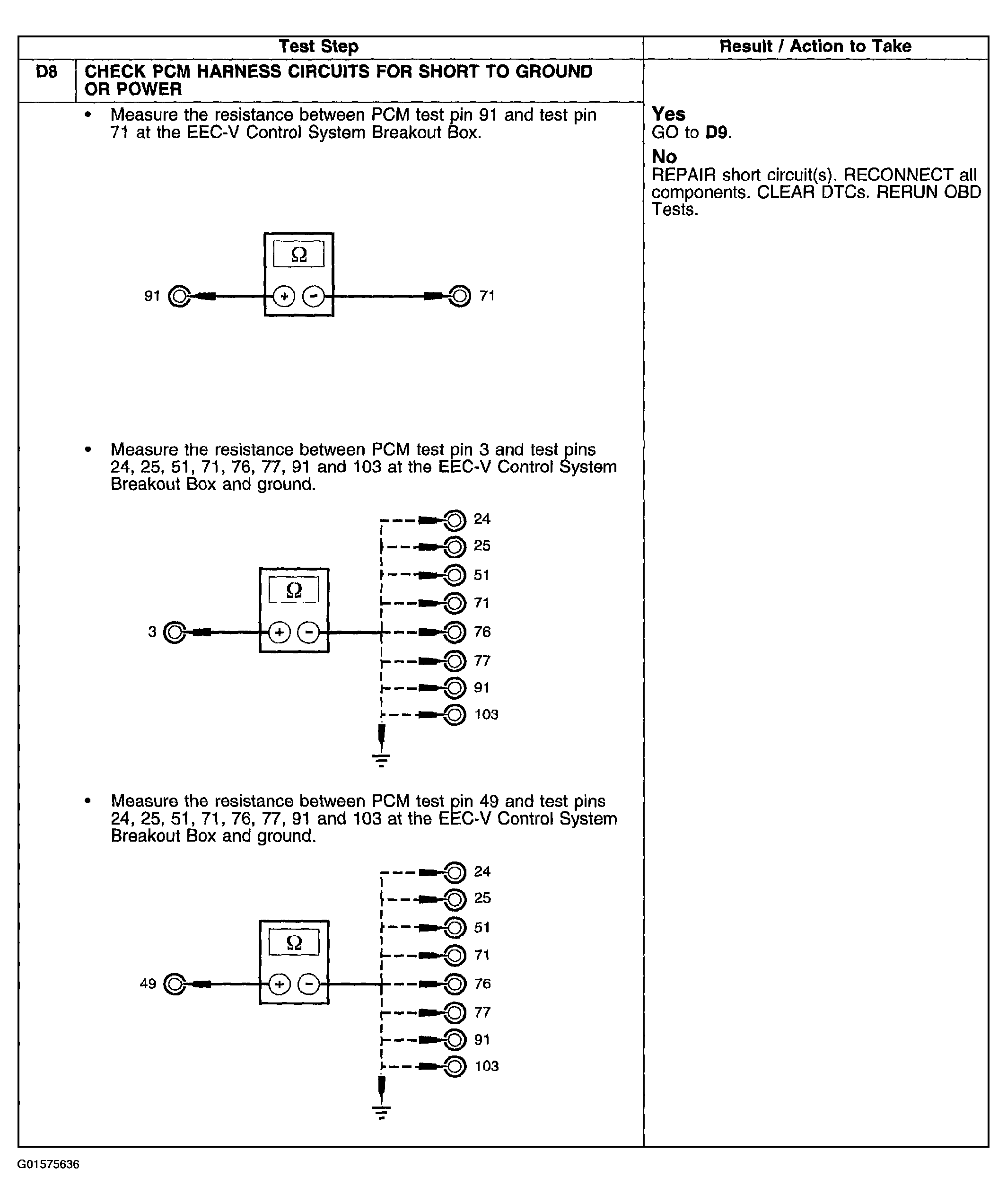

Fig 5: Pinpoint Test D: Digital Transmission Range Sensor (Steps D8)

Courtesy of FORD MOTOR CO.

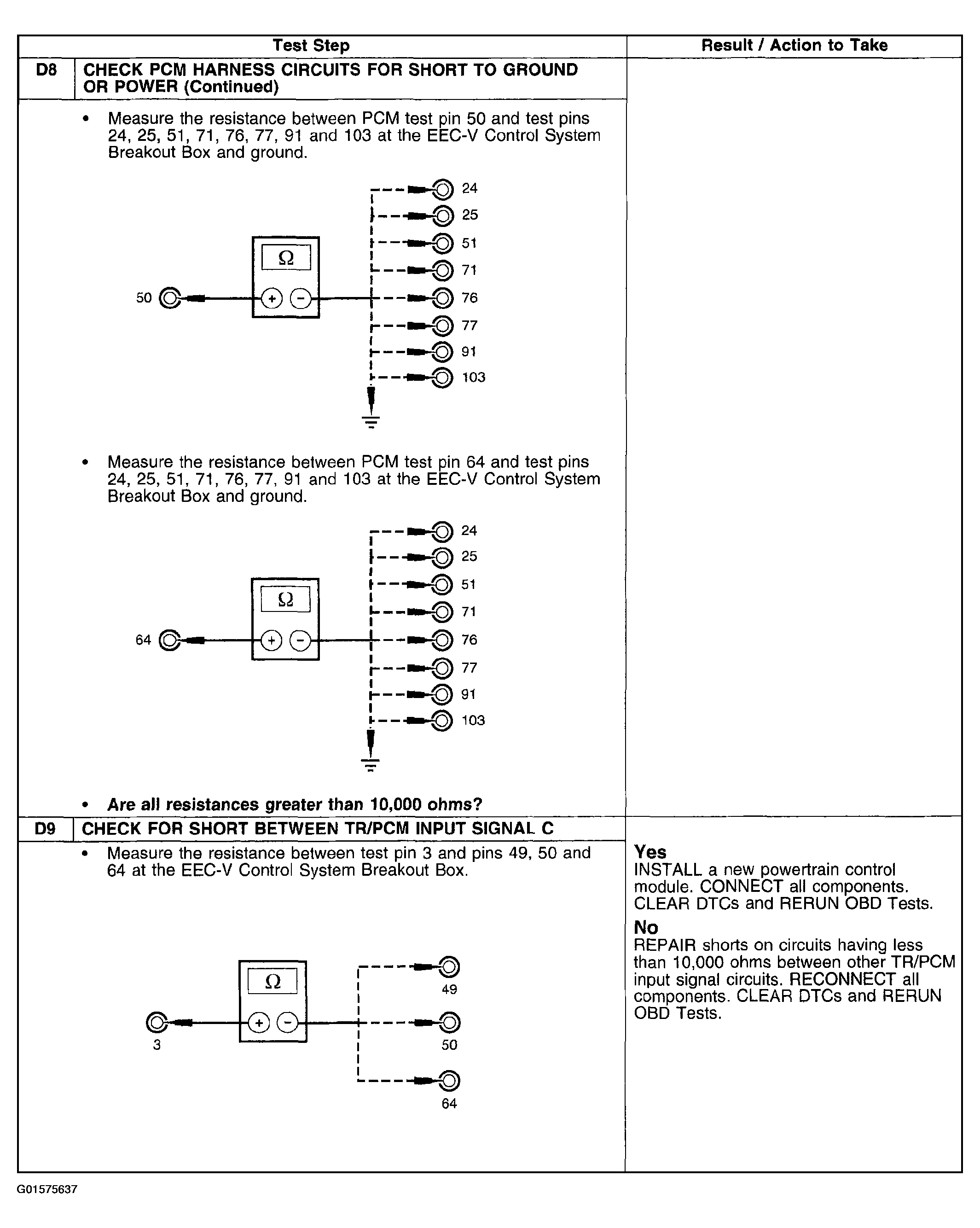

Fig 6: Pinpoint Test D: Digital Transmission Range Sensor (Steps D8 Cont.-D9)

Courtesy of FORD MOTOR CO.

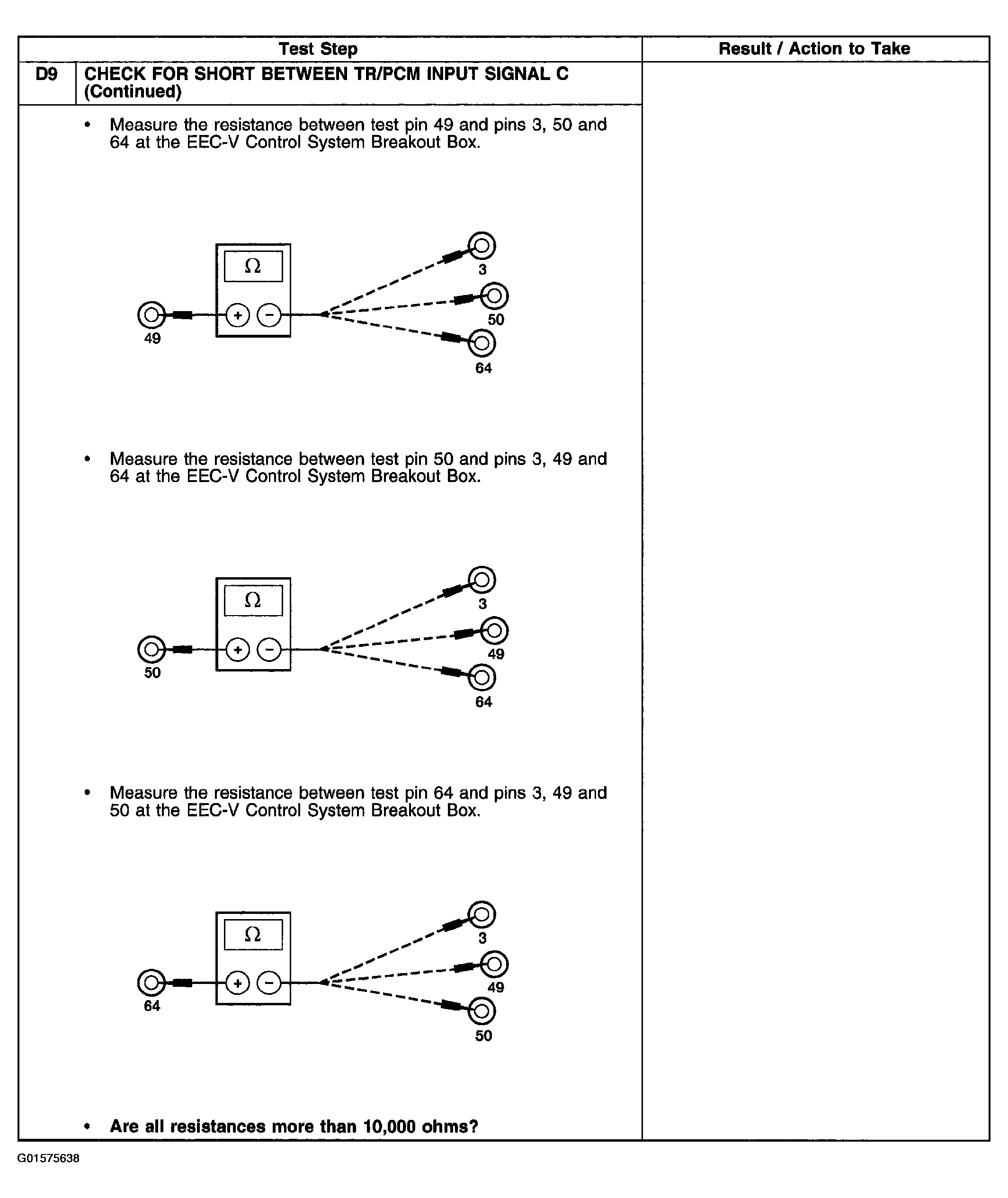

Fig 7: Pinpoint Test D: Digital Transmission Range Sensor (Steps D9 Cont.)

Courtesy of FORD MOTOR CO.

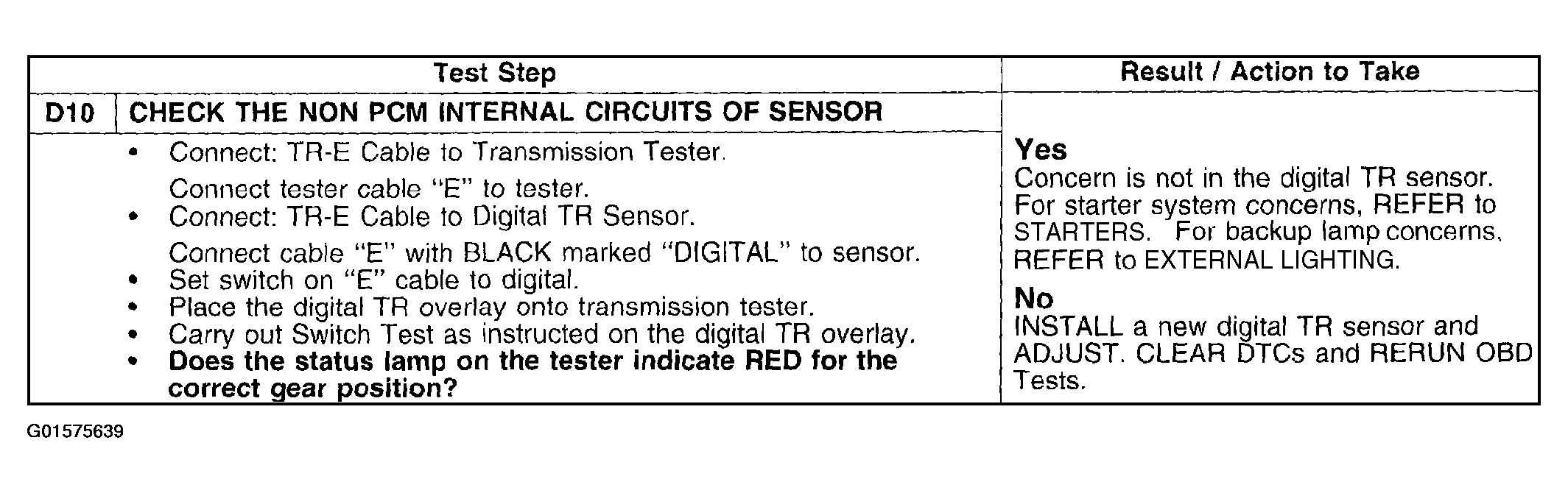

Fig 8: Pinpoint Test D: Digital Transmission Range Sensor (Steps D10)

Courtesy of FORD MOTOR CO.
