Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the TRANSAXLE VEHICLE HARNESS CONNECTOR illustration preceding these pinpoint tests.

NOTE: Refer to the TRANSAXLE INTERNAL HARNESS DIAGRAM illustration preceding these pinpoint tests.

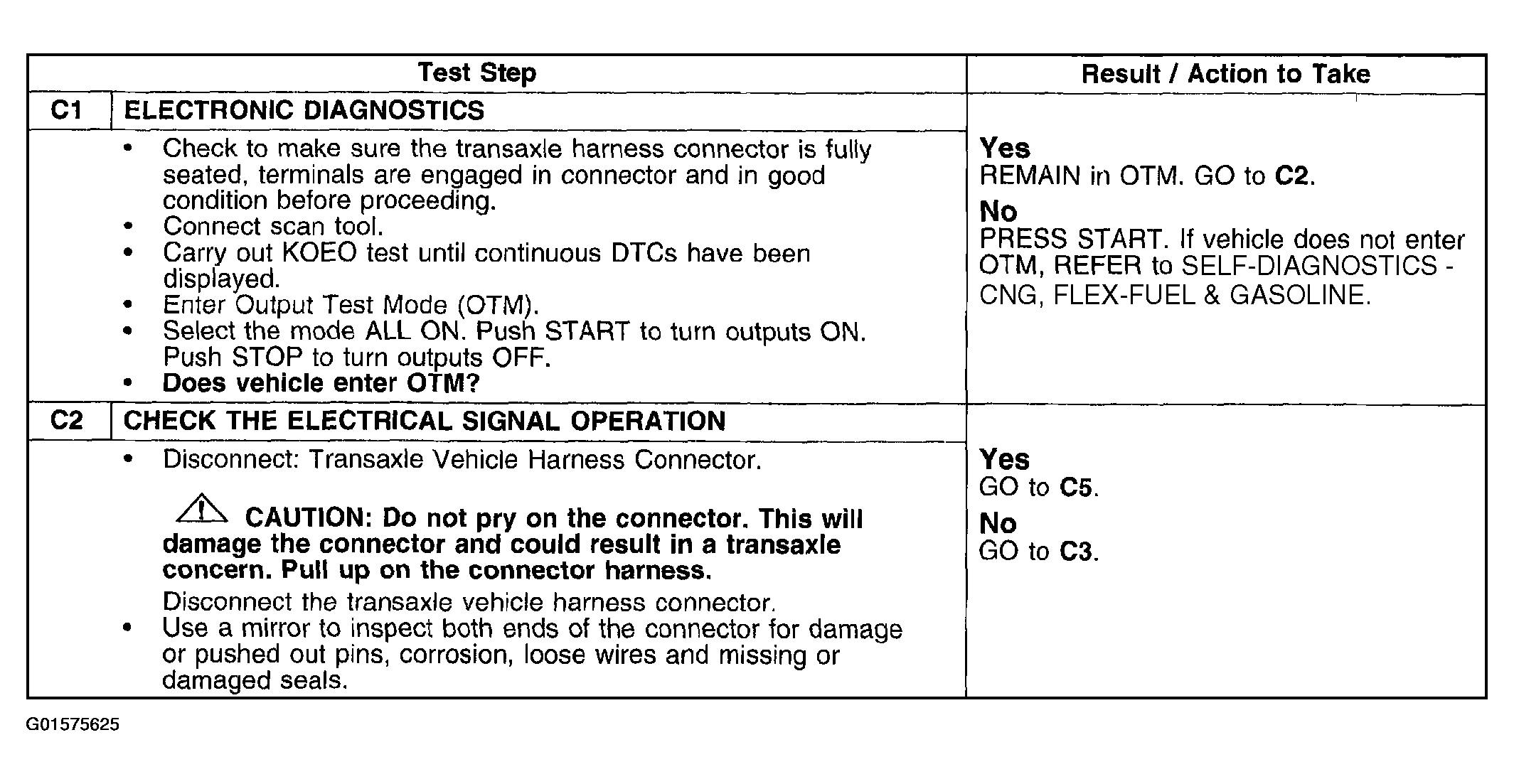

Fig 1: Pinpoint Test C: Torque Converter Clutch Solenoid (Steps C1-C2)

Courtesy of FORD MOTOR CO.

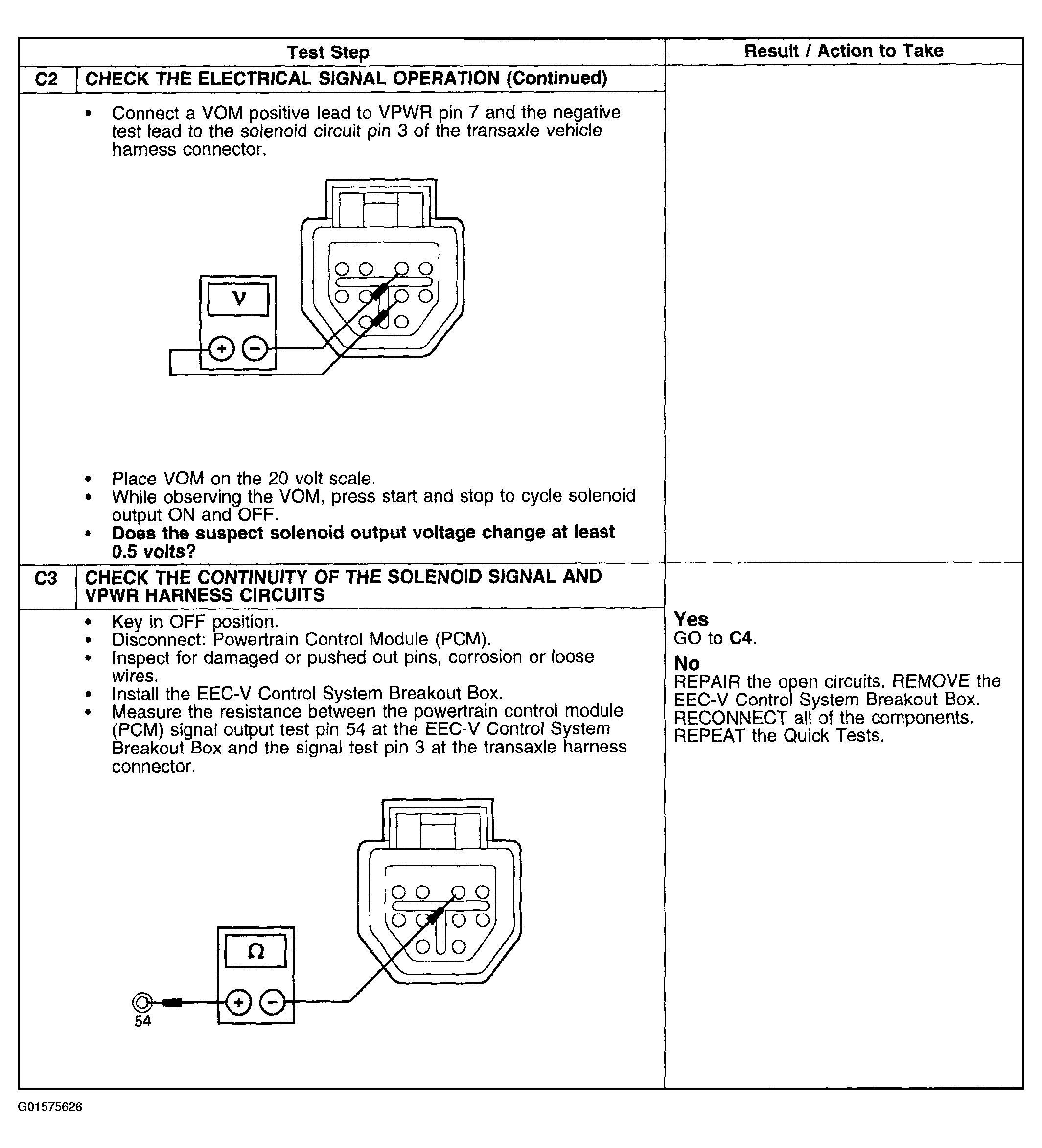

Fig 2: Pinpoint Test C: Torque Converter Clutch Solenoid (Steps C2 Cont.-C3)

Courtesy of FORD MOTOR CO.

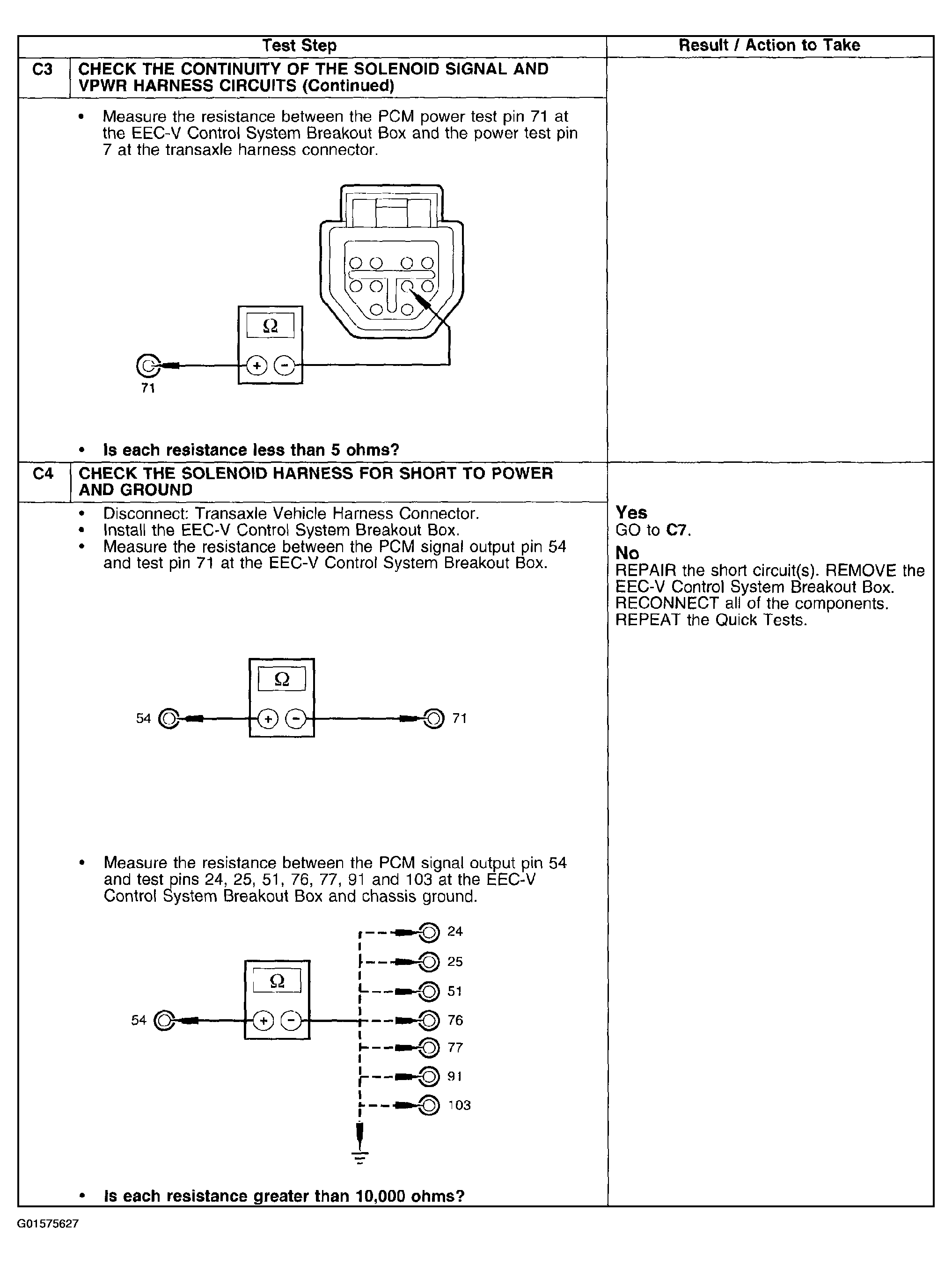

Fig 3: Pinpoint Test C: Torque Converter Clutch Solenoid (Steps C3 Cont.-C4)

Courtesy of FORD MOTOR CO.

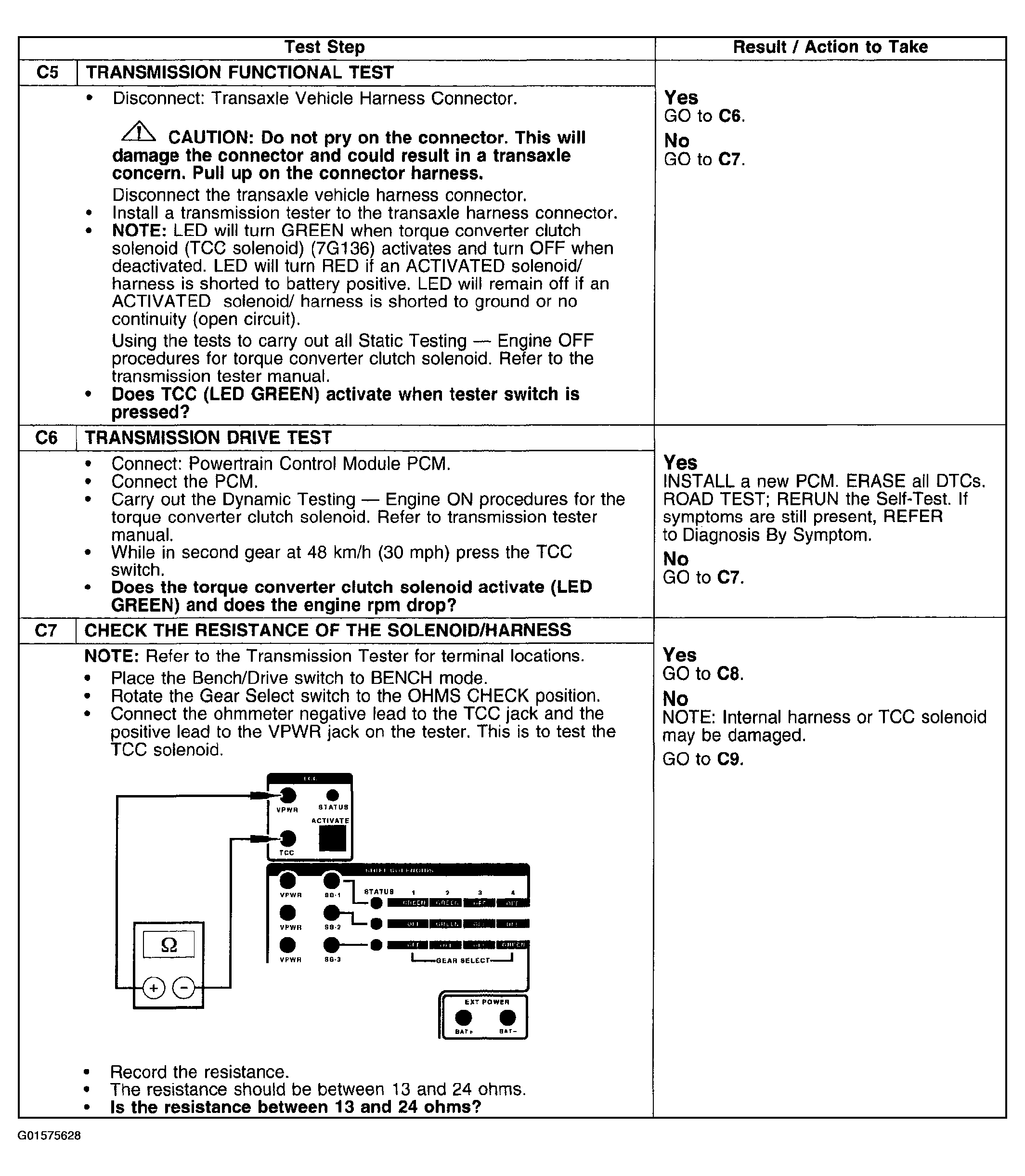

Fig 4: Pinpoint Test C: Torque Converter Clutch Solenoid (Steps C5-C7)

Courtesy of FORD MOTOR CO.

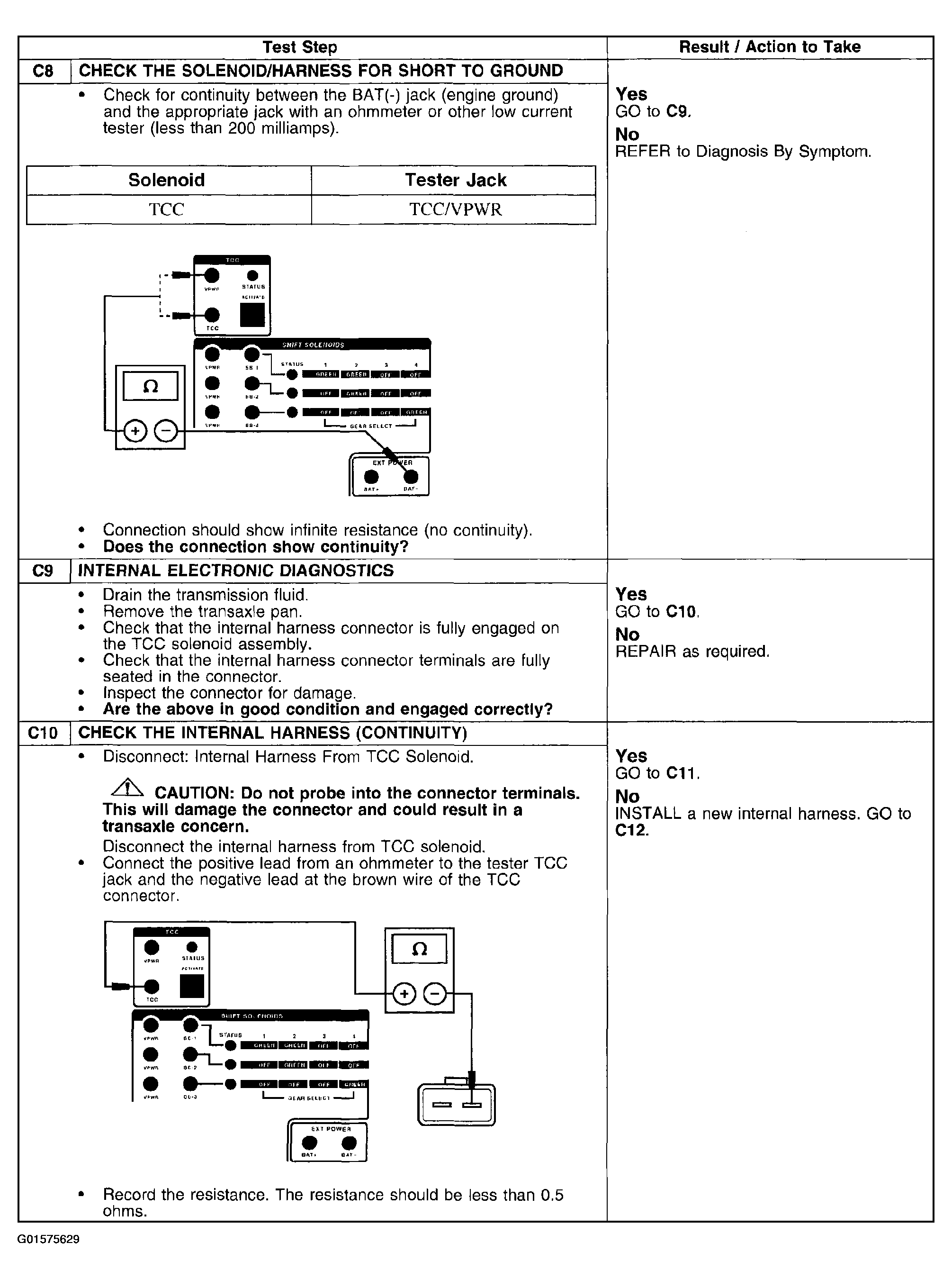

Fig 5: Pinpoint Test C: Torque Converter Clutch Solenoid (Steps C8-C10)

Courtesy of FORD MOTOR CO.

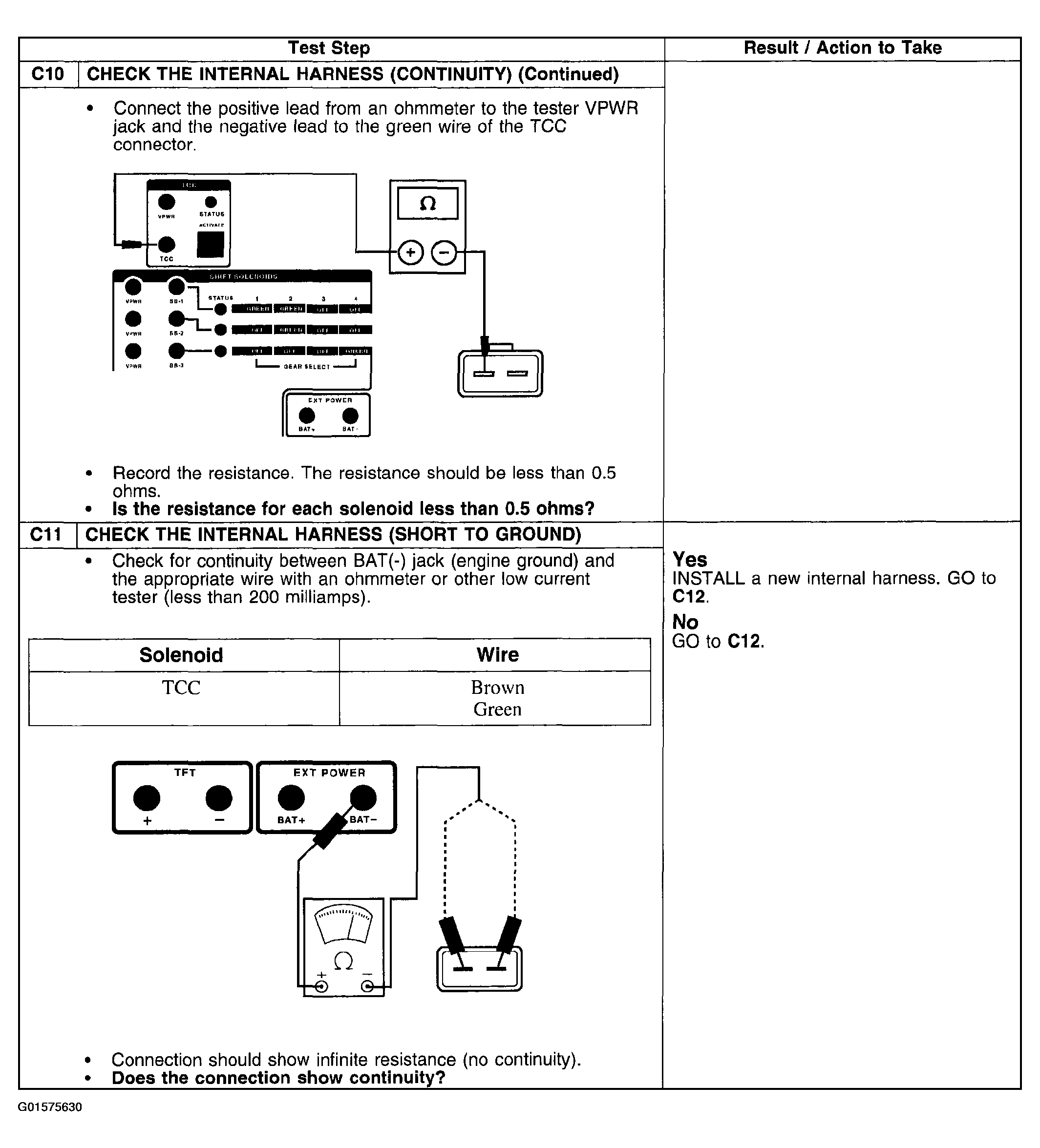

Fig 6: Pinpoint Test C: Torque Converter Clutch Solenoid (Steps C10 Cont.-C11)

Courtesy of FORD MOTOR CO.

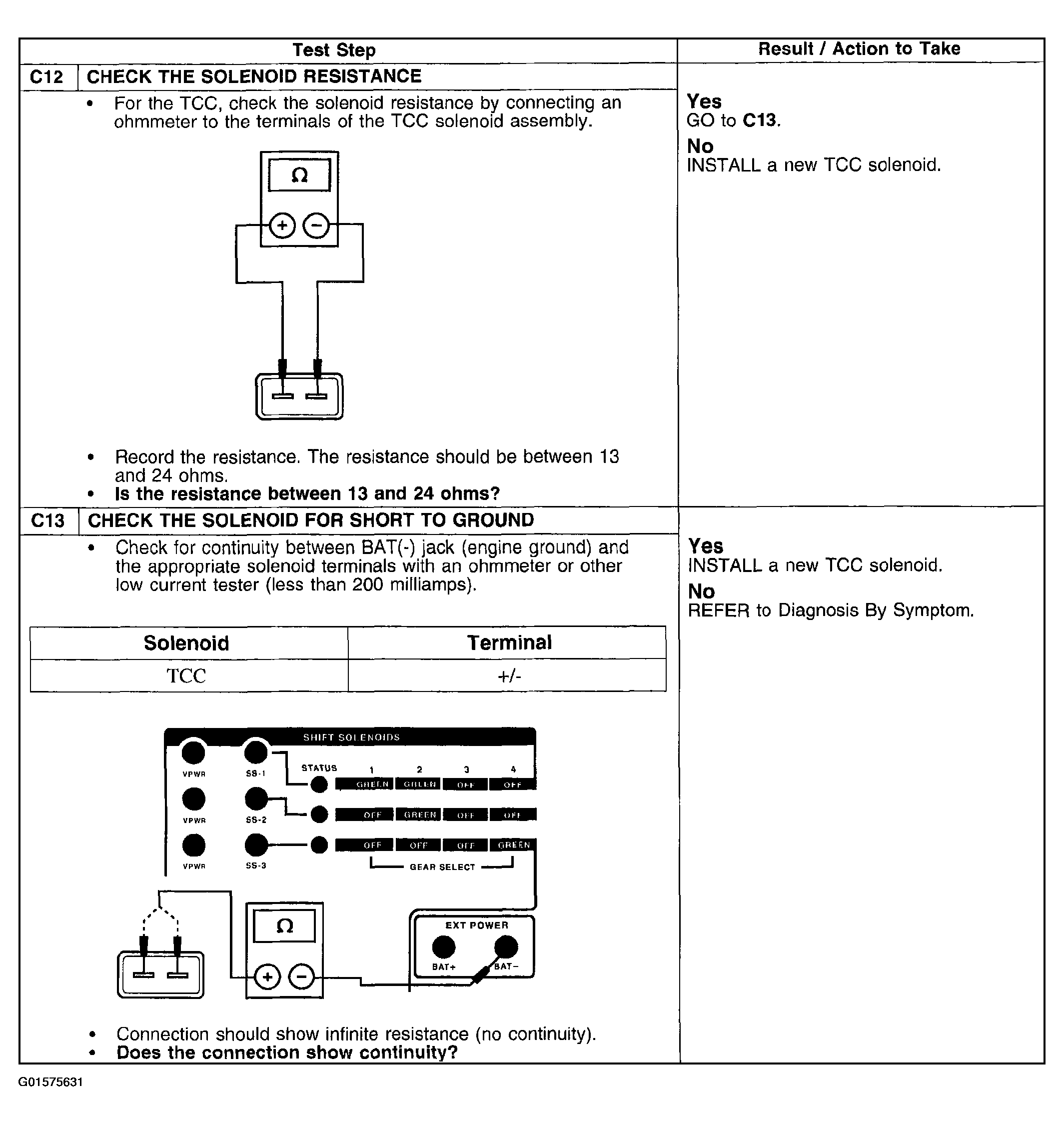

Fig 7: Pinpoint Test C: Torque Converter Clutch Solenoid (Steps C12-C13)

Courtesy of FORD MOTOR CO.
