Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the TRANSAXLE VEHICLE HARNESS CONNECTOR illustration preceding these pinpoint tests.

NOTE: Refer to the TRANSAXLE INTERNAL HARNESS DIAGRAM illustration preceding these pinpoint tests.

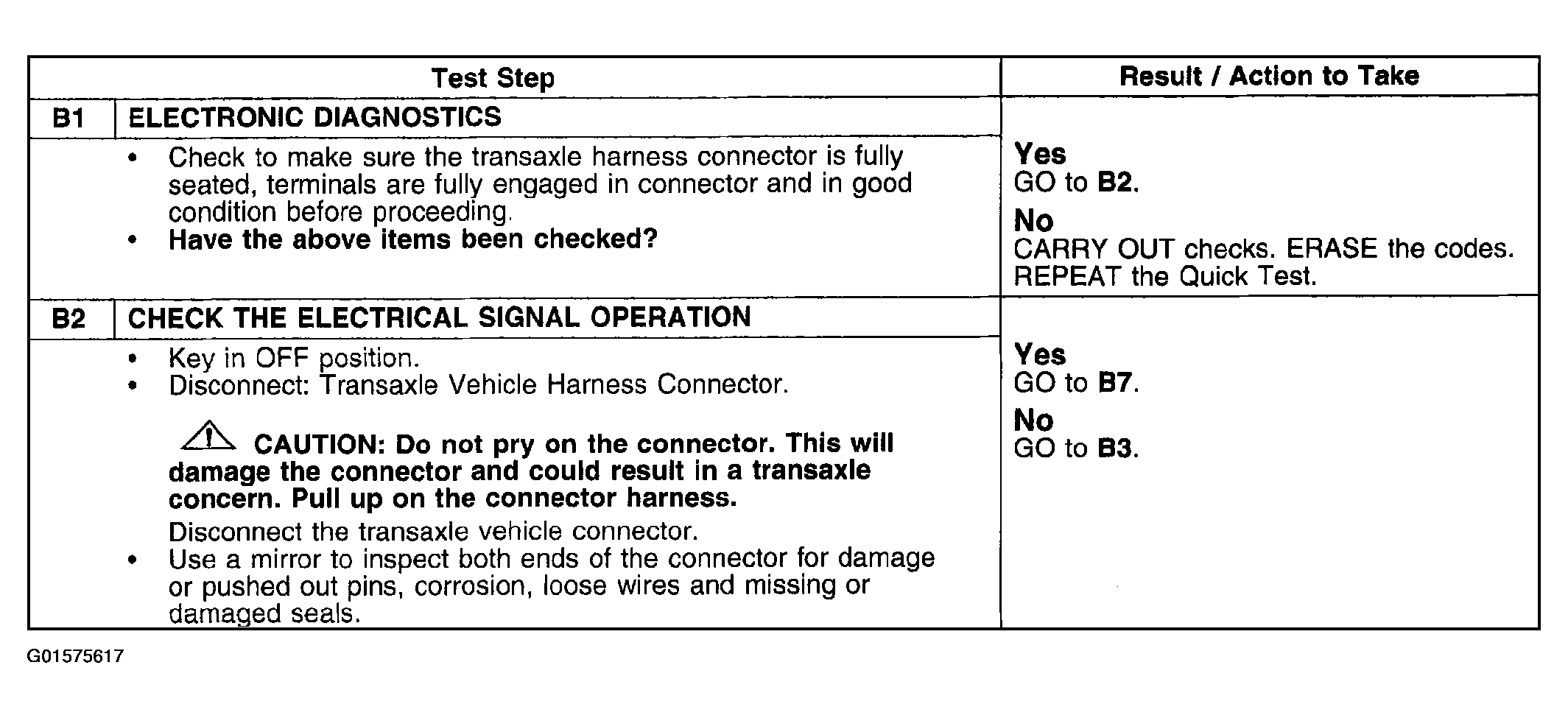

Fig 1: Pinpoint Test B: Transmission Fluid Temperature Sensor (Steps B1-B2)

Courtesy of FORD MOTOR CO.

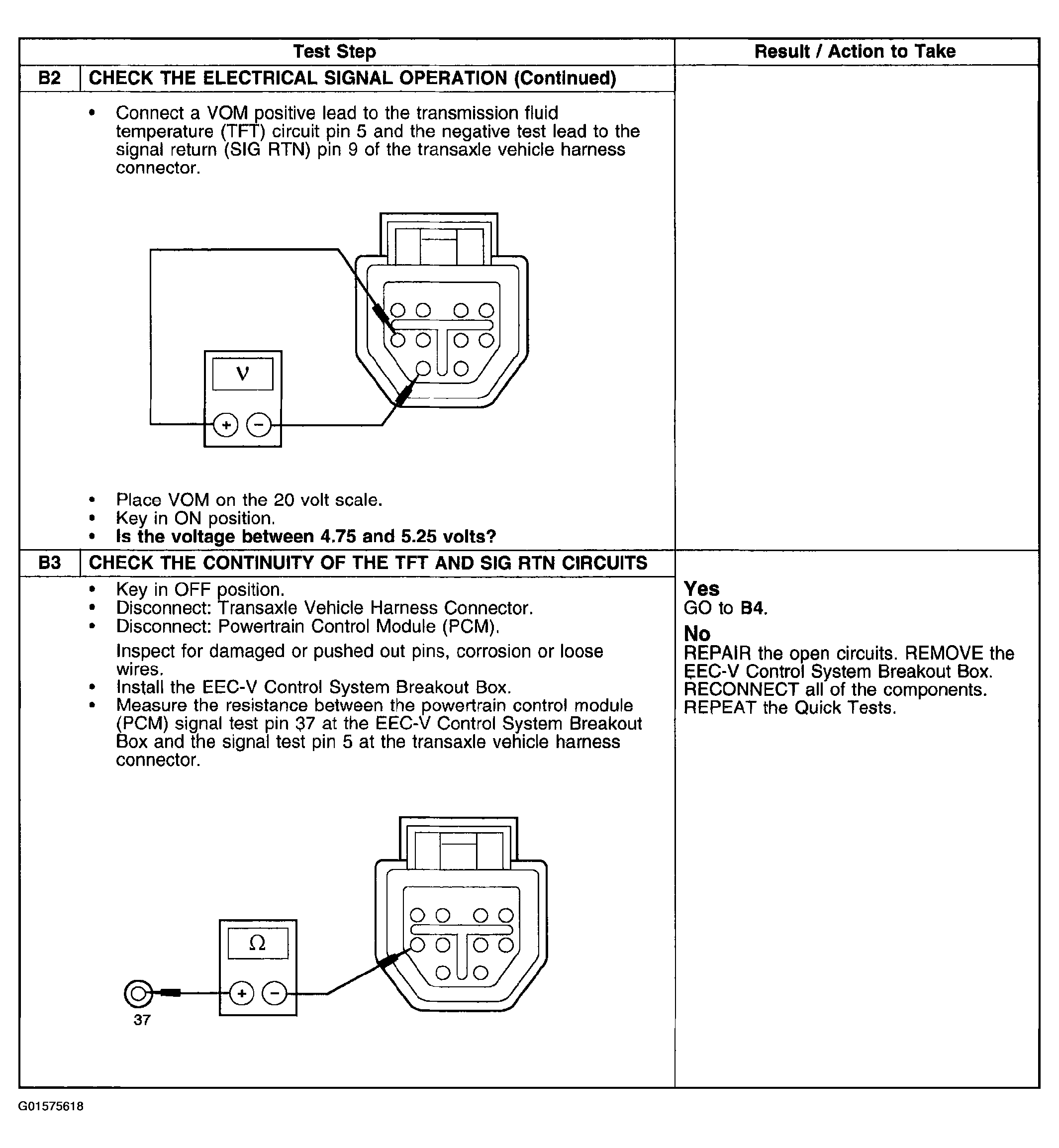

Fig 2: Pinpoint Test B: Transmission Fluid Temperature Sensor (Steps B2 Cont.-B3)

Courtesy of FORD MOTOR CO.

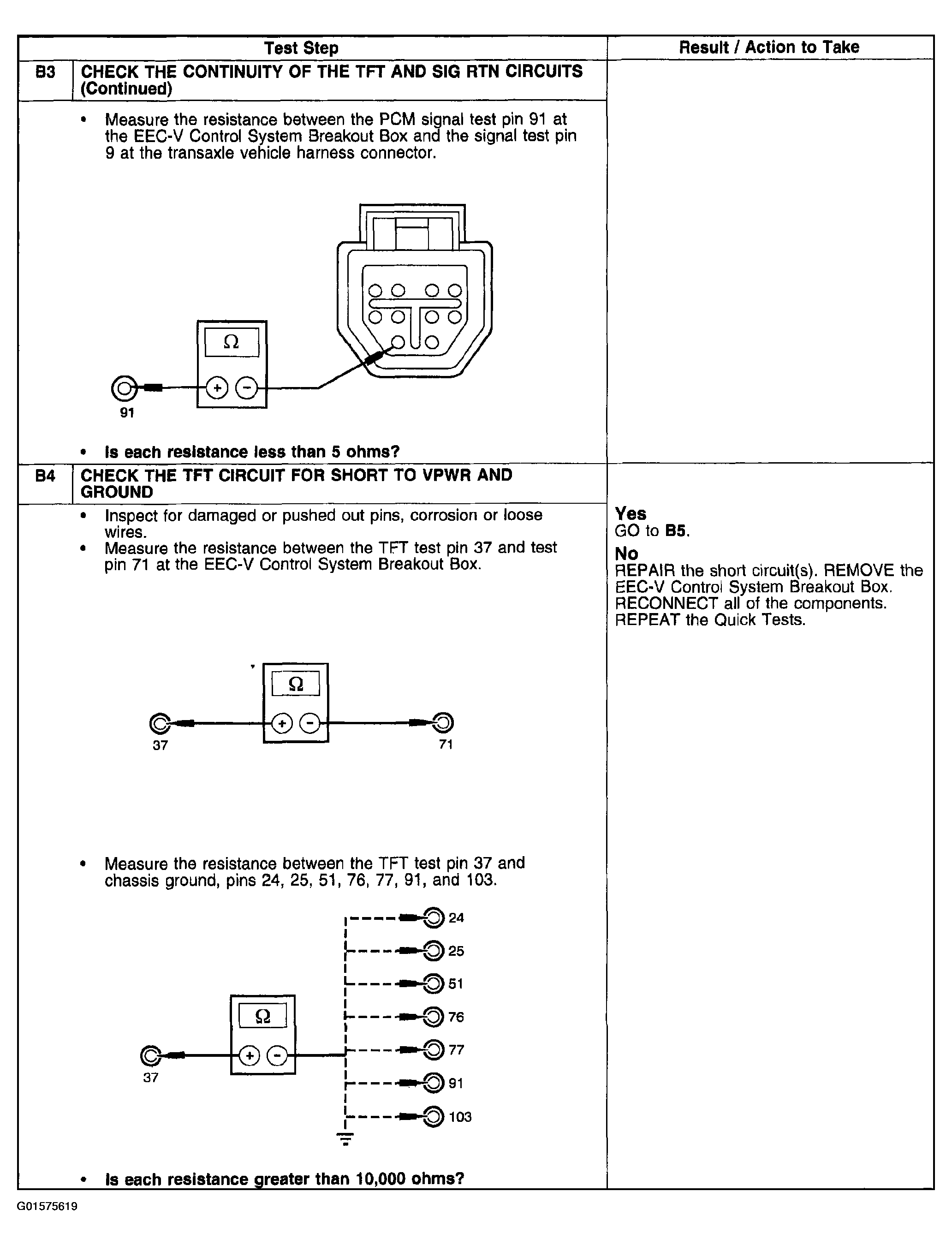

Fig 3: Pinpoint Test B: Transmission Fluid Temperature Sensor (Steps B3 Cont.-B4)

Courtesy of FORD MOTOR CO.

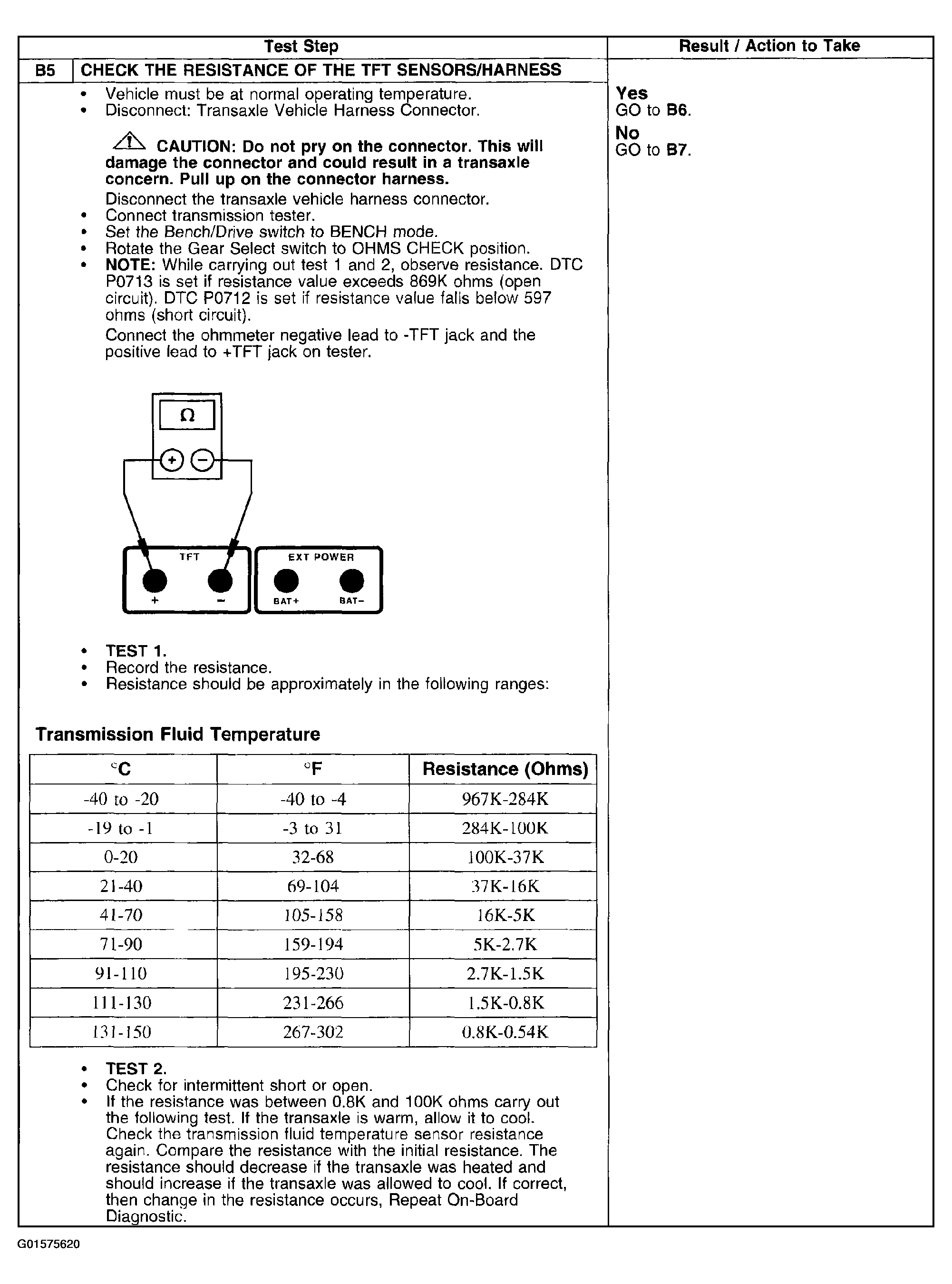

Fig 4: Pinpoint Test B: Transmission Fluid Temperature Sensor (Steps B5)

Courtesy of FORD MOTOR CO.

Fig 5: Pinpoint Test B: Transmission Fluid Temperature Sensor (Steps B5 Cont.-B8)

Courtesy of FORD MOTOR CO.

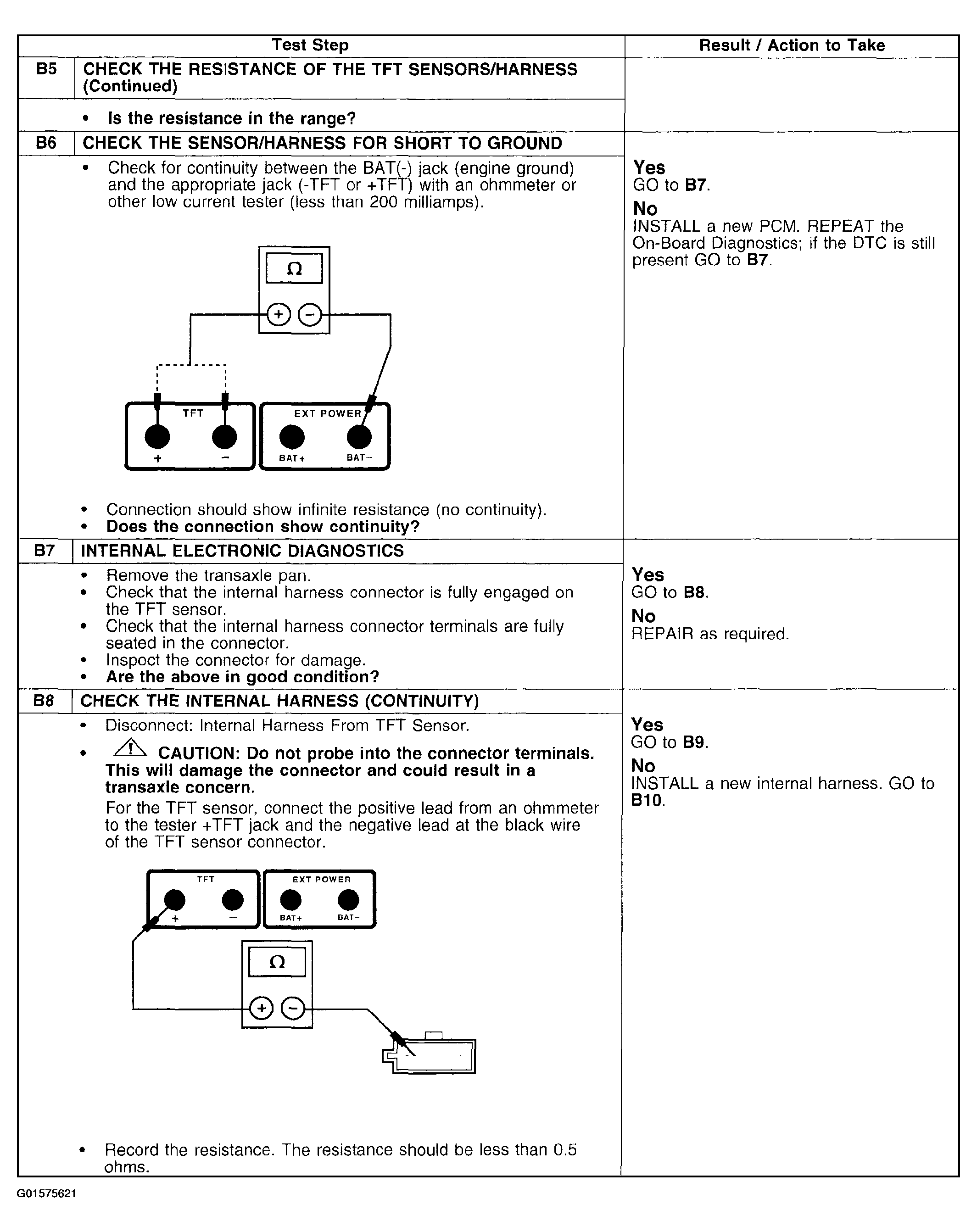

Fig 6: Pinpoint Test B: Transmission Fluid Temperature Sensor (Steps B8 Cont.-B9)

Courtesy of FORD MOTOR CO.

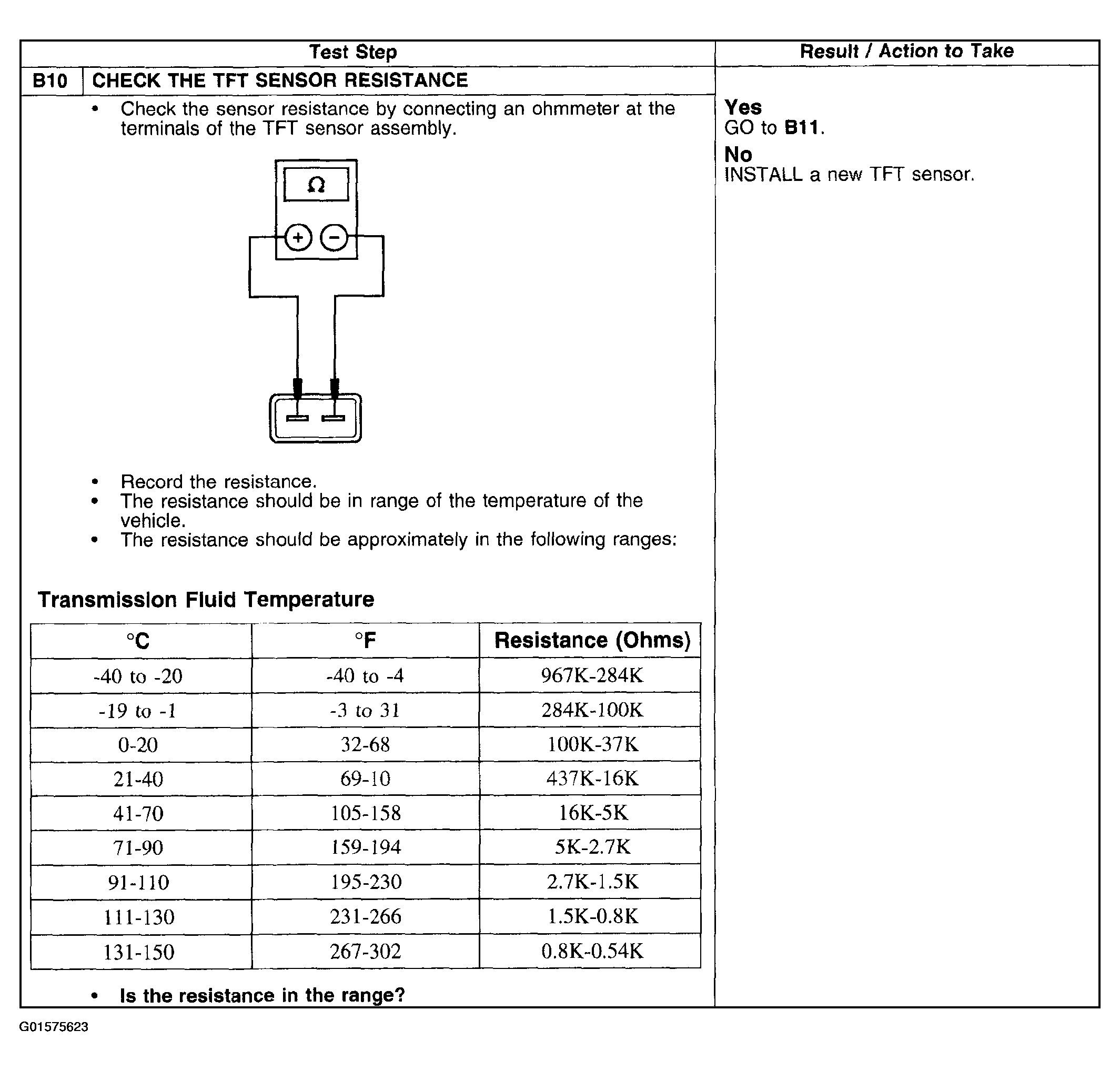

Fig 7: Pinpoint Test B: Transmission Fluid Temperature Sensor (Steps B10)

Courtesy of FORD MOTOR CO.

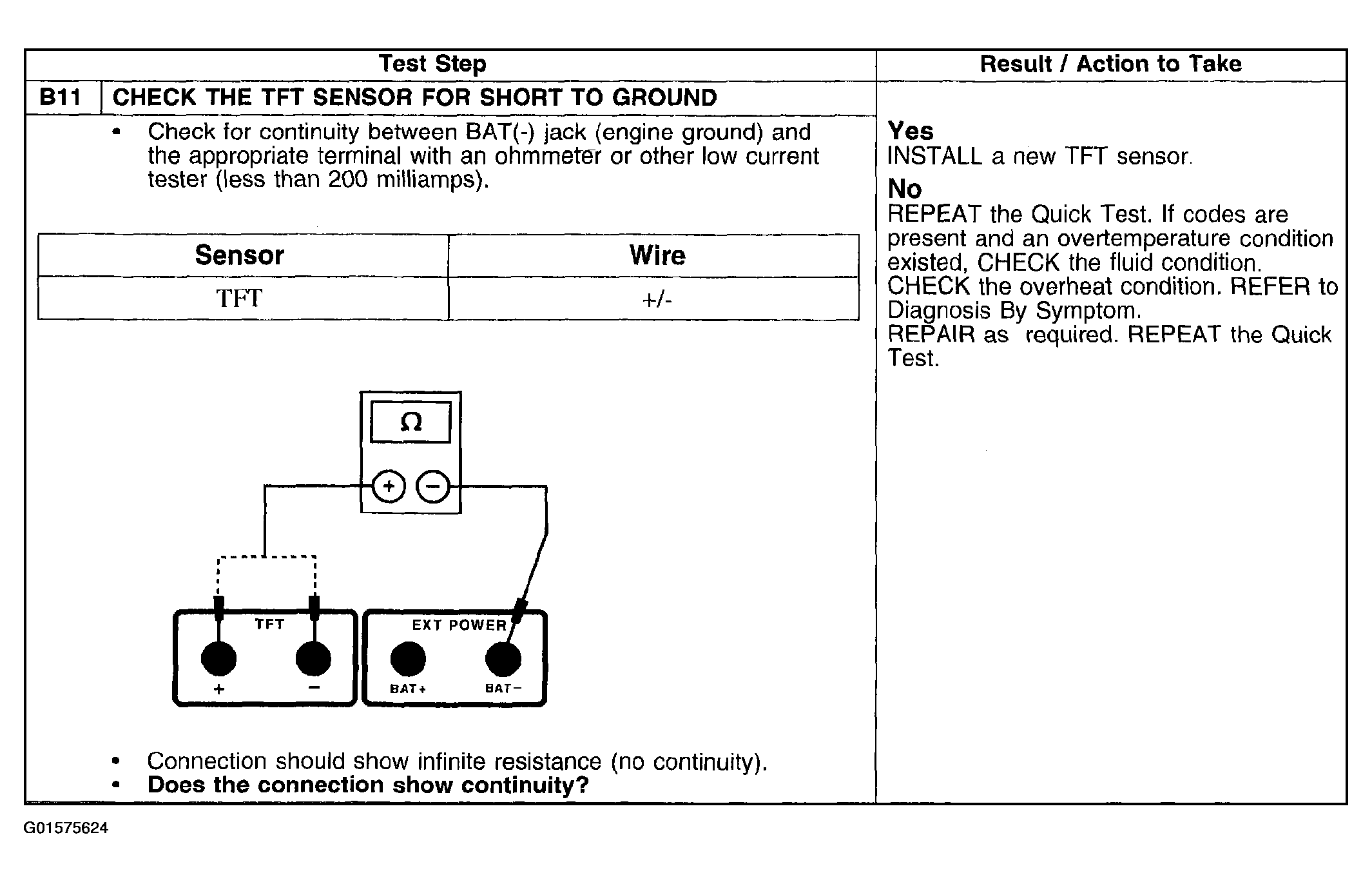

Fig 8: Pinpoint Test B: Transmission Fluid Temperature Sensor (Steps B11)

Courtesy of FORD MOTOR CO.
