Section 462 (Automatic Transmission - 4F50N)
>>
Diagnosis And Testing
>>
Diagnostic Flow Chart
Diagnostic Flow Chart
WARNING:
This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

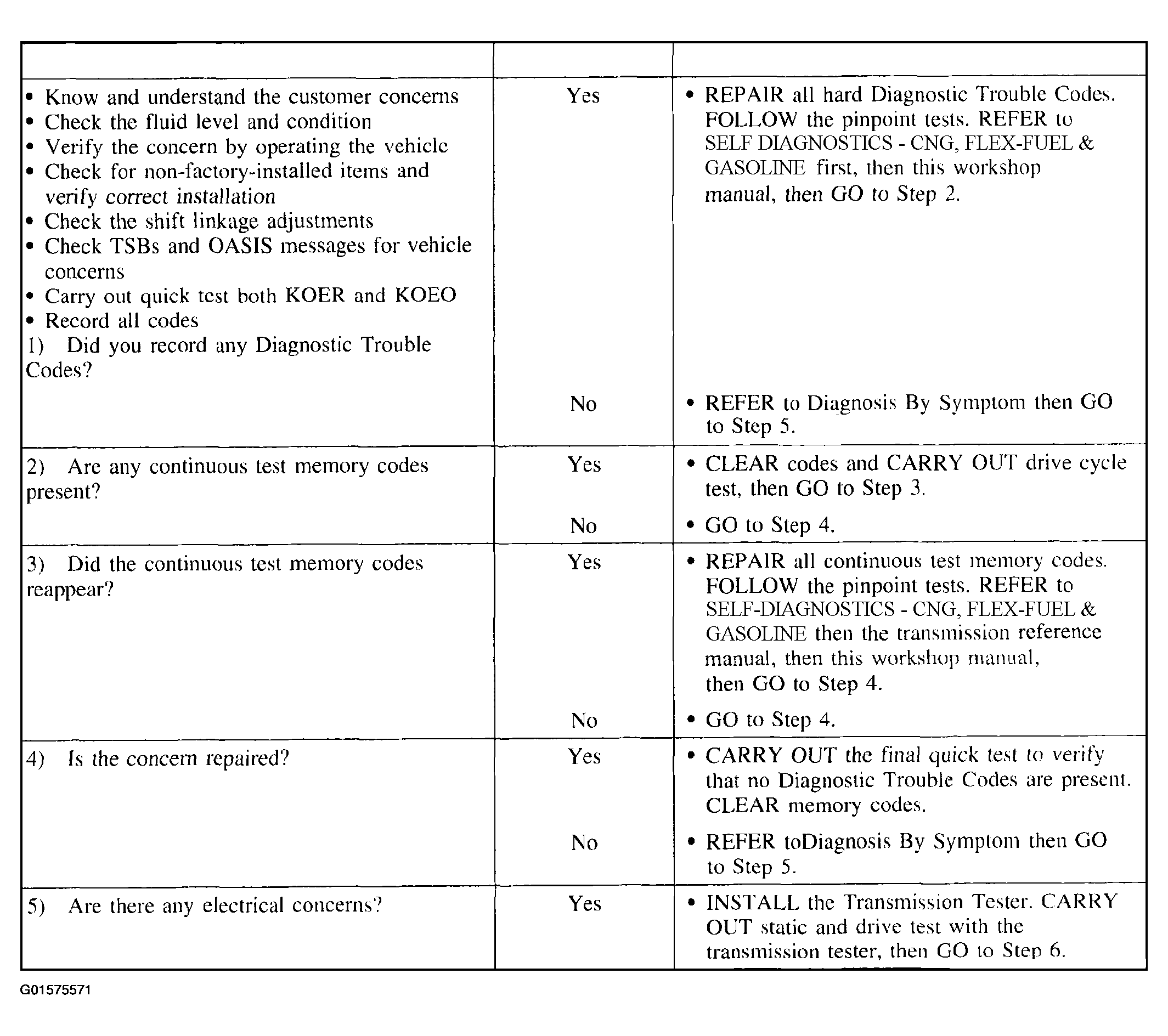

Fig 1: Identifying Diagnostic Flow Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

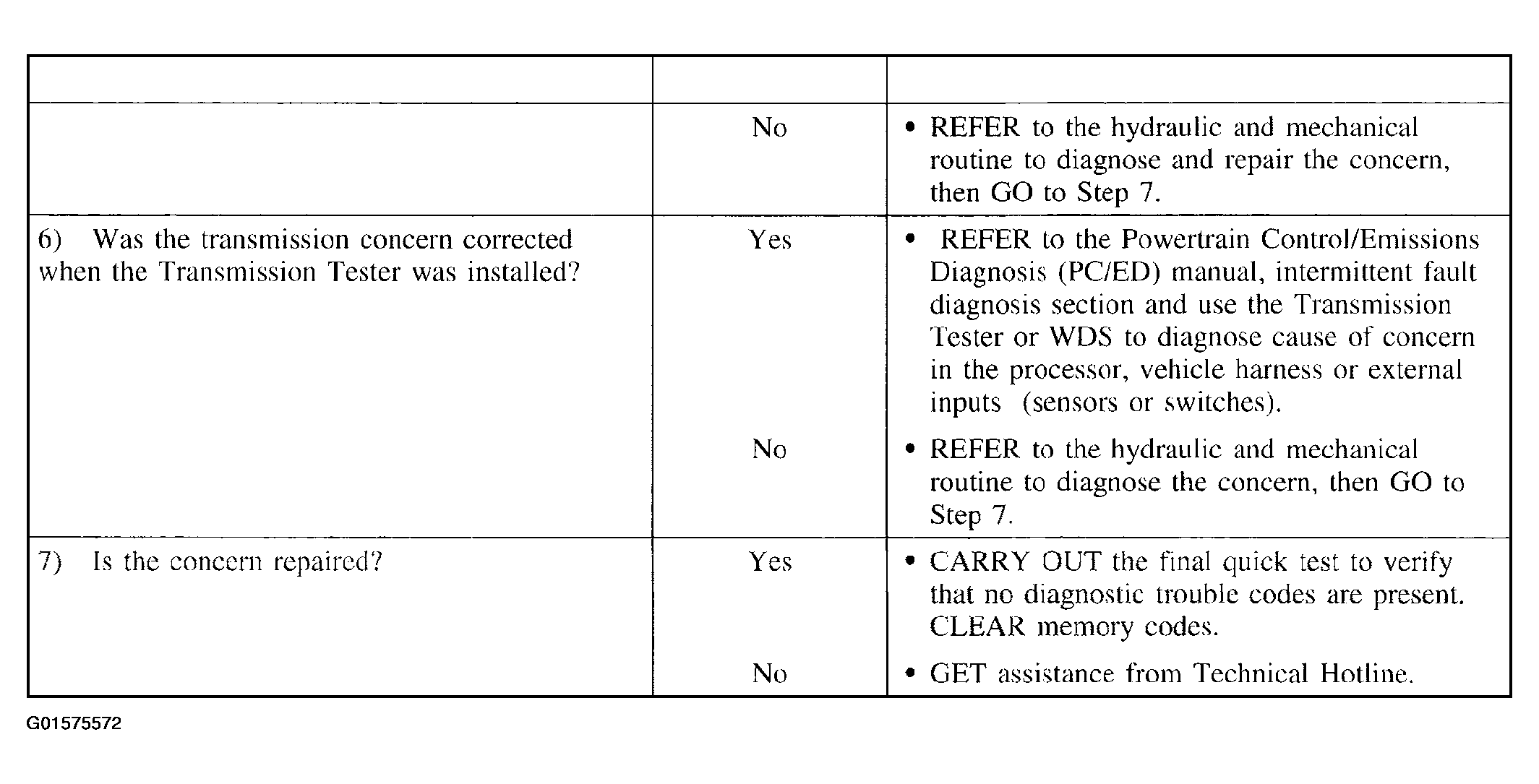

Fig 2: Identifying Diagnostic Flow Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
