Shift Concerns: Timing - Early/Late

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

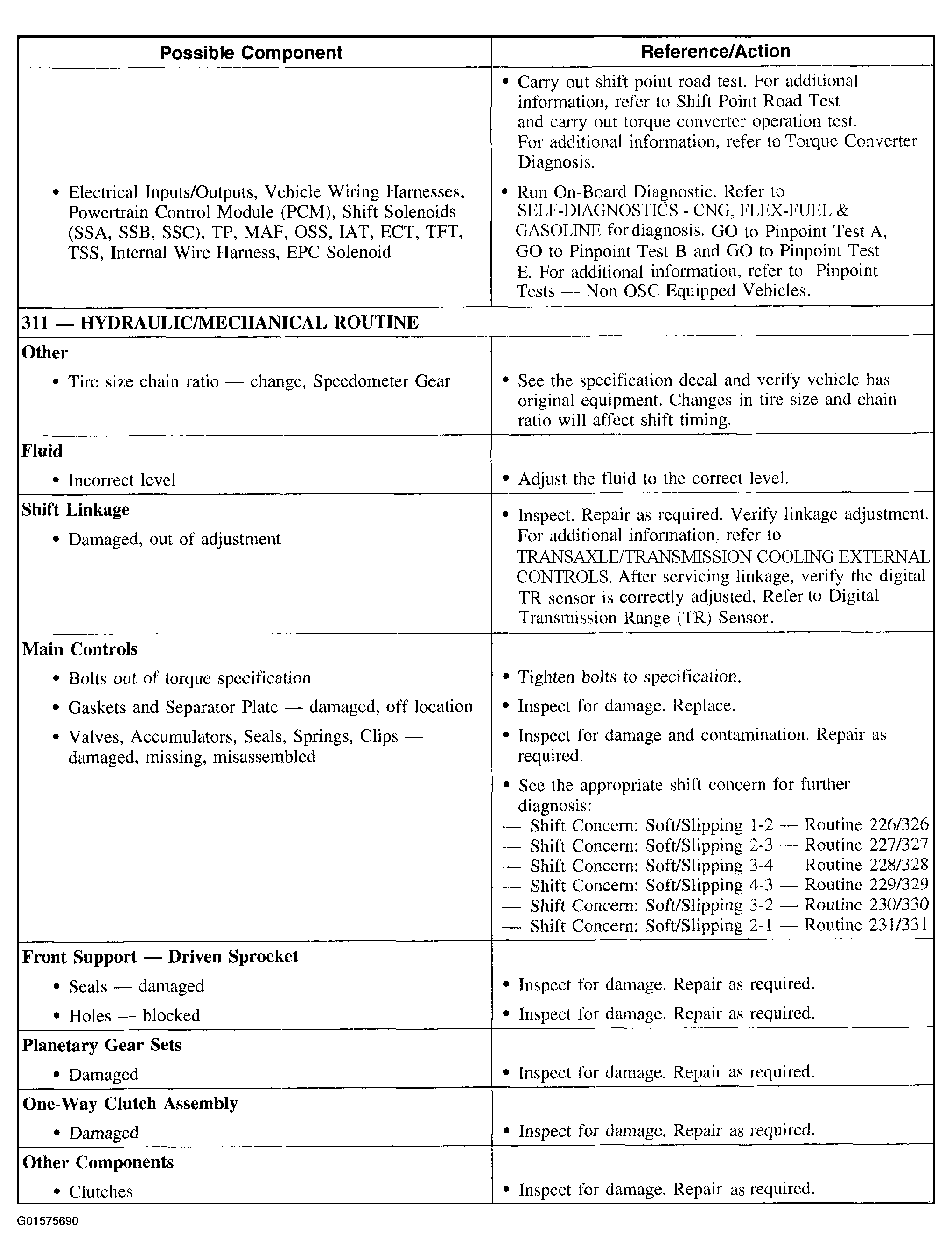

Fig 1: Shift Concerns: Timing - Early/Late - Diagnostic Routines (1 Of 3)

Courtesy of FORD MOTOR CO.

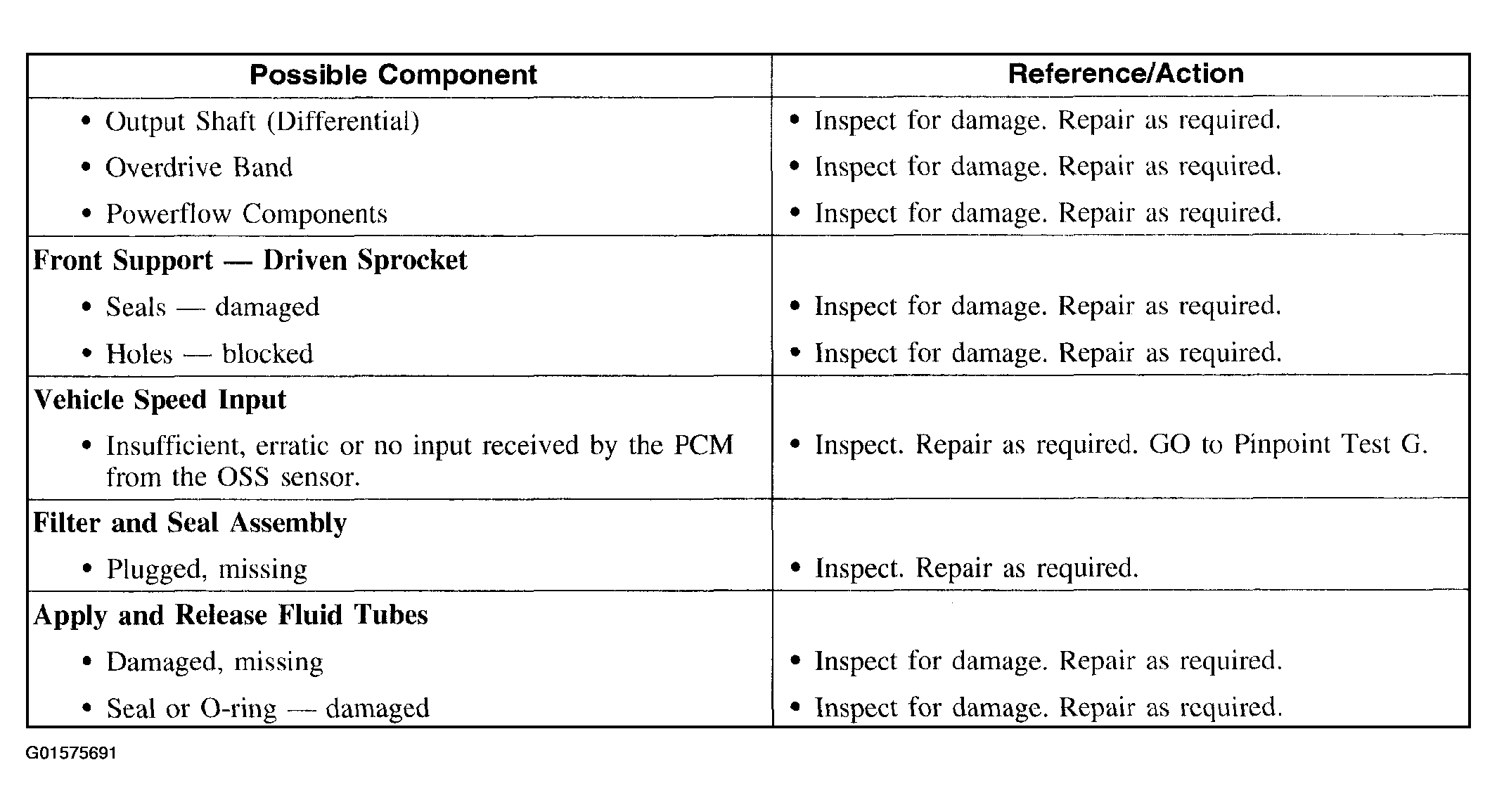

Fig 2: Shift Concerns: Timing - Early/Late - Diagnostic Routines (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Shift Concerns: Timing - Early/Late - Diagnostic Routines (3 Of 3)

Courtesy of FORD MOTOR CO.
