Shift Concerns: Soft/Slipping 3-4 Shift (Automatic)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Shift Concerns: Soft/Slipping 3-4 Shift (Automatic) - Diagnostic Routines (1 Of 2)
G01575709Courtesy of FORD MOTOR CO.

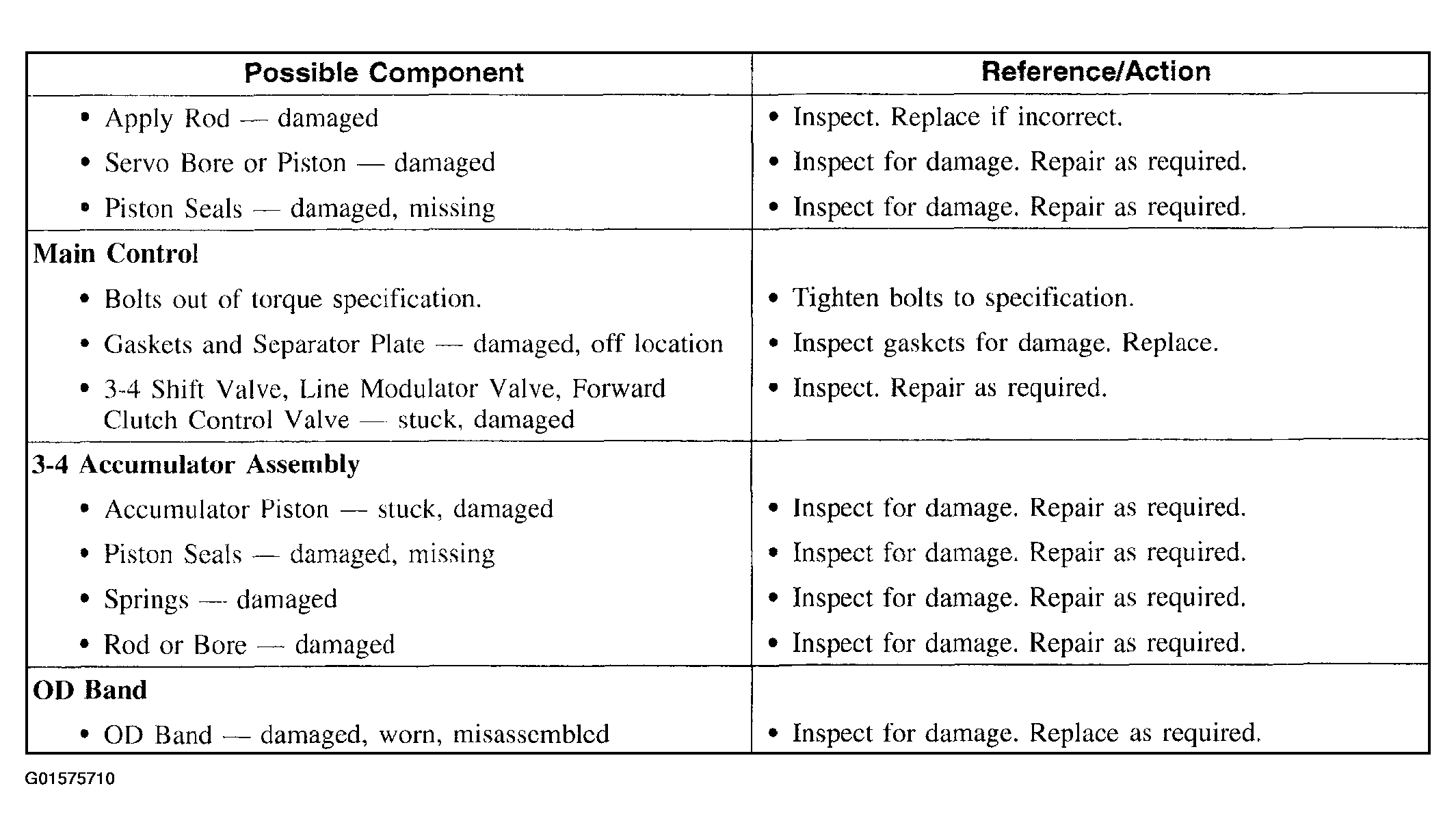

Fig 2: Shift Concerns: Soft/Slipping 3-4 Shift (Automatic) - Diagnostic Routines (2 Of 2)
G01575710Courtesy of FORD MOTOR CO.
