Engagement Concern: Delayed/Soft Reverse

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

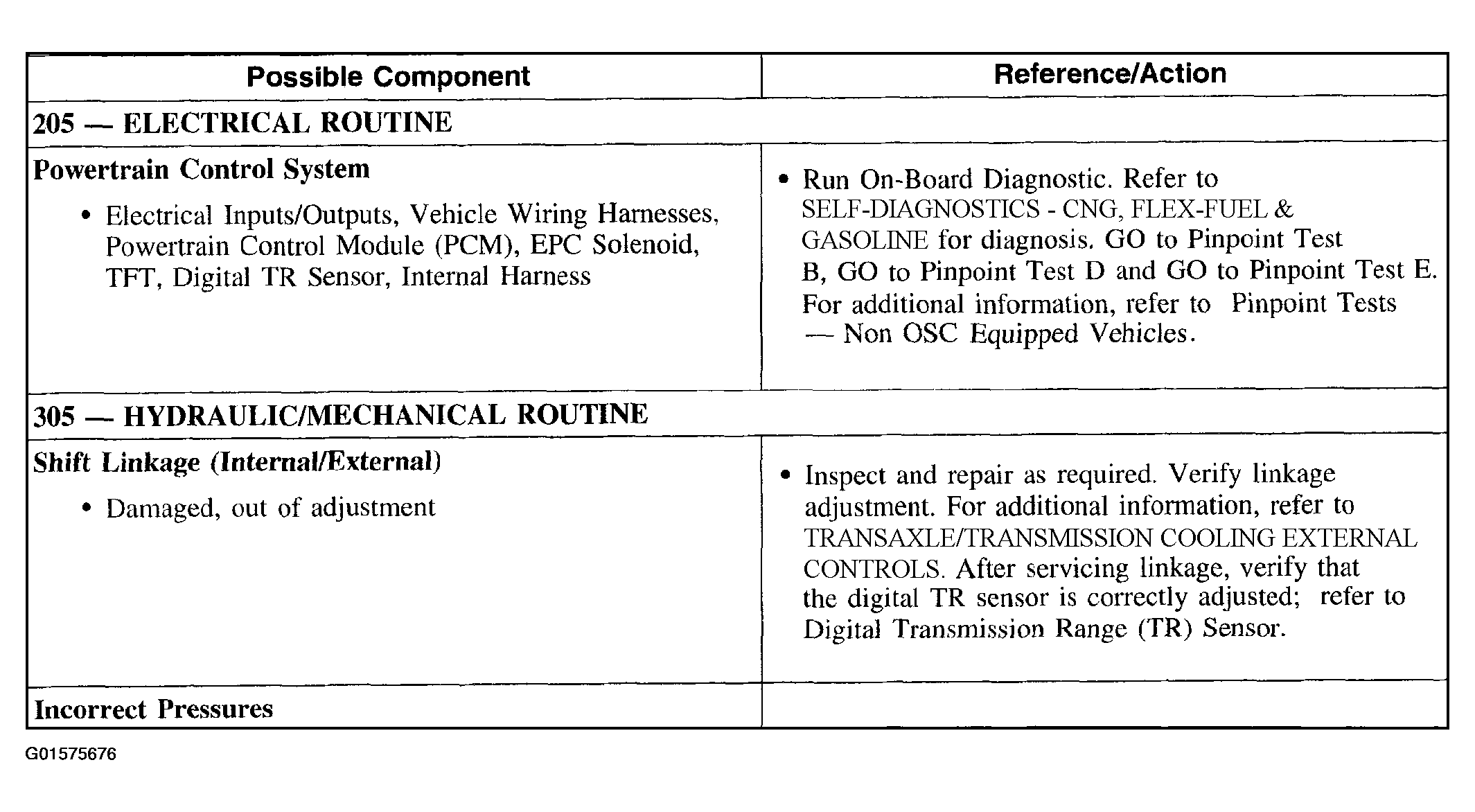

Fig 1: Engagement Concern: Delayed/Soft Reverse - Diagnostic Routines (1 Of 2)
G01575676Courtesy of FORD MOTOR CO.

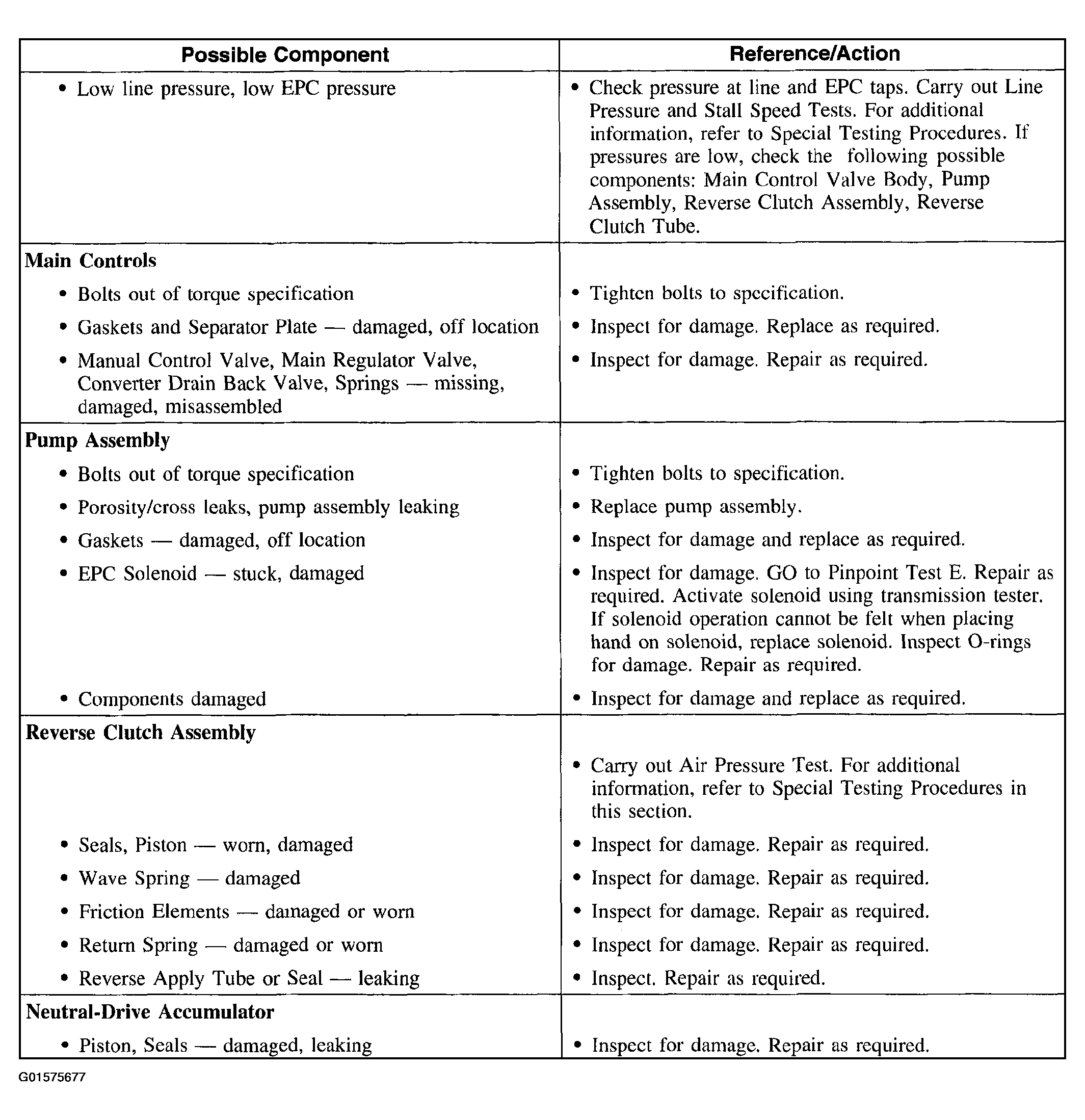

Fig 2: Engagement Concern: Delayed/Soft Reverse - Diagnostic Routines (2 Of 2)
G01575677Courtesy of FORD MOTOR CO.
