Main Control

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

The hydraulic system has a main control assembly. The pump assembly, hydraulic control valves and electro-hydraulic actuators are located in the main control.

Gaskets are used for the separator plate between the pump body and valve body. The separator plate between the valve body and chain cover has integral gaskets.

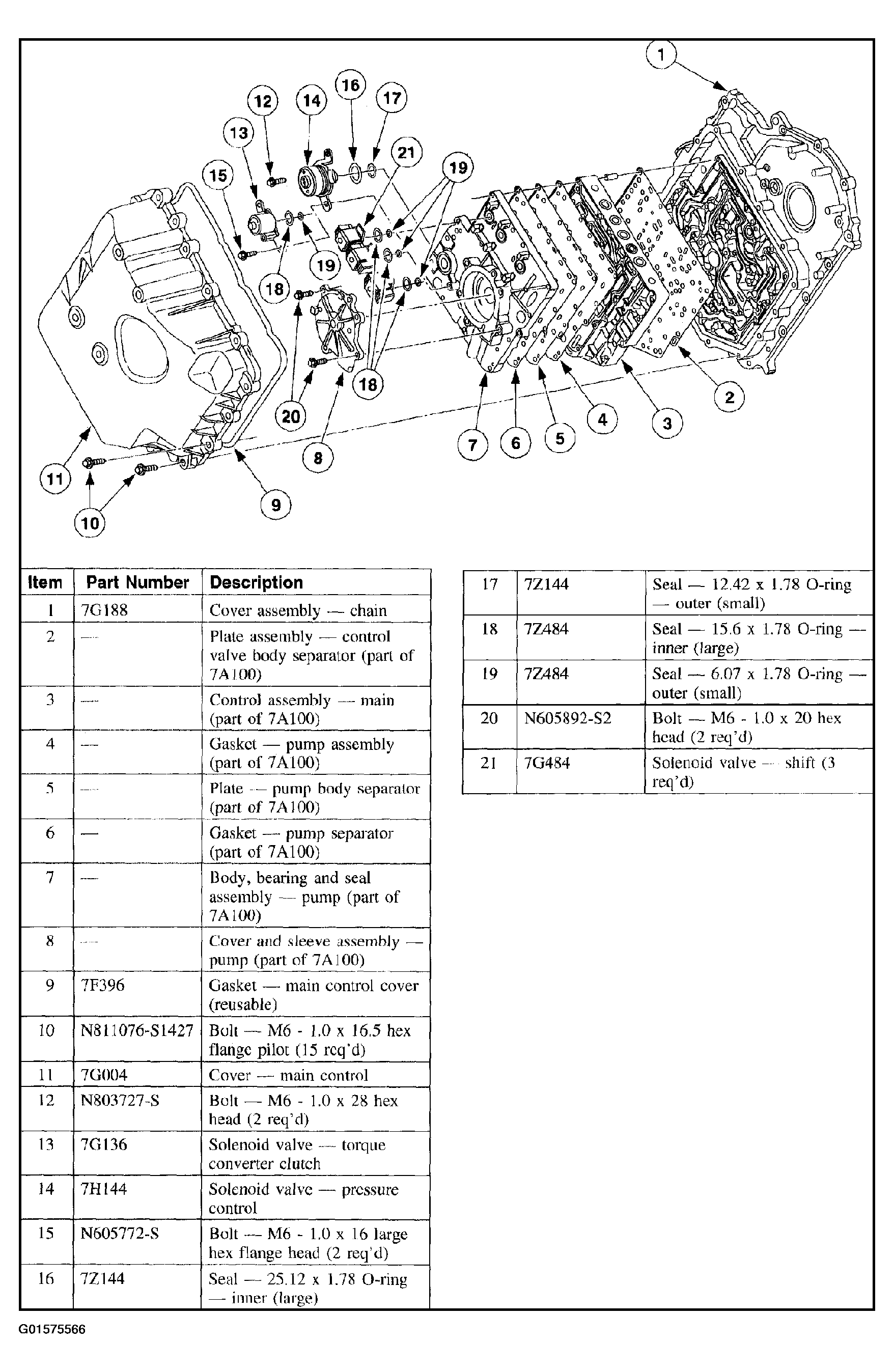

Fig 1: Exploded View Of Main Control Components
G01575566Courtesy of FORD MOTOR CO.

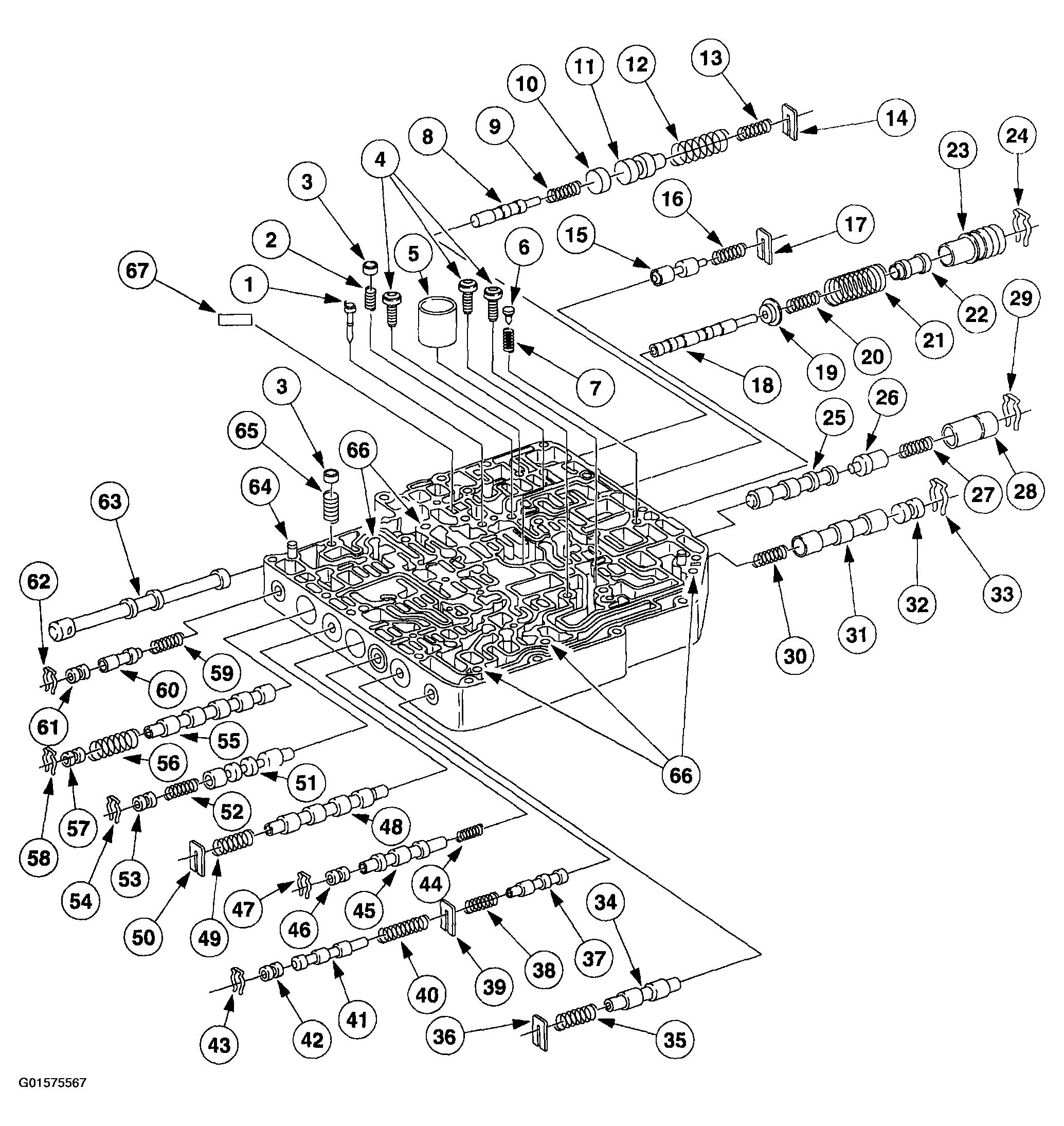

Fig 2: Exploded View Of Main Control Valves (1 Of 2)
G01575567Courtesy of FORD MOTOR CO.

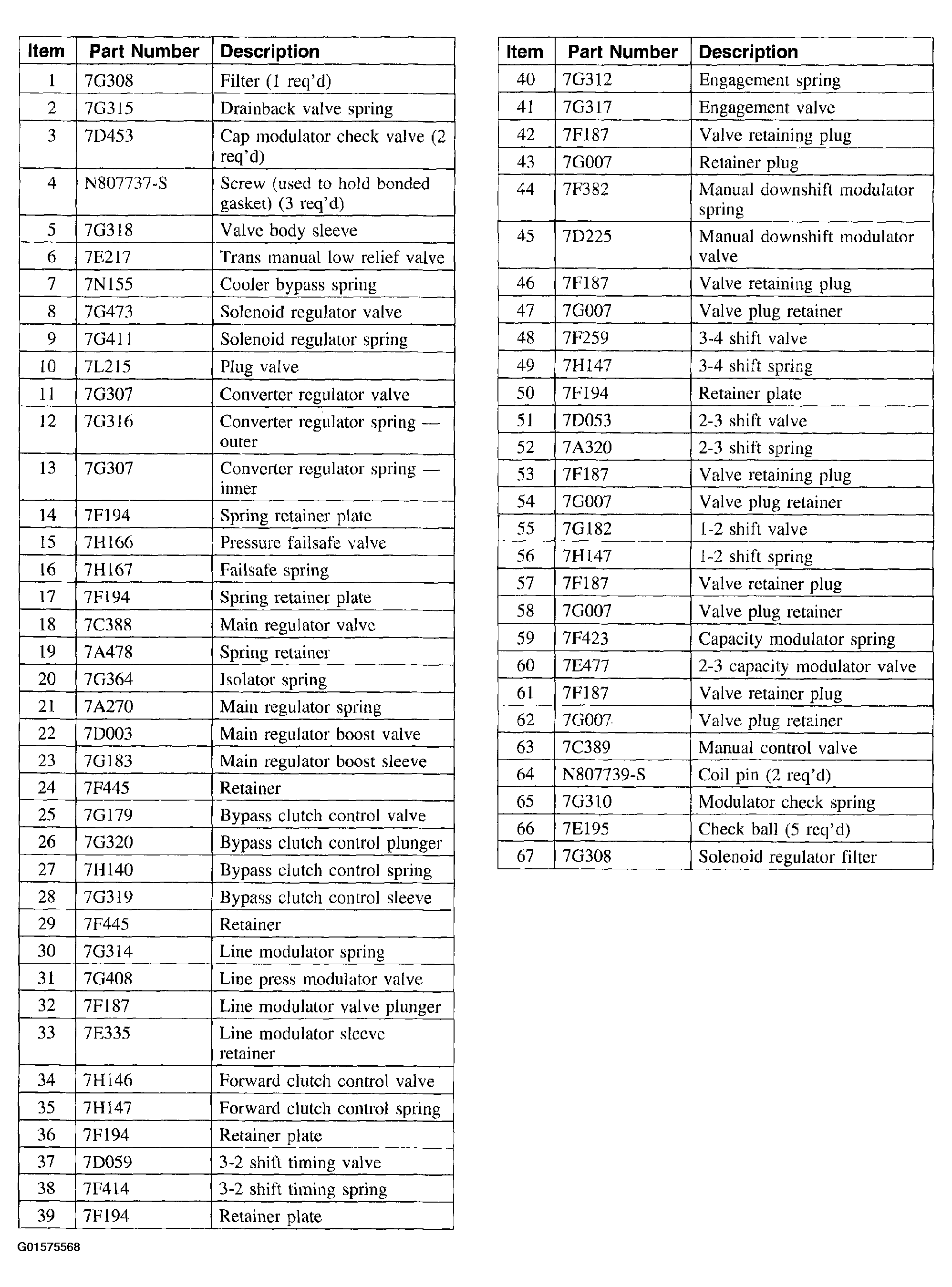

Fig 3: Exploded View Of Main Control Valves (2 Of 2)
G01575568Courtesy of FORD MOTOR CO.
