WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

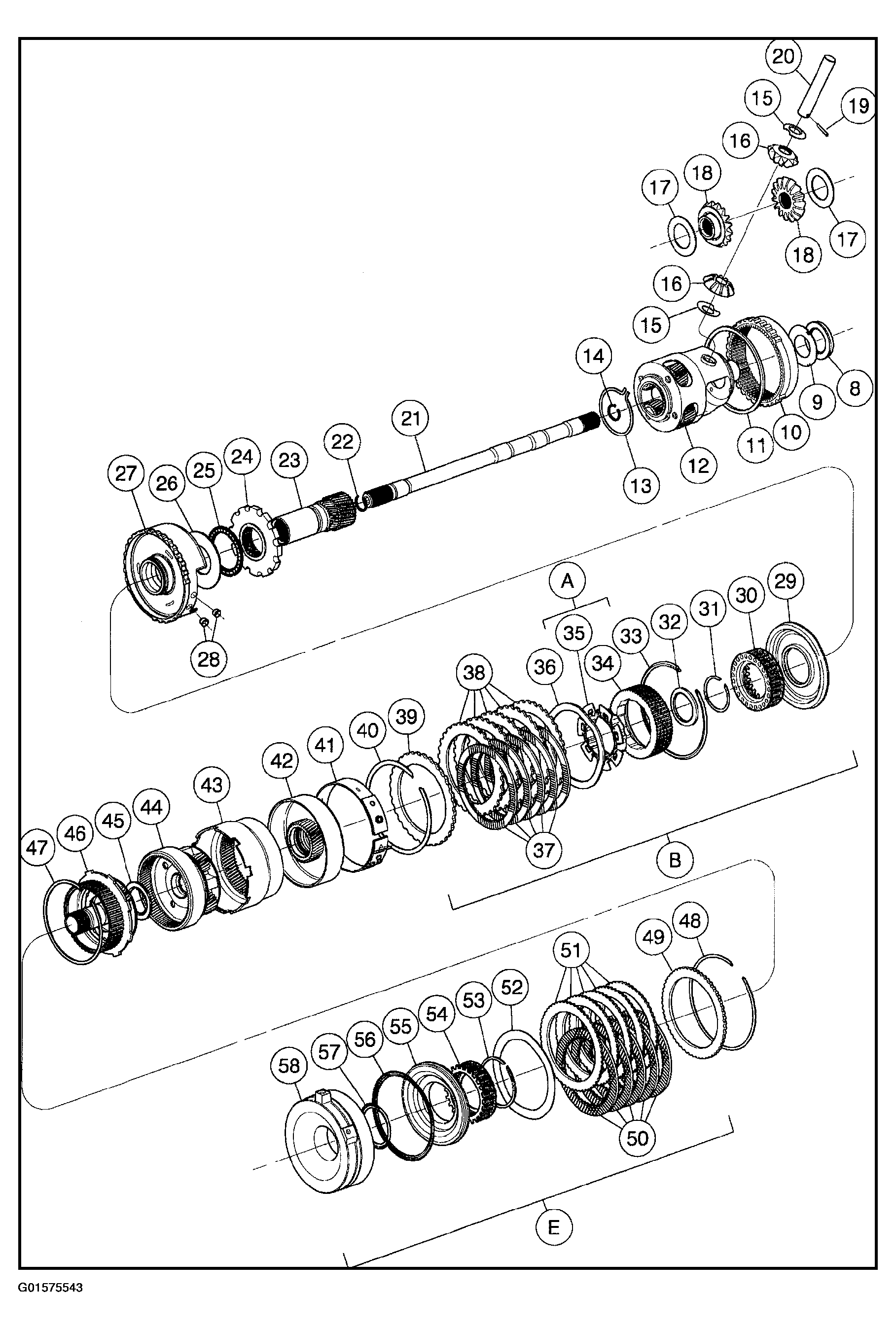

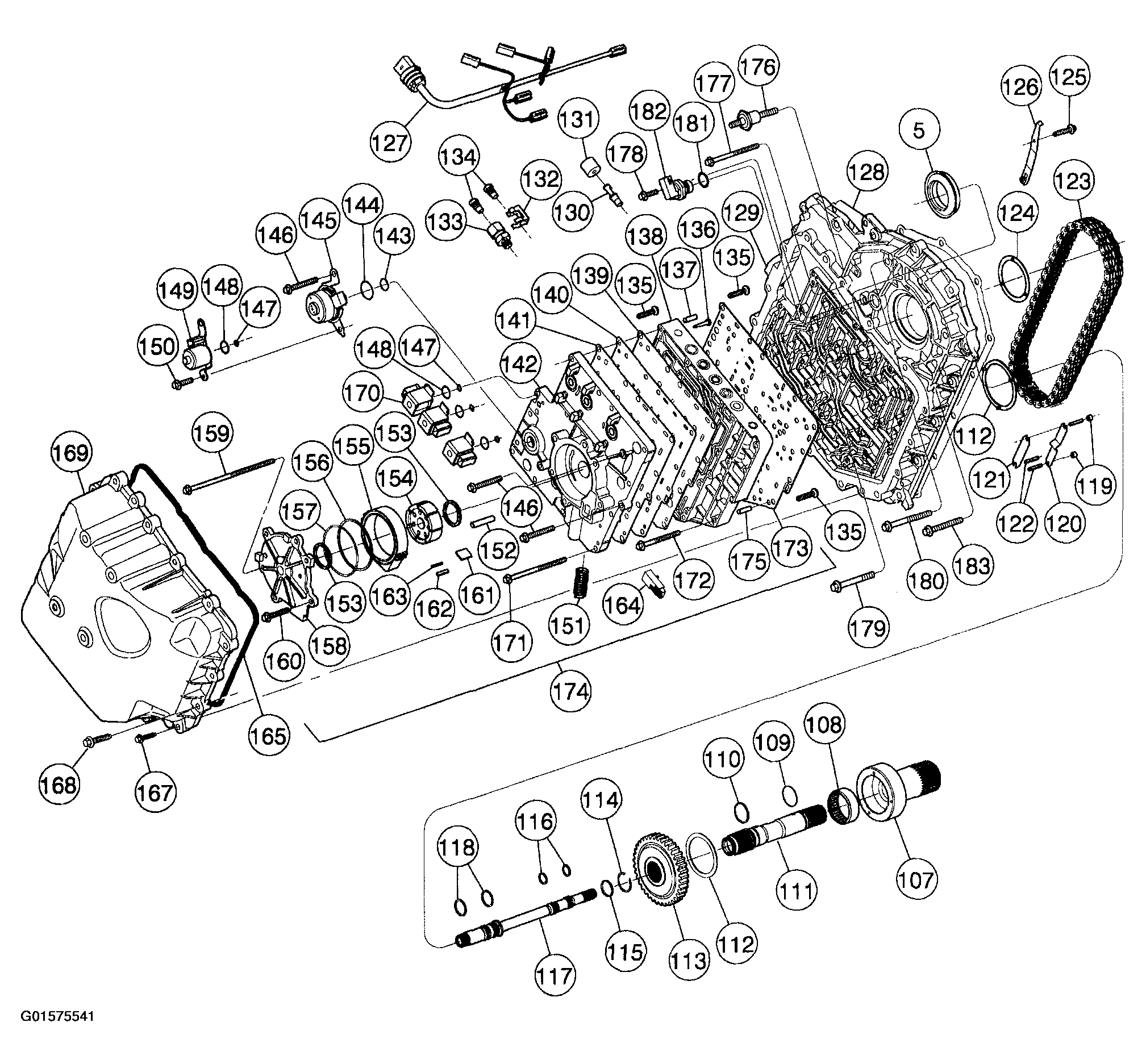

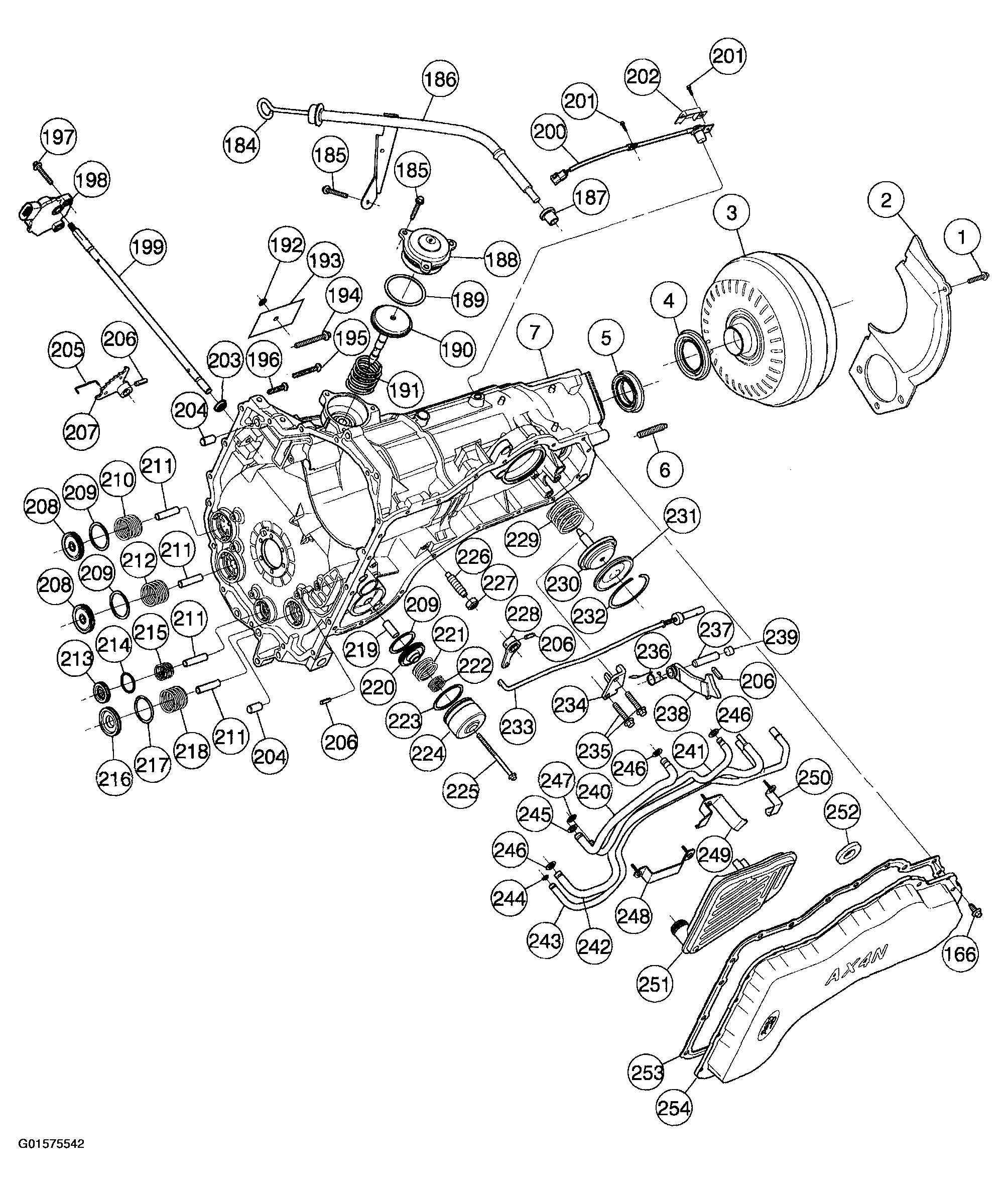

Fig 1: Identifying Disassembled Views of Automatic Transaxle 4F50N (1 Of 16)
Courtesy of FORD MOTOR CO.

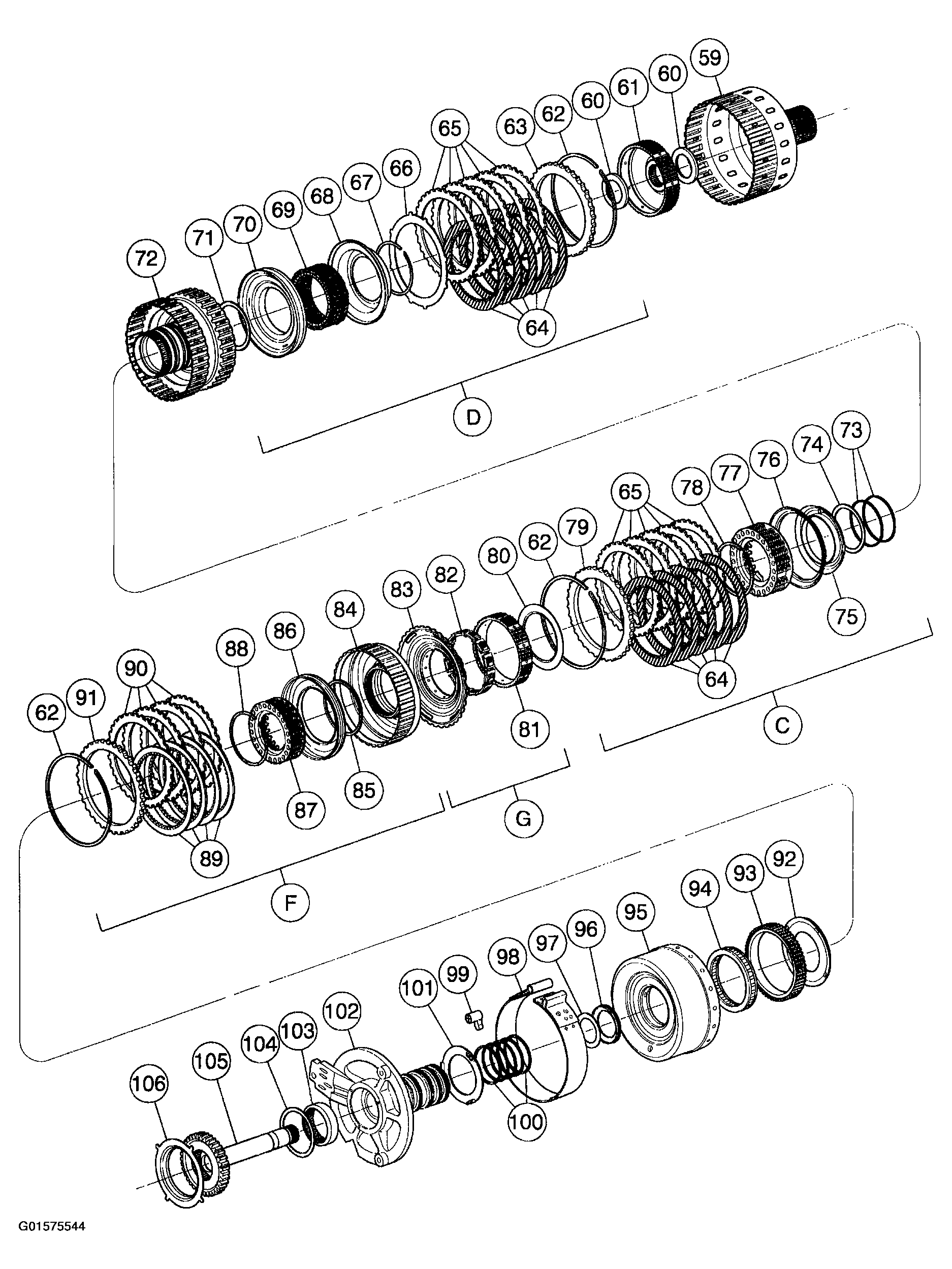

Fig 2: Identifying Disassembled Views of Automatic Transaxle 4F50N (2 Of 16)
Courtesy of FORD MOTOR CO.

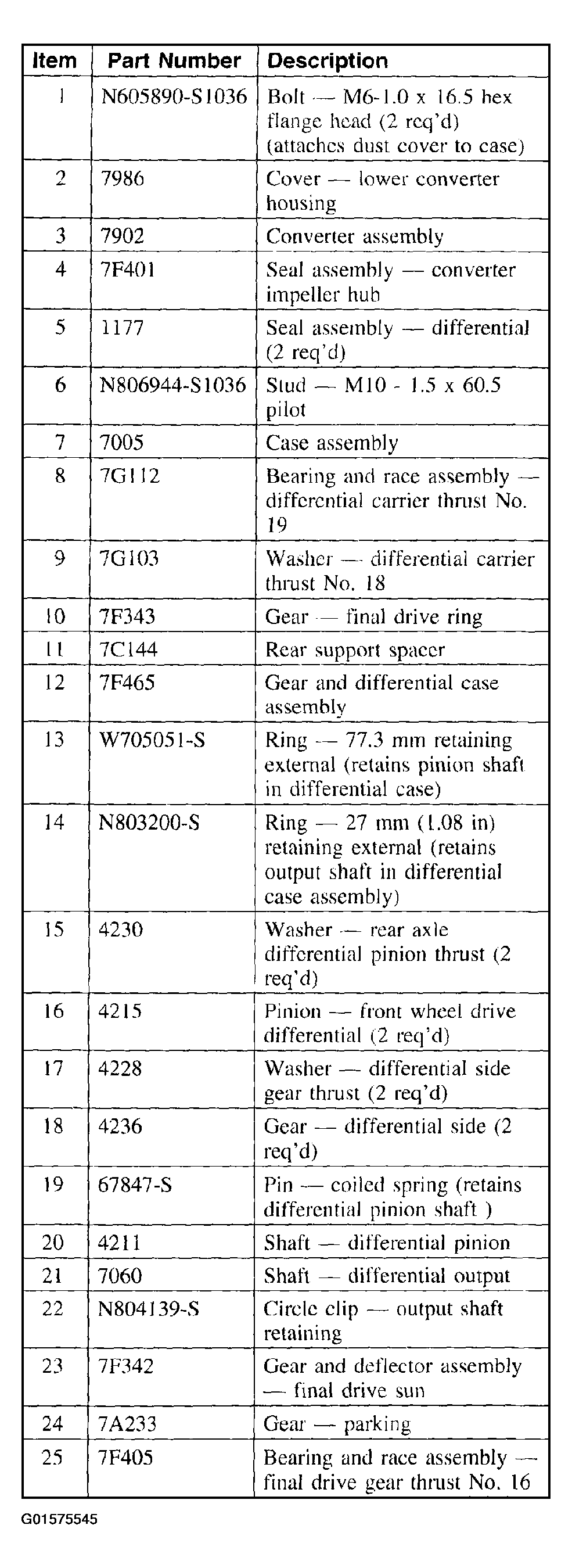

Fig 3: Identifying Disassembled Views of Automatic Transaxle 4F50N (3 Of 16)
Courtesy of FORD MOTOR CO.

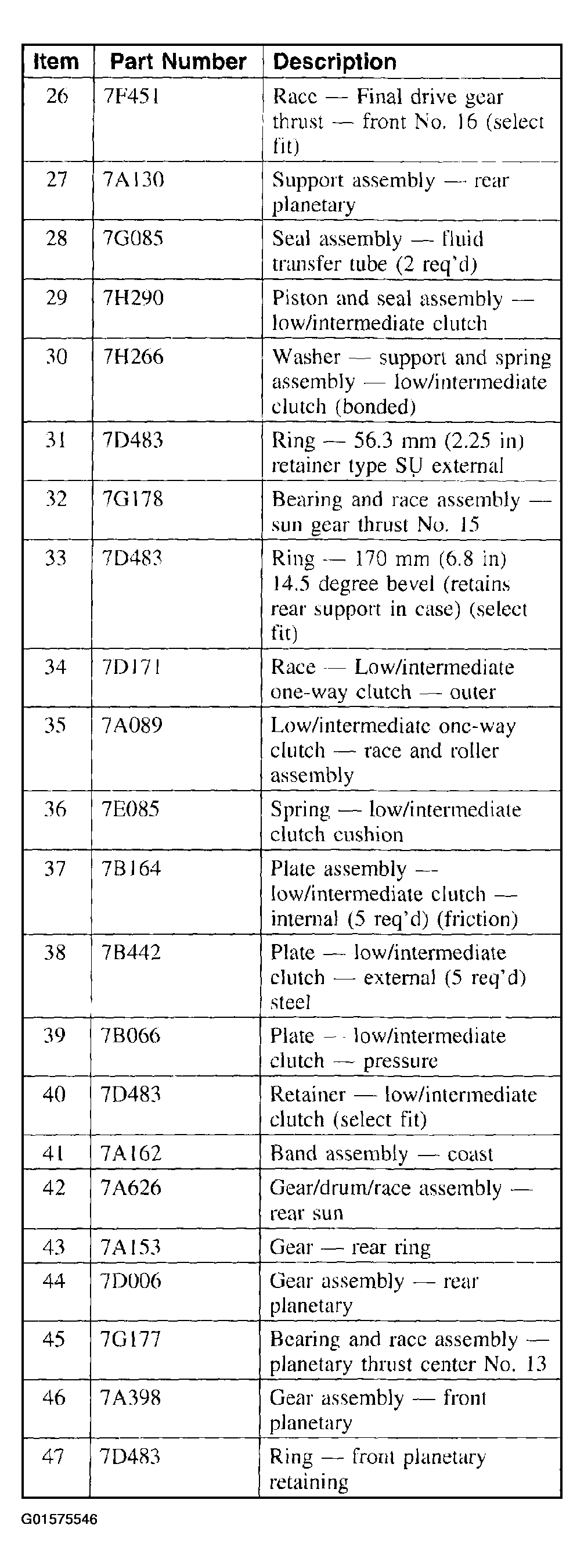

Fig 4: Identifying Disassembled Views of Automatic Transaxle 4F50N (4 Of 16)
Courtesy of FORD MOTOR CO.
Fig 5: Identifying Disassembled Views of Automatic Transaxle 4F50N (5 Of 16)
Courtesy of FORD MOTOR CO.
Fig 6: Identifying Disassembled Views of Automatic Transaxle 4F50N (6 Of 16)
Courtesy of FORD MOTOR CO.
Fig 7: Identifying Disassembled Views of Automatic Transaxle 4F50N (7 Of 16)
Courtesy of FORD MOTOR CO.
Fig 8: Identifying Disassembled Views of Automatic Transaxle 4F50N (8 Of 16)
Courtesy of FORD MOTOR CO.
Fig 9: Identifying Disassembled Views of Automatic Transaxle 4F50N (9 Of 16)
Courtesy of FORD MOTOR CO.

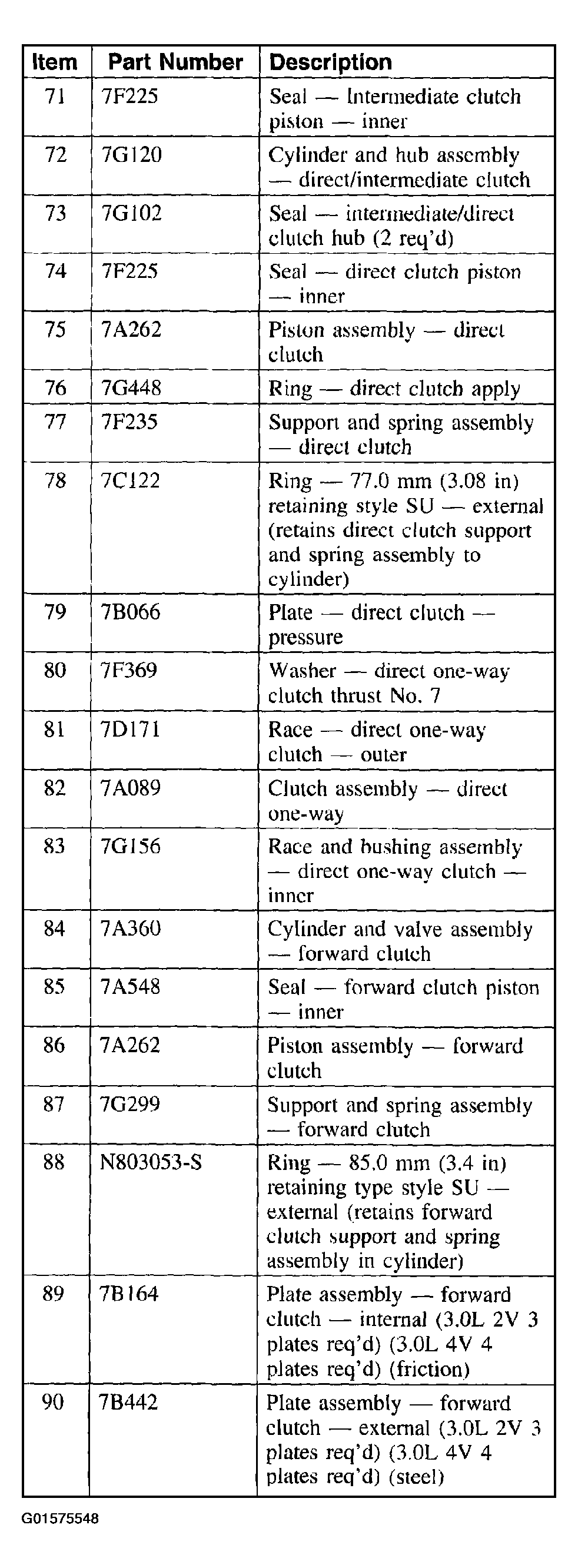

Fig 10: Identifying Disassembled Views of Automatic Transaxle 4F50N (10 Of 16)
Courtesy of FORD MOTOR CO.
Fig 11: Identifying Disassembled Views of Automatic Transaxle 4F50N (11 Of 16)
Courtesy of FORD MOTOR CO.

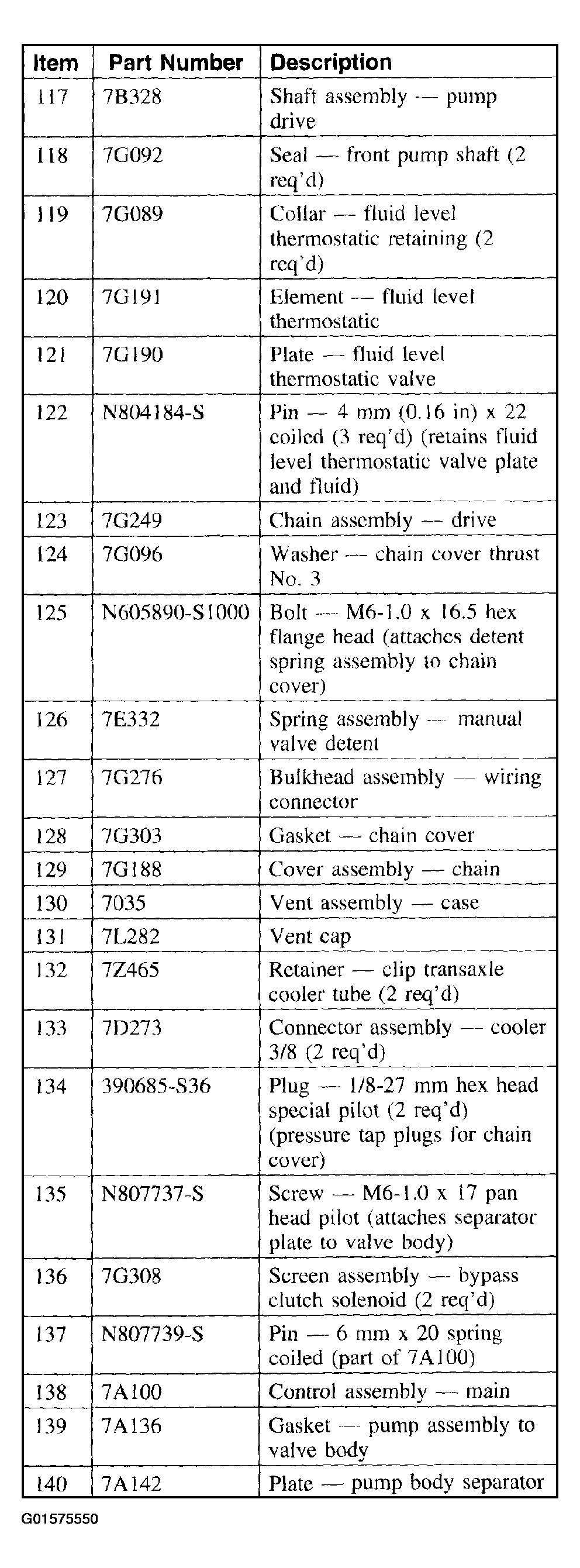

Fig 12: Identifying Disassembled Views of Automatic Transaxle 4F50N (12 Of 16)
Courtesy of FORD MOTOR CO.

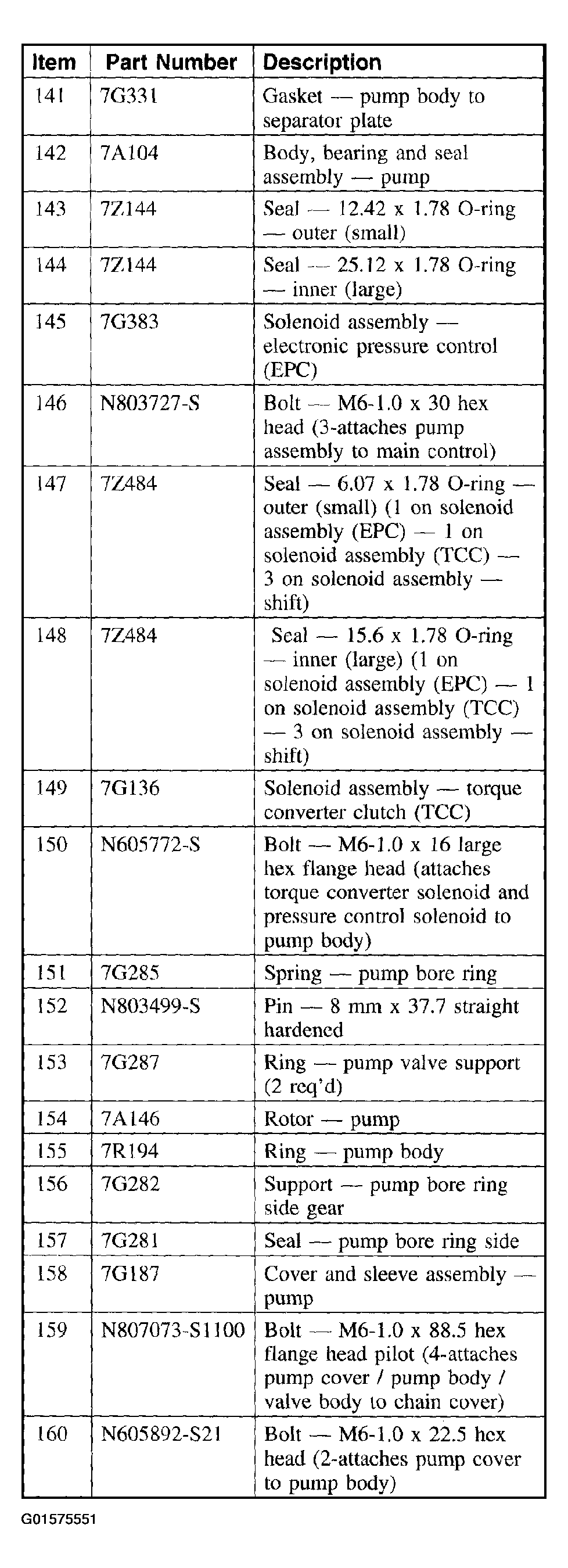

Fig 13: Identifying Disassembled Views of Automatic Transaxle 4F50N (13 Of 16)
Courtesy of FORD MOTOR CO.
Fig 14: Identifying Disassembled Views of Automatic Transaxle 4F50N (14 Of 16)
Courtesy of FORD MOTOR CO.
Fig 15: Identifying Disassembled Views of Automatic Transaxle 4F50N (15 Of 16)
Courtesy of FORD MOTOR CO.

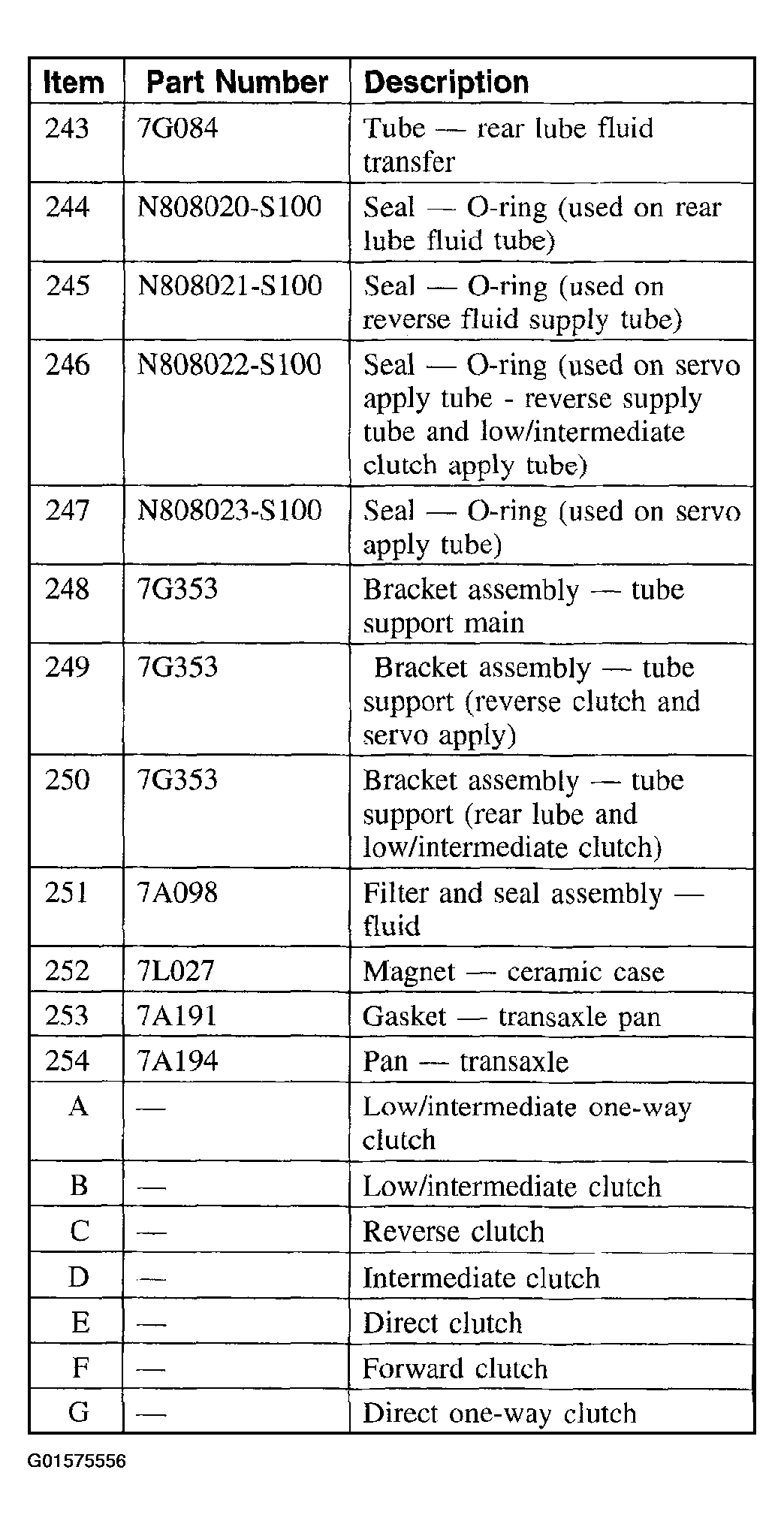

Fig 16: Identifying Disassembled Views of Automatic Transaxle 4F50N (16 Of 16)
