Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the output shaft speed (OSS) sensor connector.

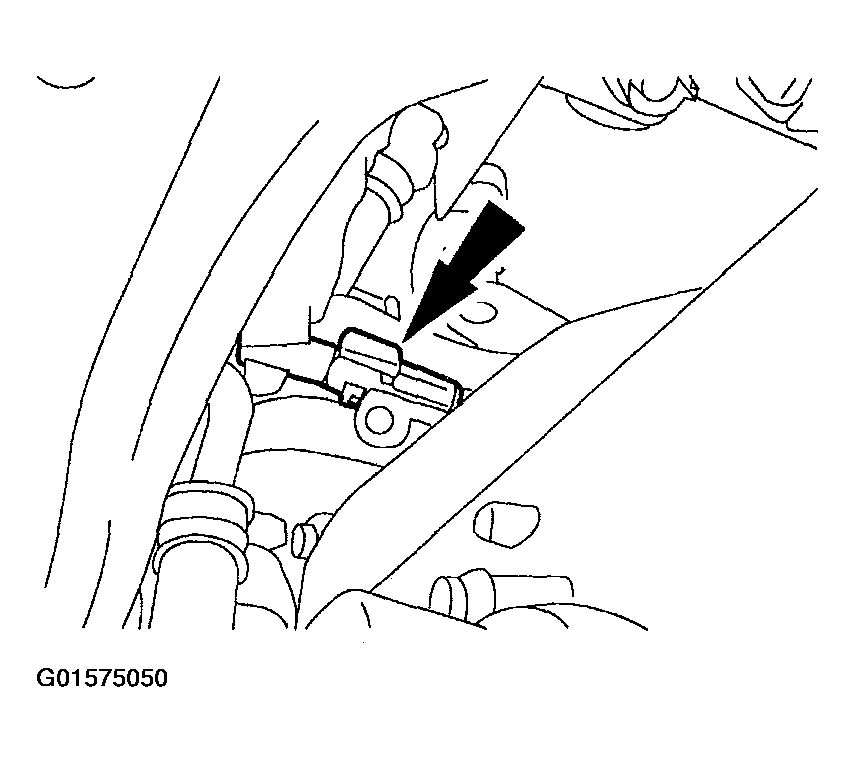

Fig 1: Disconnecting Output Shaft Speed Sensor Connector
Courtesy of FORD MOTOR CO.
Remove the output shaft speed (OSS) sensor cover.
1. Remove the connector.
2. Remove the bolt.
3. Remove the cover.

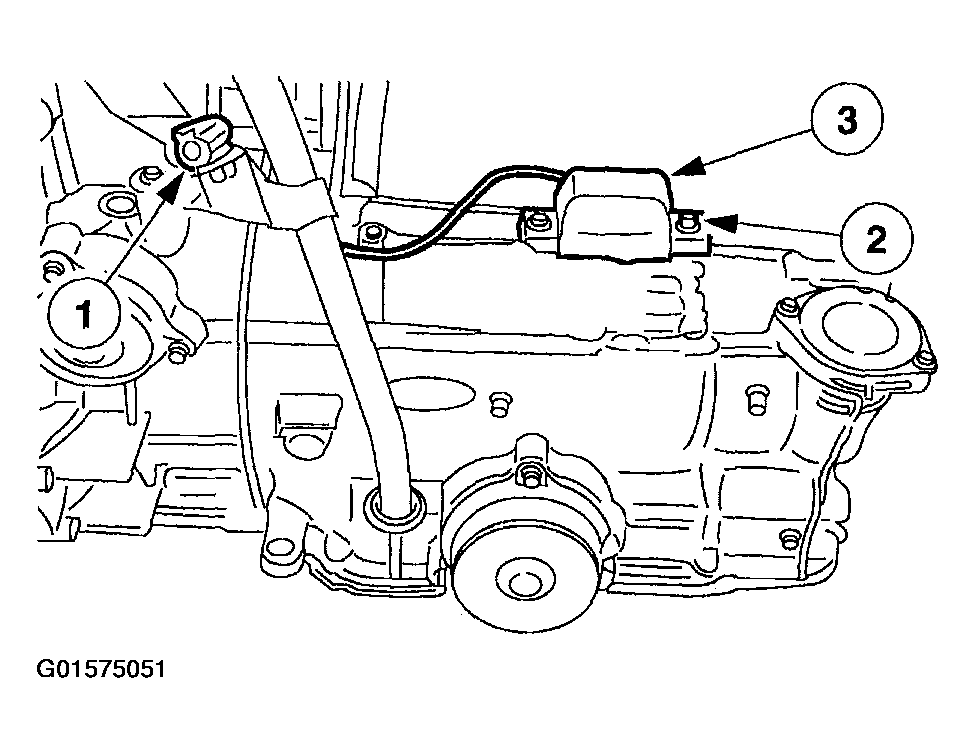

  Fig 2: Removing Output Shaft Speed Sensor Cover
  Courtesy of FORD MOTOR CO.
Remove the output shaft speed (OSS) sensor.

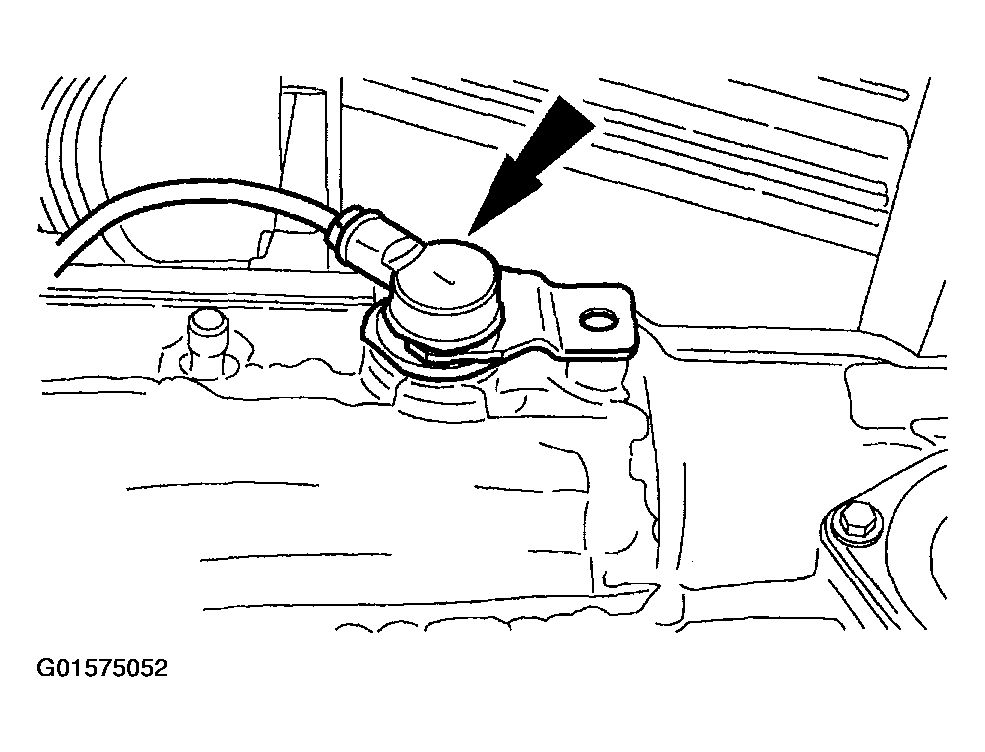

Fig 3: Removing Output Shaft Speed Sensor
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the OSS O-ring before installing the sensor.

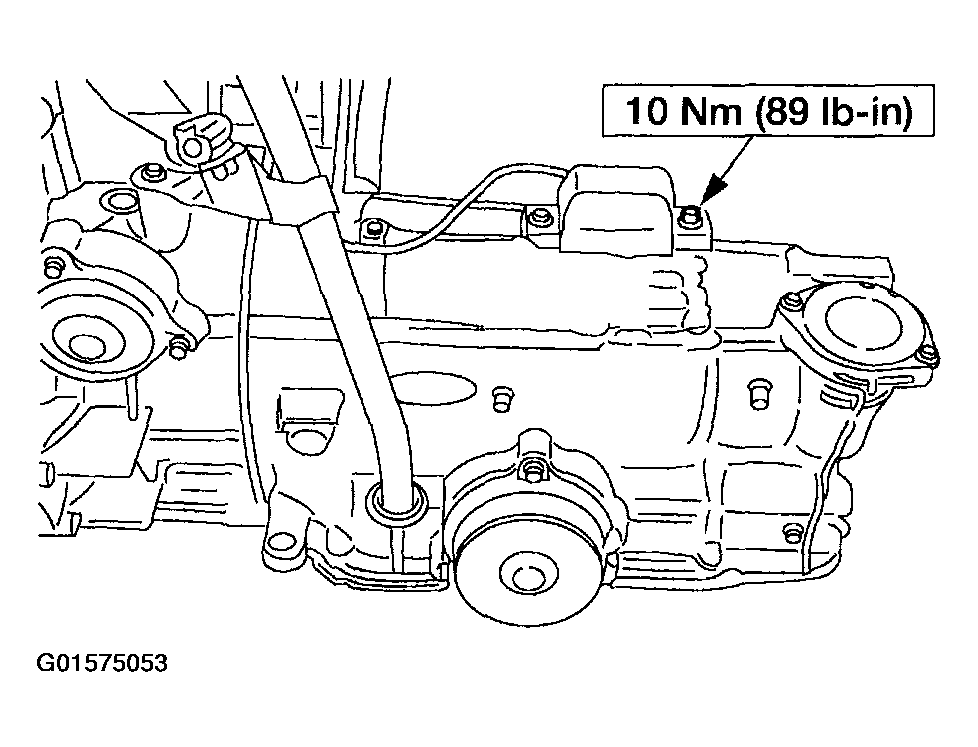

Fig 4: Installing Output Shaft Speed Sensor Cover

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
