Digital Transmission Range (Tr) Sensor: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the parking brake.
  2. Place the transaxle range selector lever in NEUTRAL.
  3. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Remove the engine air cleaner assembly. For additional information, refer to REMOVAL & INSTALLATION .
  5. Disconnect the connector.

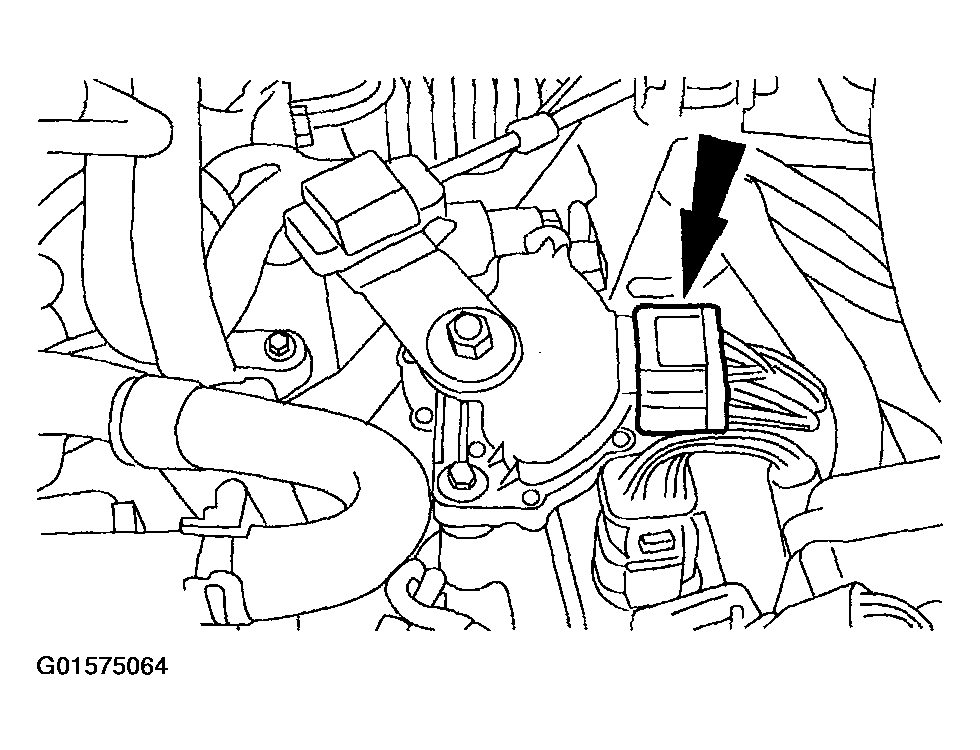

    Fig 1: Disconnecting Connector
    G01575064Courtesy of FORD MOTOR CO.
  6. Disconnect the shift cable.

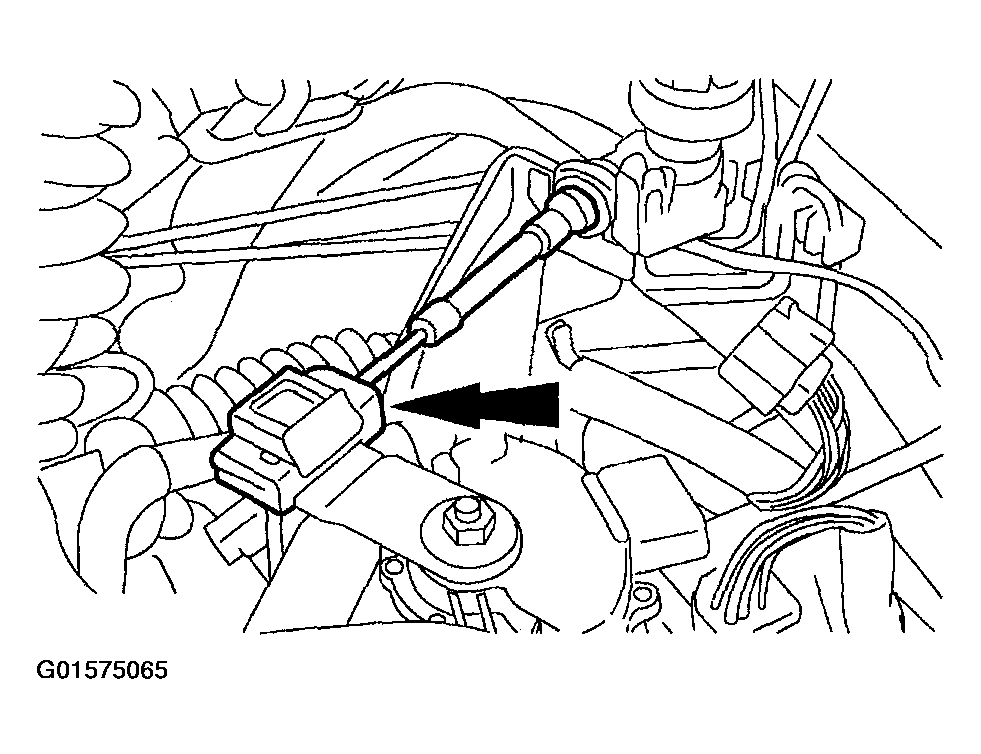

    Fig 2: Disconnecting Shift Cable
    G01575065Courtesy of FORD MOTOR CO.
  7. Remove the manual control lever.

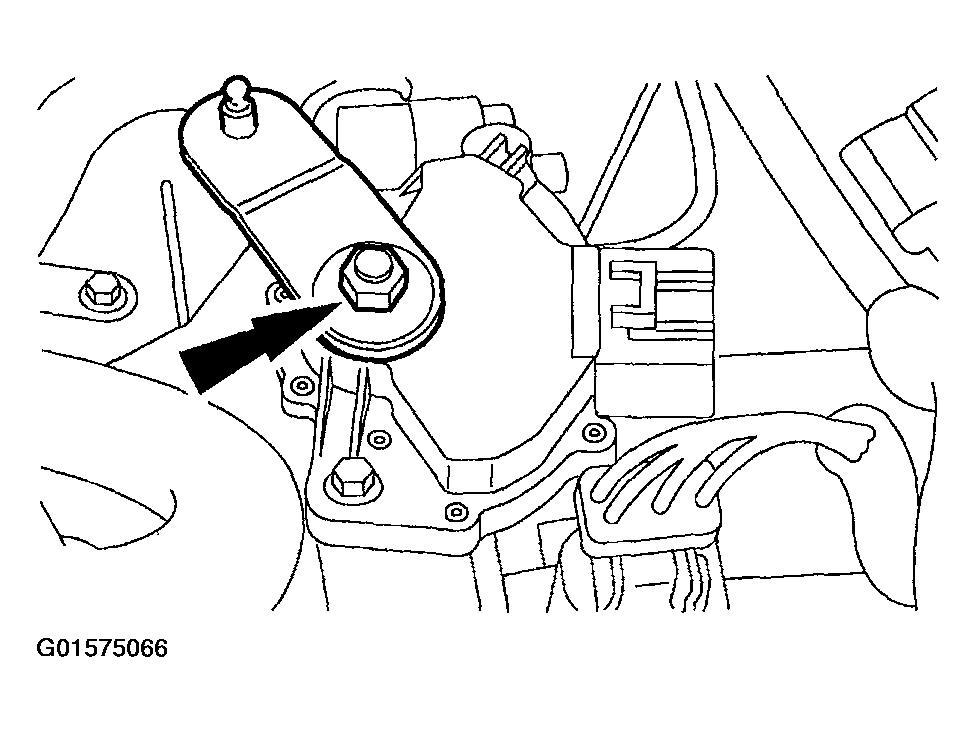

    Fig 3: Removing Manual Control Lever
    G01575066Courtesy of FORD MOTOR CO.
  8. Remove the digital transmission range (TR) sensor.

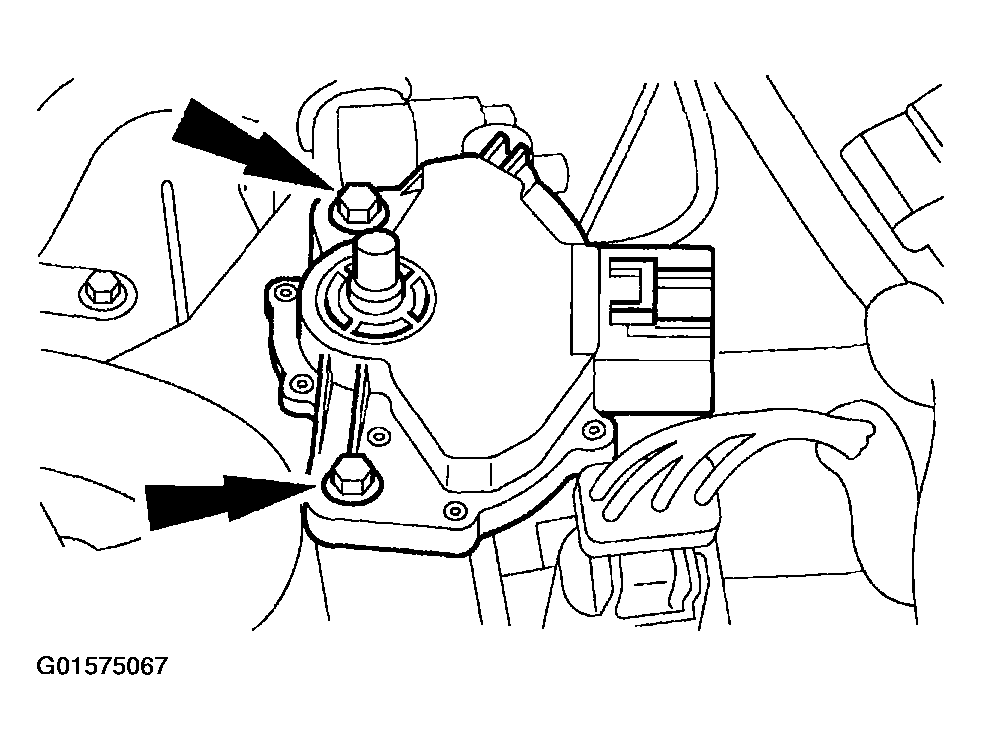

    Fig 4: Identifying Digital Transmission Range Sensor Bolt
    G01575067Courtesy of FORD MOTOR CO.
