Digital Transmission Range (Tr) Sensor: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the transaxle range selector lever is in NEUTRAL.
  2. Install the digital TR sensor and loosely install the bolts.

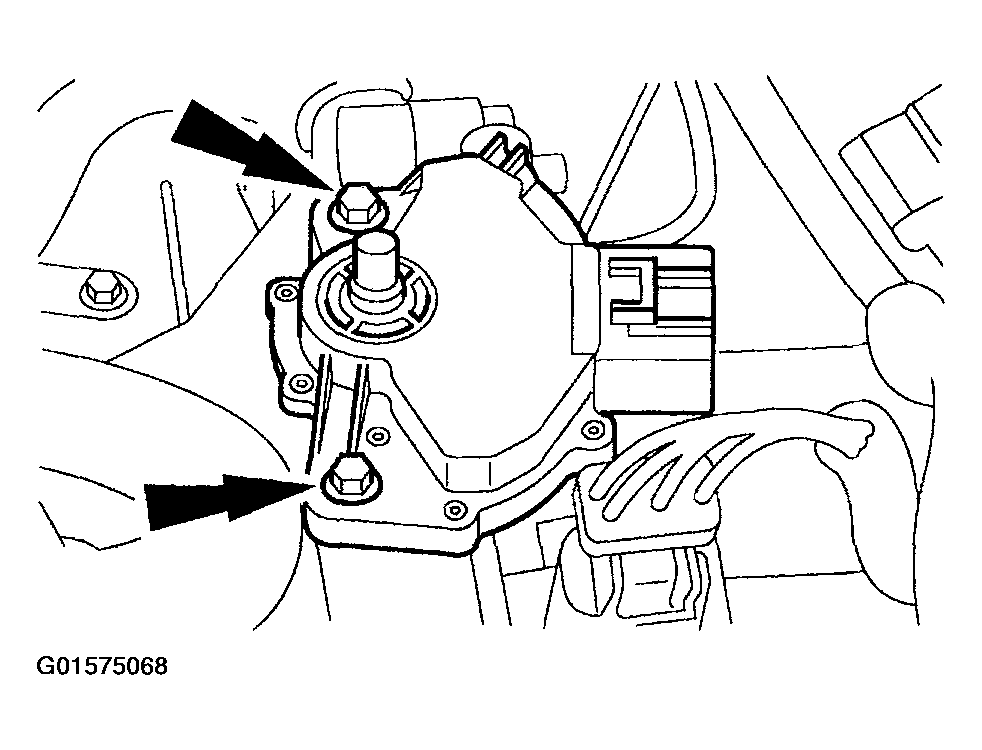

    Fig 1: Identifying Digital Transmission Range Sensor Bolt
    G01575068Courtesy of FORD MOTOR CO.
  3. Using the special tool, align the digital TR sensor.

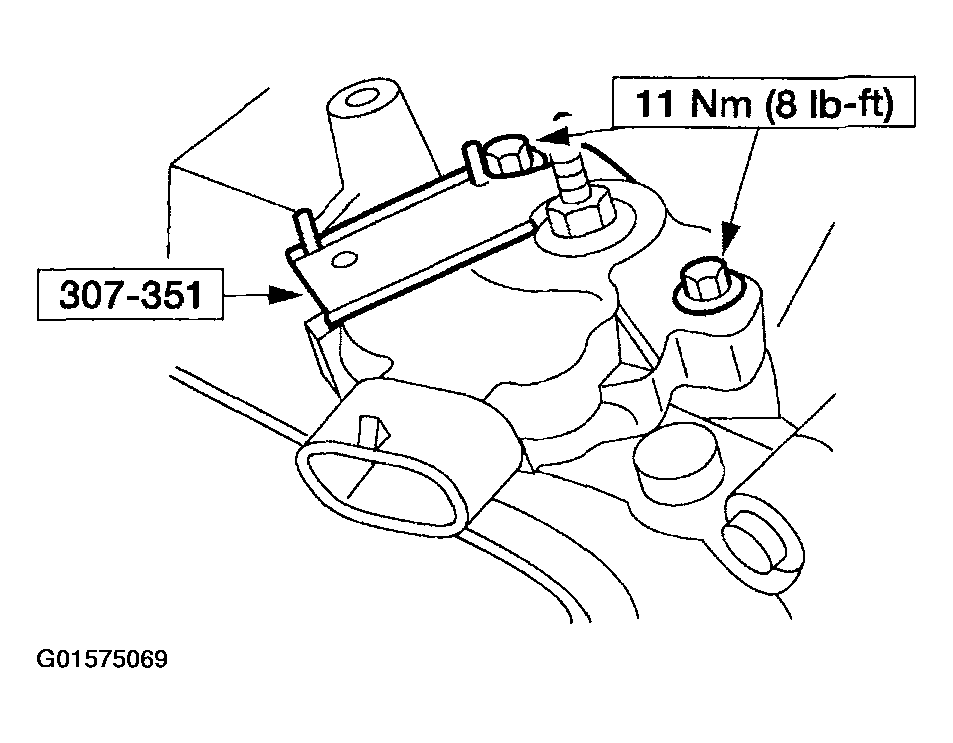

    Fig 2: Aligning Digital TR Sensor
    G01575069Courtesy of FORD MOTOR CO.
  4. Install the manual control lever and nut.

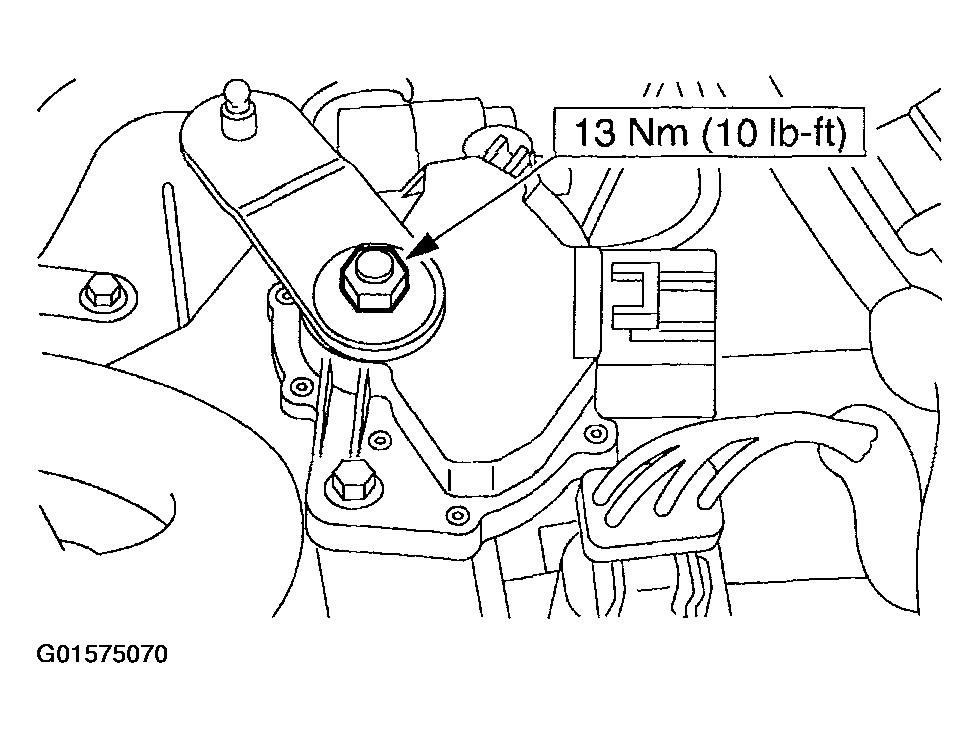

    Fig 3: Identifying Tightening Torque Of Manual Control Lever Nut
    G01575070Courtesy of FORD MOTOR CO.
  5. Connect the shift cable.

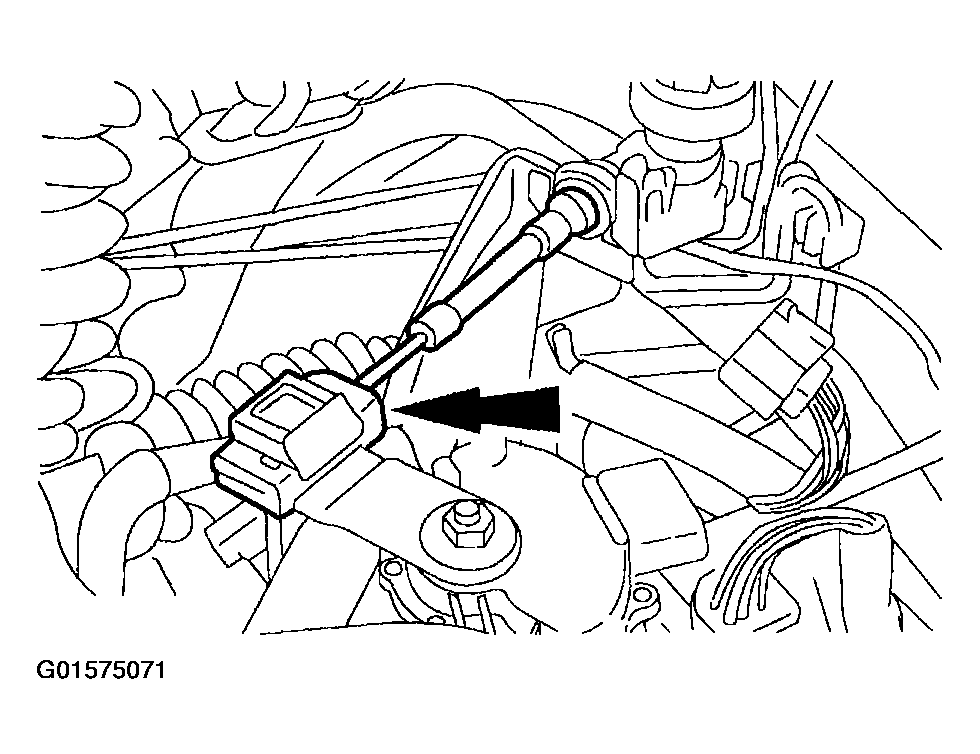

    Fig 4: Connecting Shift Cable
    G01575071Courtesy of FORD MOTOR CO.
  6. Verify that the shift cable is correctly adjusted. For additional information, refer to TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  7. Connect connector.

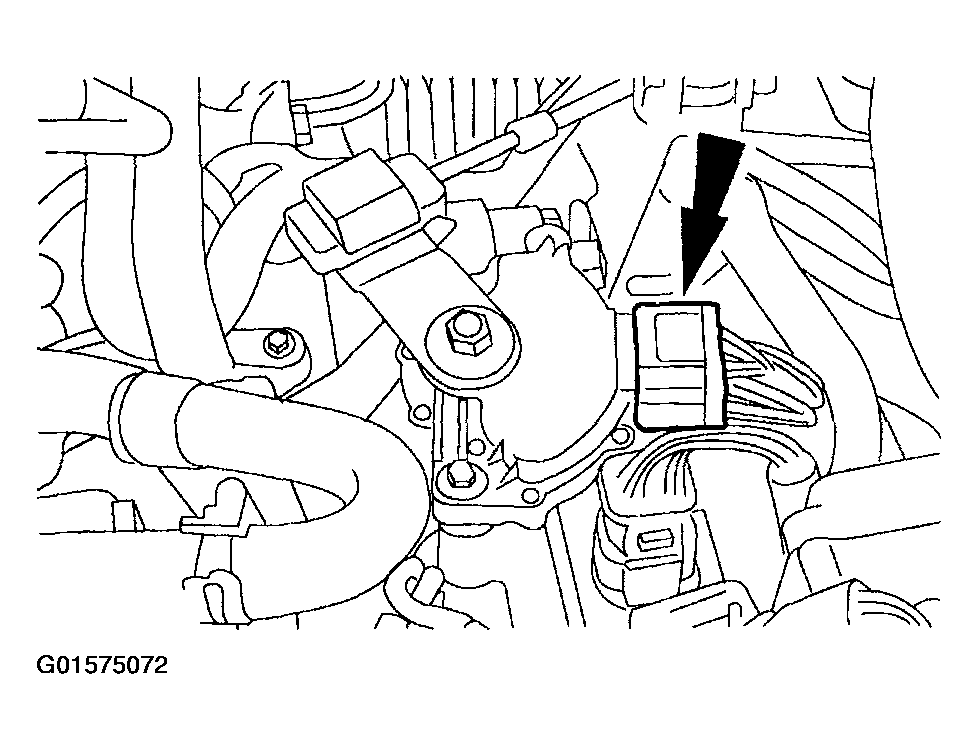

    Fig 5: Connecting Connector
    G01575072Courtesy of FORD MOTOR CO.
  8. Install the engine air cleaner assembly.
  9. Connect the battery ground cable.
  10. Check for correct vehicle operation.
