Differential Fluid Seals: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the LH differential seal.

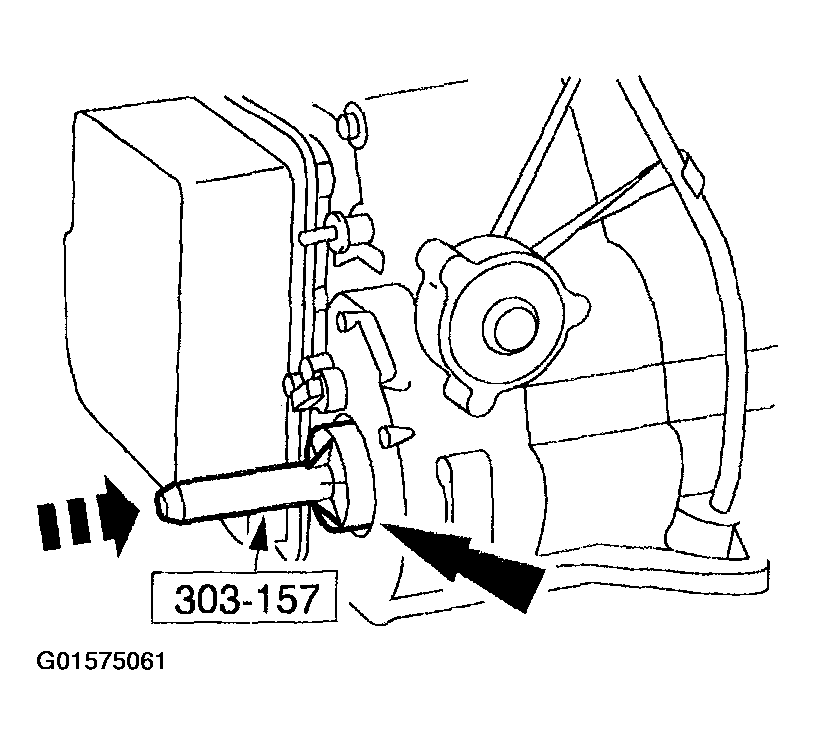

    Fig 1: Installing LH Differential Seal
    G01575061Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the RH seal.

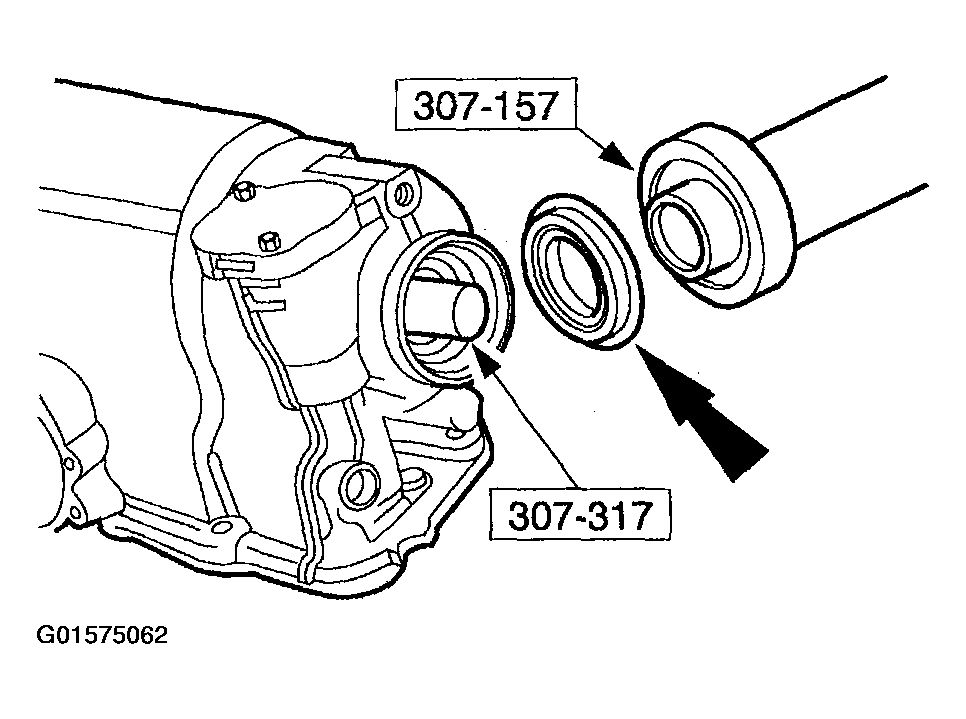

    Fig 2: Installing RH Seal
    G01575062Courtesy of FORD MOTOR CO.
  3. Install the halfshafts.
  4. Install the front wheels
  5. Lower the vehicle.
