Low And Intermediate Servo: Notes

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

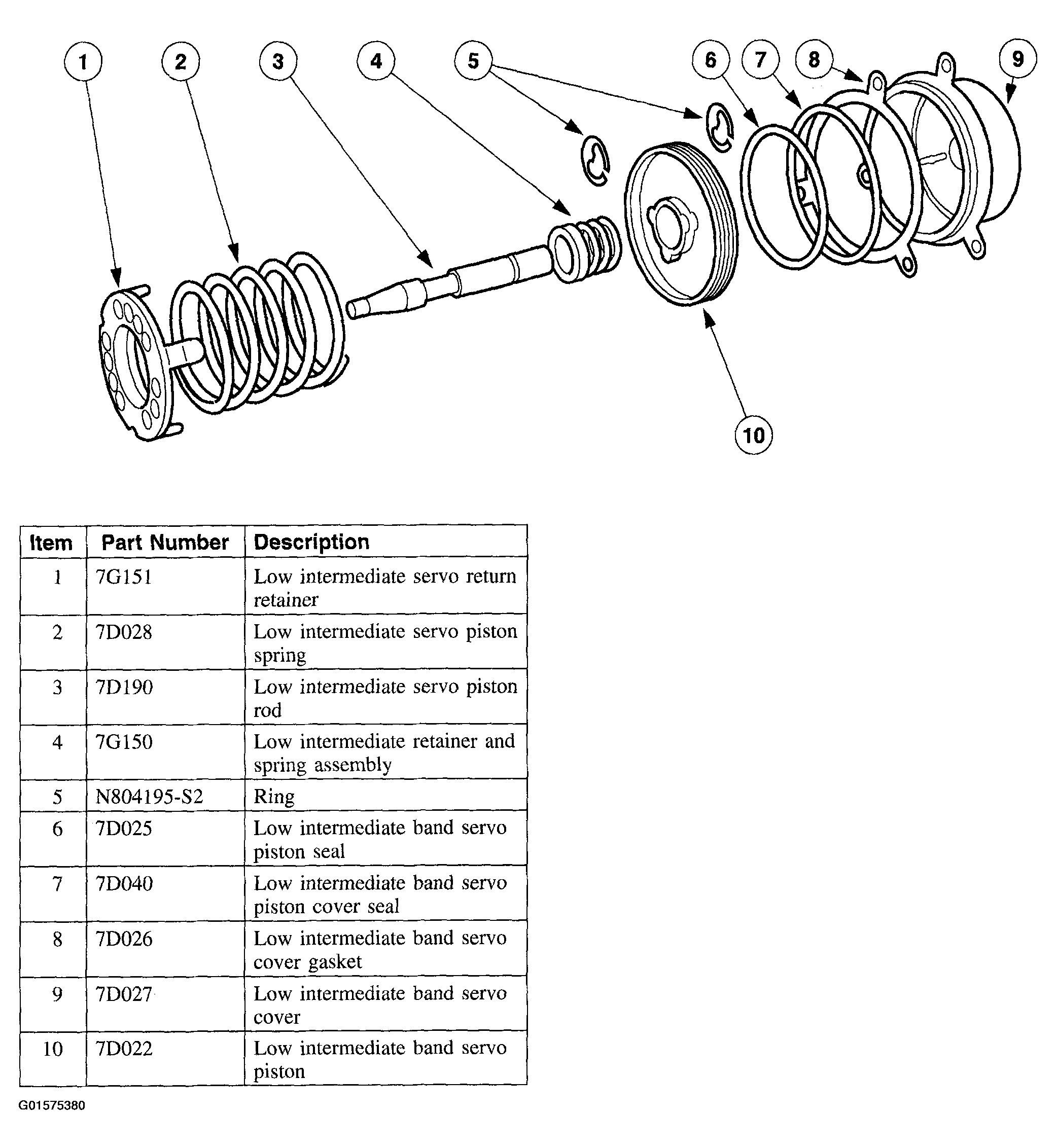

Fig 1: Exploded View Of Low And Intermediate Servo
G01575380Courtesy of FORD MOTOR CO.
