Intermediate Clutch Cylinder: Notes

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

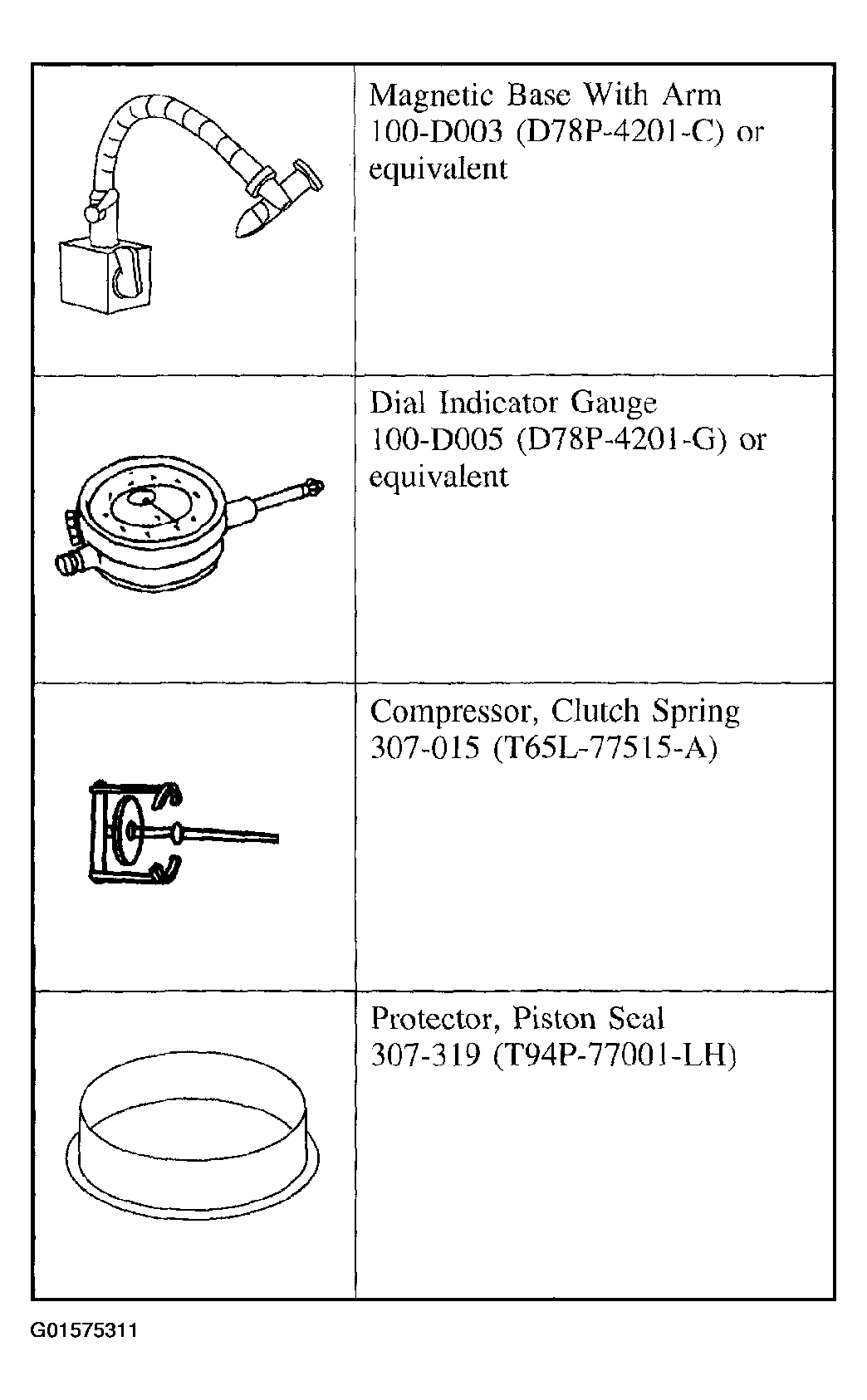

Fig 1: Identifying Special Tools
G01575311Courtesy of FORD MOTOR CO.

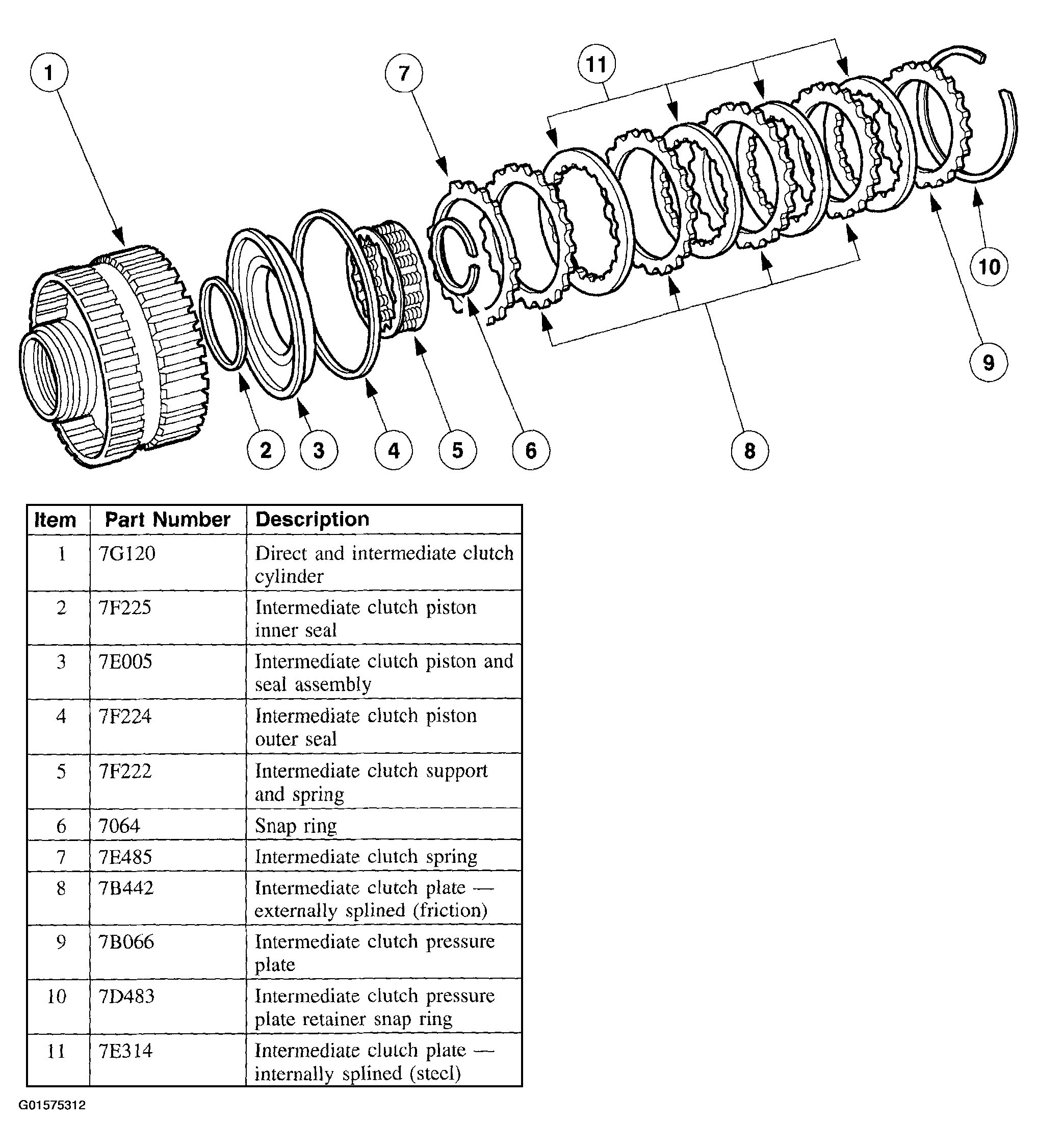

Fig 2: Exploded View Of Intermediate Clutch Cylinder
G01575312Courtesy of FORD MOTOR CO.
