Intermediate Clutch Cylinder: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the intermediate clutch pack.
1. Remove the snap ring.
2. Remove the pressure plate.
3. Remove the clutch pack.
4. Remove the wave spring.

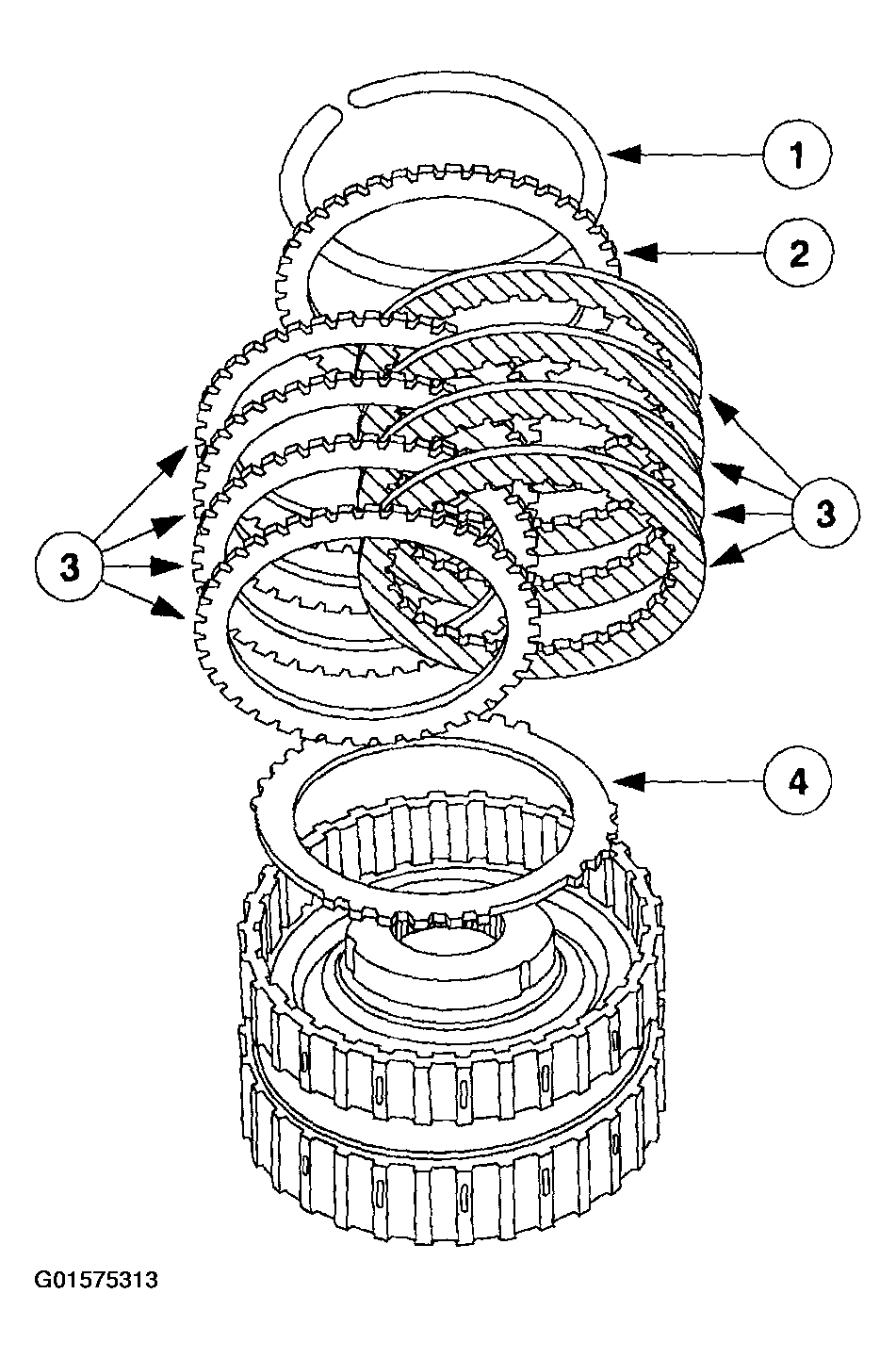

  Fig 1: Removing Intermediate Clutch Pack
  Courtesy of FORD MOTOR CO.

CAUTION: Do not fully compress the intermediate clutch spring retainer.

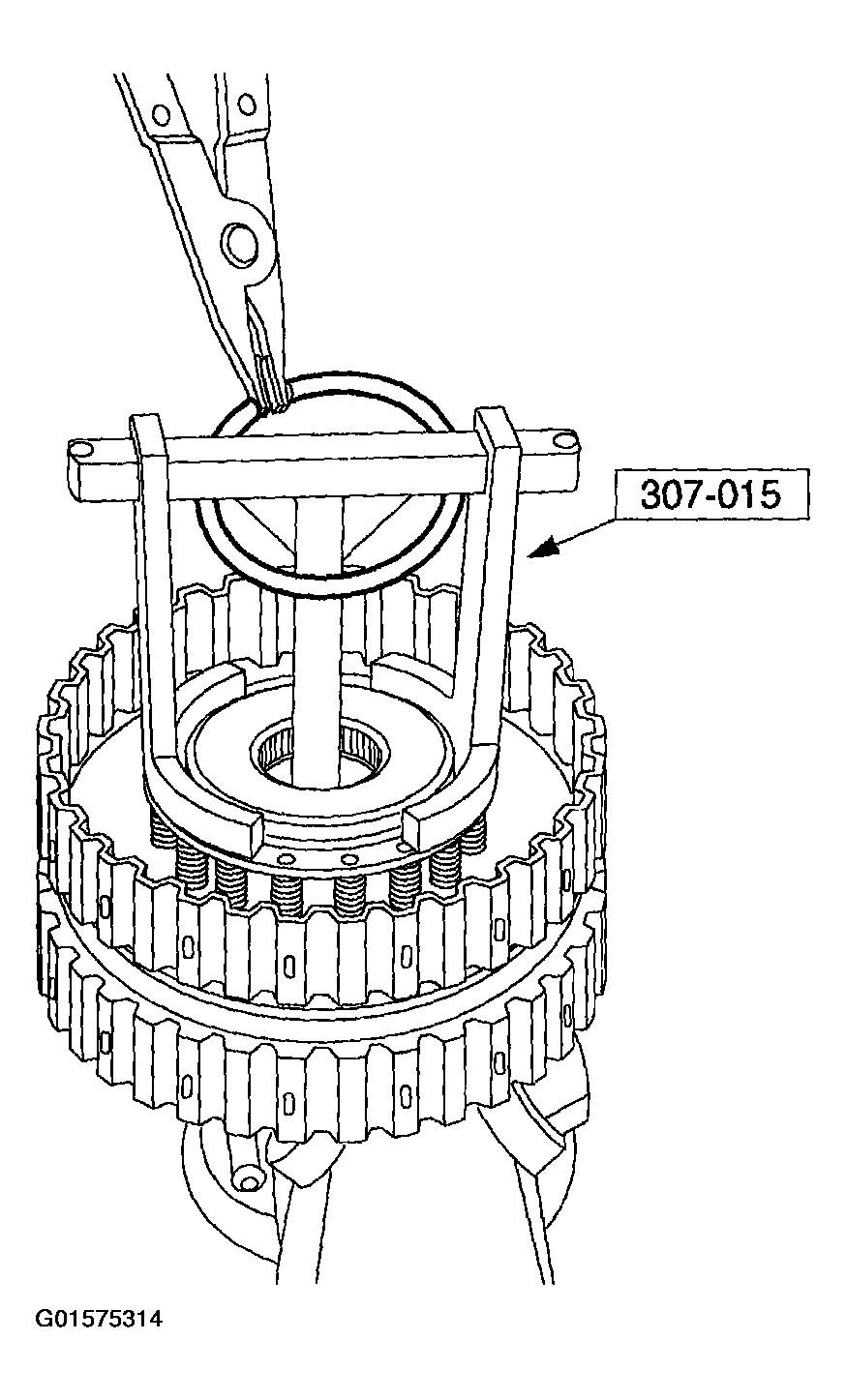

Fig 2: Removing Intermediate Clutch Return Spring Snap Ring

Courtesy of FORD MOTOR CO.

Using the special tool, remove the intermediate clutch return spring snap ring.
Remove the intermediate clutch return spring.

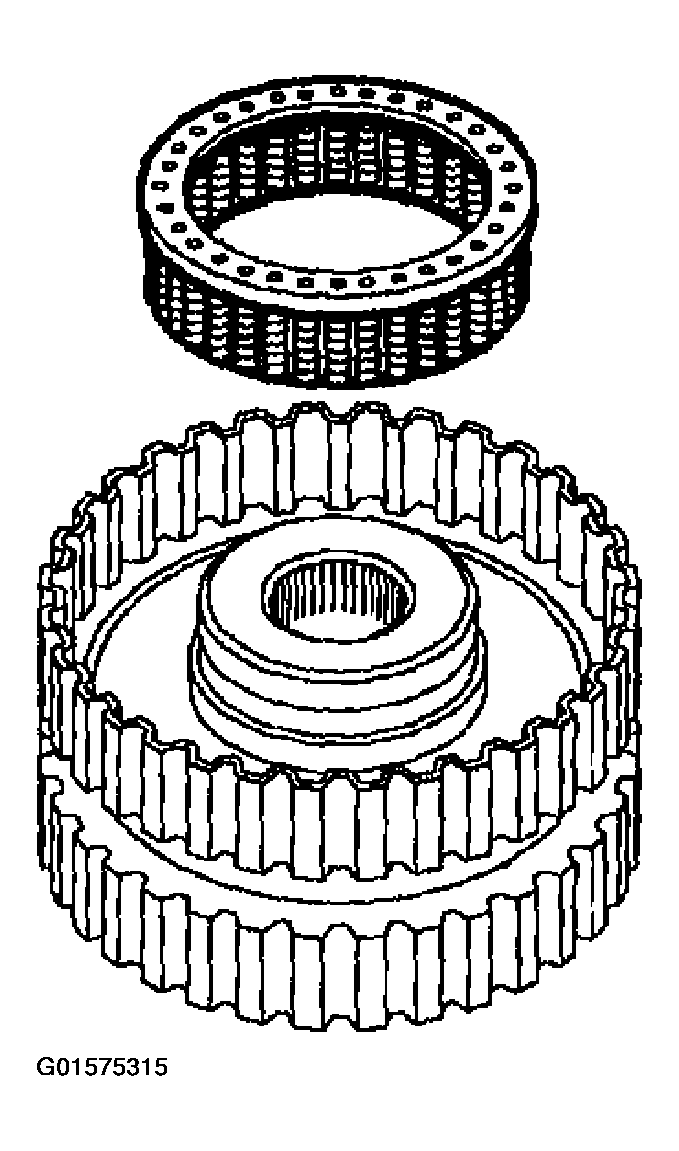

Fig 3: Removing Intermediate Clutch Return Spring
Courtesy of FORD MOTOR CO.
Remove the intermediate clutch piston.

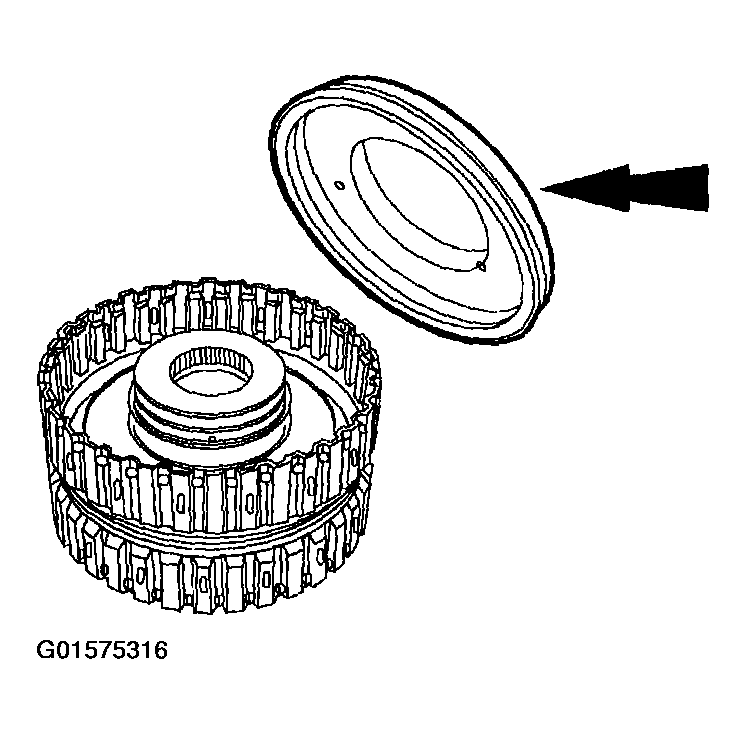

Fig 4: Removing Intermediate Clutch Piston
Courtesy of FORD MOTOR CO.
Remove the clutch piston outer seal.

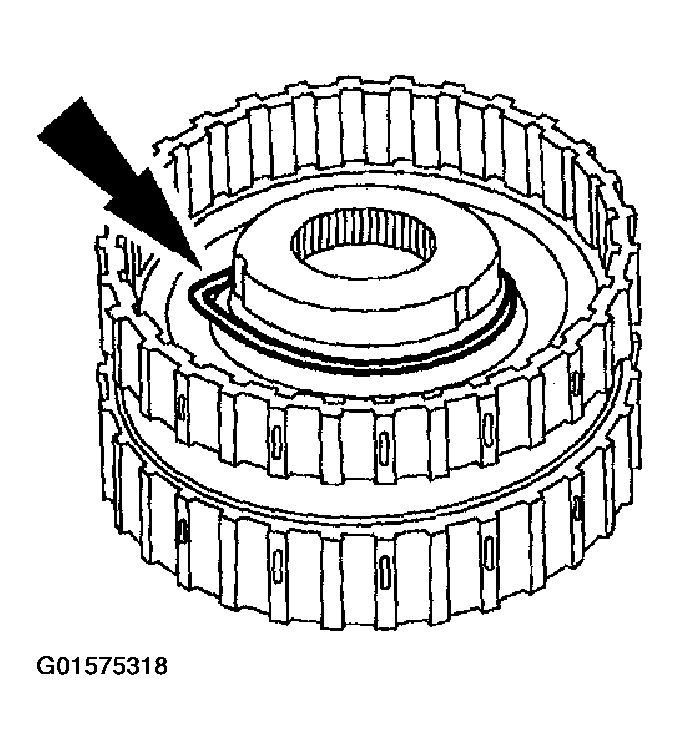

Fig 5: Removing Clutch Piston Outer Seal
Courtesy of FORD MOTOR CO.
Remove the intermediate clutch piston inner seal.

Fig 6: Removing Intermediate Clutch Piston Inner Seal
Courtesy of FORD MOTOR CO.
