Forward Clutch Cylinder: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

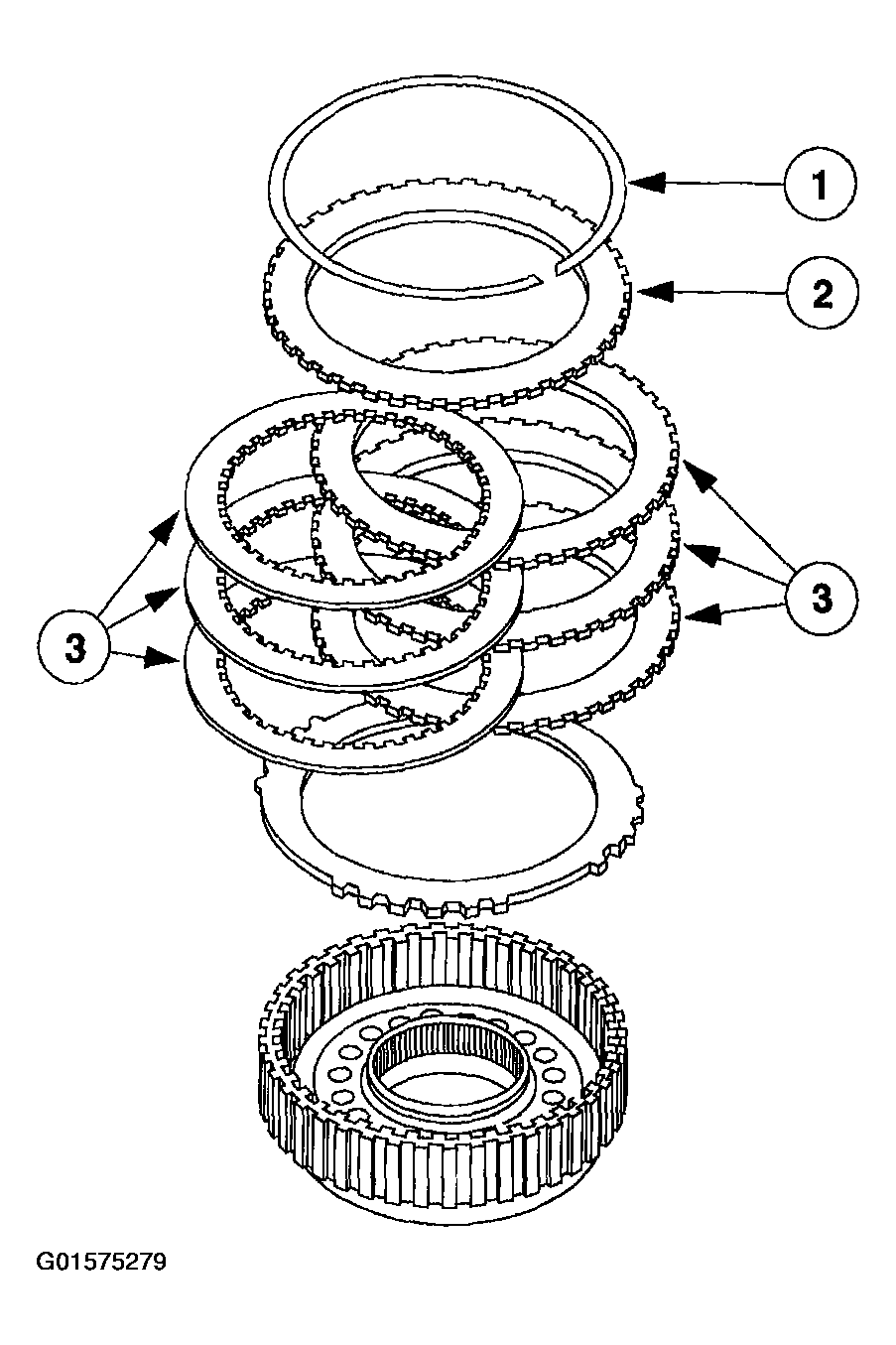

Remove the forward clutch plates.
1. Remove the retaining ring.
2. Remove the pressure plate.
3. Remove the clutch packs.
4. Remove the wave spring.

  Fig 1: Removing Forward Clutch Plates
  Courtesy of FORD MOTOR CO.

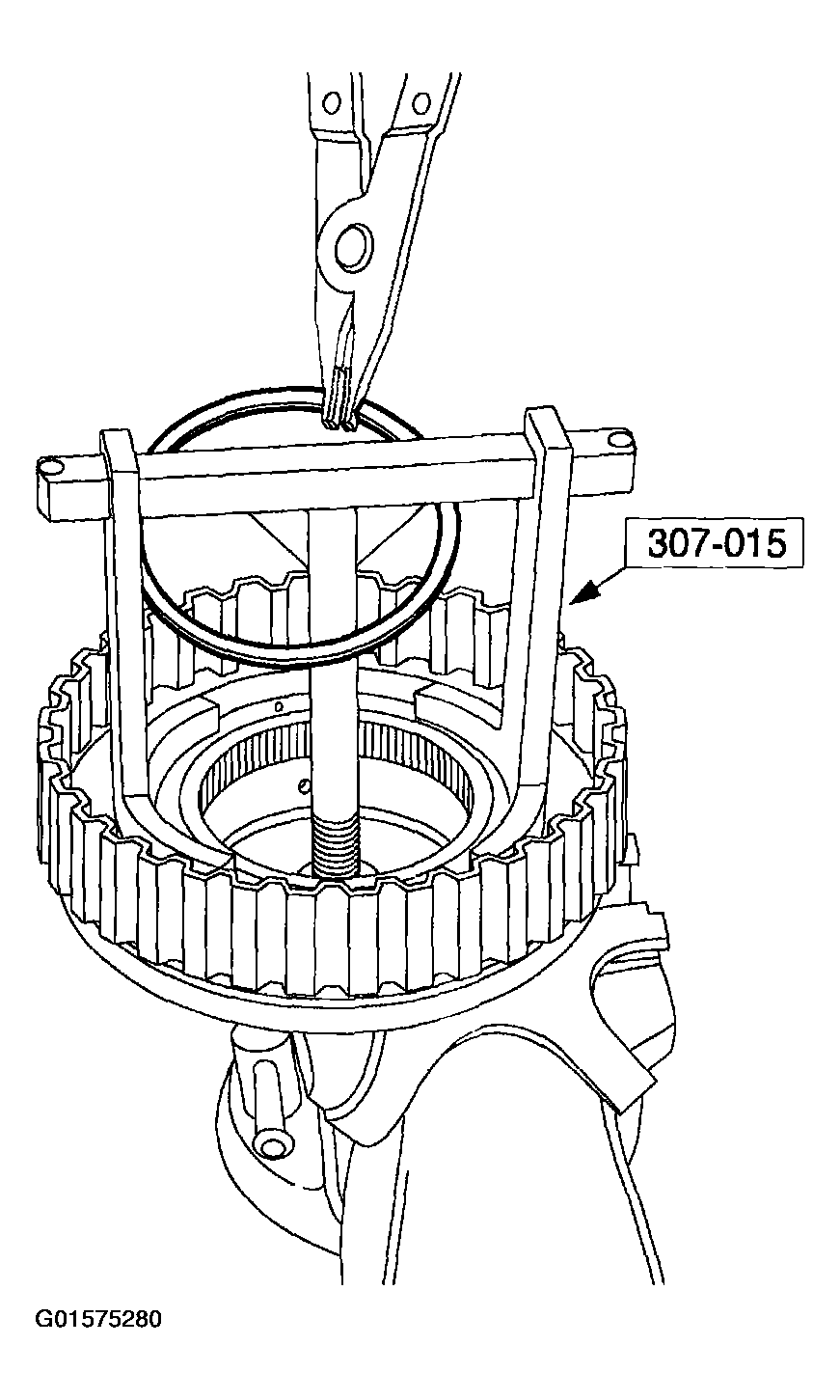

Using the special tools, remove the clutch return spring.

Fig 2: Removing Clutch Return Spring
Courtesy of FORD MOTOR CO.

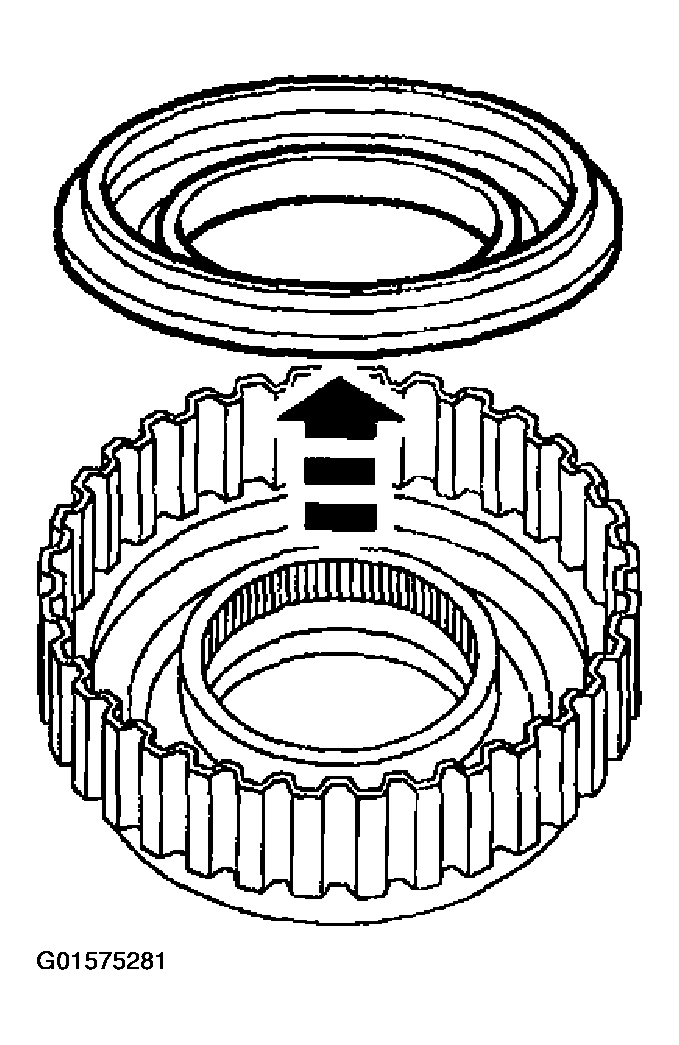

Remove the clutch piston assembly.

Fig 3: Removing Clutch Piston Assembly
Courtesy of FORD MOTOR CO.
Remove the piston inner seal.

Fig 4: Removing Piston Inner Seal
Courtesy of FORD MOTOR CO.

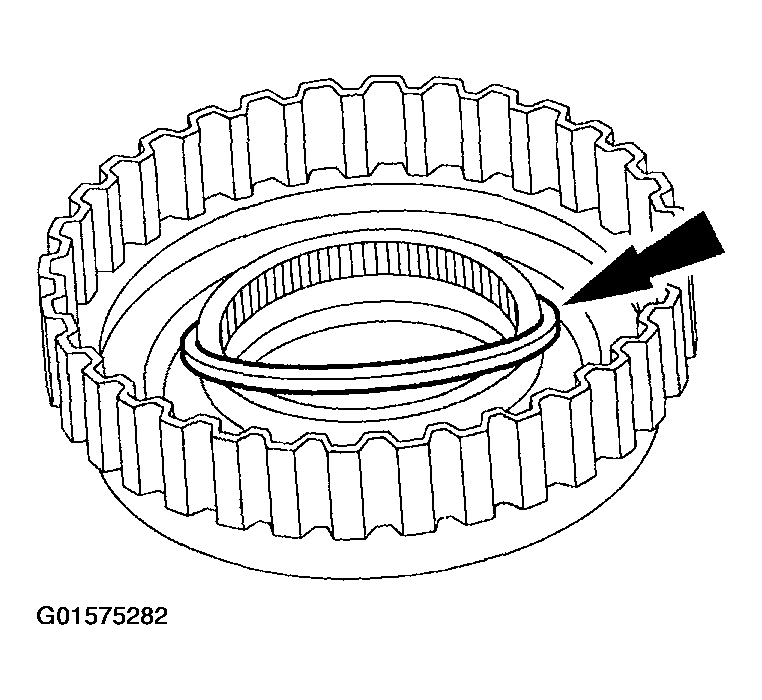

Remove the outer seal from the piston.

Fig 5: Removing Outer Seal From Piston
Courtesy of FORD MOTOR CO.
