Driven Sprocket Support: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

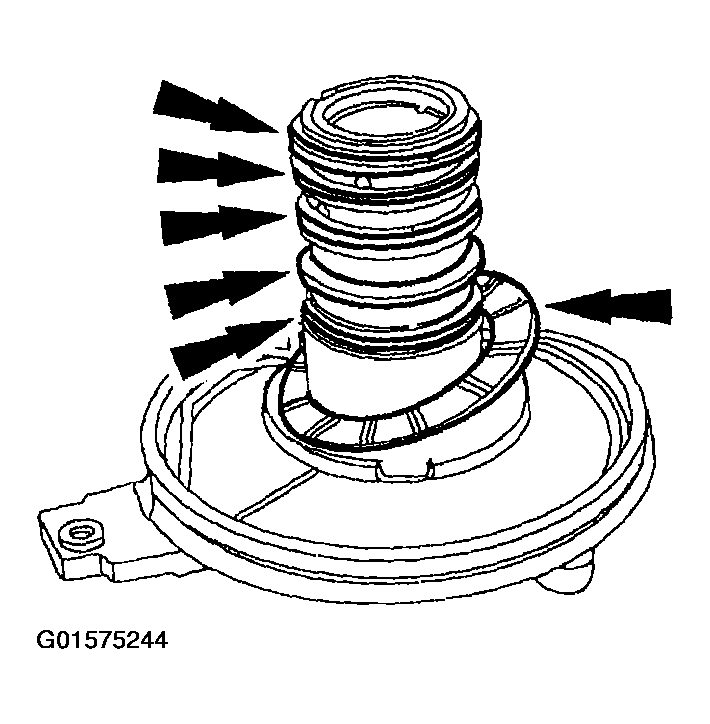

  1. Remove the Teflon® seal rings and the No. 5 thrust washer.
    Fig 1: Removing Teflon® Seal Rings And Thrust Washer
    G01575244Courtesy of FORD MOTOR CO.

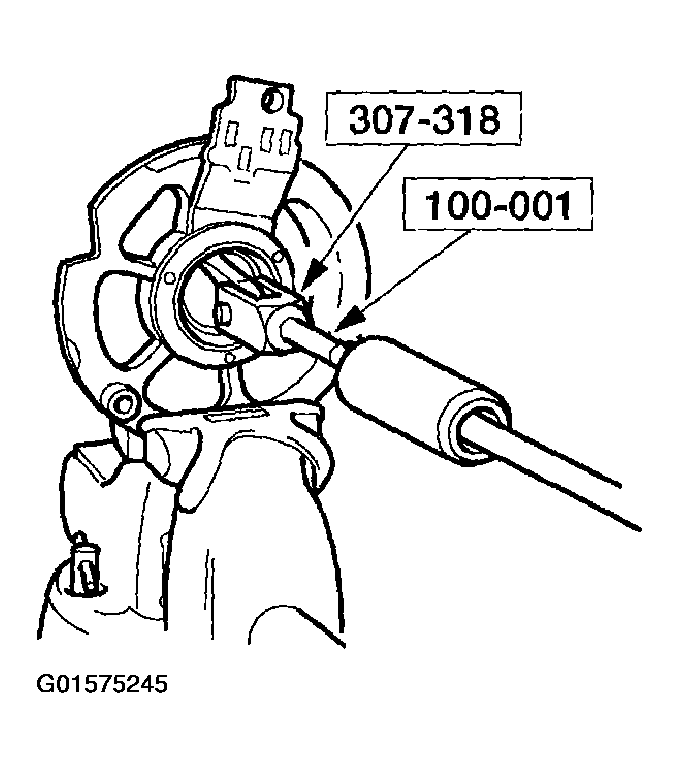

  2. Using the special tools, remove the bearing.
    Fig 2: Removing Bearing
    G01575245Courtesy of FORD MOTOR CO.
