Driven Sprocket Support: Assembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, install a new driven sprocket bearing. Using an arbor press and the special tools, install a new driven sprocket bearing.
    Fig 1: Installing Driven Sprocket Bearing
    G01575246Courtesy of FORD MOTOR CO.
    2. CAUTION: The seal rings must be installed correctly. Transaxle failure could result.

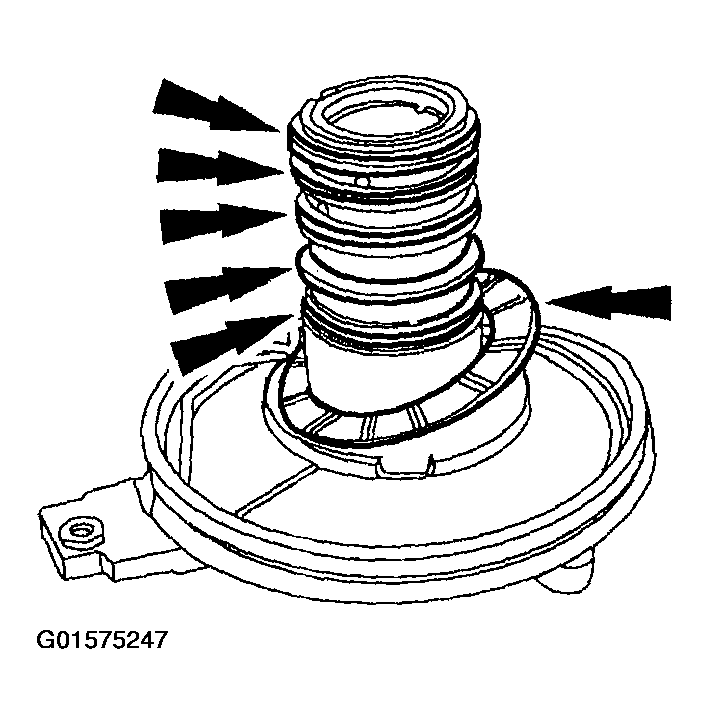

    Fig 2: Installing Teflon® Seal Rings And Thrust Washer
    G01575247Courtesy of FORD MOTOR CO.
  2. Install new Teflon® seals and the No. 5 thrust washer.
  3. Make sure that the seals are mated correctly.
    Fig 3: Identifying Seals Are Mated Correctly
    G01575248Courtesy of FORD MOTOR CO.
