Drive Sprocket/Turbine Shaft: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive sprocket/turbine shaft seal and O-ring.
    • Remove the drive sprocket/turbine shaft O-ring.
    • Remove the drive sprocket/turbine shaft seal.

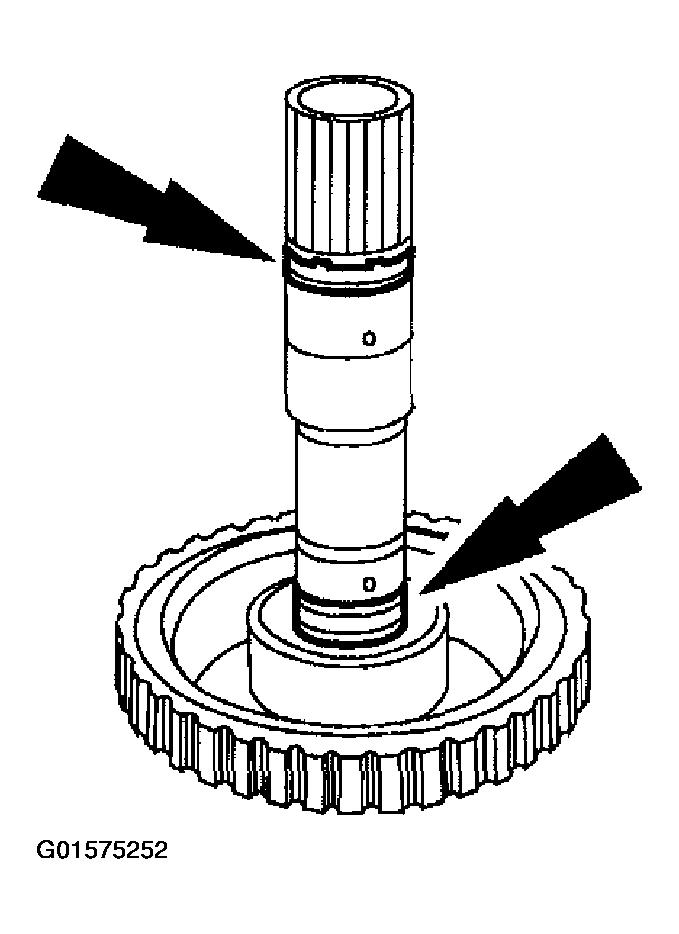

      Fig 1: Identifying Drive Sprocket/Turbine Shaft Seal And O-Ring
      G01575252Courtesy of FORD MOTOR CO.
  2. Inspect the bearing race for wear. If the bearing is worn, install a new drive sprocket/turbine shaft.

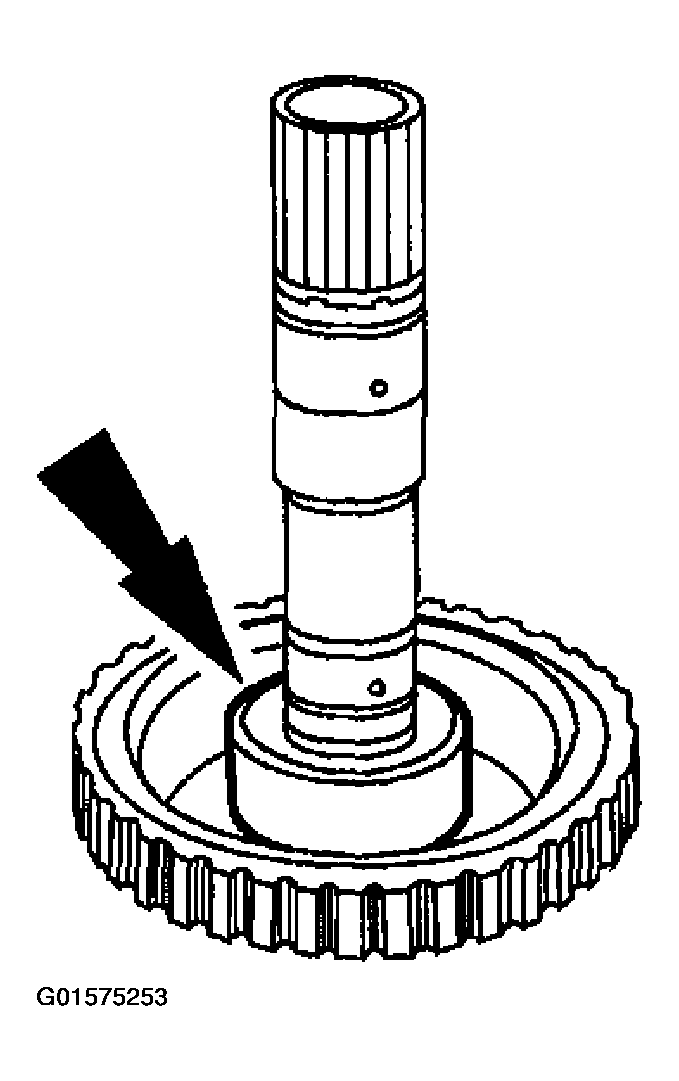

    Fig 2: Inspecting Bearing Race
    G01575253Courtesy of FORD MOTOR CO.
  3. Remove the turbine shaft front seal.

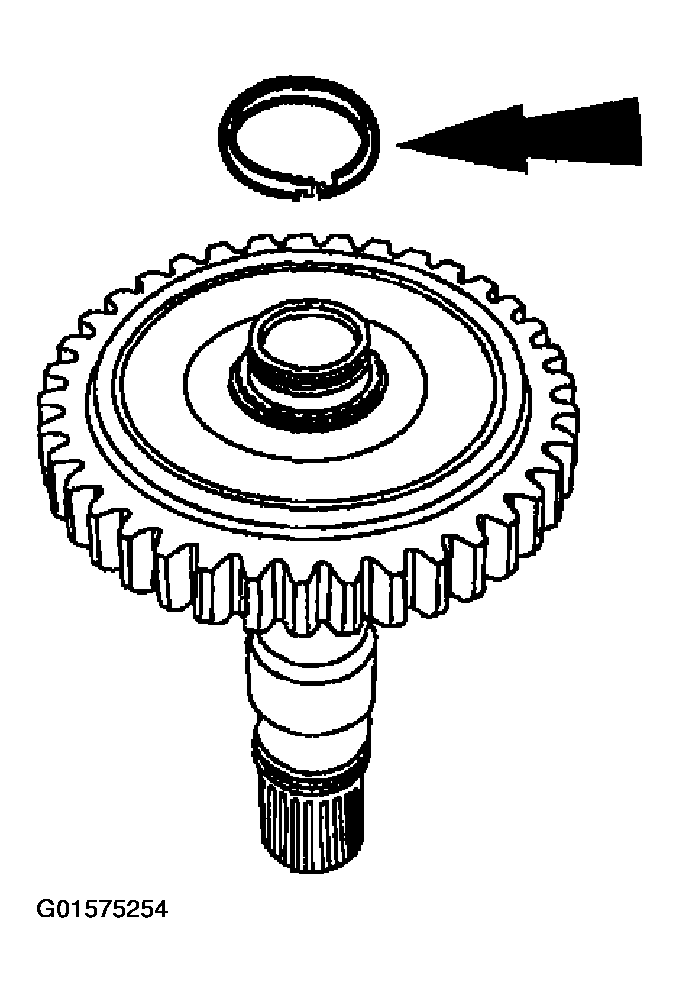

    Fig 3: Removing Turbine Shaft Front Seal
    G01575254Courtesy of FORD MOTOR CO.
