Drive Sprocket/Turbine Shaft: Assembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the seals are mated correctly.

Install the seal and O-ring.
- Install the O-ring.
- Install the seal.

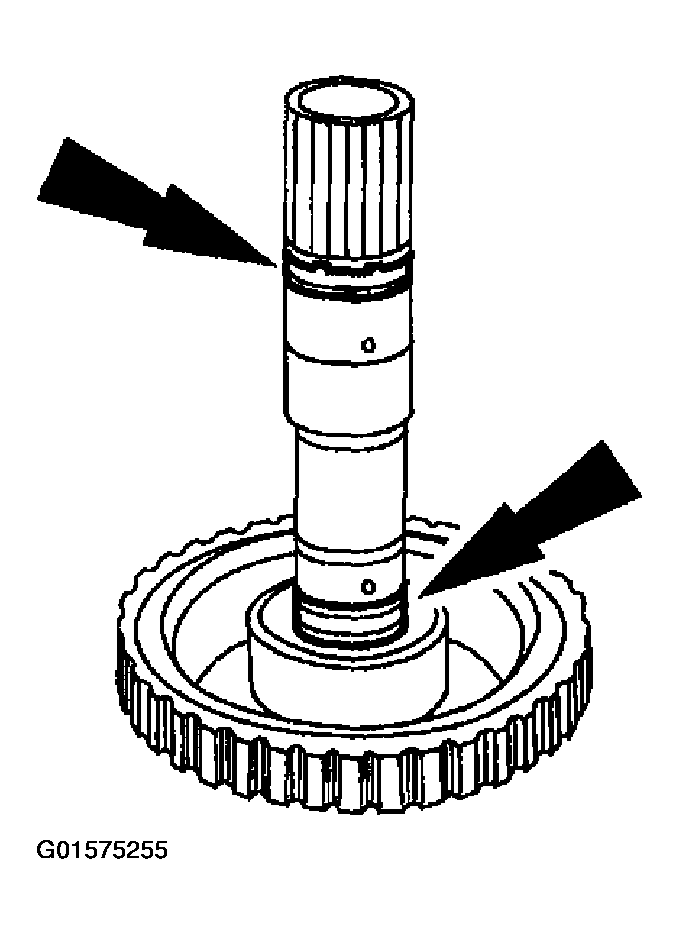

  Fig 1: Identifying Drive Sprocket/Turbine Shaft Seal And O-Ring
  Courtesy of FORD MOTOR CO.
Make sure that the seals overlap when installing.

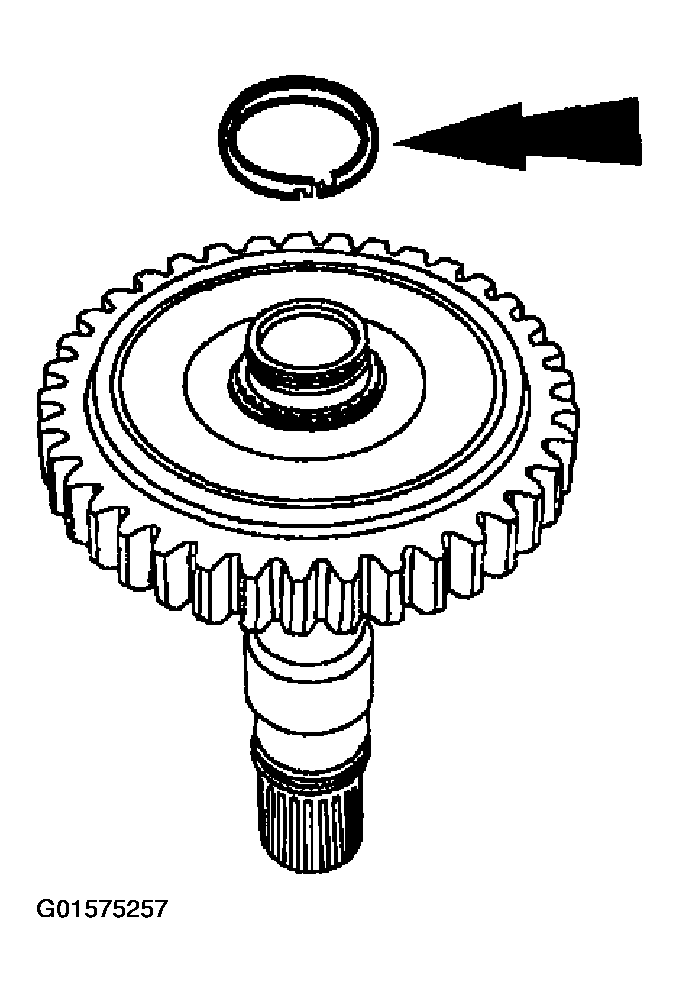

Fig 2: Identifying Seals Overlap
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the seal is locked correctly.

Fig 3: Installing Turbine Shaft Front Seal

Courtesy of FORD MOTOR CO.

Install the turbine shaft front seal.
Make sure that the seals lock in place during installation.

Fig 4: Identifying Seals Lock
Courtesy of FORD MOTOR CO.
