Special Tool(s)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

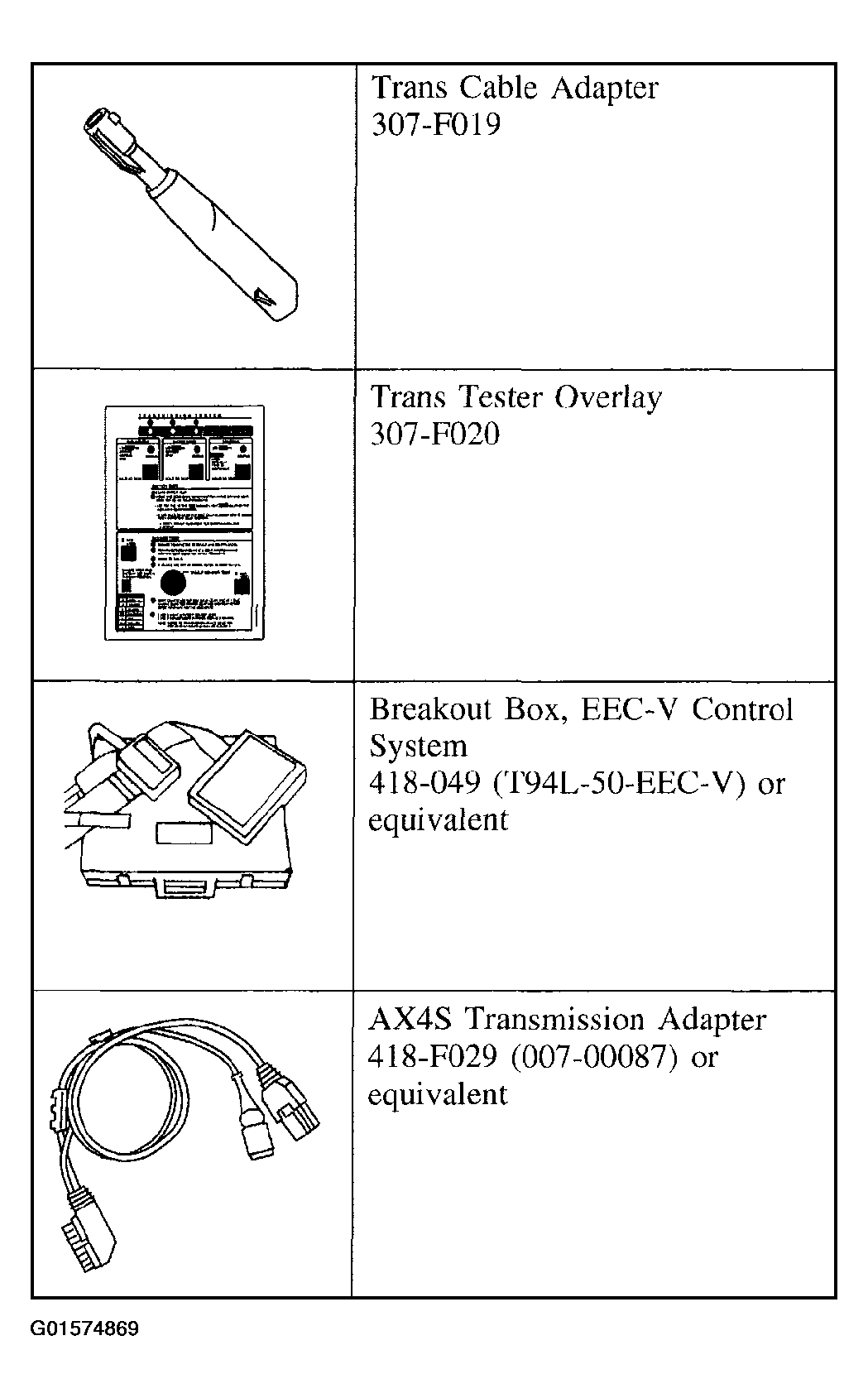

Fig 1: Identifying Special Tool (1 Of 3)

Courtesy of FORD MOTOR CO.

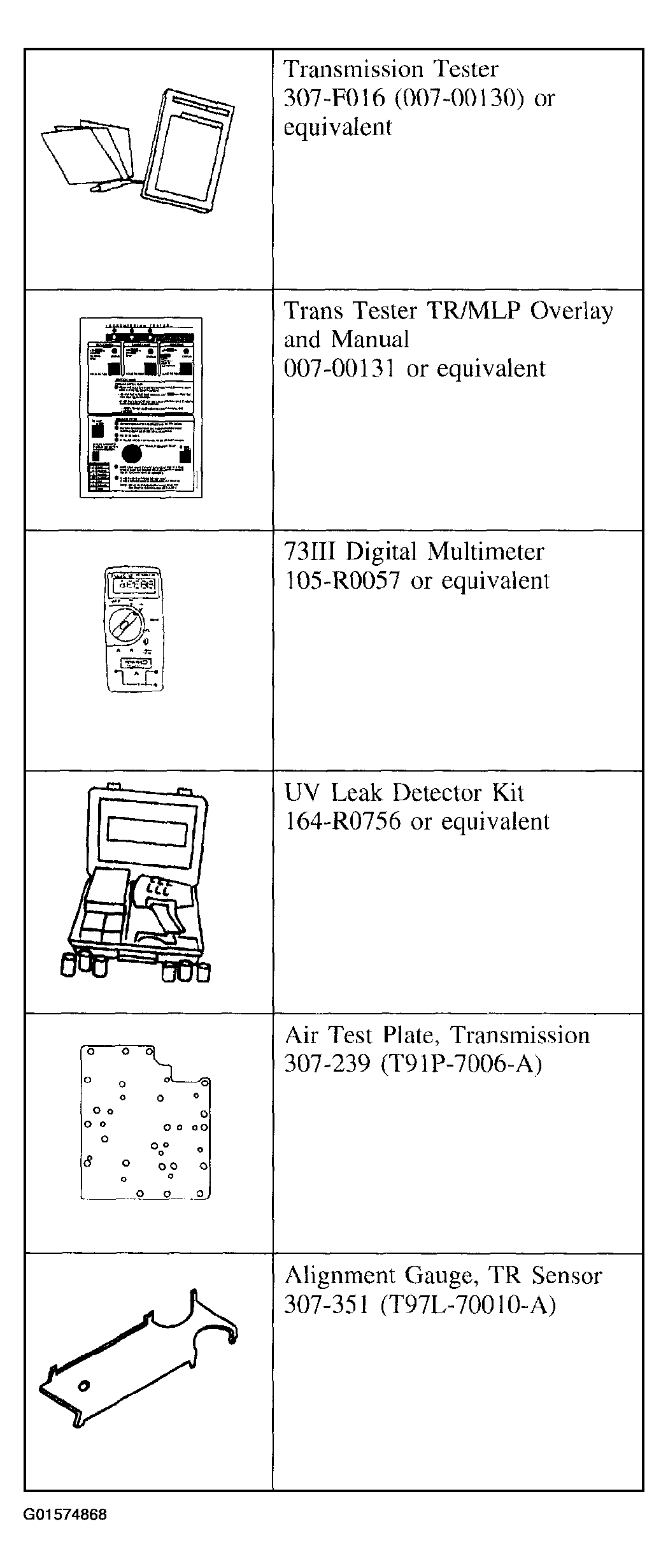

Fig 2: Identifying Special Tool (2 Of 3)

Courtesy of FORD MOTOR CO.

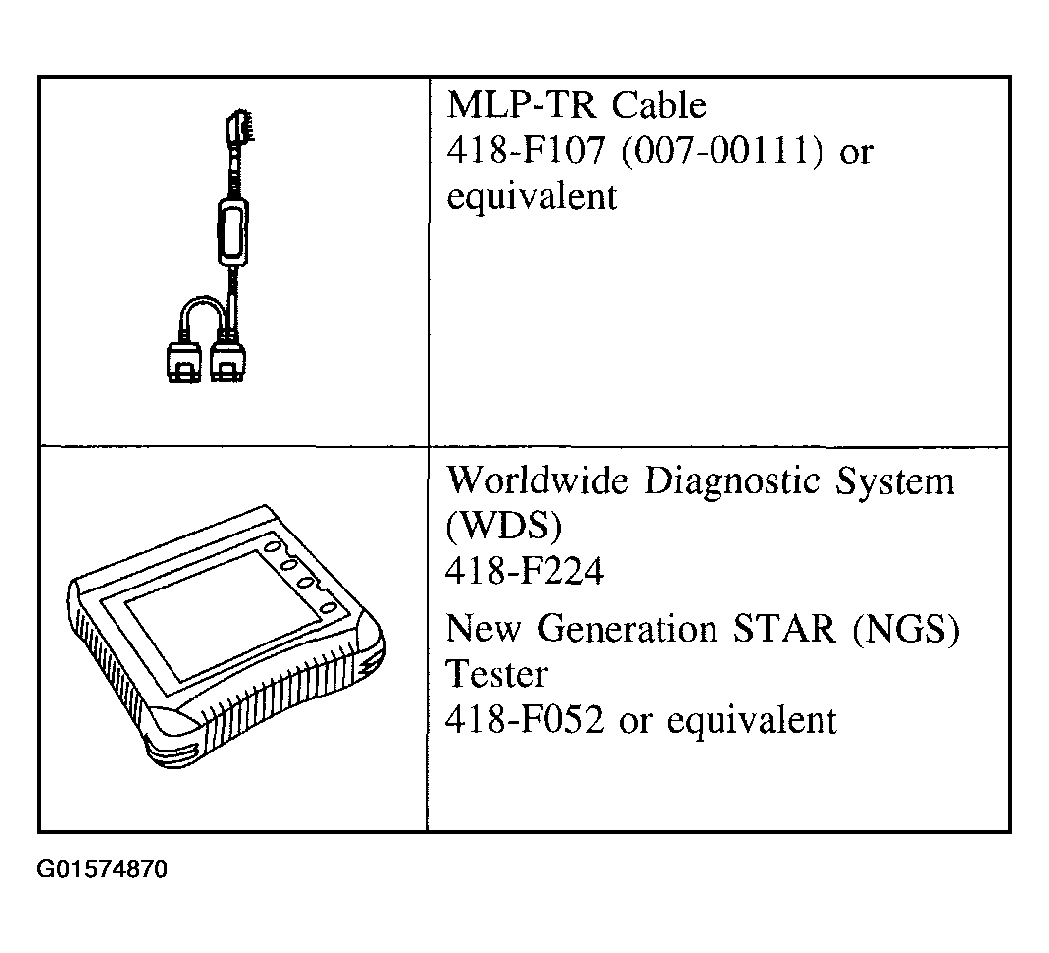

Fig 3: Identifying Special Tool (3 Of 3)

Courtesy of FORD MOTOR CO.

Any time an electrical connector or solenoid body is disconnected, inspect the connector for terminal condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install new connector or seal as necessary.
