WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

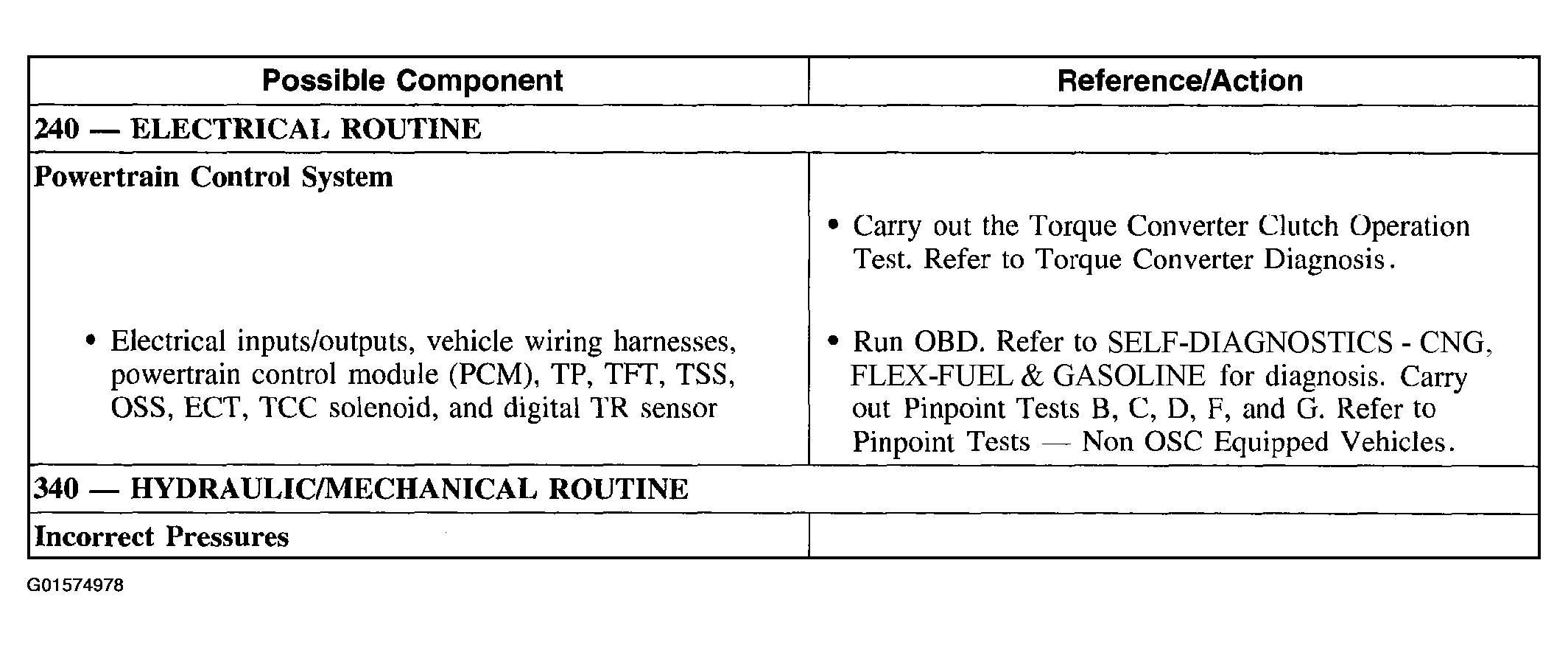

Fig 1: Torque Converter Operation Concerns: No Apply - Diagnostic Routines (1 Of 2)
Courtesy of FORD MOTOR CO.

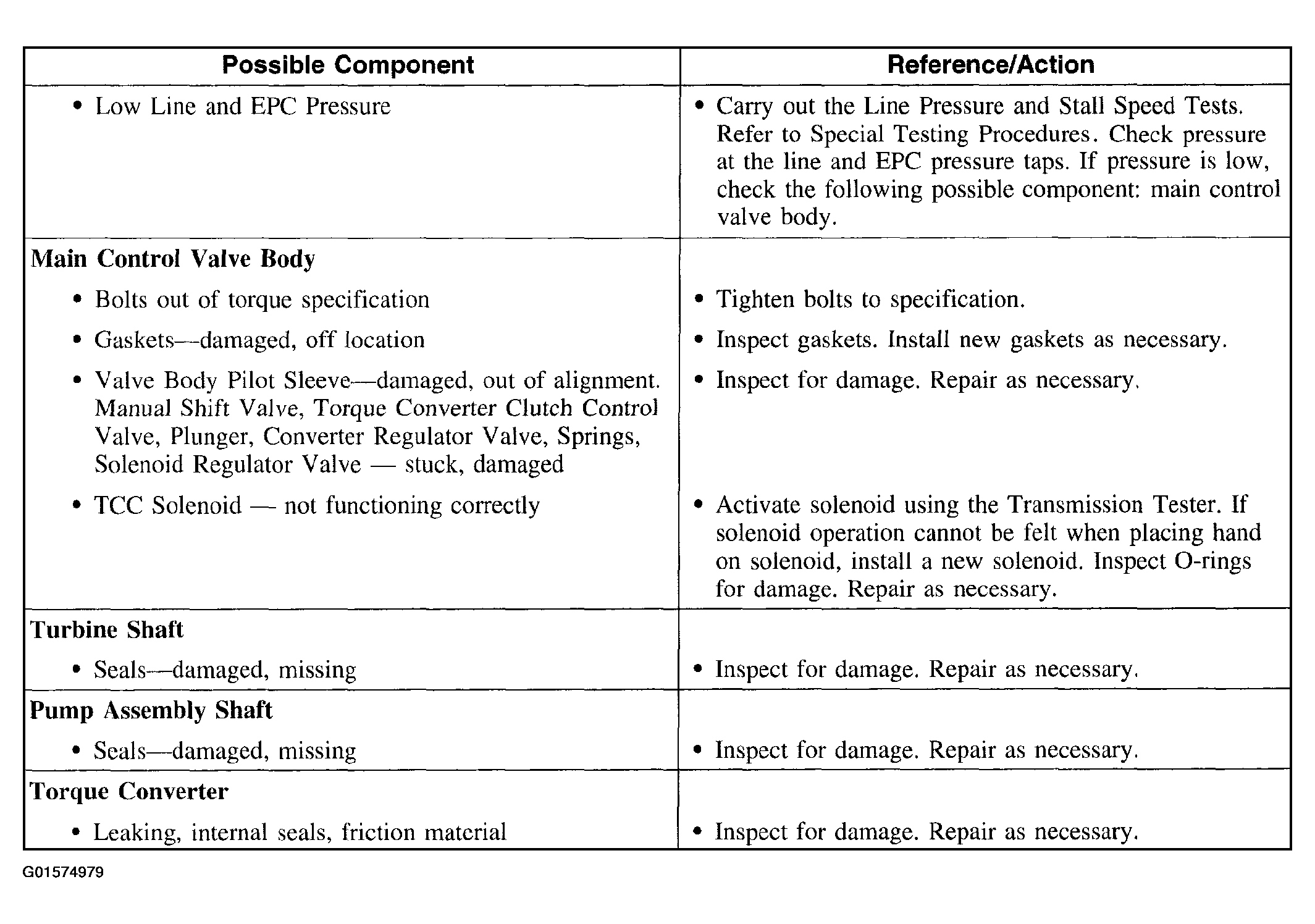

Fig 2: Torque Converter Operation Concerns: No Apply - Diagnostic Routines (2 Of 2)
