Shift Concerns: No 1ST Gear, Engages In Higher Gear

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

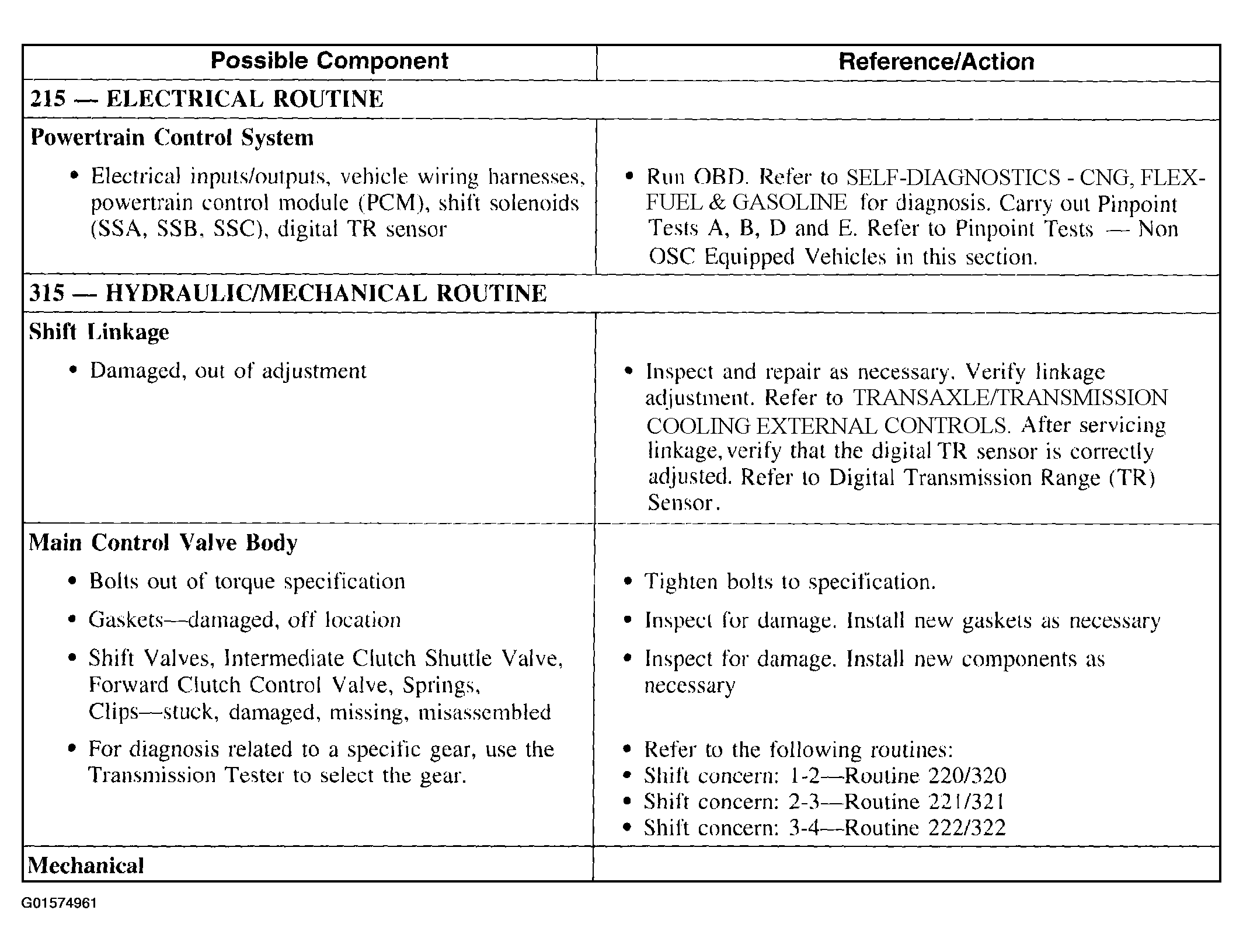

Fig 1: Shift Concerns: No 1St Gear, Engages In Higher Gear - Diagnostic Routines (1 Of 2)
G01574961Courtesy of FORD MOTOR CO.

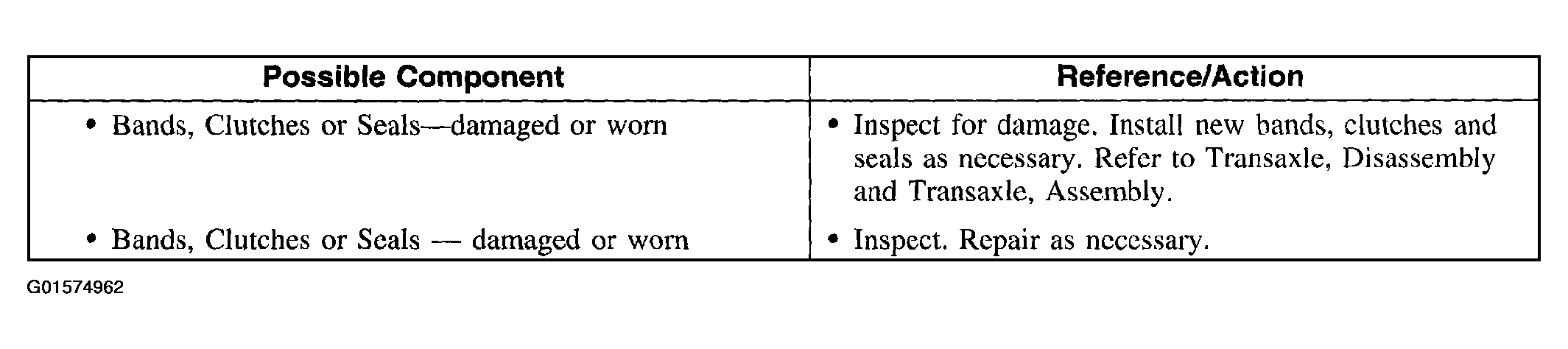

Fig 2: Shift Concerns: No 1St Gear, Engages In Higher Gear - Diagnostic Routines (2 Of 2)
G01574962Courtesy of FORD MOTOR CO.
