Section 461 (Automatic Transmission - Ax4S)
>>
Diagnosis And Testing
>>
Diagnosis By Symptom
>>
Diagnostic Routines
>>
Engagement Concern: Harsh Reverse
Engagement Concern: Harsh Reverse
WARNING:
This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

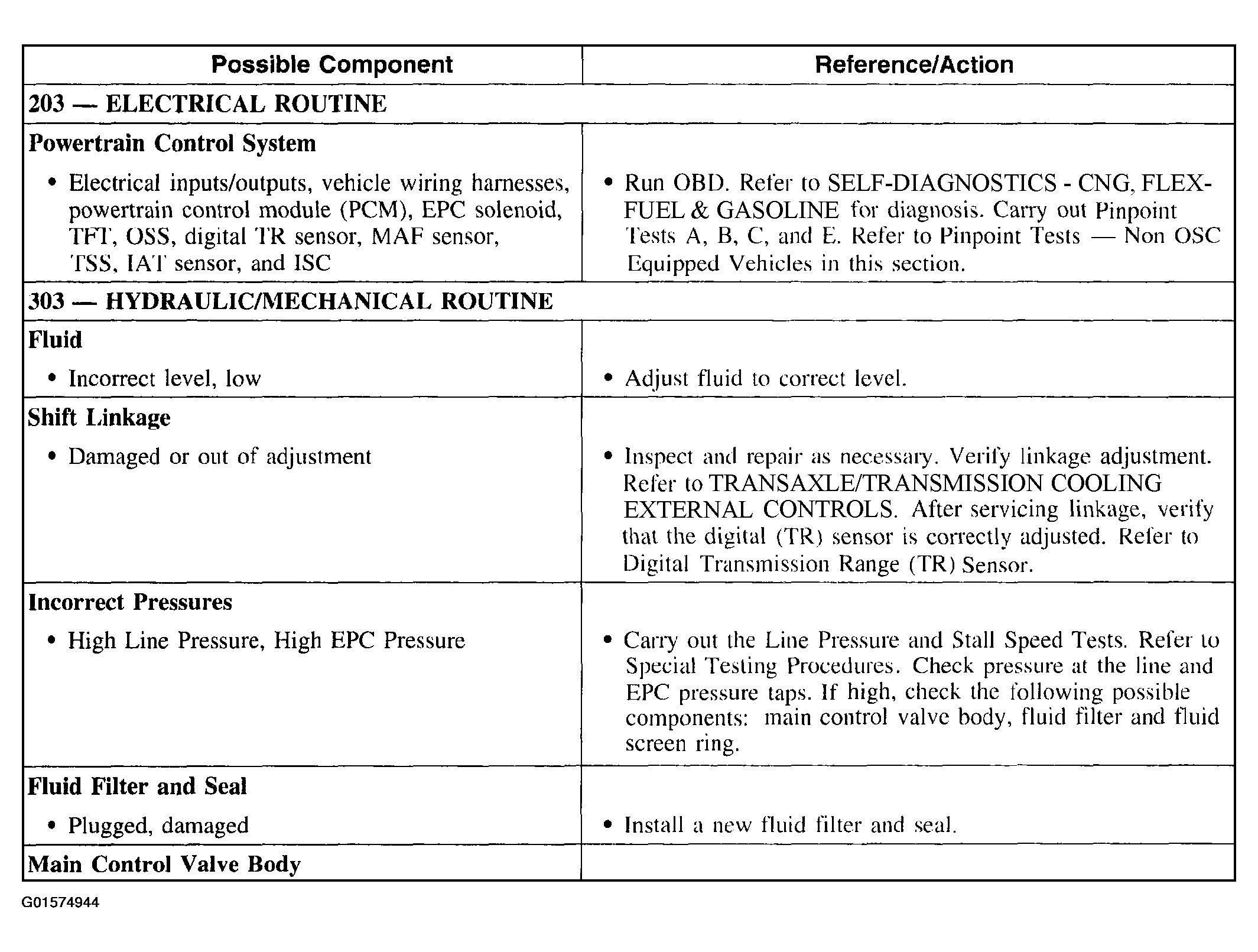

Fig 1: Engagement Concern: Harsh Reverse - Diagnostic Routines (1 Of 2)
Courtesy of FORD MOTOR CO.

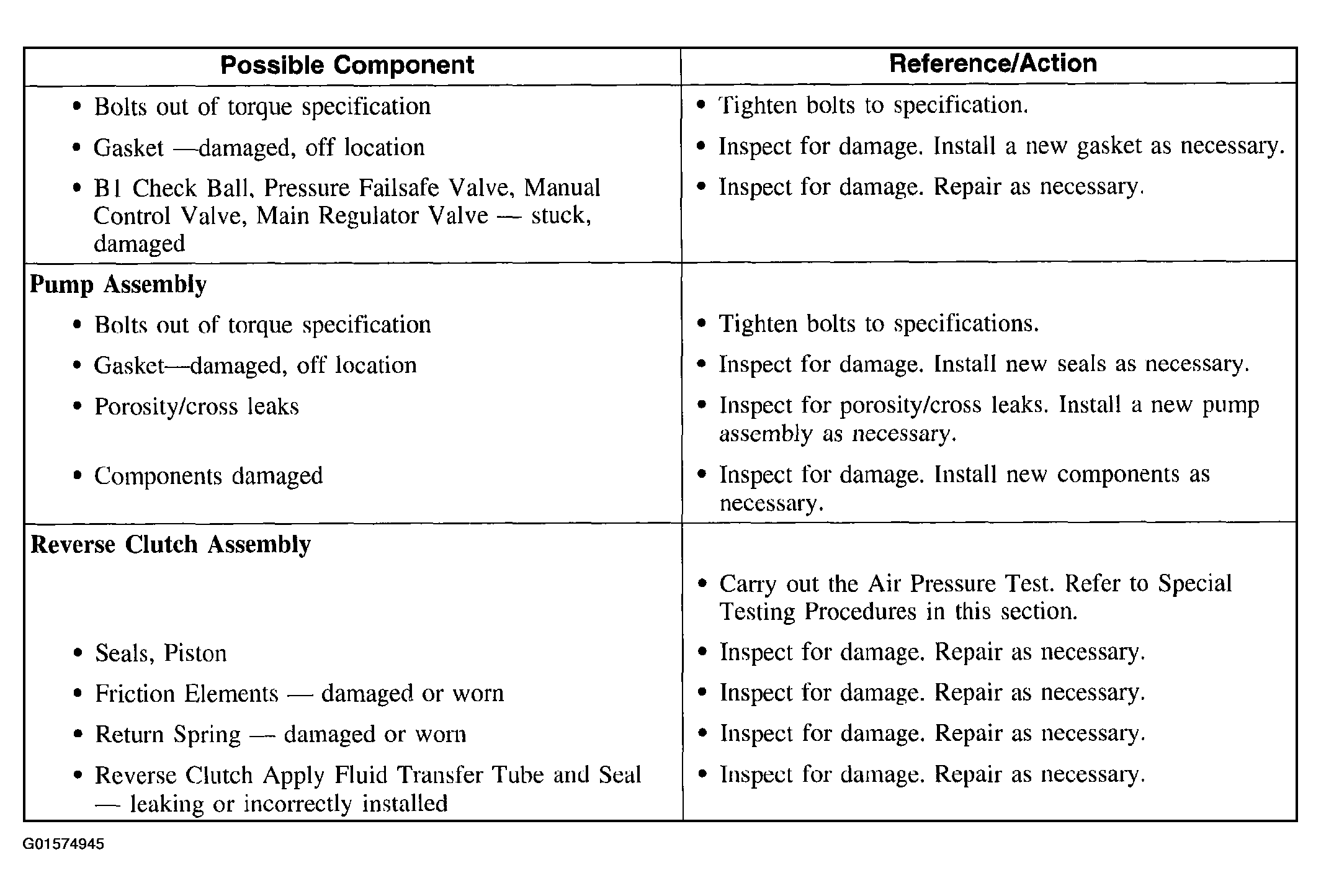

Fig 2: Engagement Concern: Harsh Reverse - Diagnostic Routines (2 Of 2)
Courtesy of FORD MOTOR CO.
