Fluid Pump
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
A variable displacement pump supplies fluid under pressure to the hydraulic system. The torque converter cover rotates a driveshaft that operates the pump.

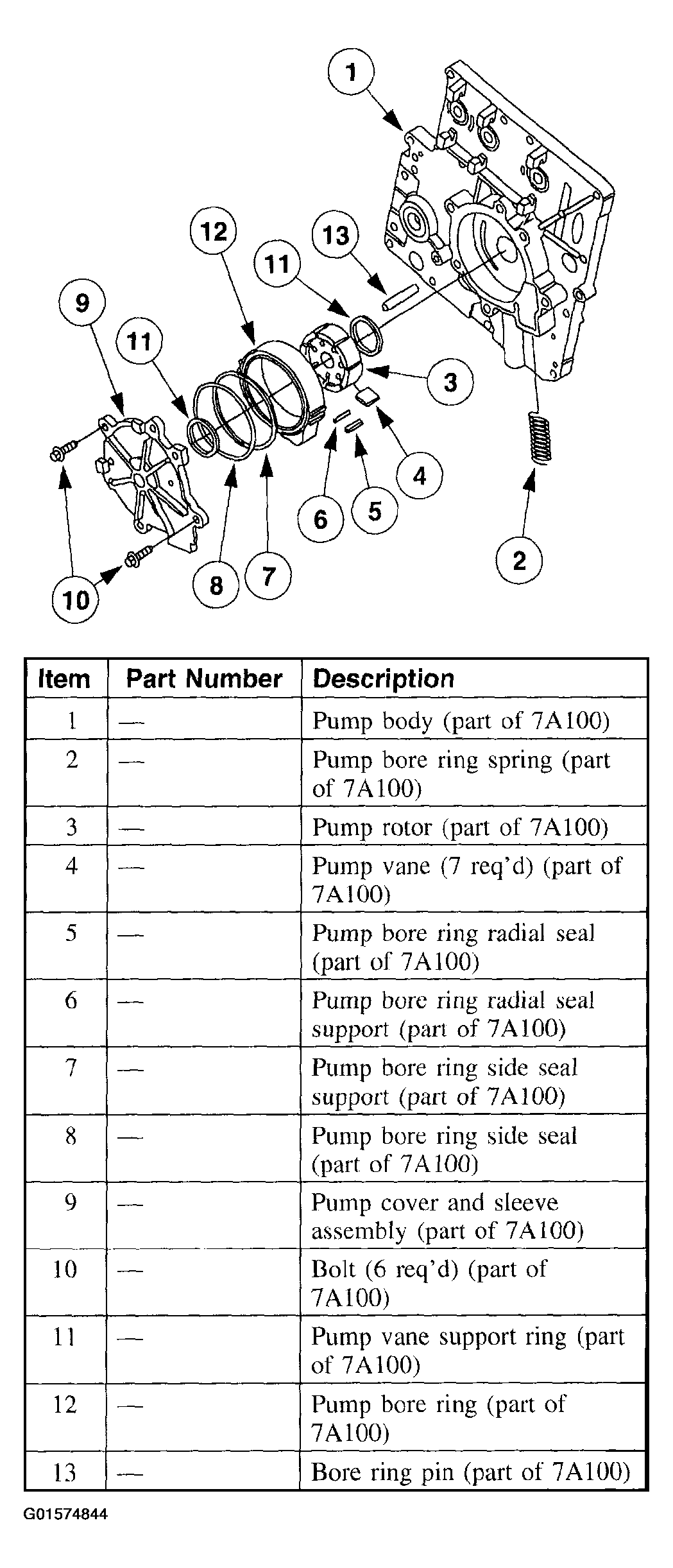

The pump assembly has the following parts:
- Body (part of the main control)
- Cover
- Rotor with vanes and related parts
- Pivoting bore ring with a pump priming spring
