Disassembled Views

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

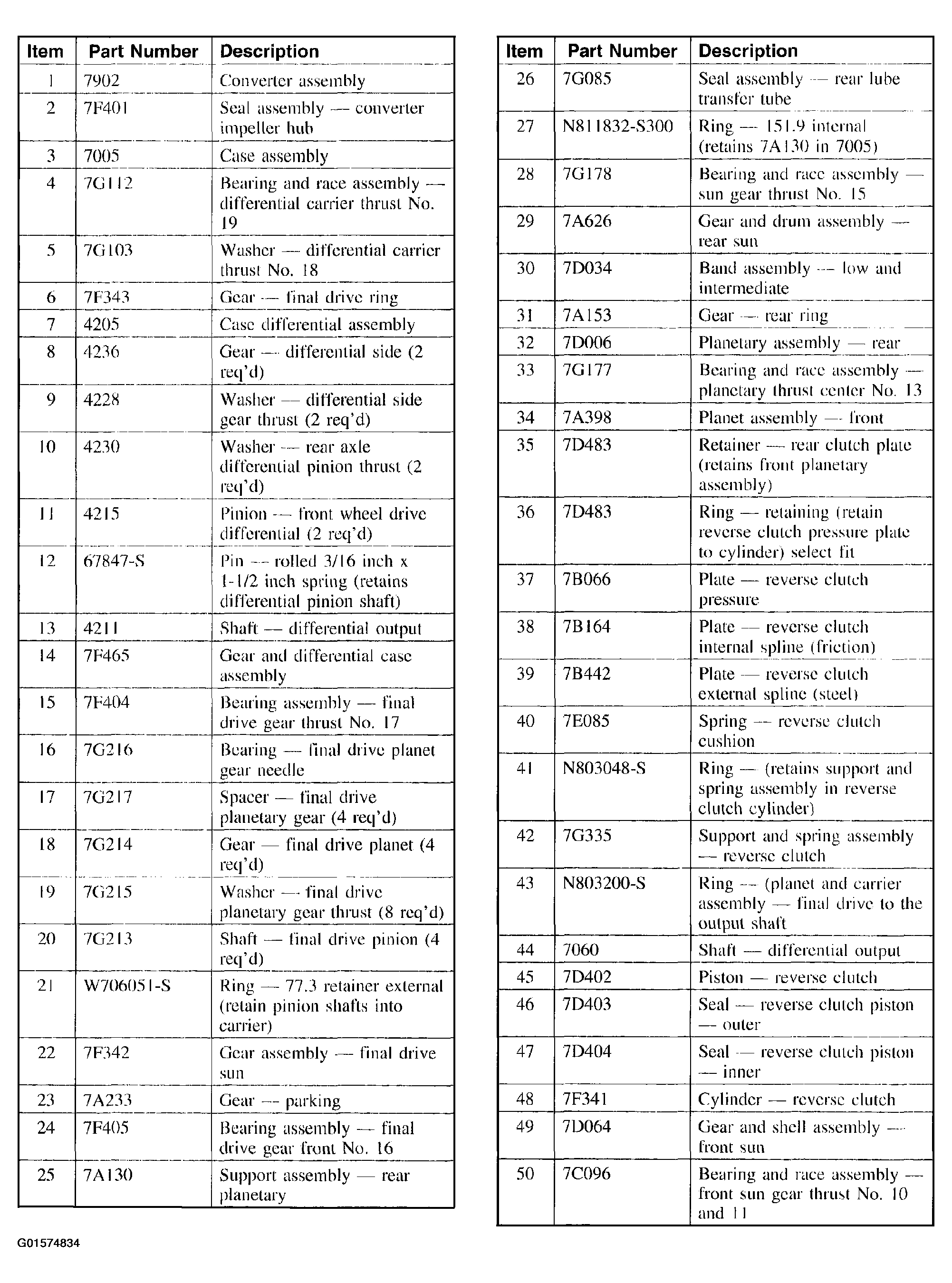

Fig 1: Identifying Disassembled Views (1 Of 7)

Courtesy of FORD MOTOR CO.

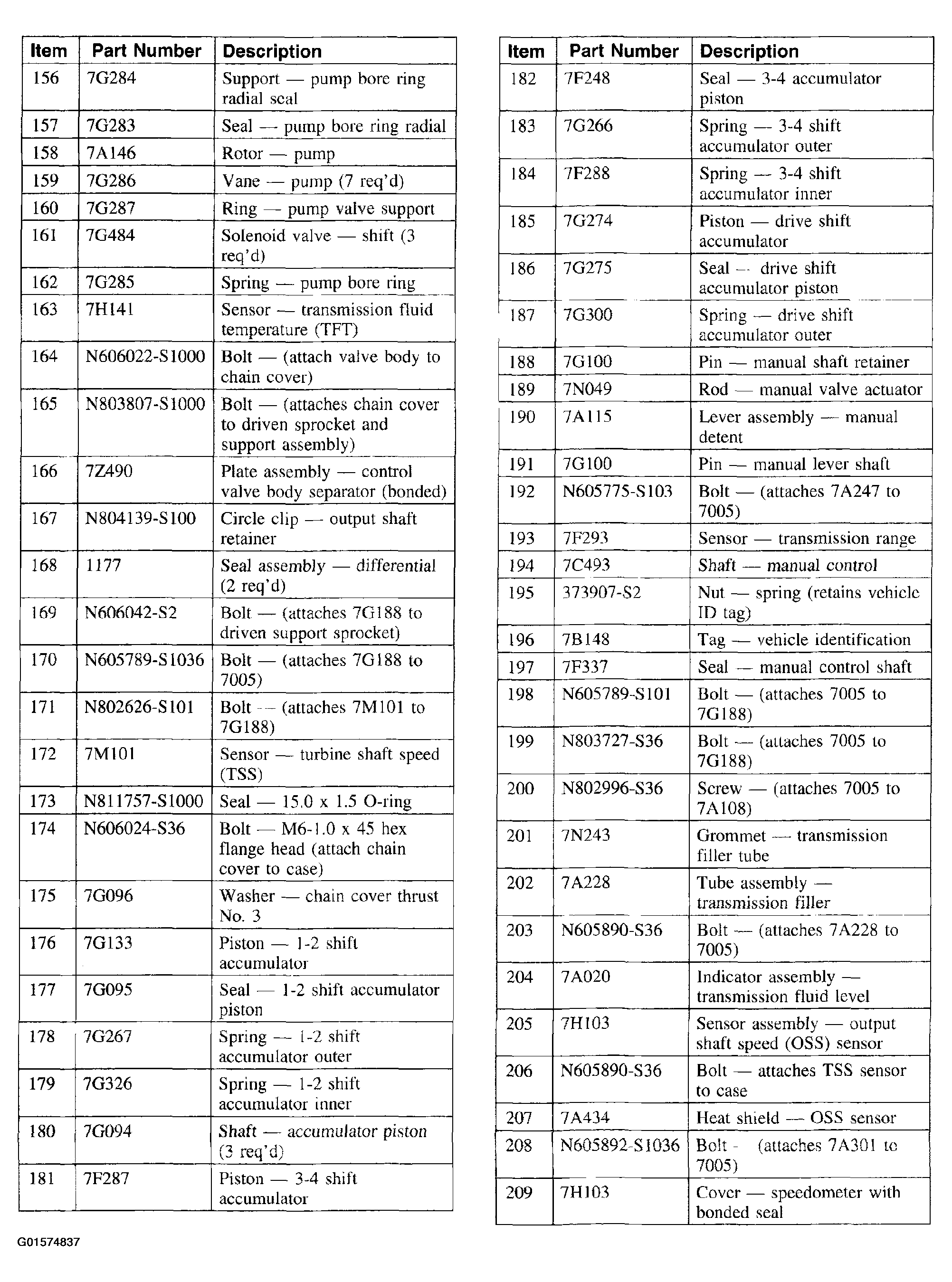

Fig 2: Identifying Disassembled Views (2 Of 7)

Courtesy of FORD MOTOR CO.

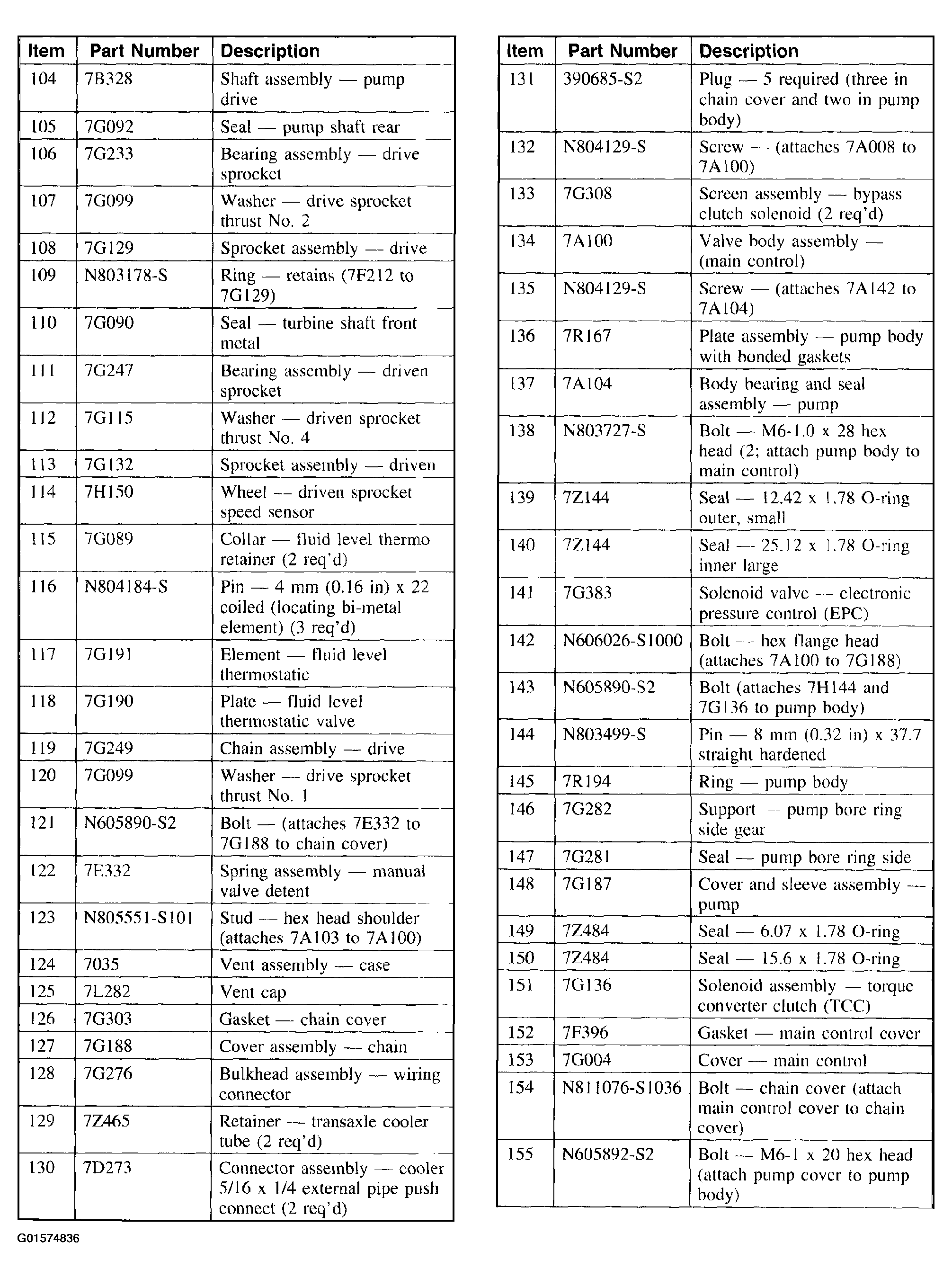

Fig 3: Identifying Disassembled Views (3 Of 7)

Courtesy of FORD MOTOR CO.

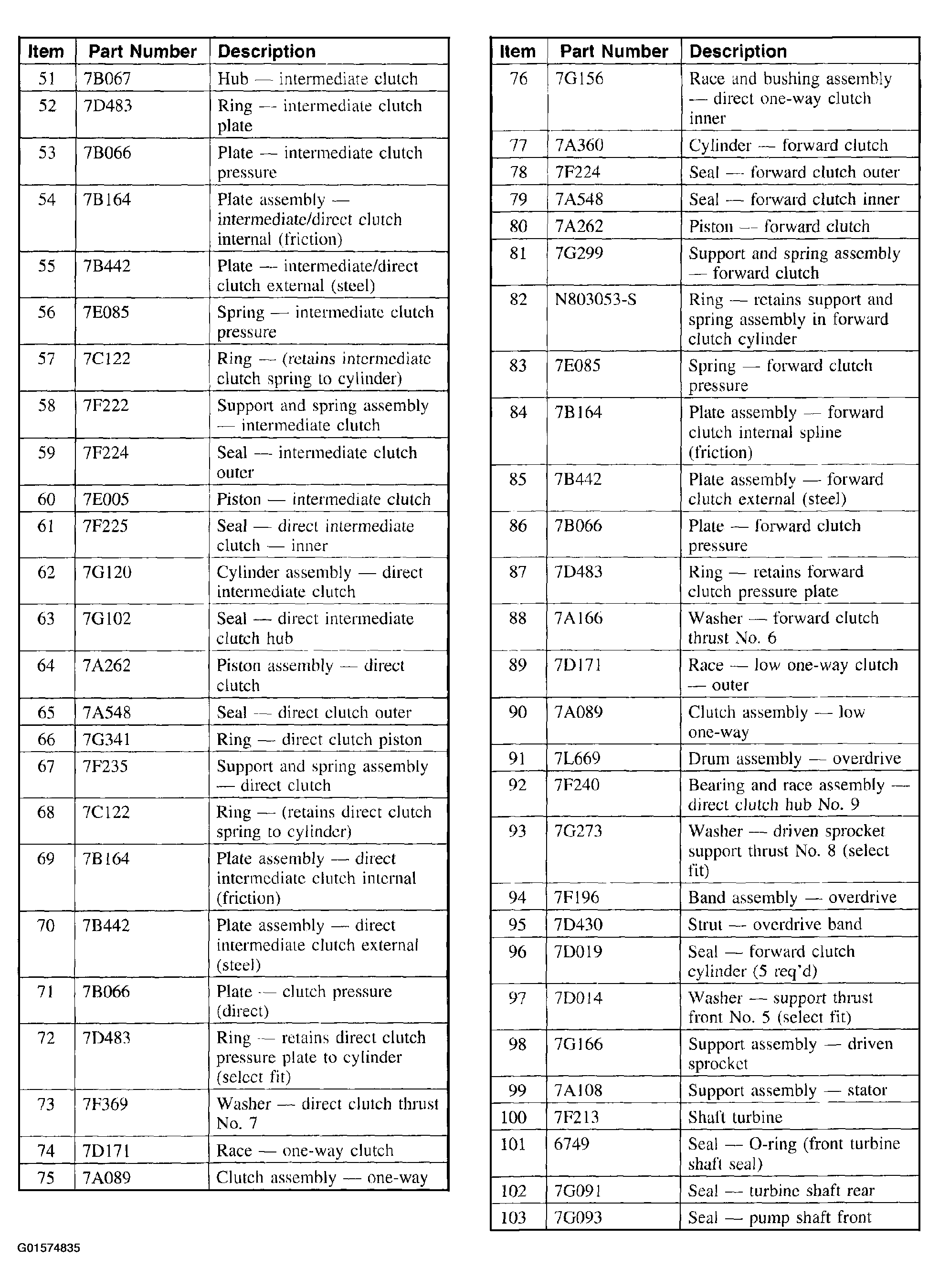

Fig 4: Identifying Disassembled Views (4 Of 7)

Courtesy of FORD MOTOR CO.

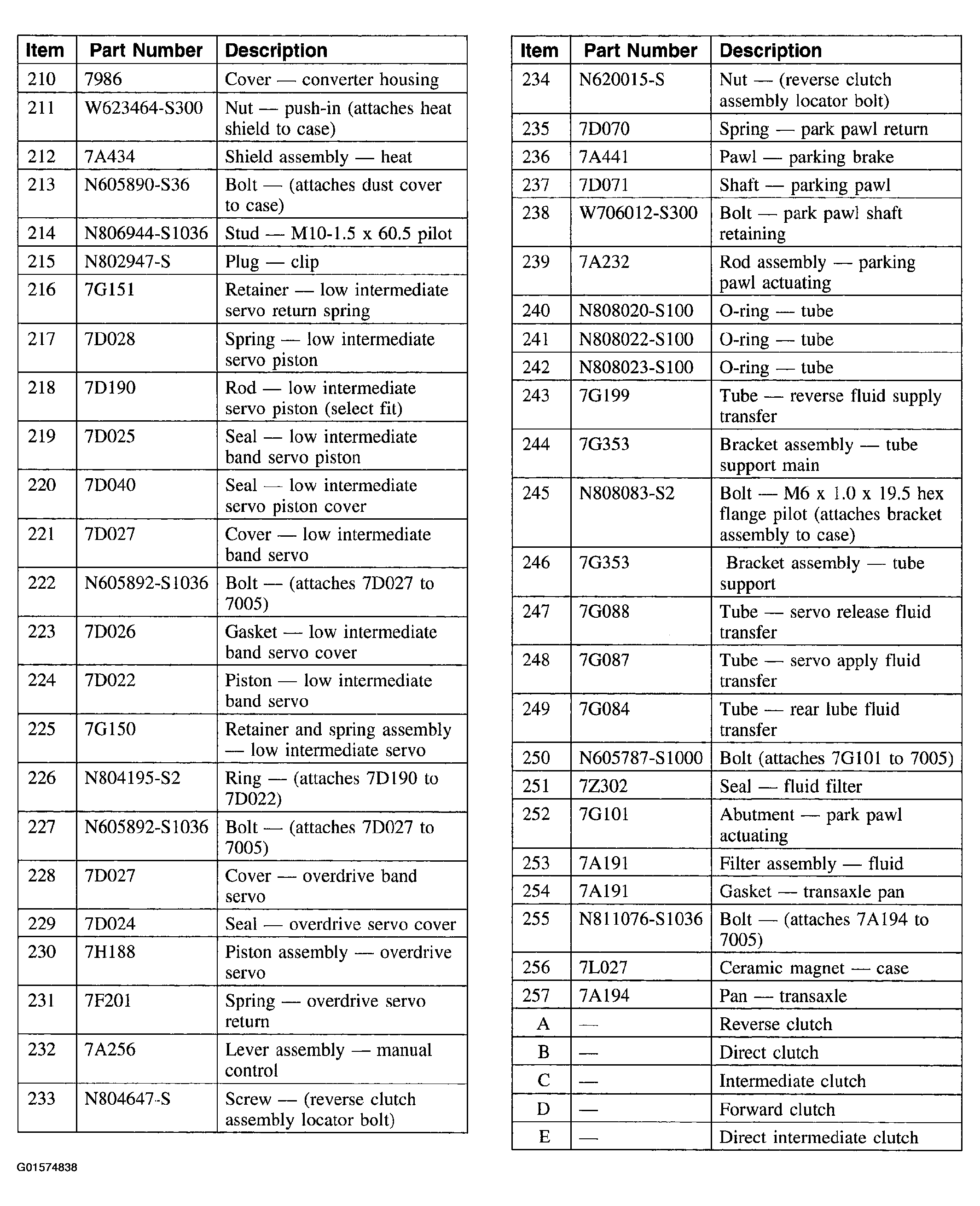

Fig 5: Identifying Disassembled Views (5 Of 7)

Courtesy of FORD MOTOR CO.

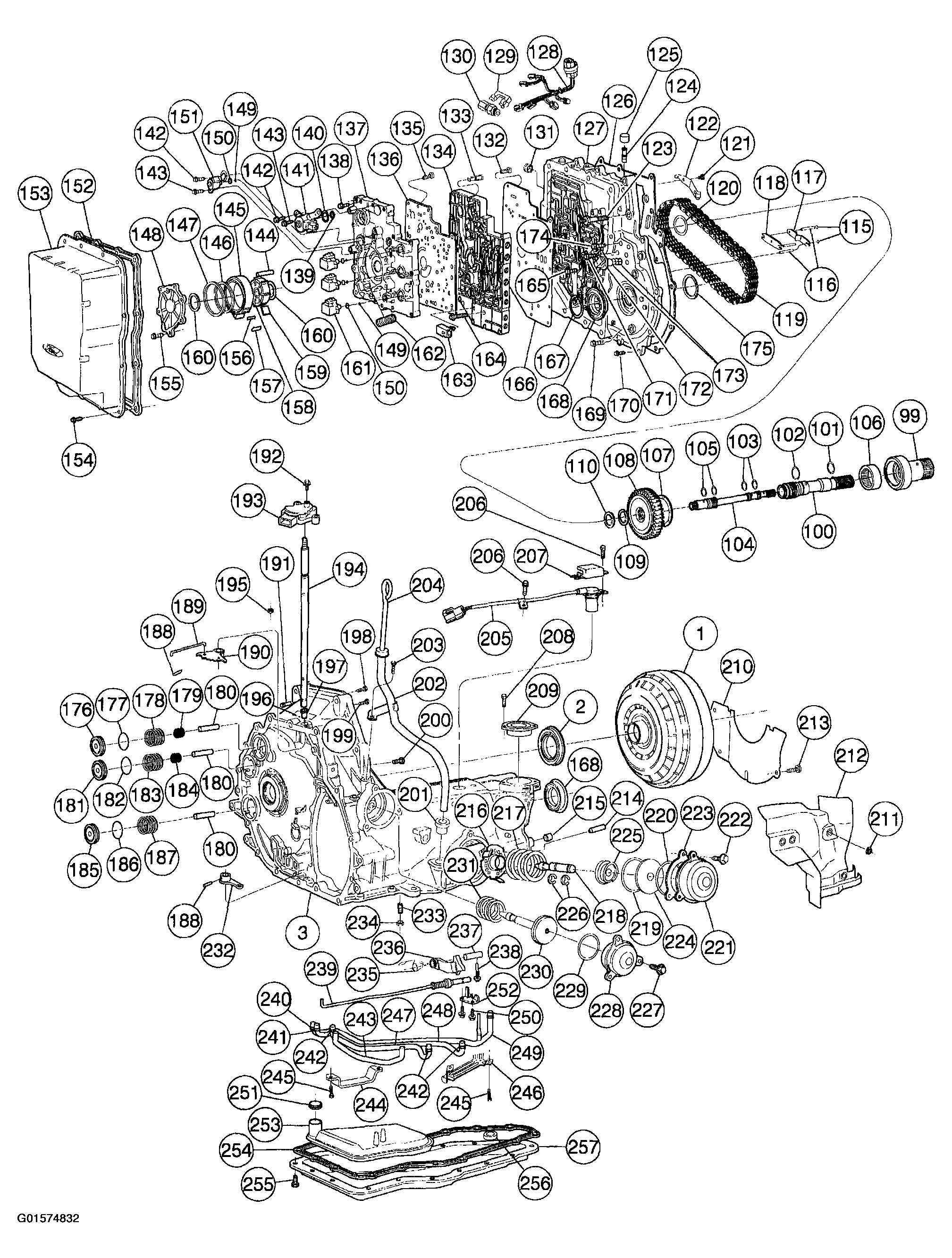

Fig 6: Identifying Disassembled Views (6 Of 7)

Courtesy of FORD MOTOR CO.

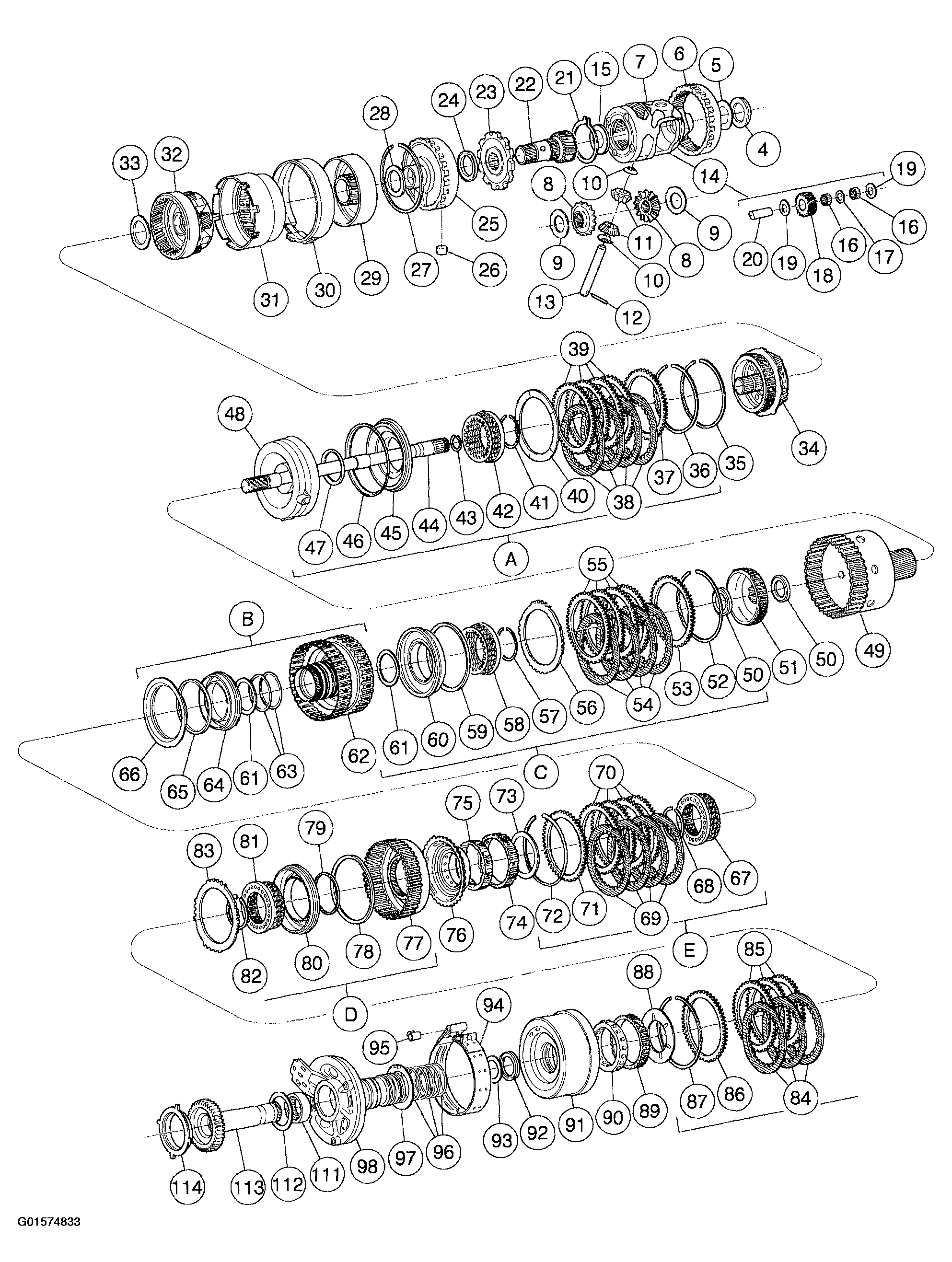

Fig 7: Identifying Disassembled Views (7 Of 7)

Courtesy of FORD MOTOR CO.
