Component Locations 3.0L (4V)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

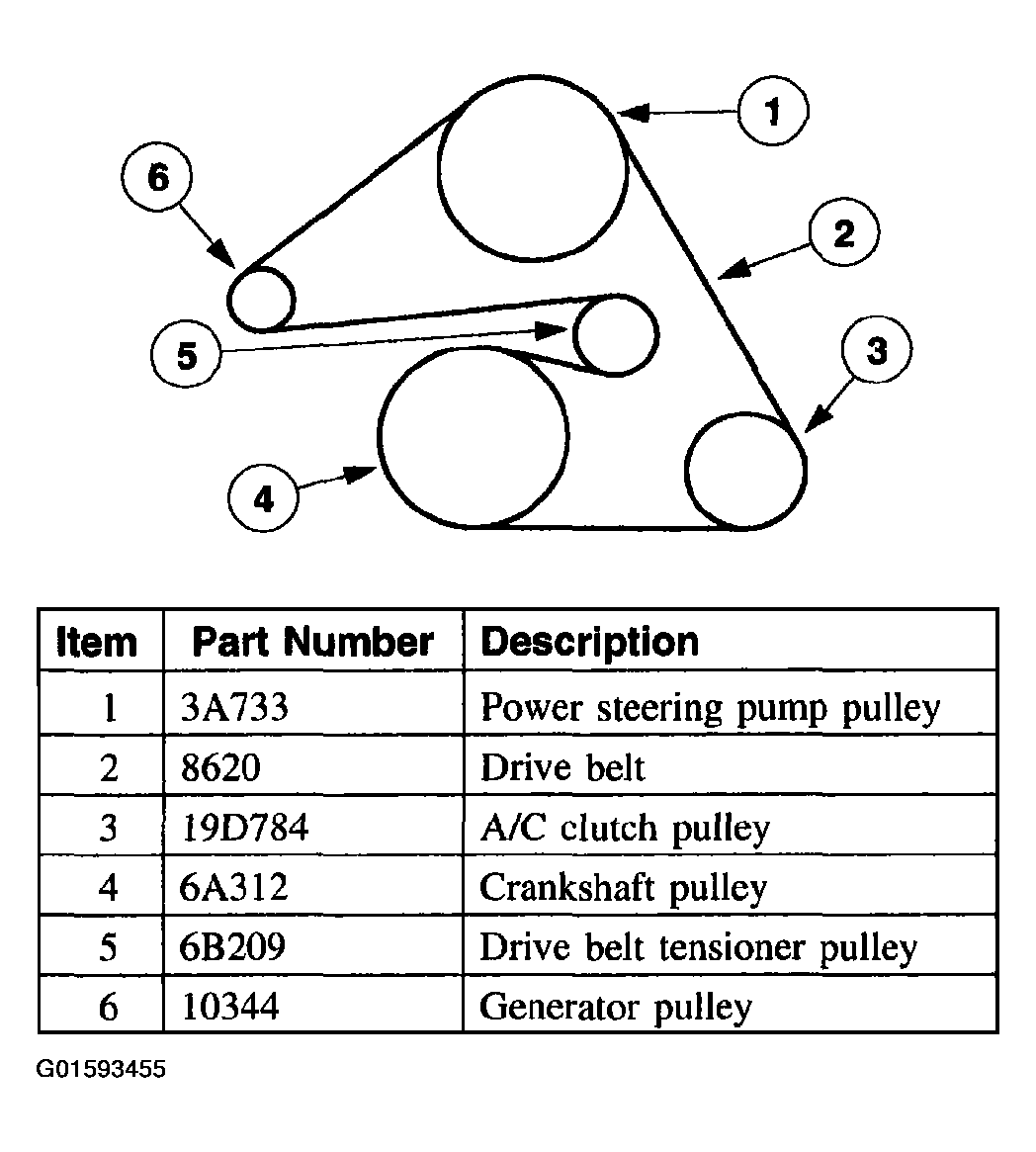

Fig 1: Locating Accessory Drive 3.0L (4V)
G01593455Courtesy of FORD MOTOR CO.
