Water Pump - 3.0L (4V): Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Connect the connector hose to the water pump.

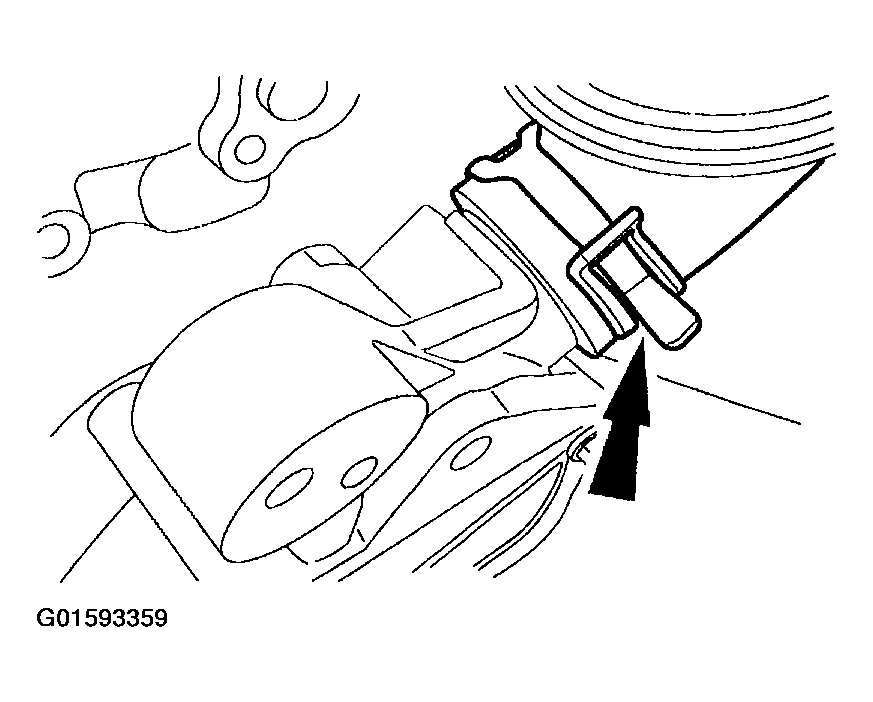

Fig 1: Identifying Connector Hose Of Water Pump
Courtesy of FORD MOTOR CO.
Position the water pump and install the mounting bolts. Tighten the bolts in two stages:
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 90 degrees.

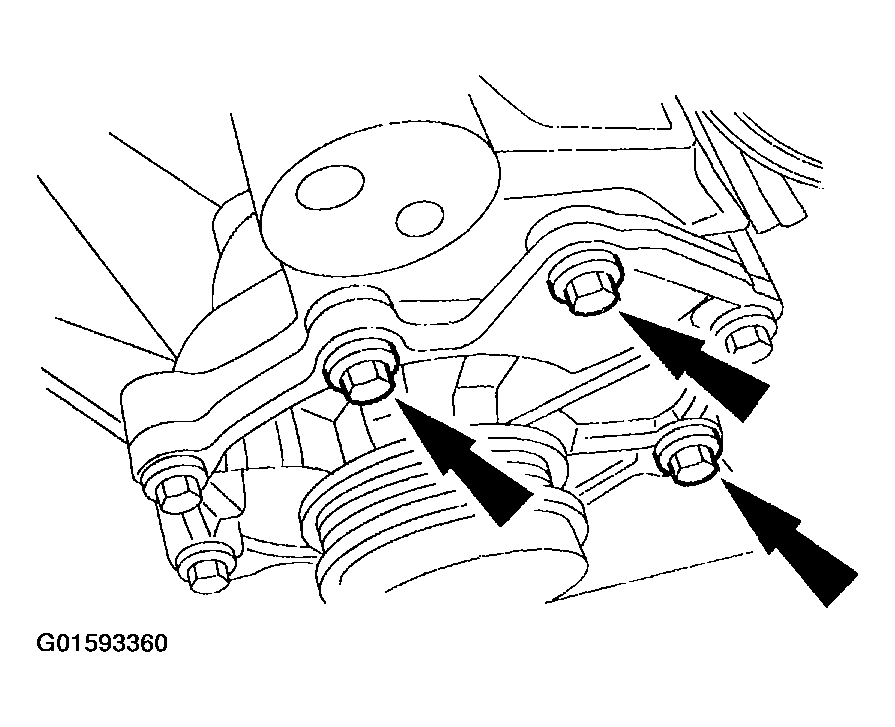

Fig 2: Identifying Mounting Bolts Of Water Pump
Courtesy of FORD MOTOR CO.
Install the radiator bypass hose assembly.

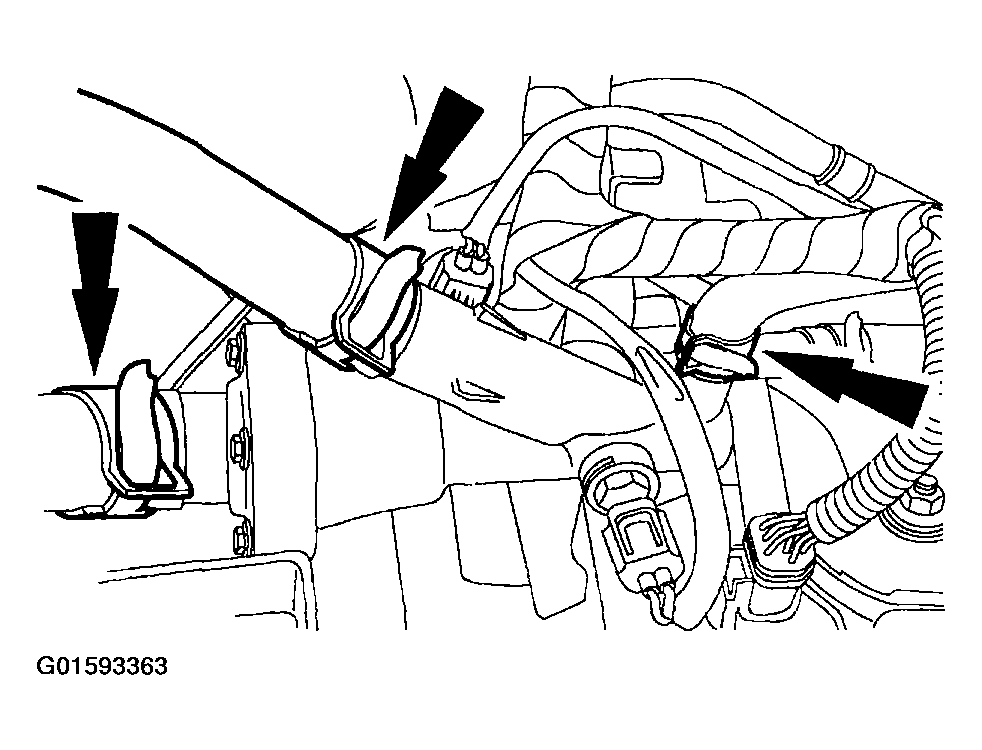

Fig 3: Identifying Clamp Of Radiator Bypass Hose Assembly
Courtesy of FORD MOTOR CO.
Connect the engine coolant temperature (ECT) sender and the water temperature sender electrical connectors.

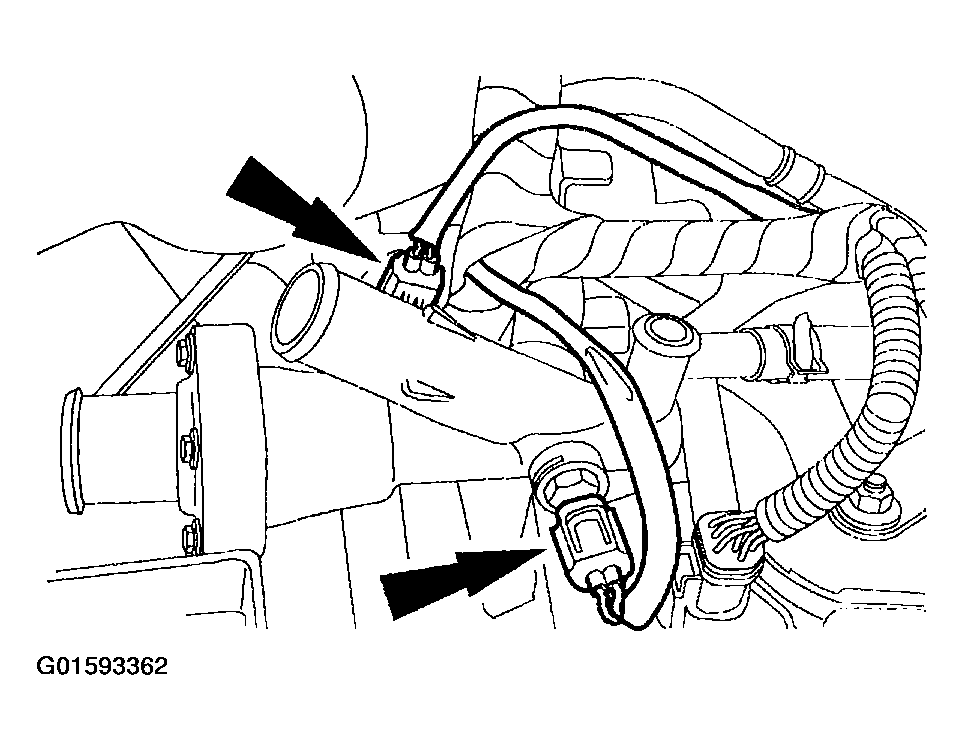

Fig 4: Identifying Engine Coolant Temperature (ECT) Sender And Water Temperature Sender Electrical Connectors
Courtesy of FORD MOTOR CO.
Connect the upper radiator hose, the heater water hose and thermostat housing the hose.

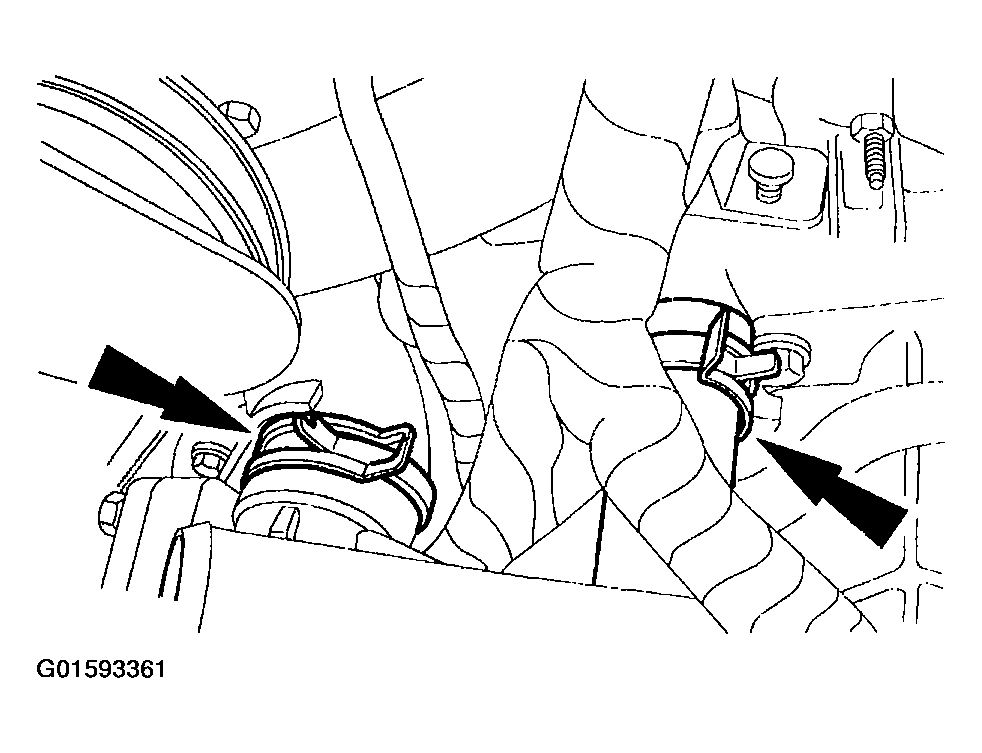

Fig 5: Identifying Clamp Of Upper Radiator Hose
Courtesy of FORD MOTOR CO.
Install the radiator upper front cooling tube bolt.

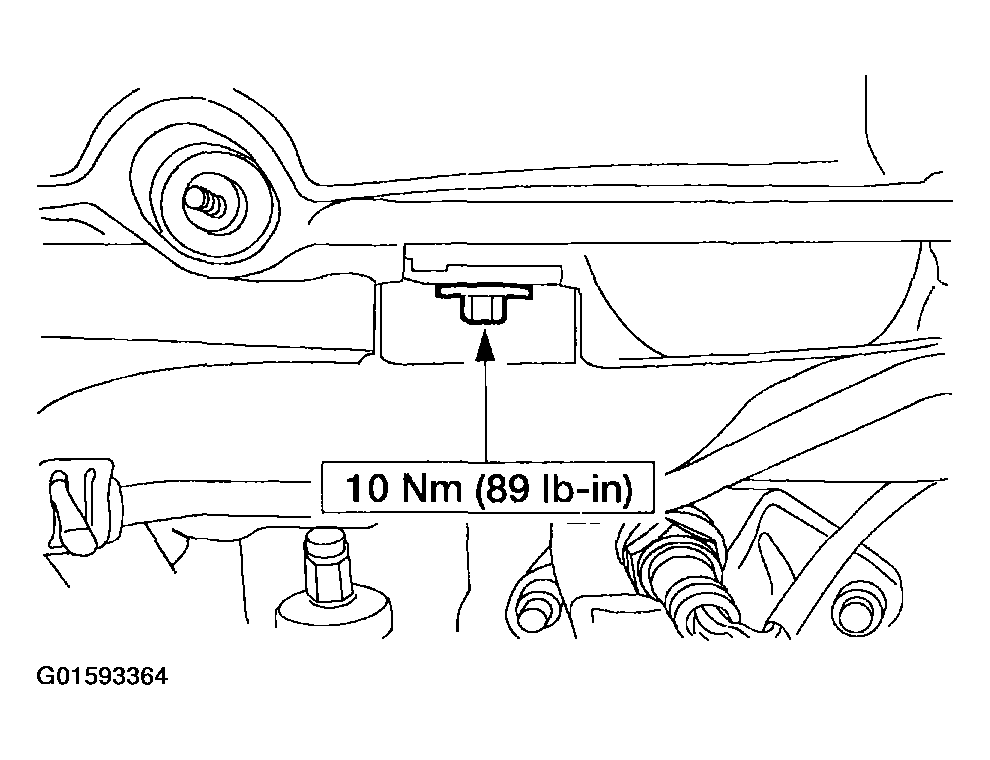

Fig 6: Identifying Radiator Upper Front Cooling Tube Bolt
Courtesy of FORD MOTOR CO.
Install the water pump belt. For additional information, refer to ACCESSORY DRIVE .
Install the battery and the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Install the air cleaner assembly. For additional information, refer to REMOVAL & INSTALLATION .
Raise and support the vehicle.
Install the lower cooling tube bolt.

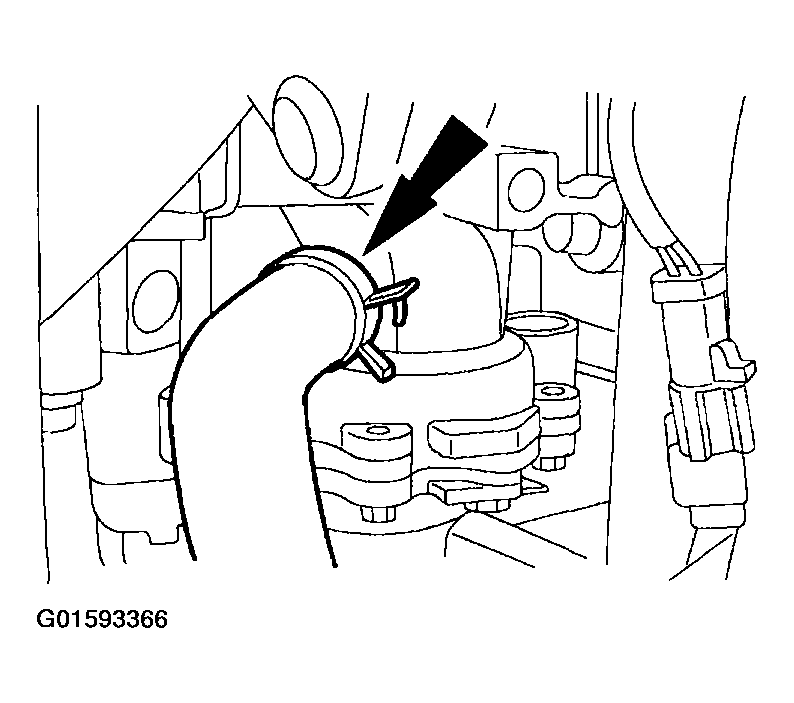

Fig 7: Identifying Lower Cooling Tube Bolt
Courtesy of FORD MOTOR CO.
Connect the heater water hose to the bottom of the water pump.

Fig 8: Identifying Clamp Of Heater Water Hose
Courtesy of FORD MOTOR CO.
Install the splash shield. .
Fill the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
