Water Pump - 3.0L (2V): Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Loosen the water pump pulley.

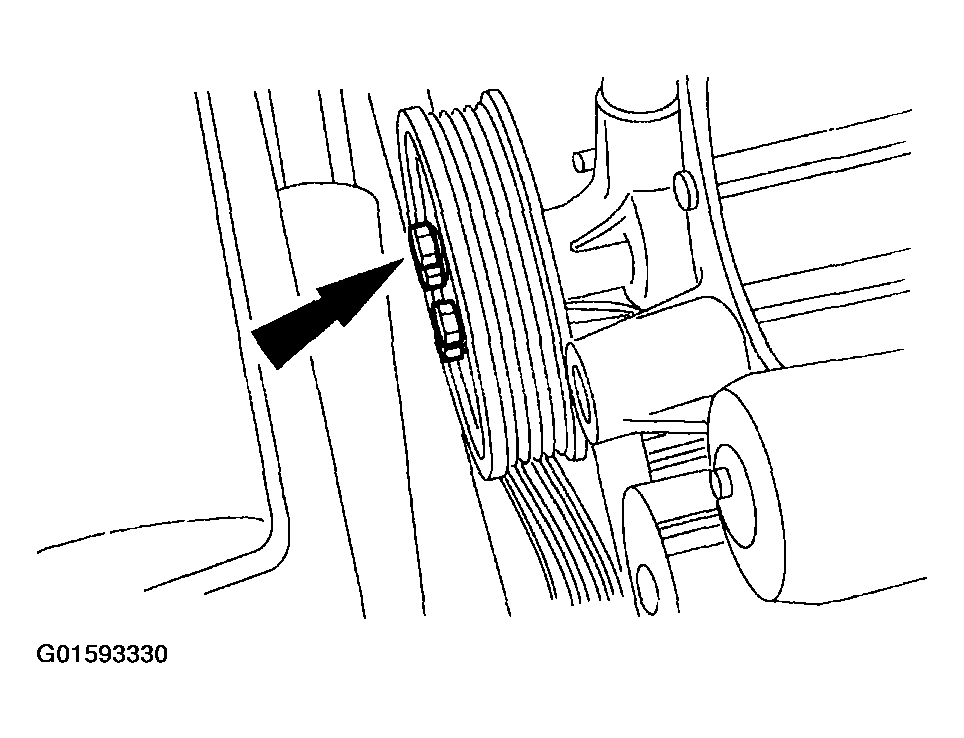

Fig 1: Identifying Water Pump Pulley
Courtesy of FORD MOTOR CO.
Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
Remove the degas bottle. For additional information, refer to DEGAS BOTTLE .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the generator B+ cable and the voltage regulator electrical connector.

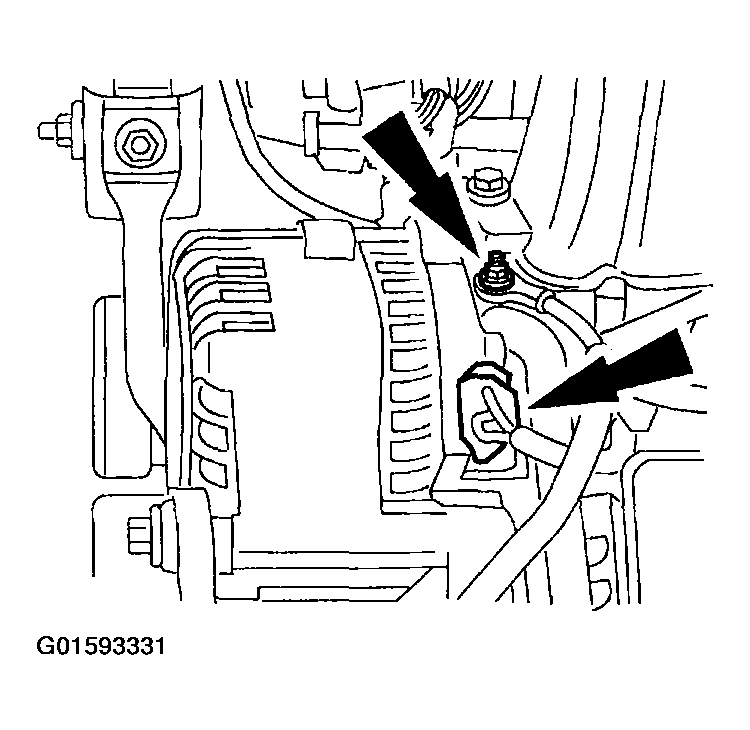

Fig 2: Identifying Generator B+ Cable And Voltage Regulator Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the nut, the bolt and the generator brace.

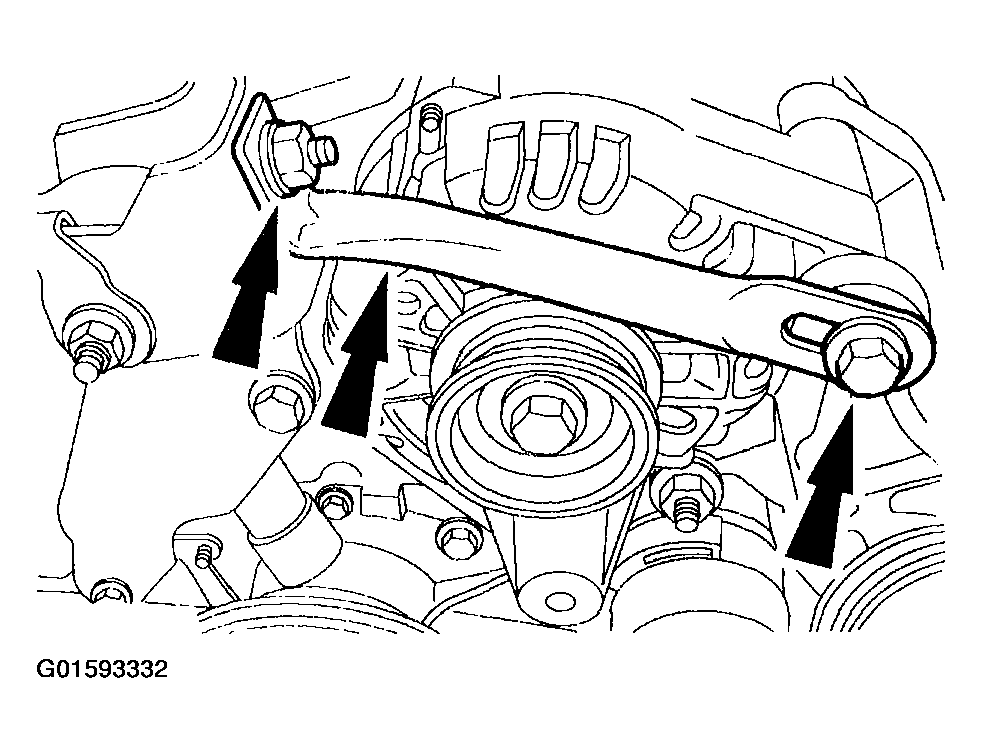

Fig 3: Identifying Nut, Bolt And Generator Brace
Courtesy of FORD MOTOR CO.
Remove the generator mounting bolt and the generator.

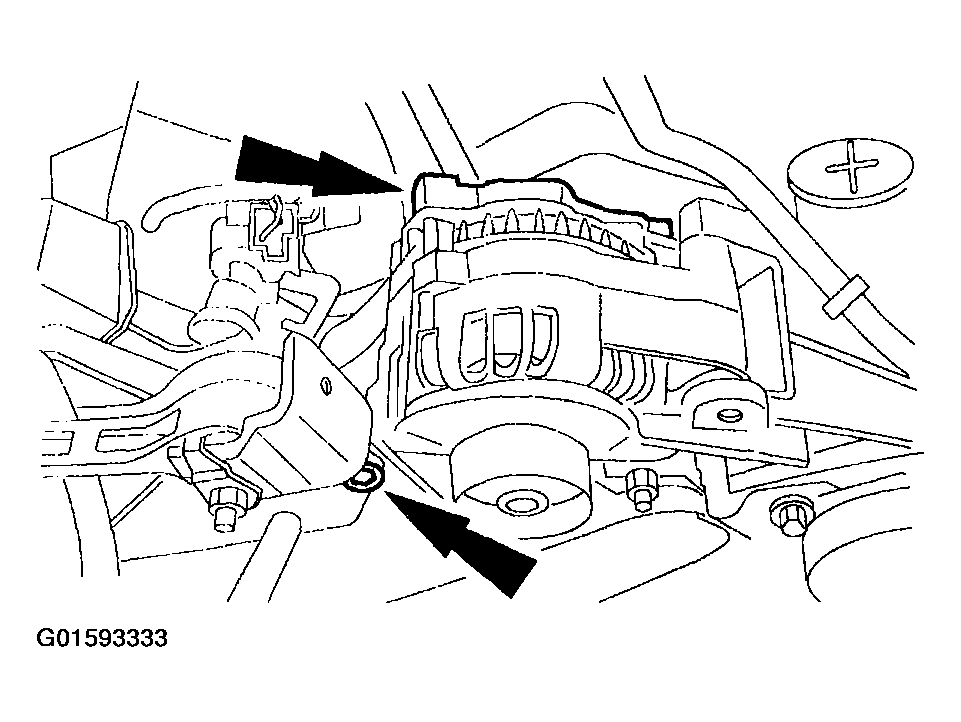

Fig 4: Identifying Generator Mounting Bolt And Generator
Courtesy of FORD MOTOR CO.

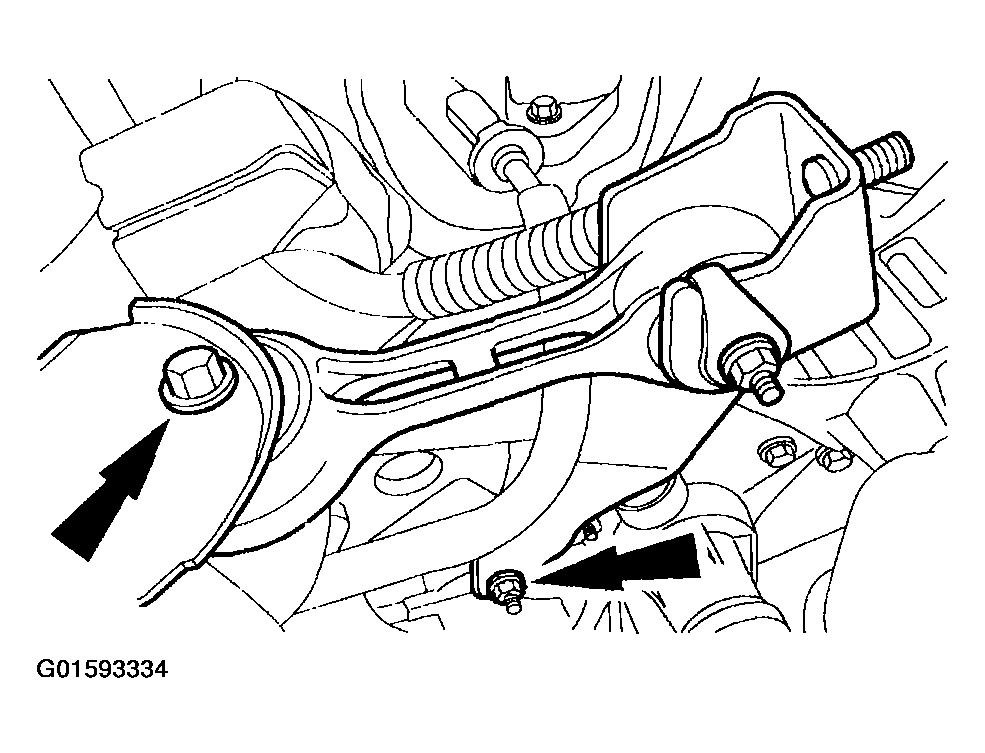

Remove the bolt and the nut, and position the roll restrictor bracket out of the way.

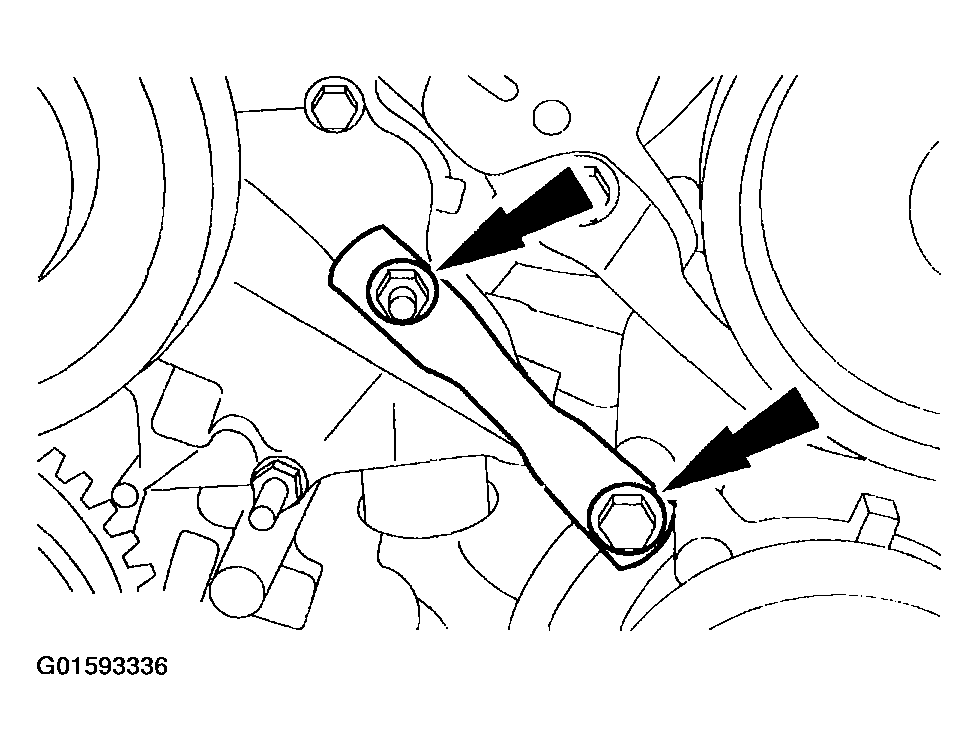

Fig 5: Identifying Bolt And Nut Of Water Pump
Courtesy of FORD MOTOR CO.
Remove the bolt and the accessory drive belt tensioner.

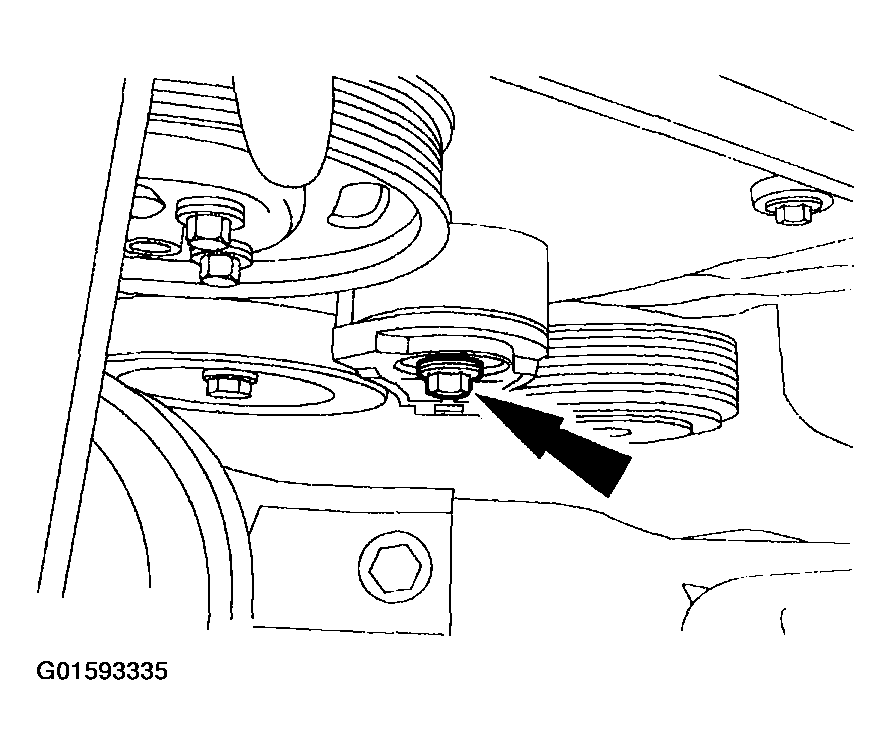

Fig 6: Identifying Bolt And Accessory Drive Belt Tensioner
Courtesy of FORD MOTOR CO.
Remove the nut, the bolt and the support bracket.

Fig 7: Identifying Nut, Bolt And Support Bracket
Courtesy of FORD MOTOR CO.
Remove the bolts and the water pump pulley.

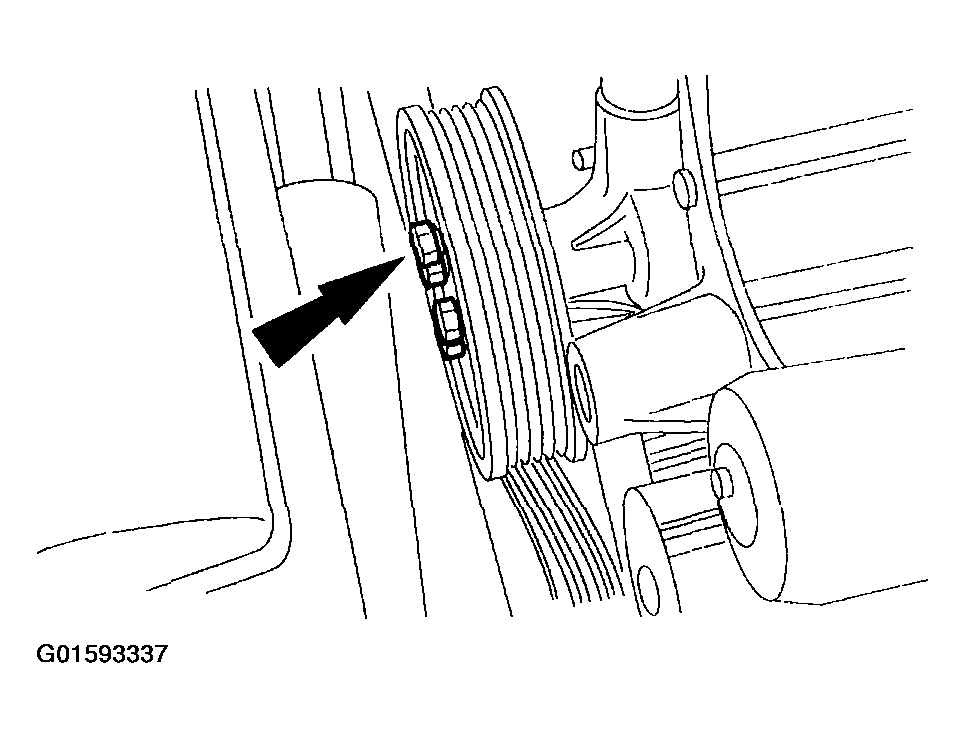

Fig 8: Identifying Bolts And Water Pump Pulley
Courtesy of FORD MOTOR CO.

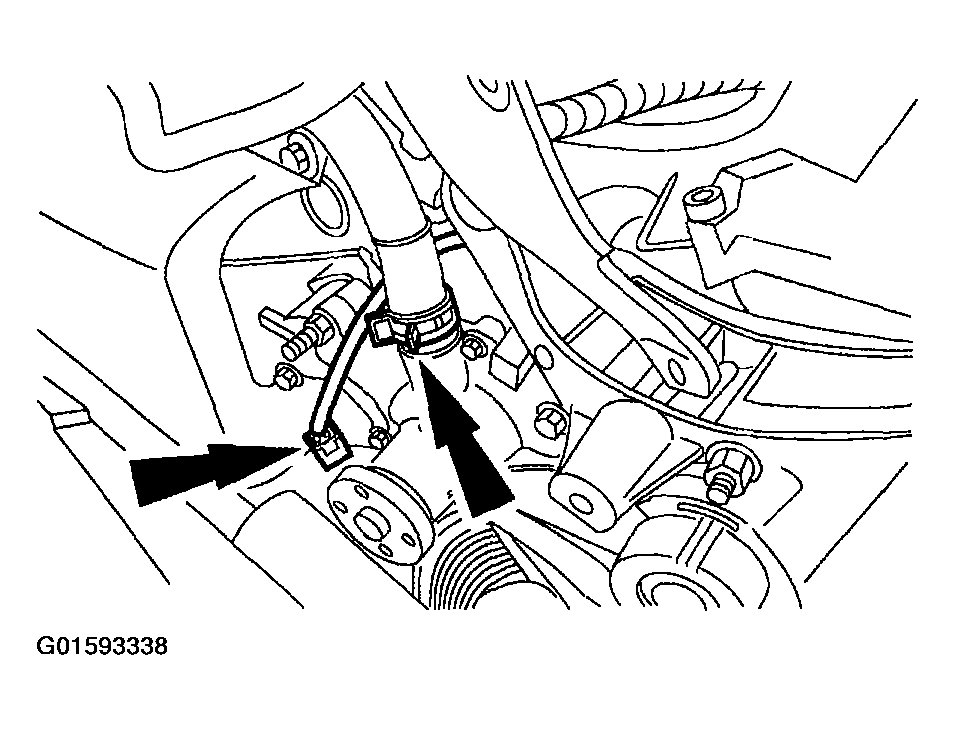

Disconnect the water pump inlet hose and the crankshaft position sensor electrical connector.

Fig 9: Identifying Water Pump Inlet Hose And Crankshaft Position Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and the water pump, and clean the sealing surfaces.

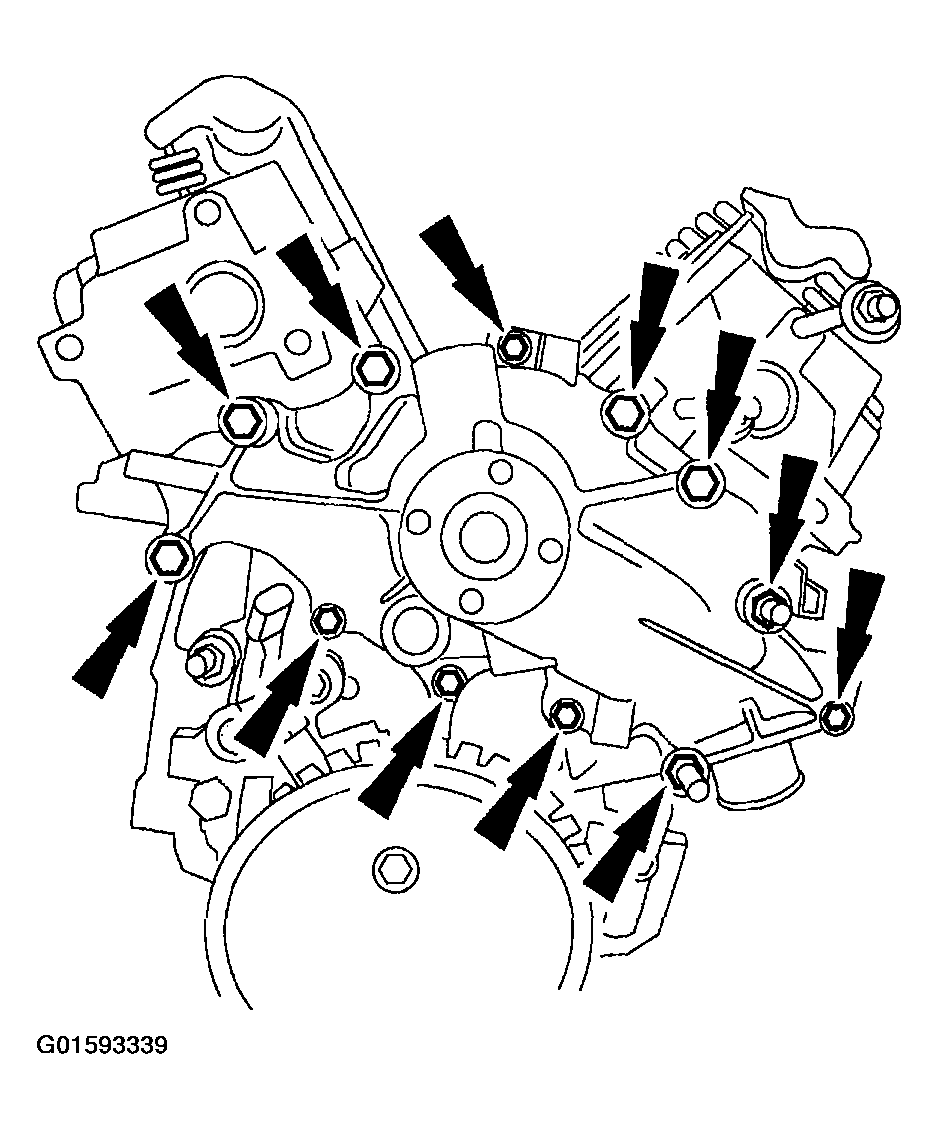

Fig 10: Identifying Bolts Of Water Pump
Courtesy of FORD MOTOR CO.
