Water Pump - 3.0L (2V): Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump. Tighten bolts in the sequence shown:
    • Tighten numbers 1-7 to 25 Nm (18 lb-ft).
    • Tighten numbers 8-12 to 10 Nm (89 lb-in).

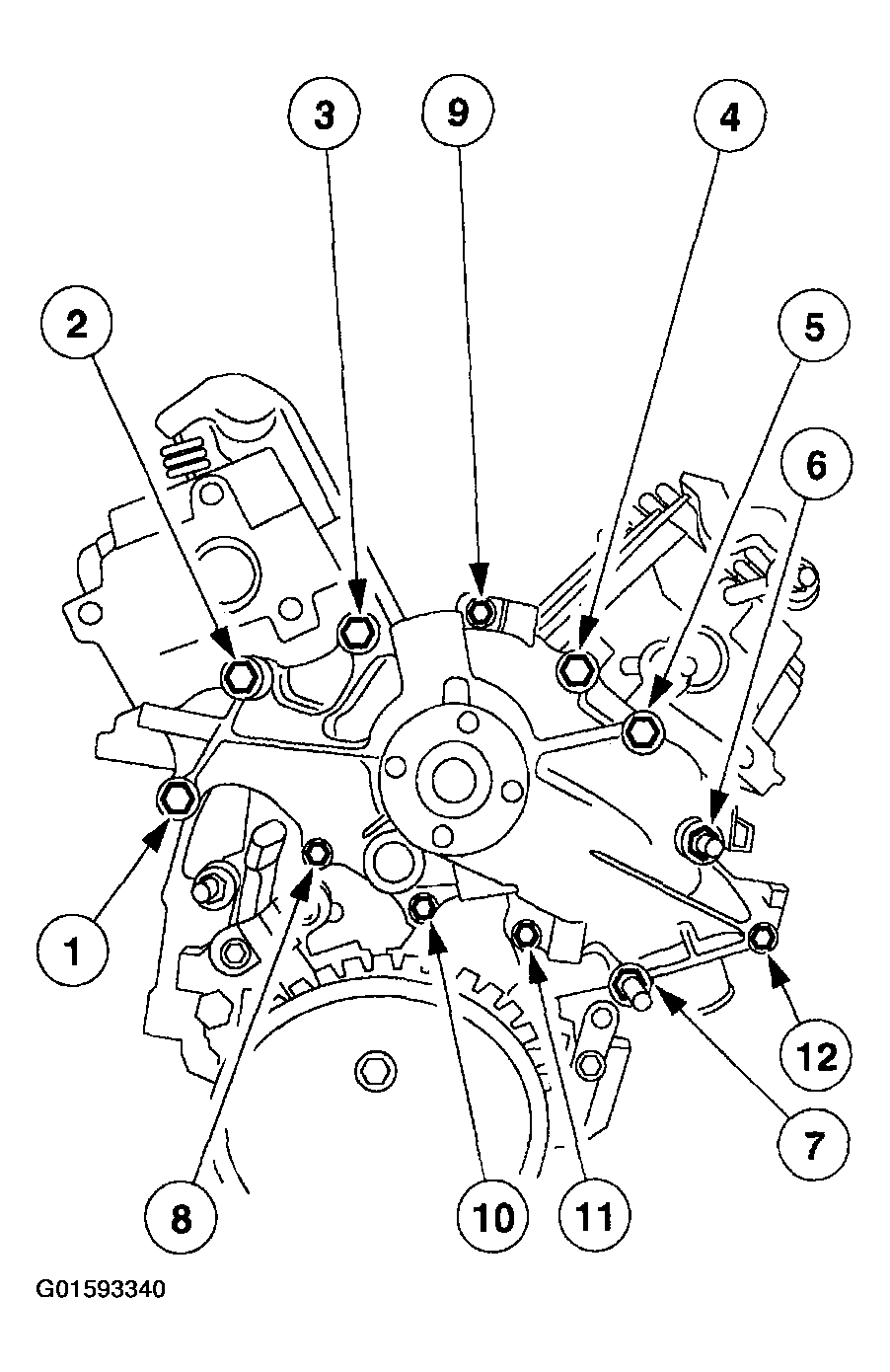

    Fig 1: Identifying Bolts Of Water Pump
    G01593340Courtesy of FORD MOTOR CO.
  2. Connect the crankshaft position sensor electrical connector and the water pump inlet hose.

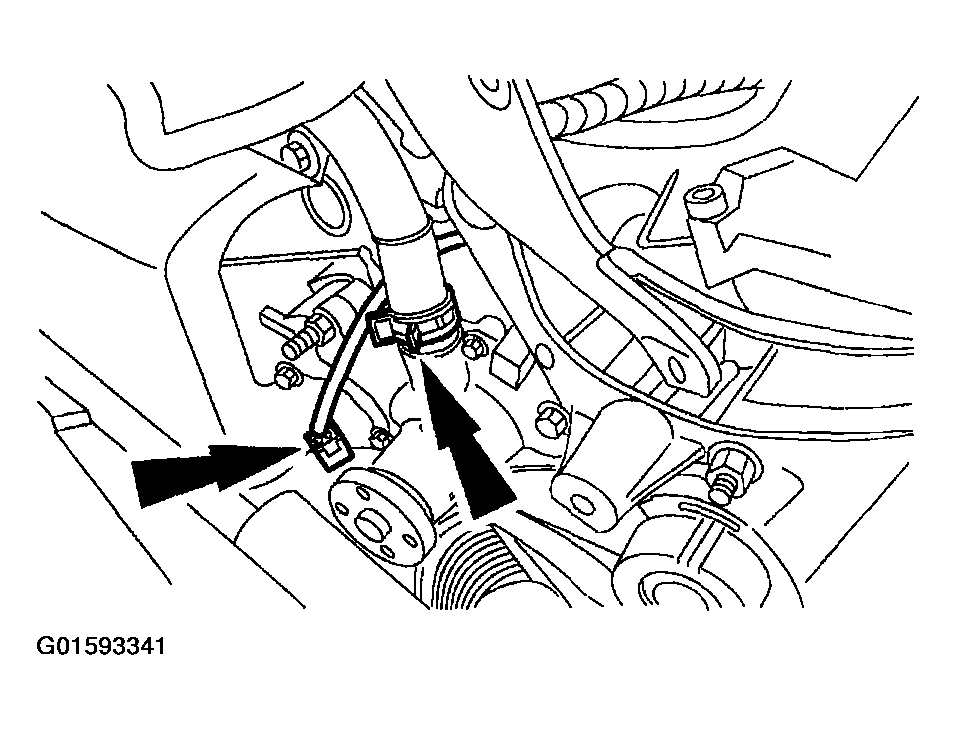

    Fig 2: Identifying Sensor Electrical Connector And Water Pump Inlet Hose
    G01593341Courtesy of FORD MOTOR CO.
  3. Install the support bracket, the nut and the bolt.

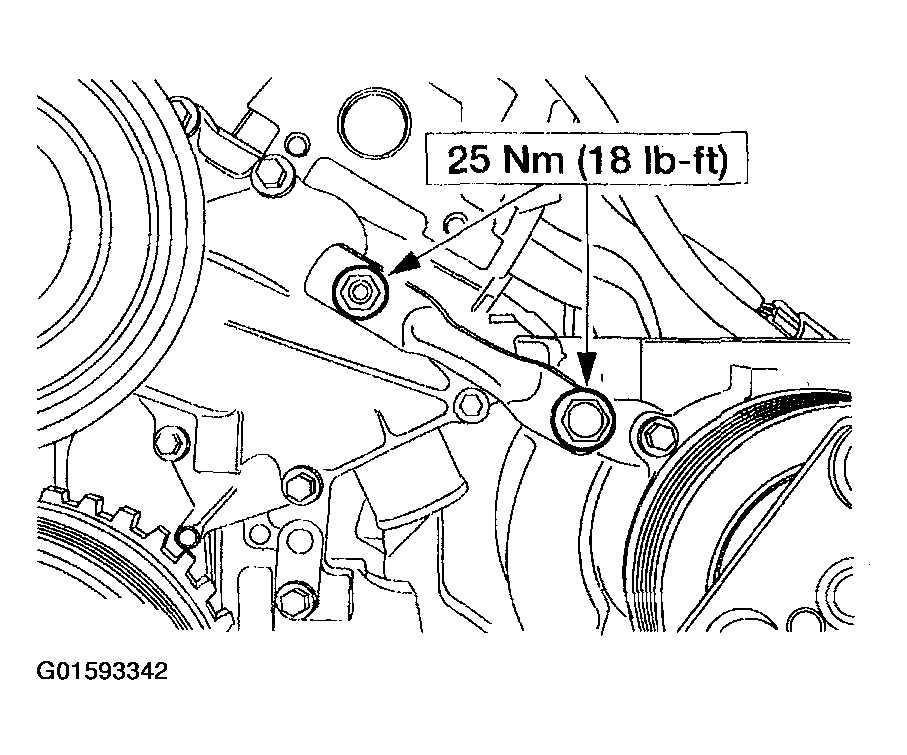

    Fig 3: Identifying Support Bracket, Nut And Bolt
    G01593342Courtesy of FORD MOTOR CO.
  4. Install the accessory drive belt tensioner and the bolt.

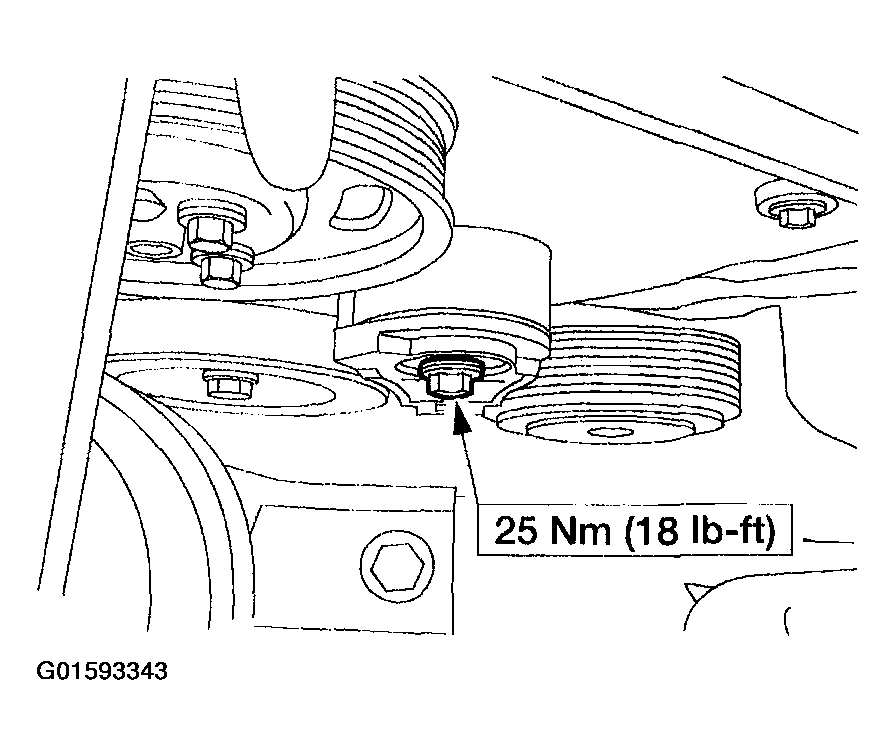

    Fig 4: Identifying Accessory Drive Belt Tensioner And Bolt
    G01593343Courtesy of FORD MOTOR CO.
  5. Install the water pump pulley and the bolts.

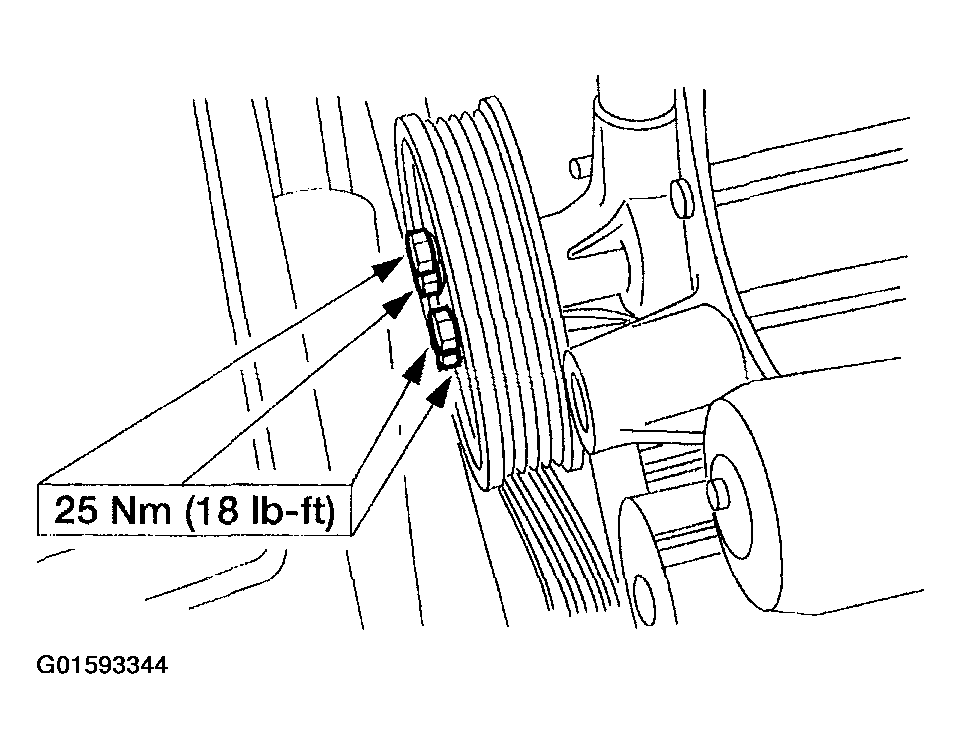

    Fig 5: Identifying Water Pump Pulley And Bolts
    G01593344Courtesy of FORD MOTOR CO.
  6. Install the roll restrictor bracket, the bolt and the nut. Do not tighten at this time.

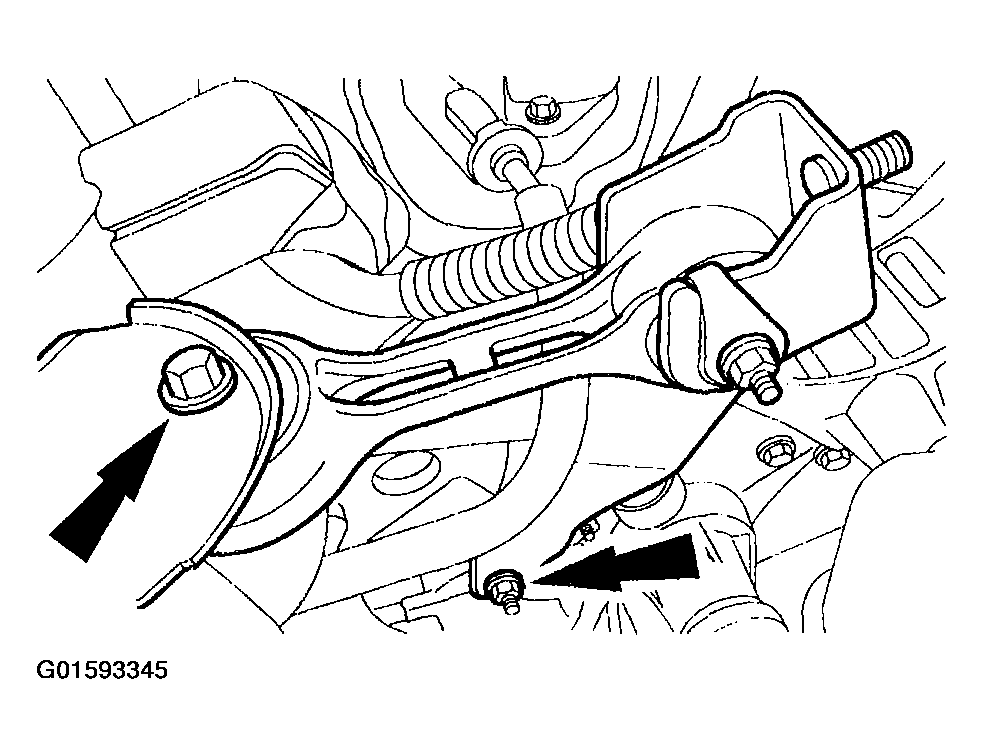

    Fig 6: Identifying Roll Restrictor Bracket, Bolt And Nut
    G01593345Courtesy of FORD MOTOR CO.
  7. Install the generator and the mounting bolt. Do not tighten at this time.

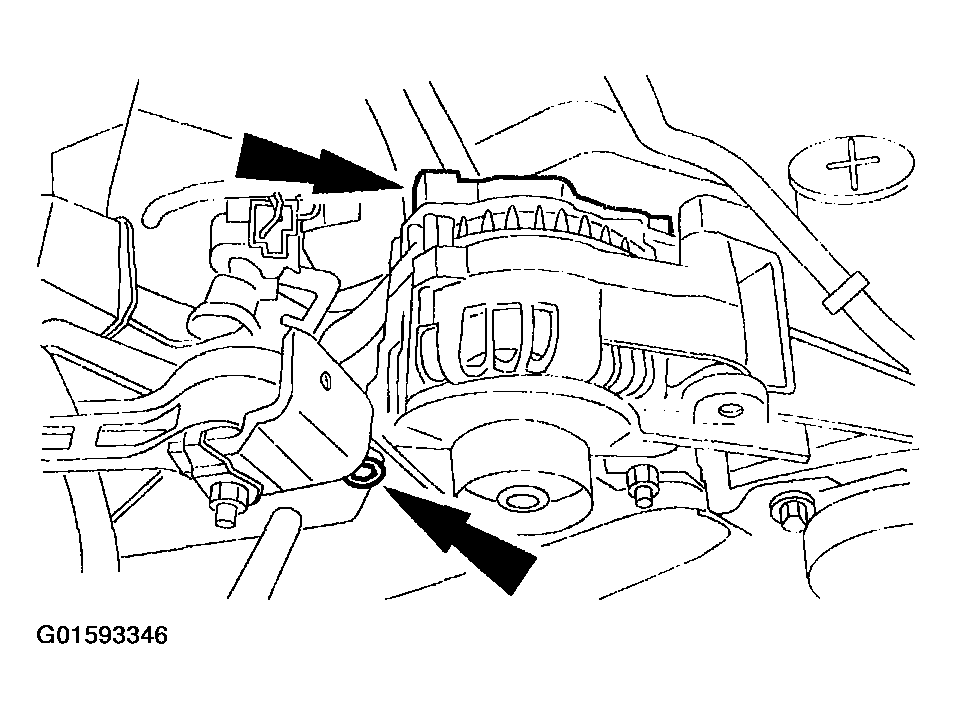

    Fig 7: Identifying Generator And Mounting Bolt
    G01593346Courtesy of FORD MOTOR CO.
  8. Install the generator brace, the nut and the bolt.

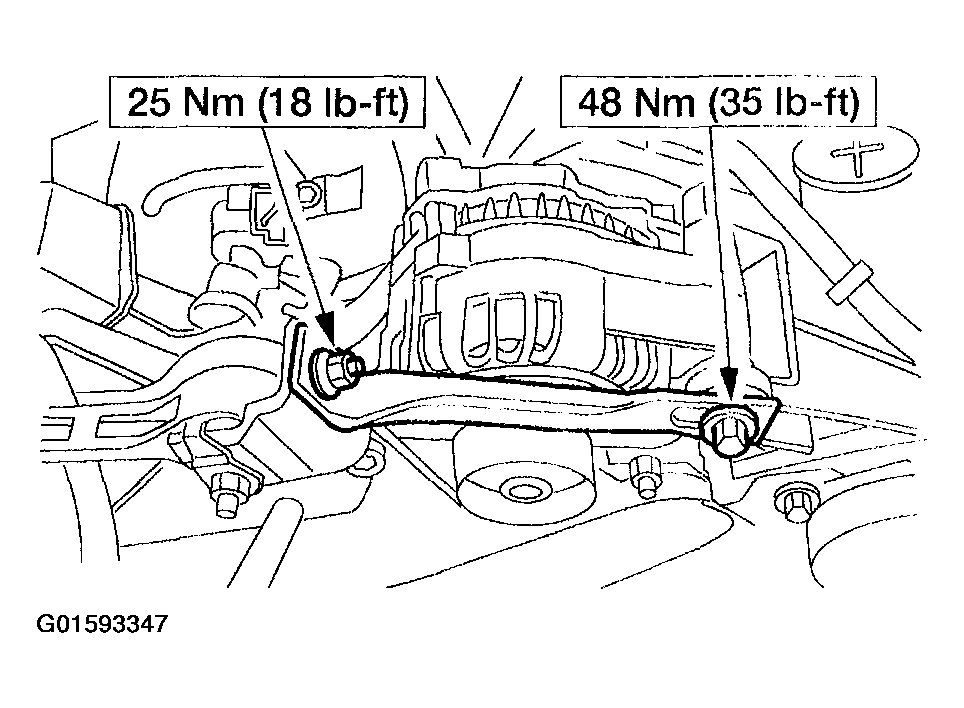

    Fig 8: Identifying Generator Brace, Nut And Bolt
    G01593347Courtesy of FORD MOTOR CO.
  9. Tighten the generator lower mounting bolt.

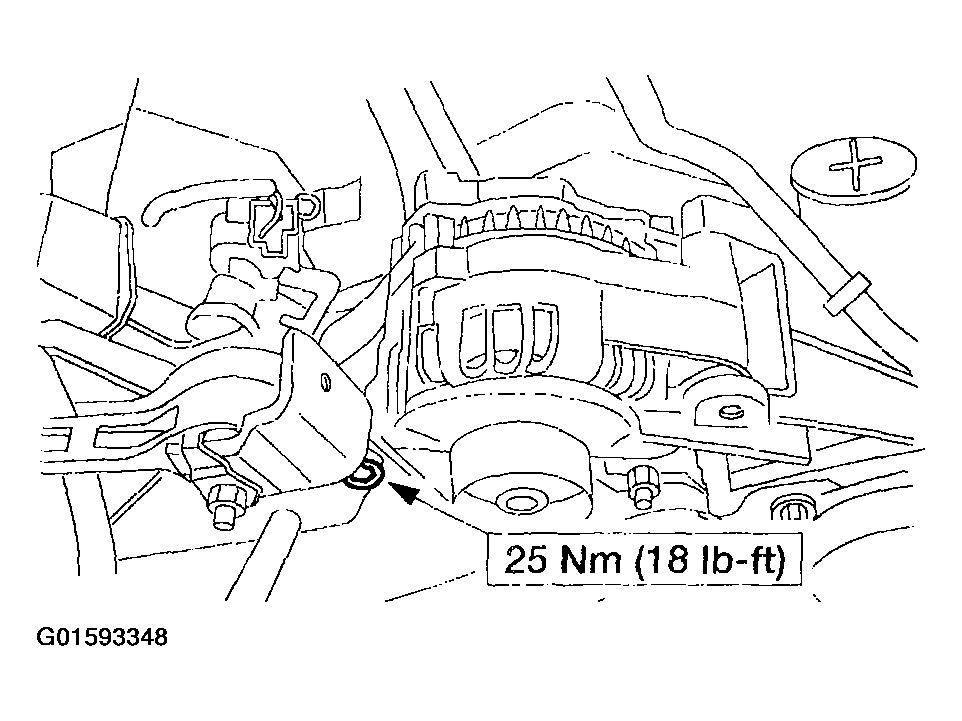

    Fig 9: Identifying Generator Lower Mounting Bolt
    G01593348Courtesy of FORD MOTOR CO.
  10. Tighten the roll restrictor bracket bolt and nut.

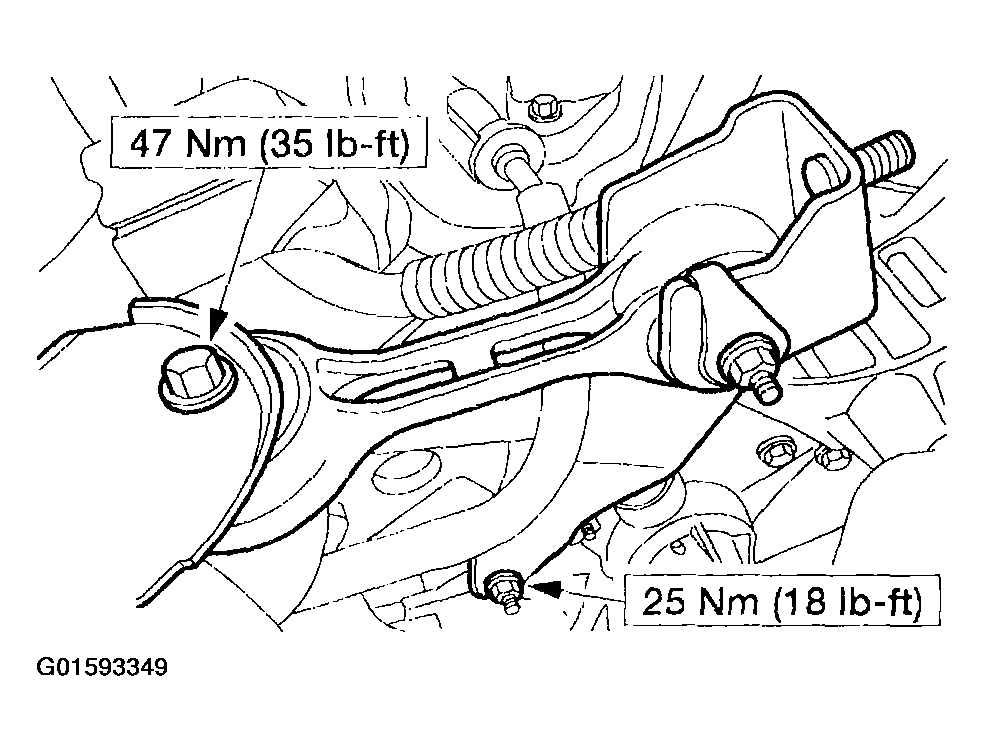

    Fig 10: Identifying Roll Restrictor Bracket Bolt And Nut
    G01593349Courtesy of FORD MOTOR CO.
  11. Connect the generator electrical connectors.
    1. Connect the B+ cable.
    2. Connect the voltage regulator electrical connector.

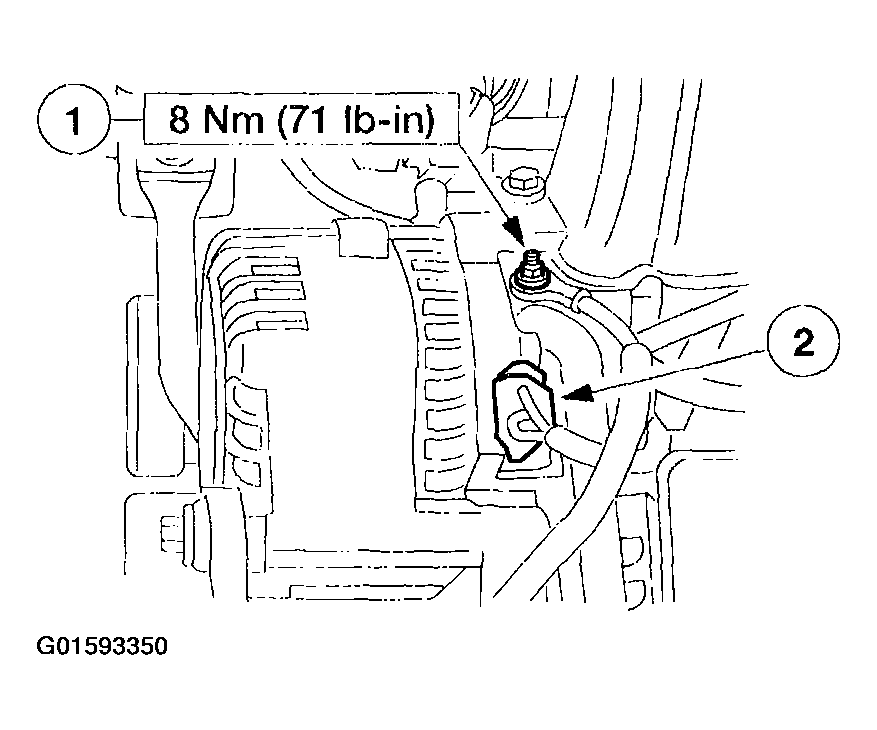

    Fig 11: Identifying Generator Electrical Connectors
    G01593350Courtesy of FORD MOTOR CO.
  12. Install the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  13. Install the degas bottle. For additional information, refer to DEGAS BOTTLE .
  14. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  15. Fill the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
