Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the front splash shield. For additional information, refer to FRONT END BODY PANELS .
Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

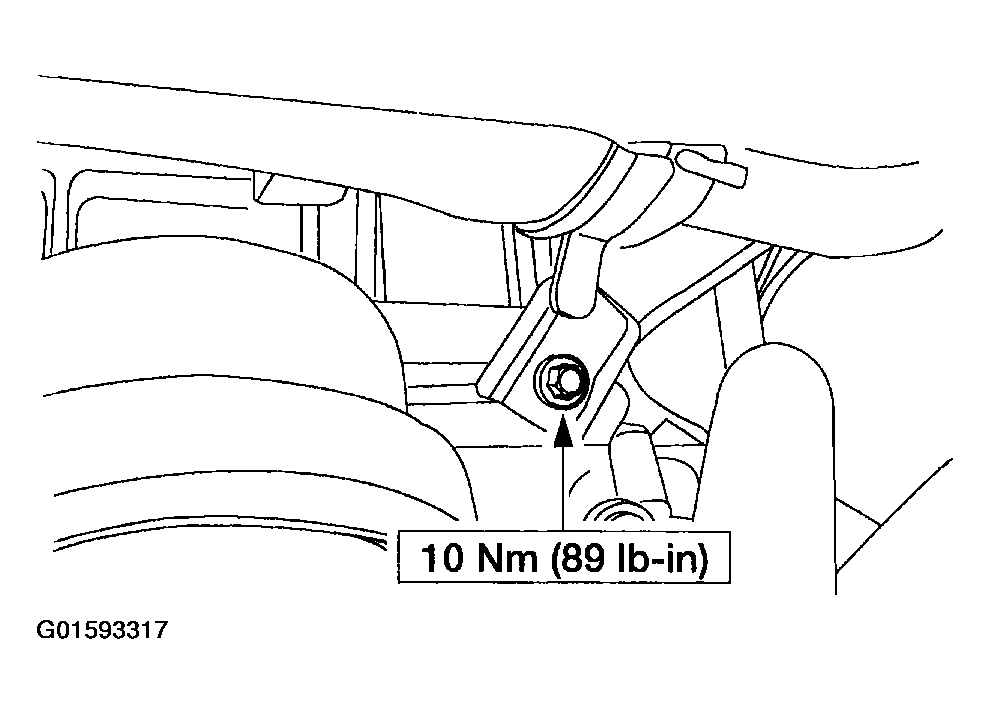

Remove the cooling tube bolt.

Fig 1: Identifying Cooling Tube Bolt
Courtesy of FORD MOTOR CO.
Lower the vehicle.

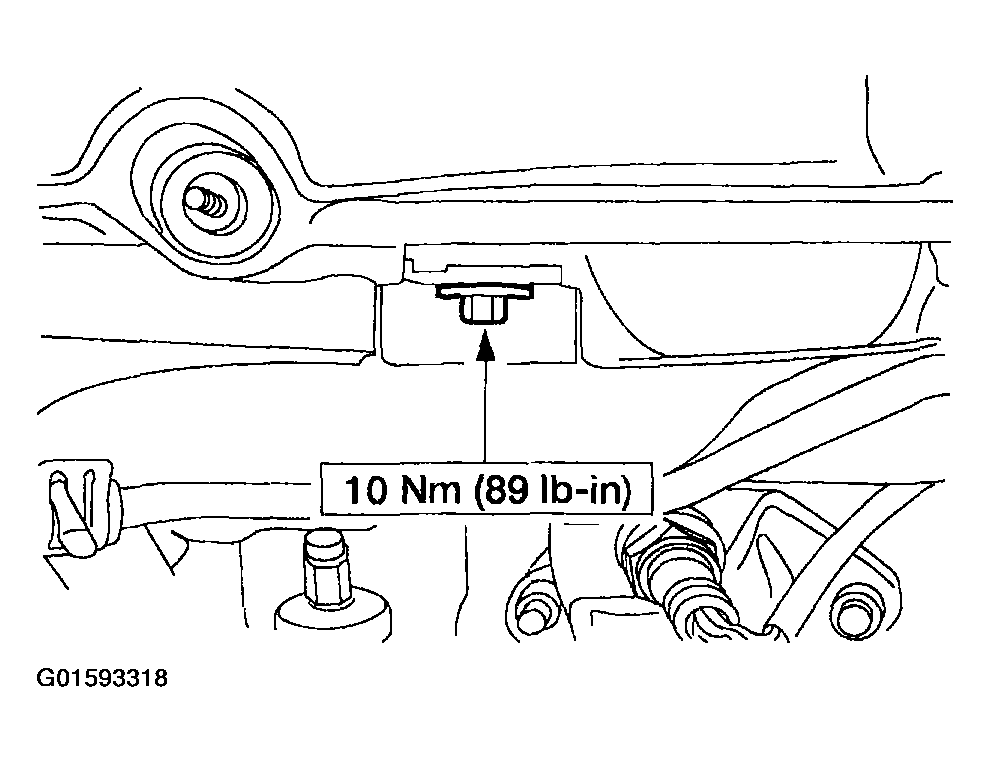

Remove the radiator upper cooling tube bolt.

Fig 2: Identifying Radiator Upper Cooling Tube Bolt
Courtesy of FORD MOTOR CO.

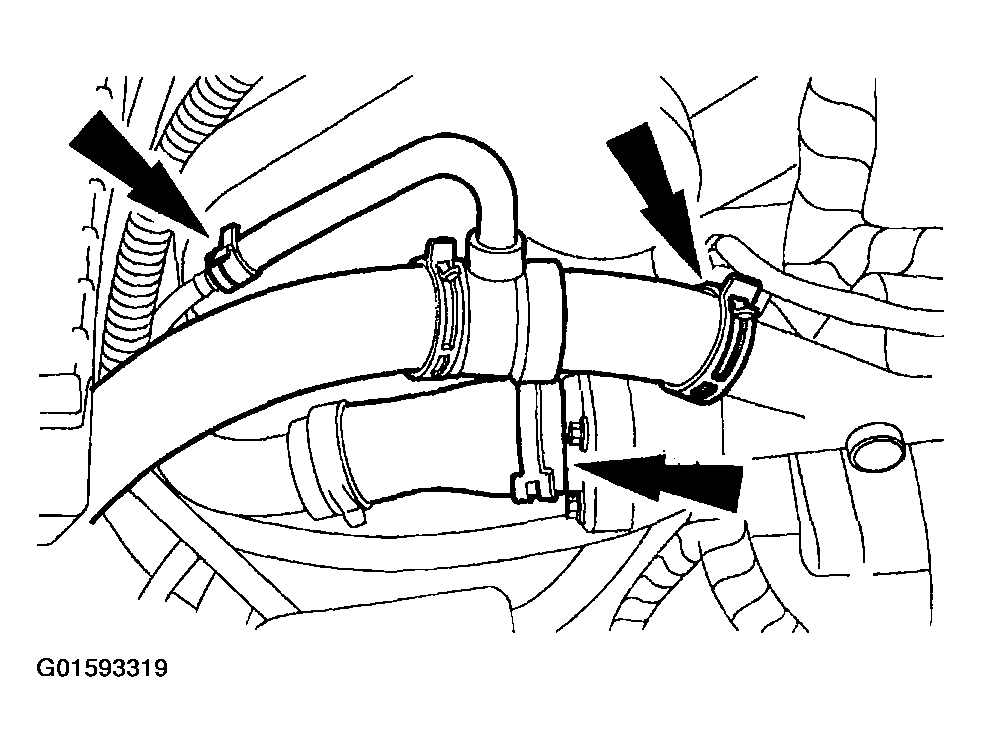

Disconnect the upper radiator hose, engine vent hose and thermostat housing hose.

Fig 3: Identifying Upper Radiator Hose, Engine Vent Hose And Thermostat Housing Hose
Courtesy of FORD MOTOR CO.

NOTE: Battery removed for clarity.

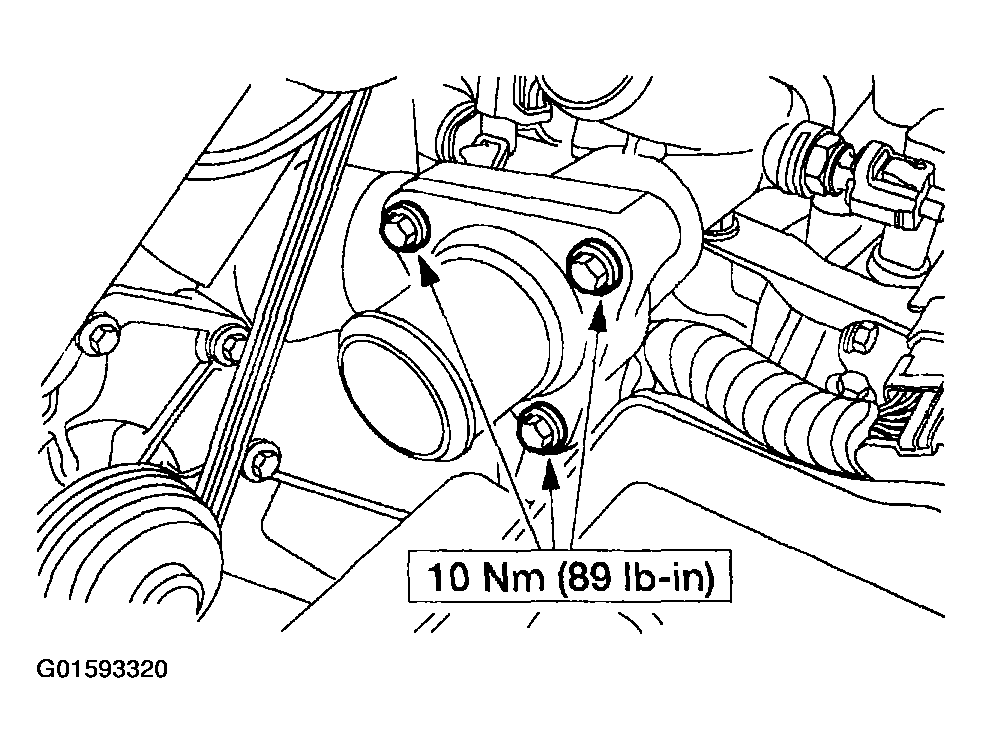

Fig 4: Identifying Bolts And Thermostat Housing

Courtesy of FORD MOTOR CO.

Remove the three bolts, and separate the thermostat housing. Remove the thermostat and the O-ring. Discard the O-ring.
To install, reverse the removal procedure.
- Clean all sealing surfaces.
