Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the three thermostat housing bolts.

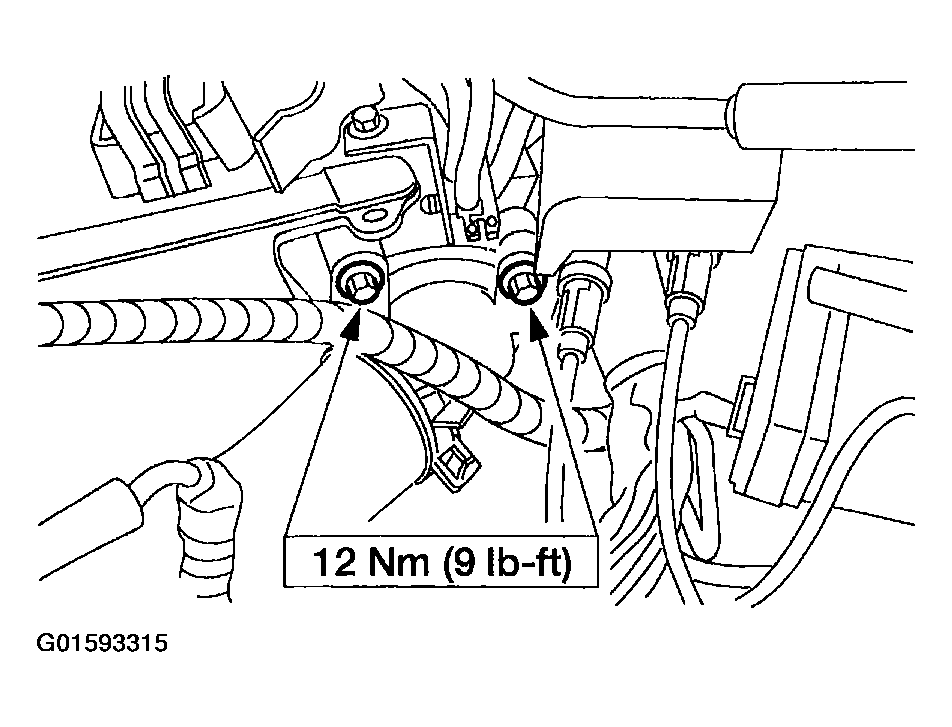

Fig 1: Identifying Thermostat Housing Bolts
Courtesy of FORD MOTOR CO.
Remove the thermostat O-ring seal.
- Inspect the sealing surfaces.

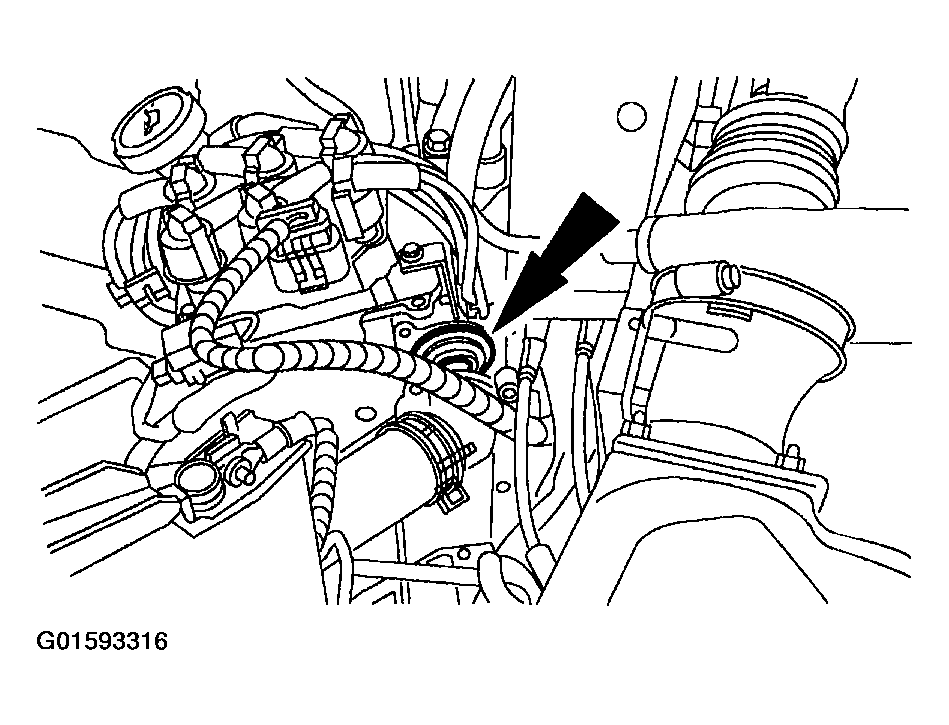

Fig 2: Identifying Thermostat O-Ring Seal
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
