Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the front splash shield. For additional information, refer to FRONT END BODY PANELS .
Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Disconnect the lower radiator hose and the reservoir supply hose, and remove the radiator lower tube bolt.

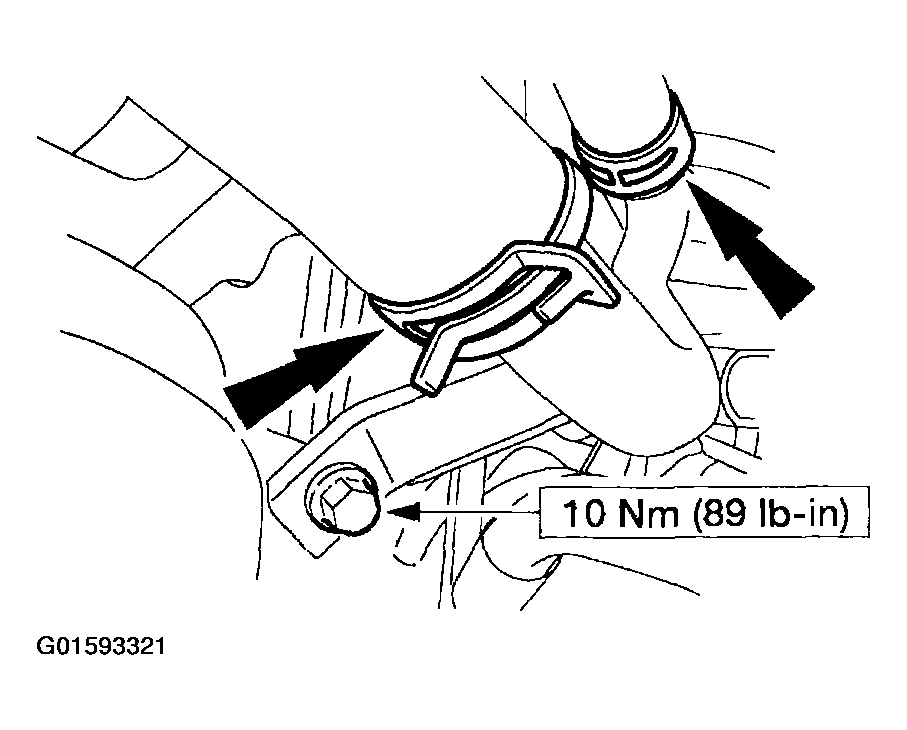

Fig 1: Identifying Radiator Lower Tube Bolt
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Release the tabs on the power distribution box and position aside.

Fig 2: Identifying Tabs Of Power Distribution Box
Courtesy of FORD MOTOR CO.
Disconnect the oxygen sensor connector retainer and harness pin-type retainer.

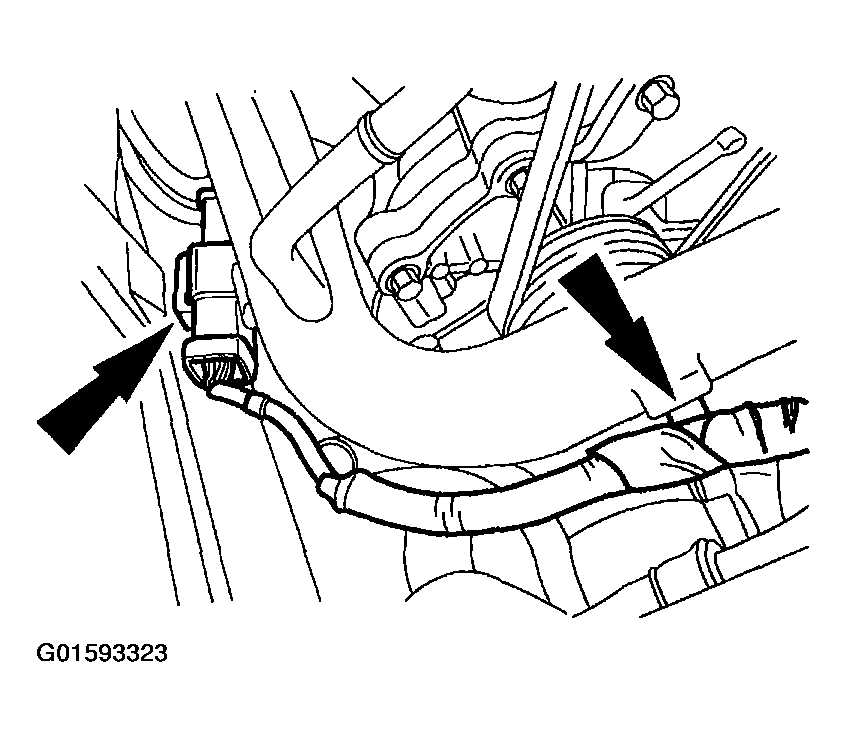

Fig 3: Disconnecting Oxygen Sensor Connector Retainer And Harness Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Remove the radiator upper tube bolt, and disconnect the radiator vent tube.

Fig 4: Removing Radiator Upper Tube Bolt
Courtesy of FORD MOTOR CO.
Remove the radiator tube assembly.
1. Disconnect the upper radiator hose and the engine vent hose, and position aside.
2. Disconnect the radiator tube assembly and remove from the vehicle.

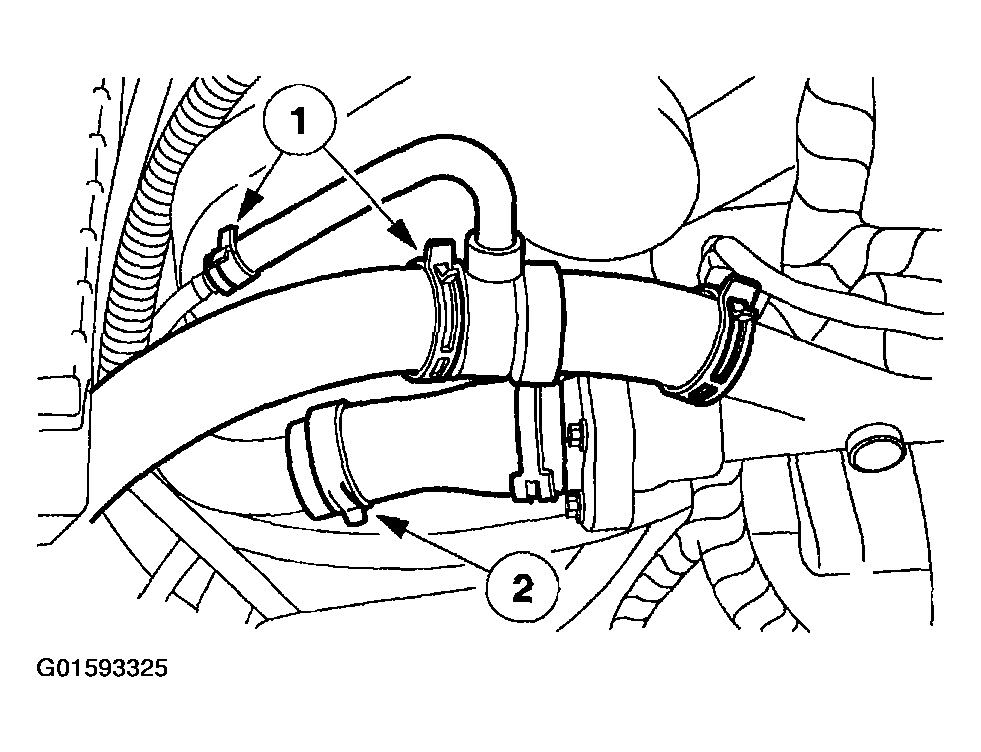

Fig 5: Identifying Radiator Tube Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
