Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Drain the coolant below the degas bottle. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Disconnect the hoses.

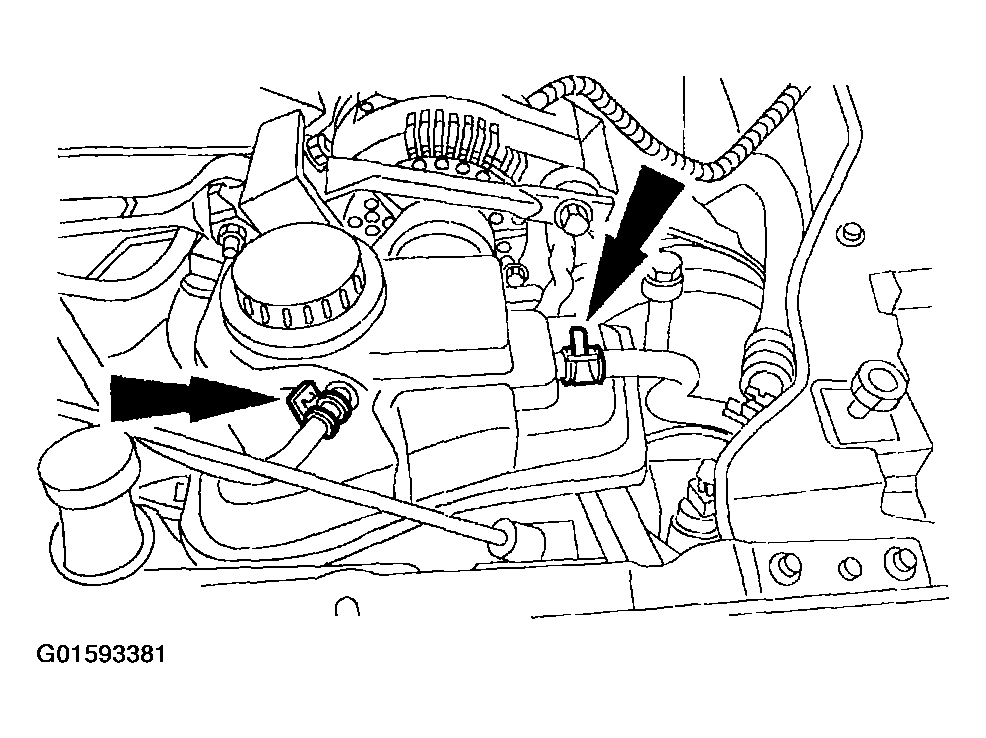

Fig 1: Identifying Clamp Of Hoses
Courtesy of FORD MOTOR CO.
Remove the bolt and the nut, remove the degas bottle.

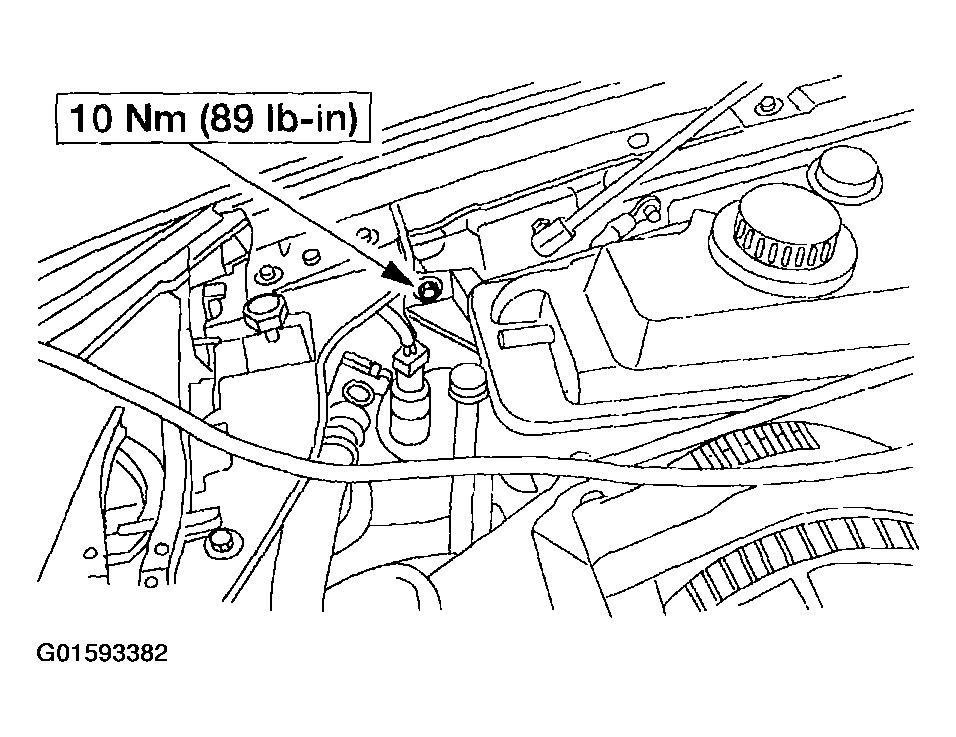

Fig 2: Identifying Bolt And Nut Of Degas Bottle
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
