Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

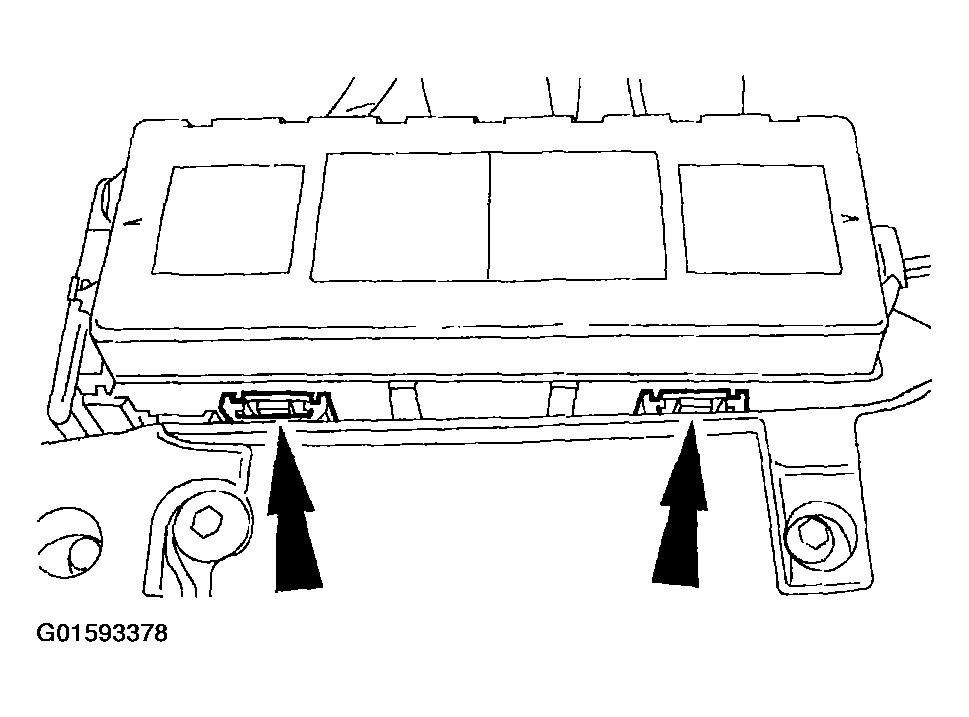

Fig 1: Identifying Distribution Box And Position Aside

Courtesy of FORD MOTOR CO.

Remove the distribution box and position aside.
Disconnect the fan electrical connector.

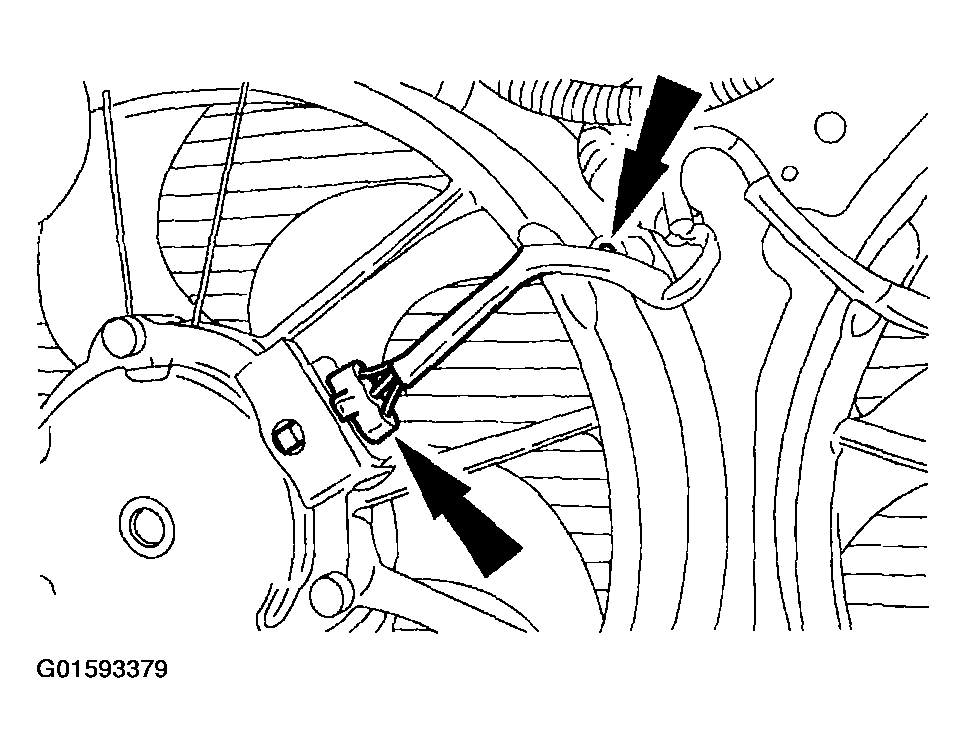

Fig 2: Identifying Fan Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolt and the electrical cooling fan.

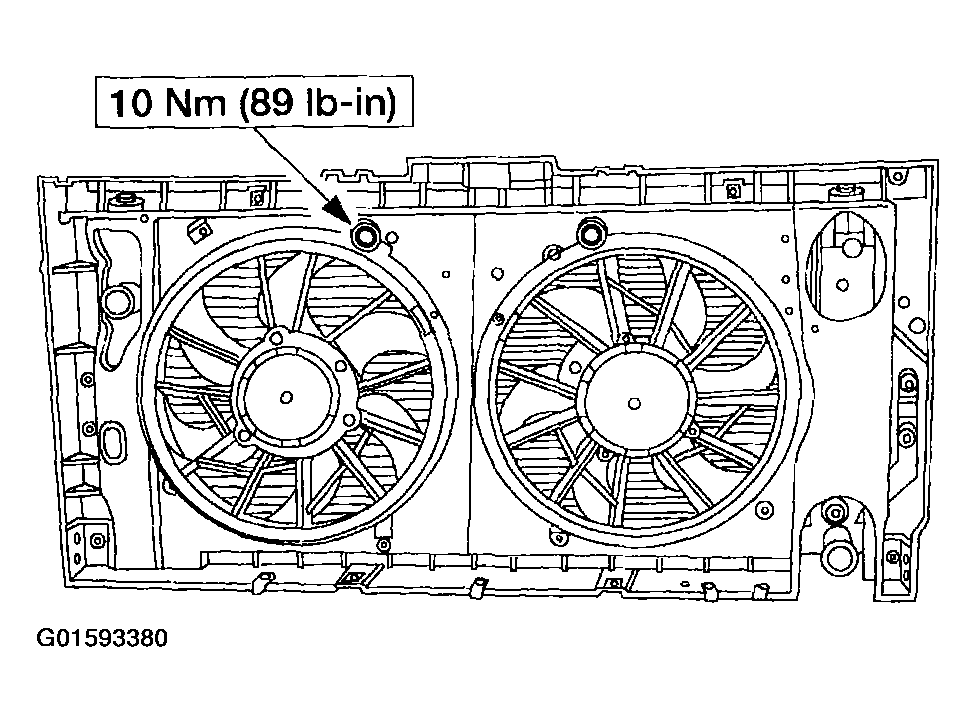

Fig 3: Identifying Bolt Of Electrical Cooling Fan
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
