WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

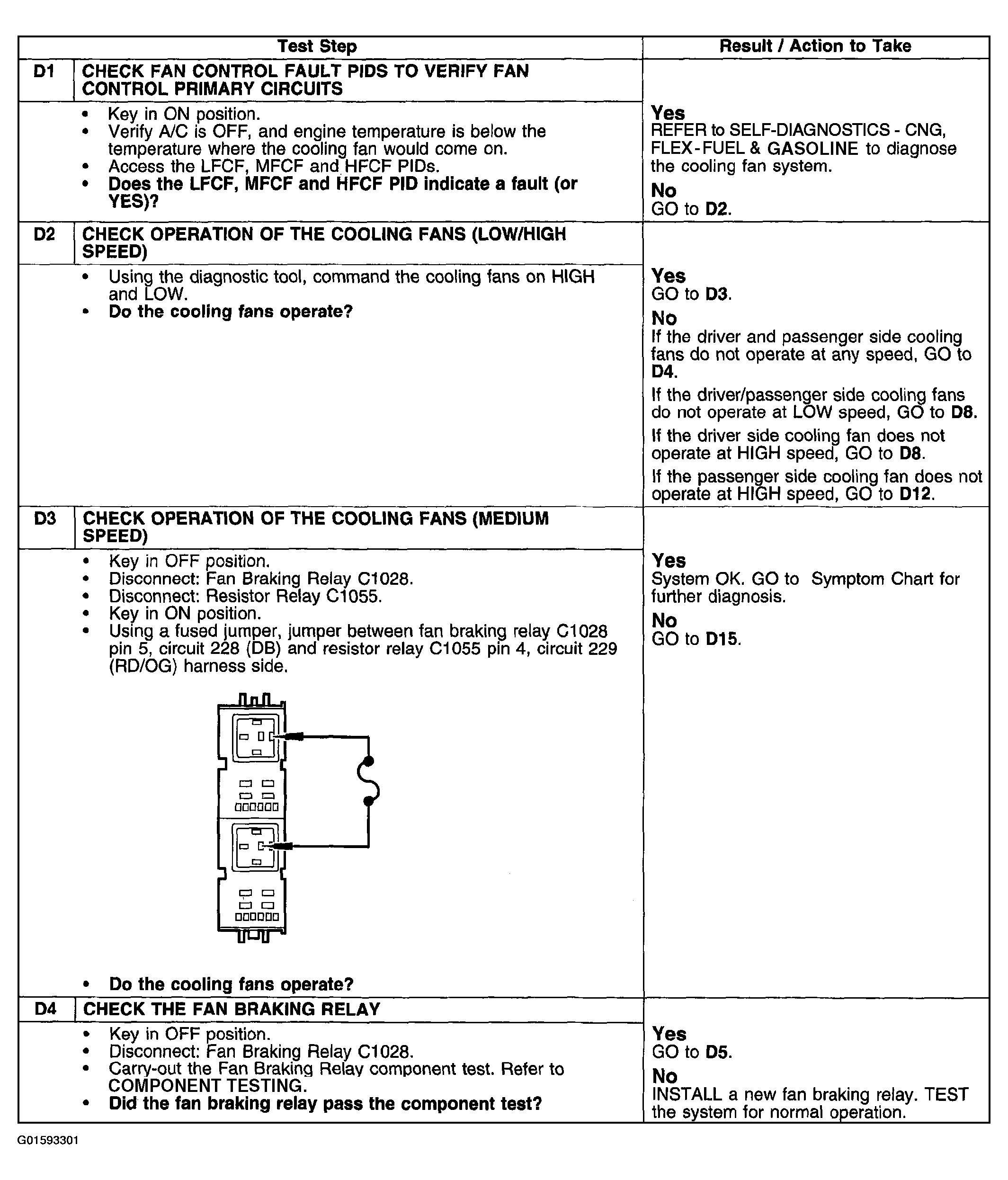

Fig 1: Pinpoint Test D: Cooling Fans Are Inoperative (Steps D1-D4)
Courtesy of FORD MOTOR CO.

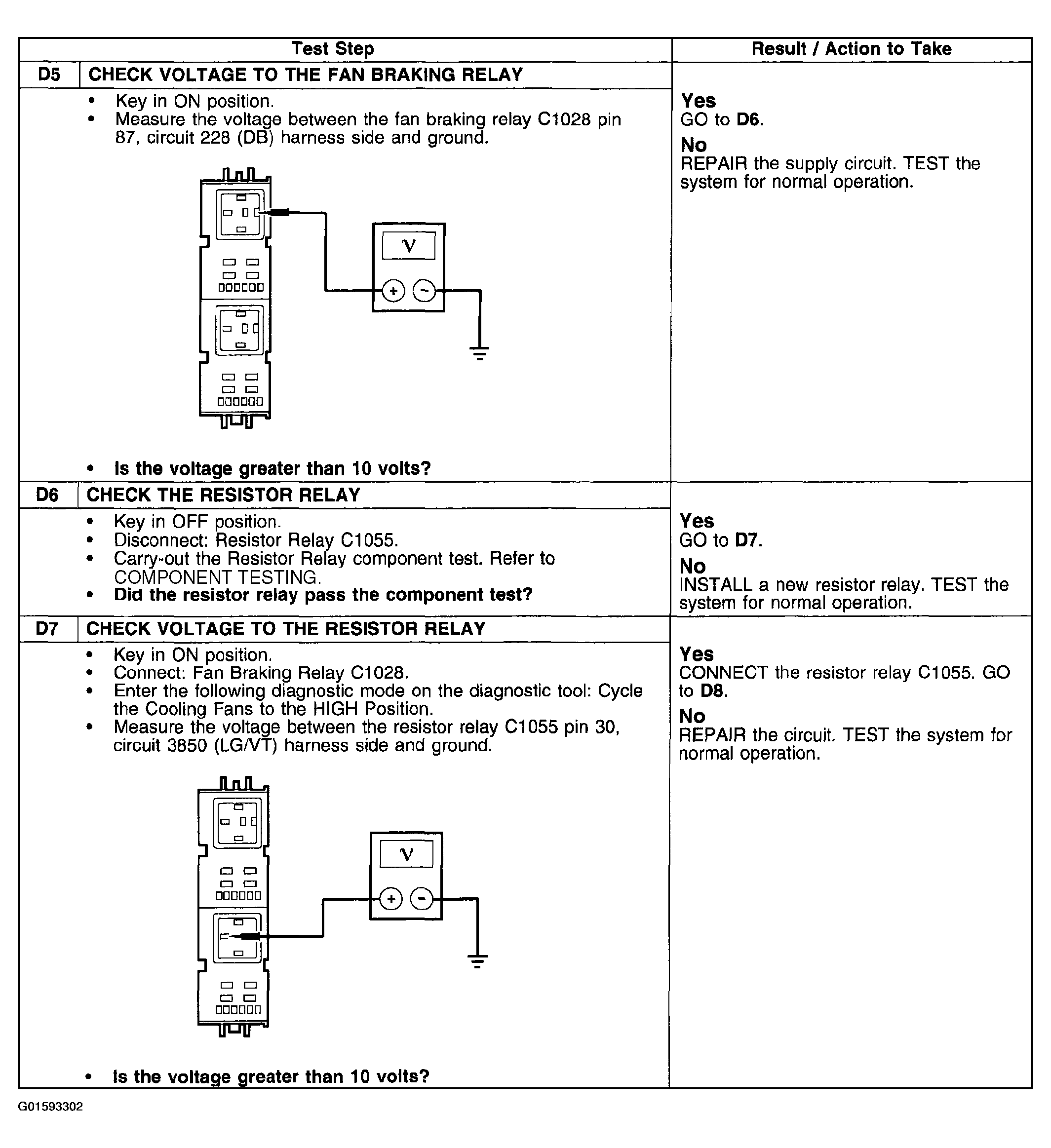

Fig 2: Pinpoint Test D: Cooling Fans Are Inoperative (Steps D5-D7)
Courtesy of FORD MOTOR CO.

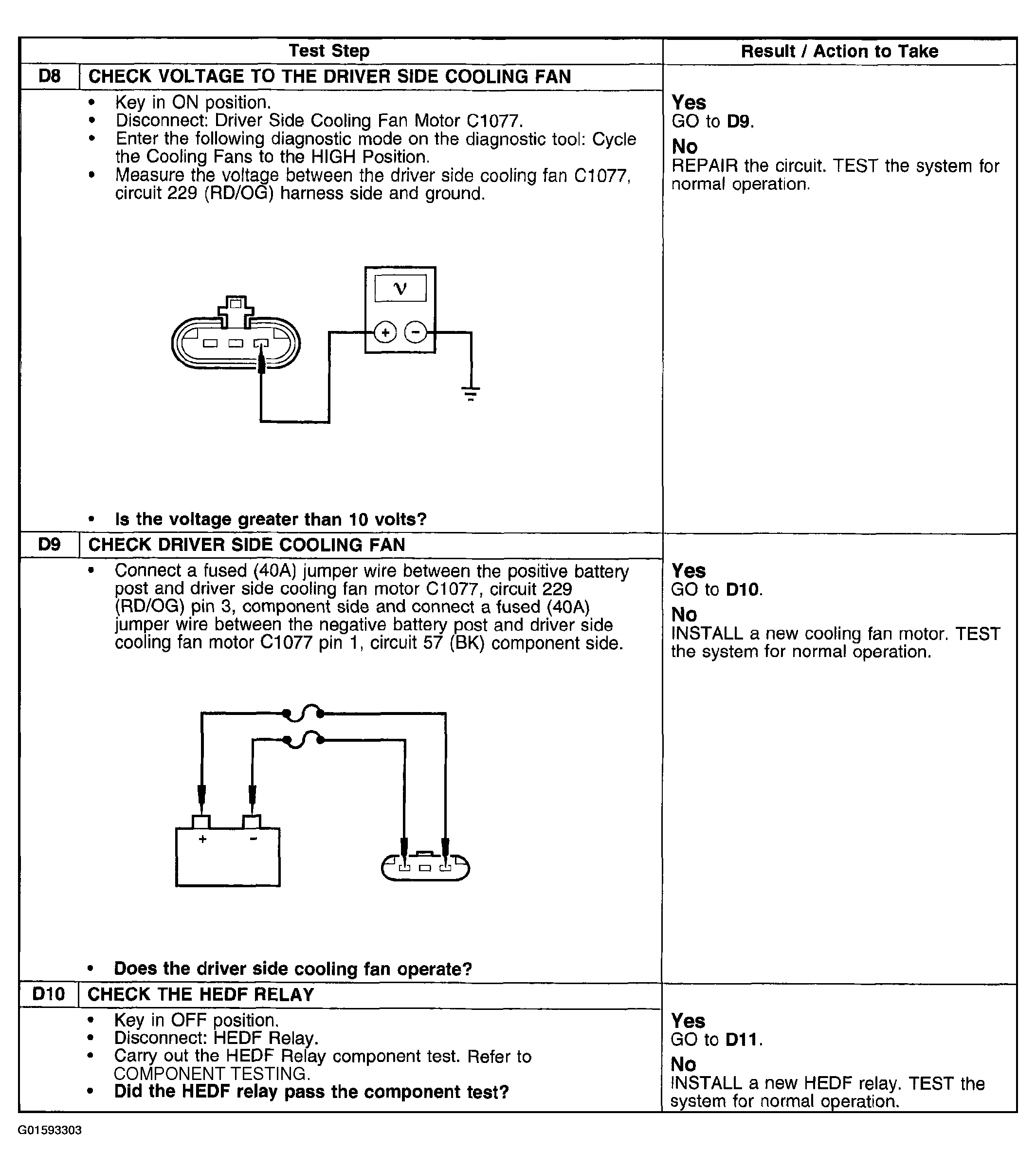

Fig 3: Pinpoint Test D: Cooling Fans Are Inoperative (Steps D8-D10)
Courtesy of FORD MOTOR CO.

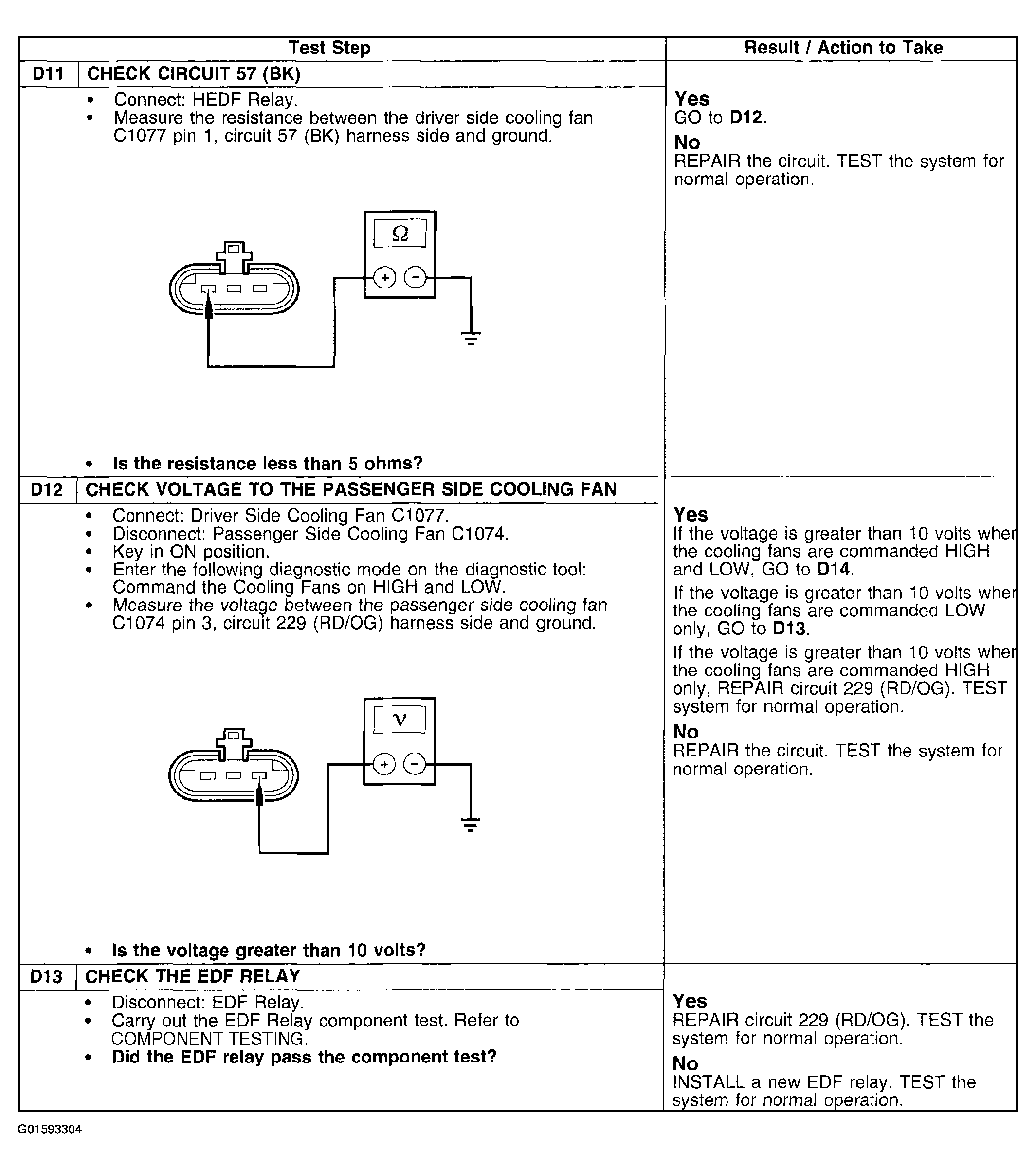

Fig 4: Pinpoint Test D: Cooling Fans Are Inoperative (Steps D11-D13)
Courtesy of FORD MOTOR CO.

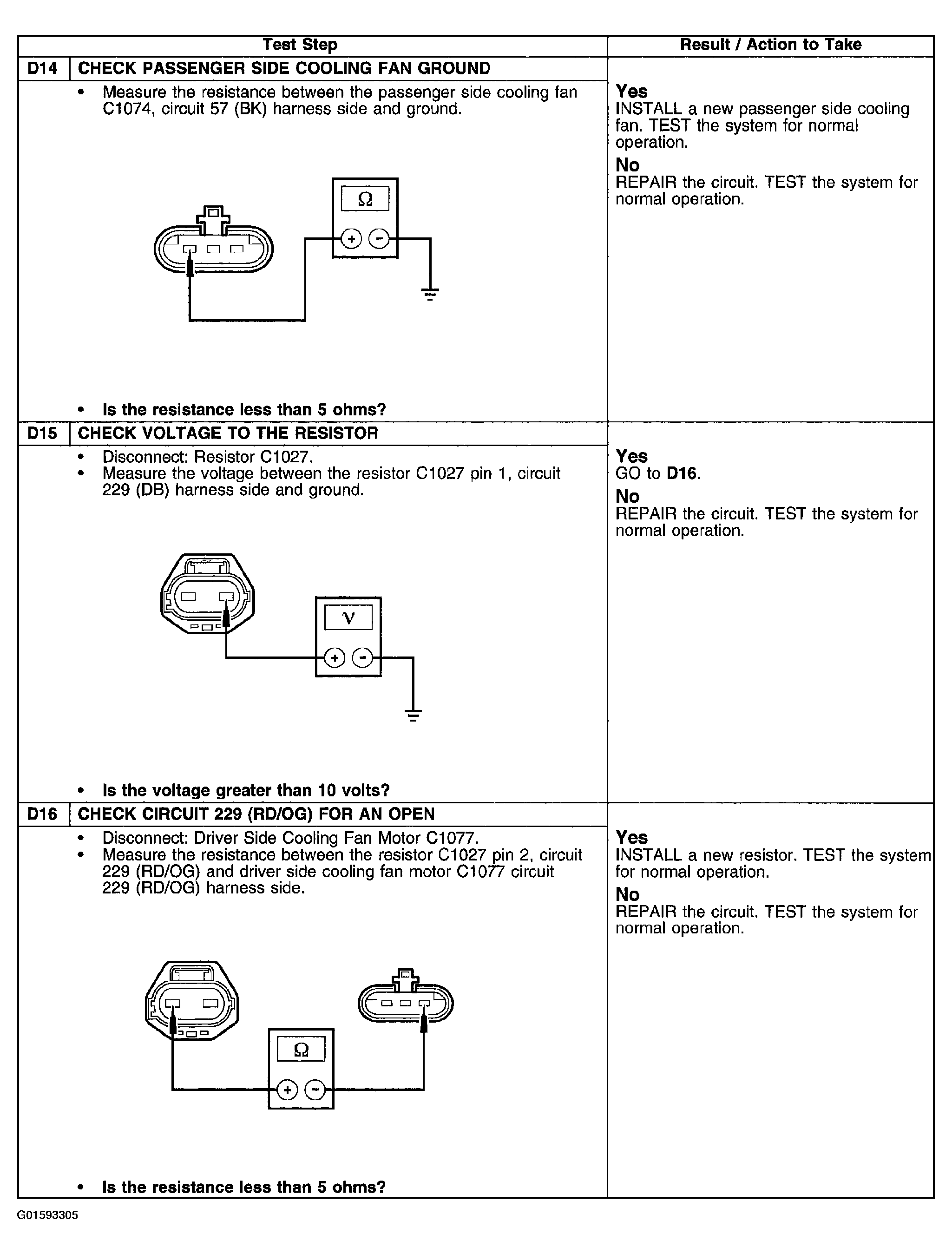

Fig 5: Pinpoint Test D: Cooling Fans Are Inoperative (Steps D14-D16)
